Footpeg Sliders – KTM SMR / Husqvarna FS

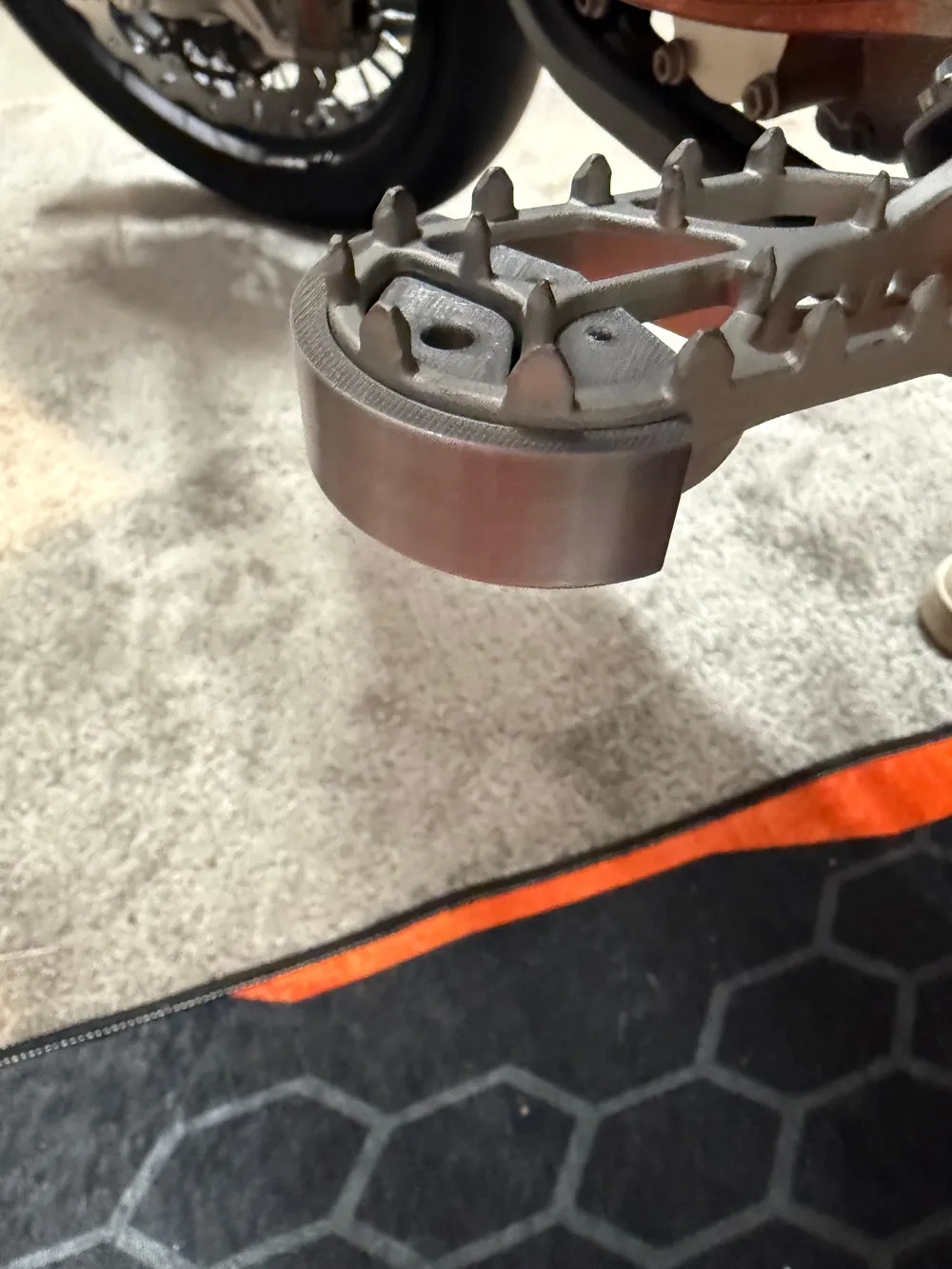

🏁 Footrest Grind Pads + Holder – KTM SMR / Husqvarna FS (from MY 2025)

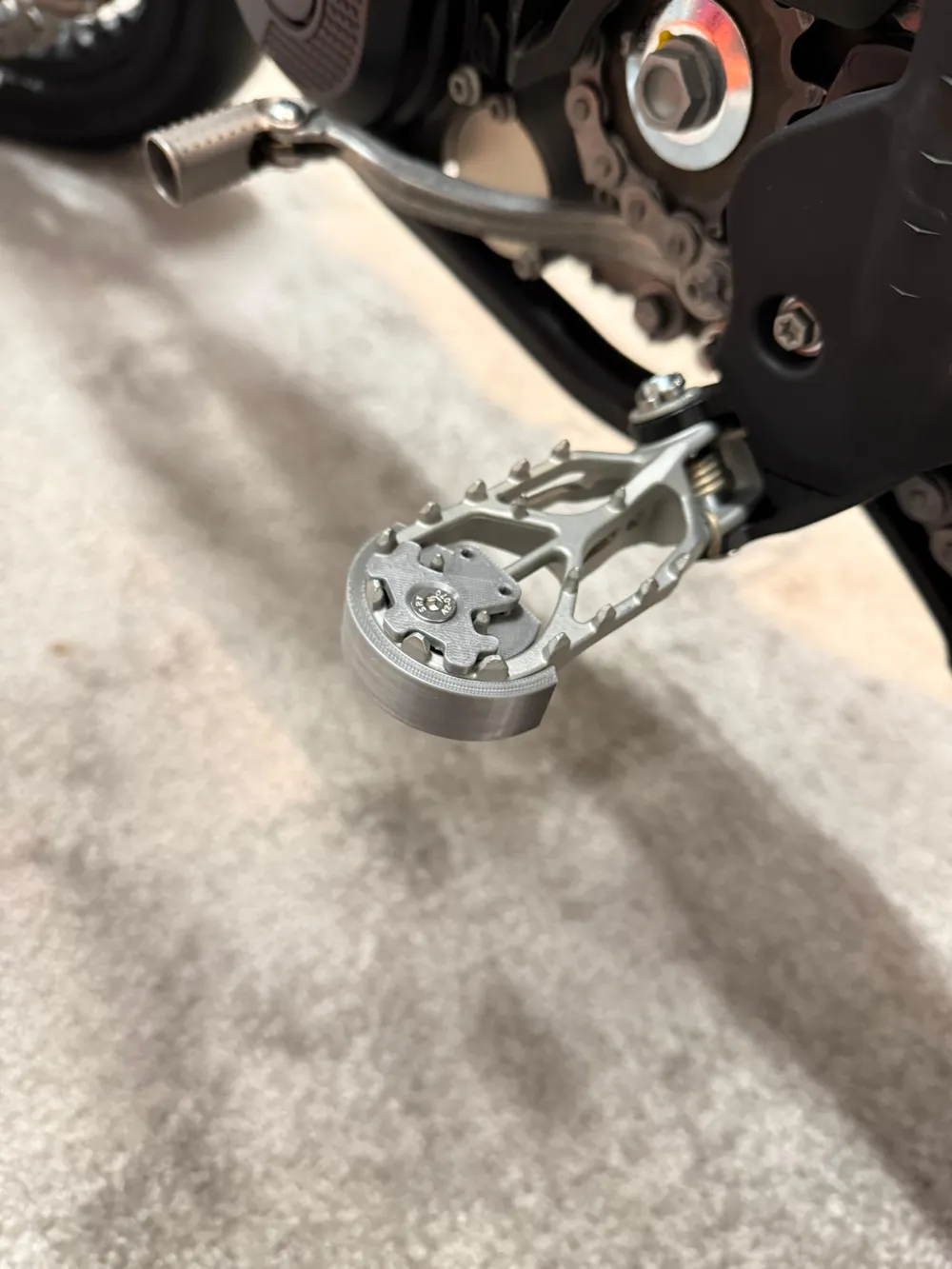

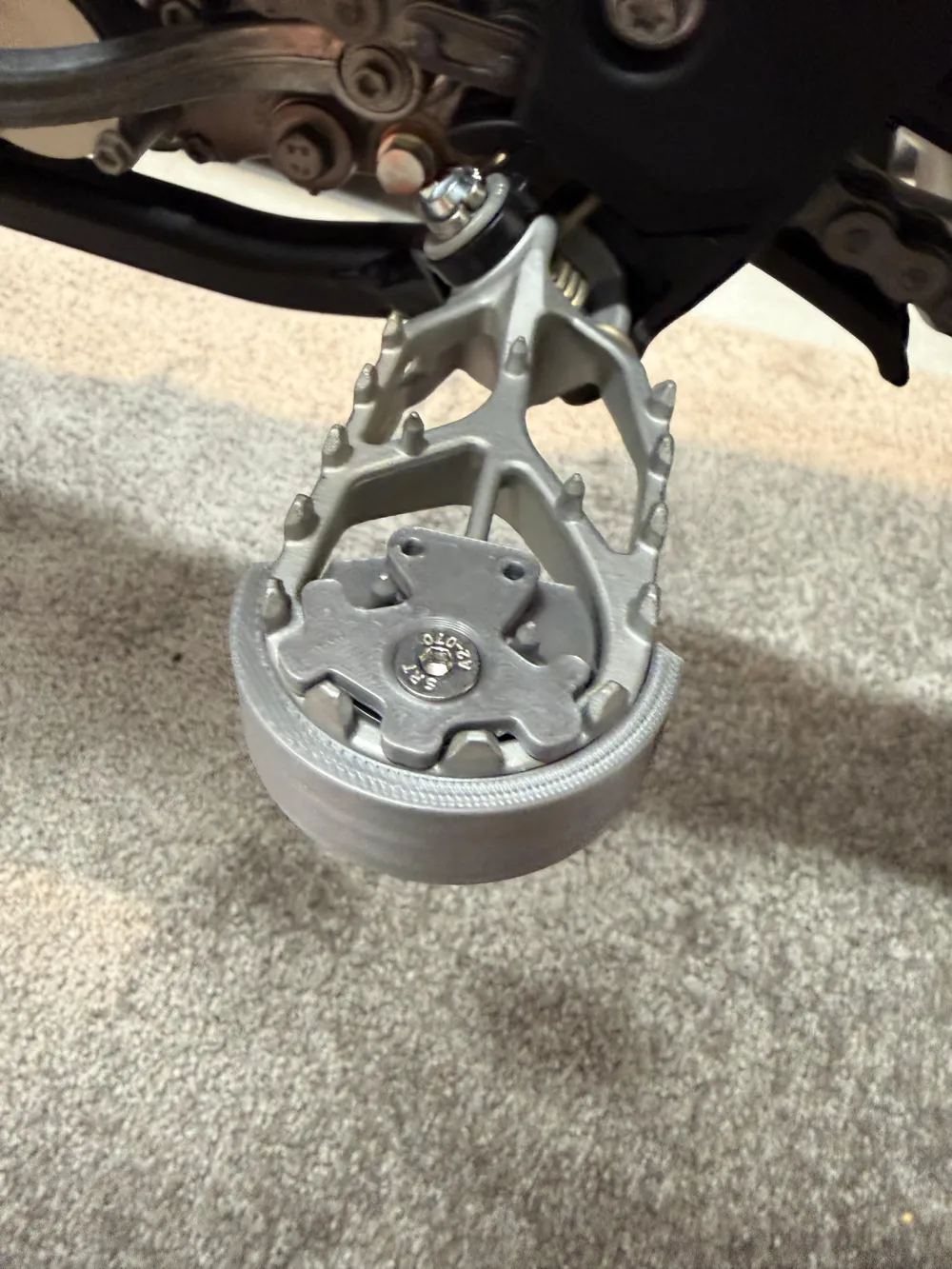

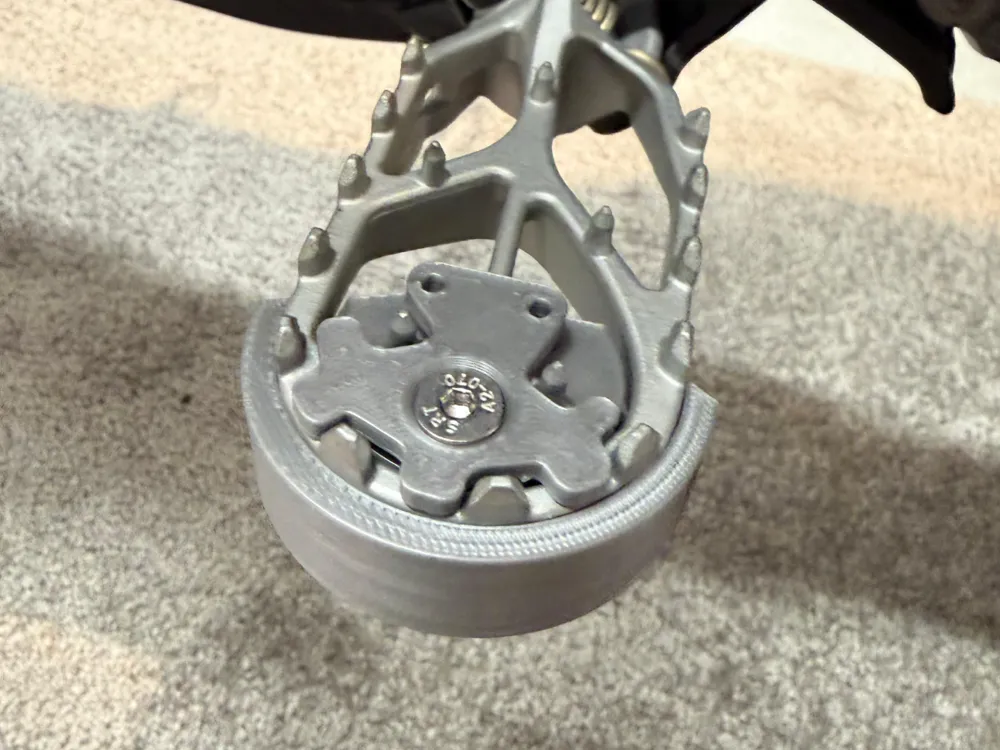

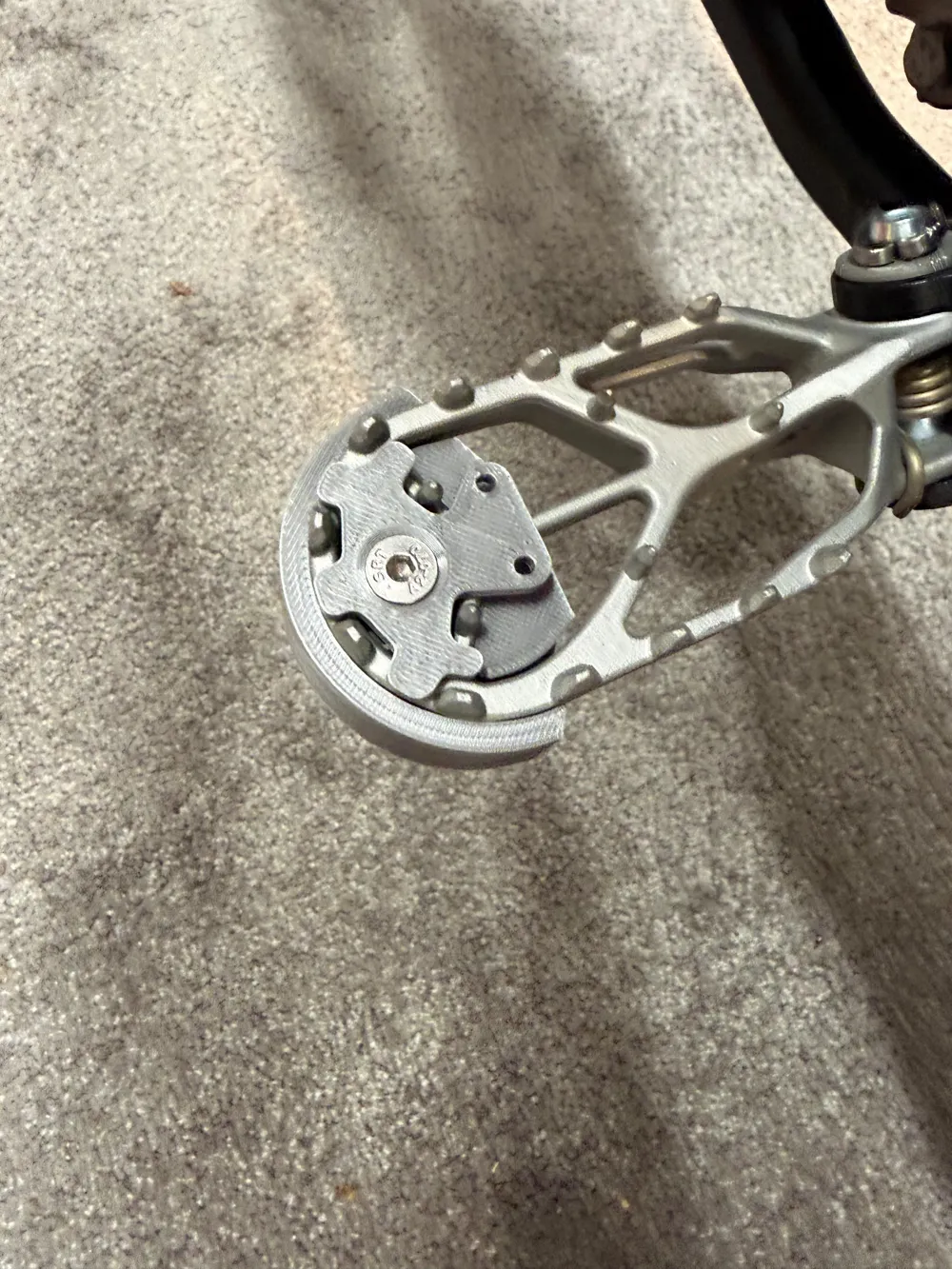

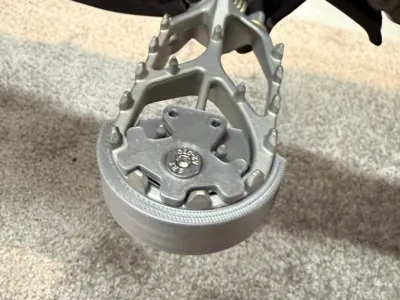

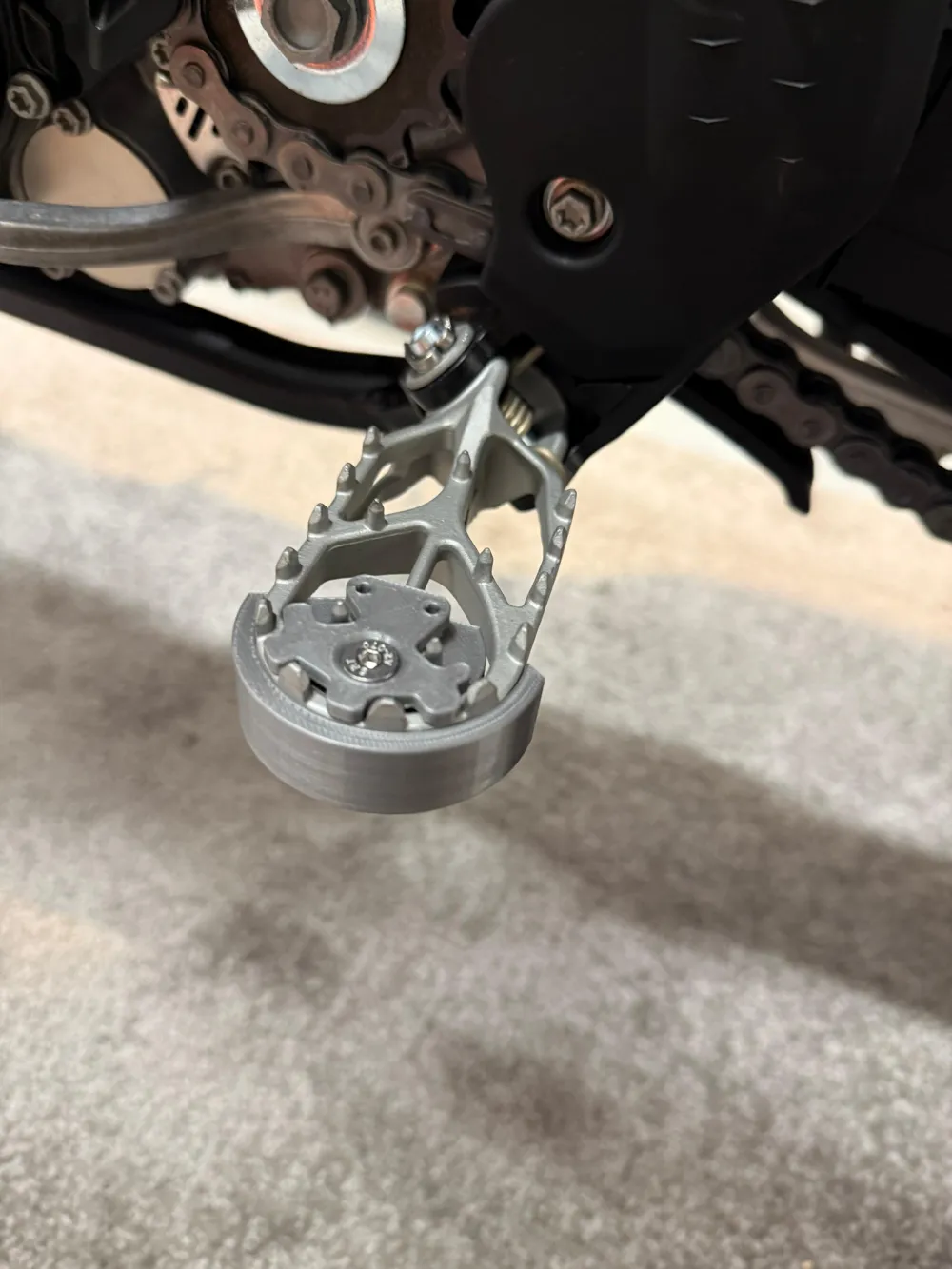

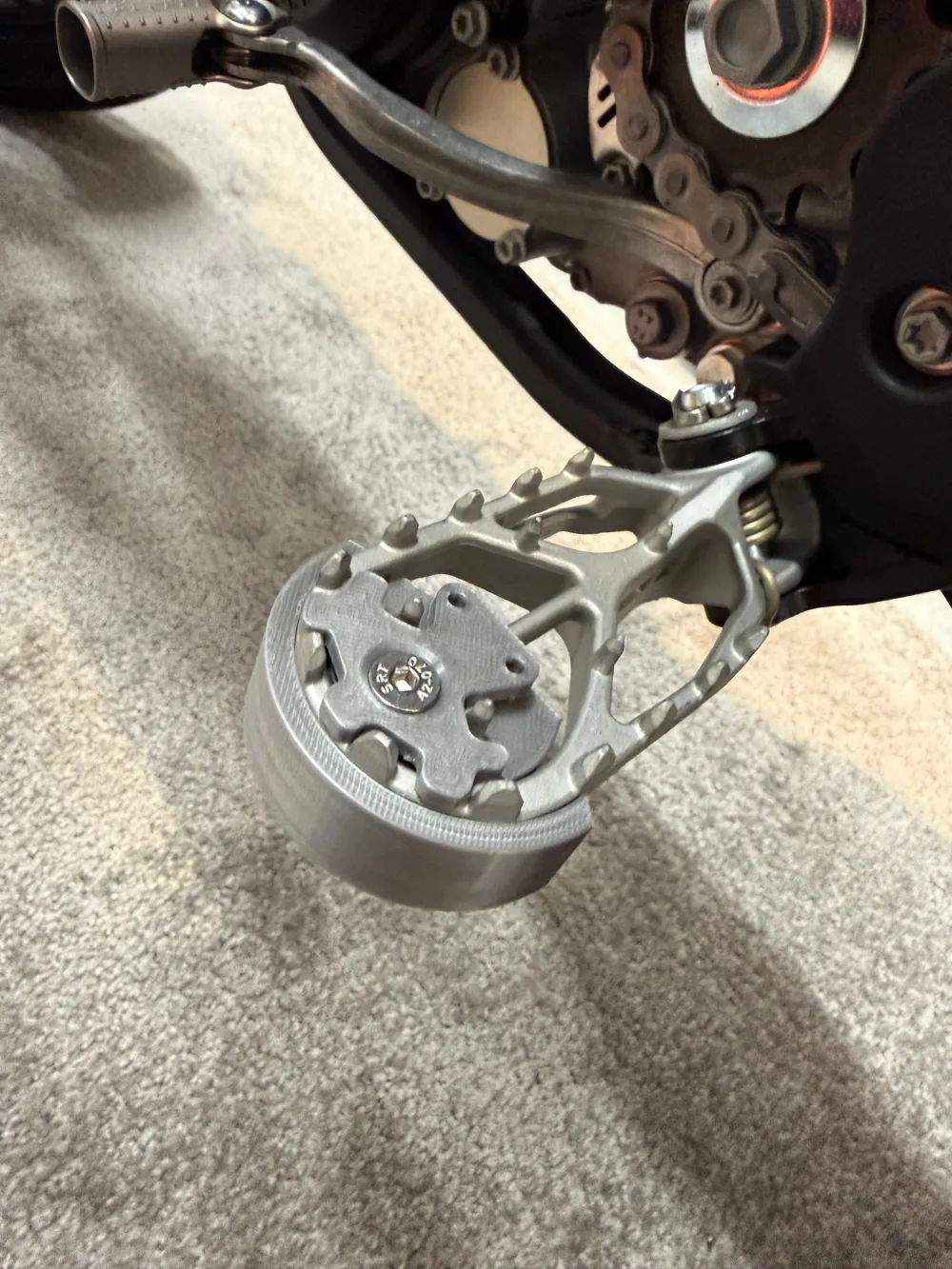

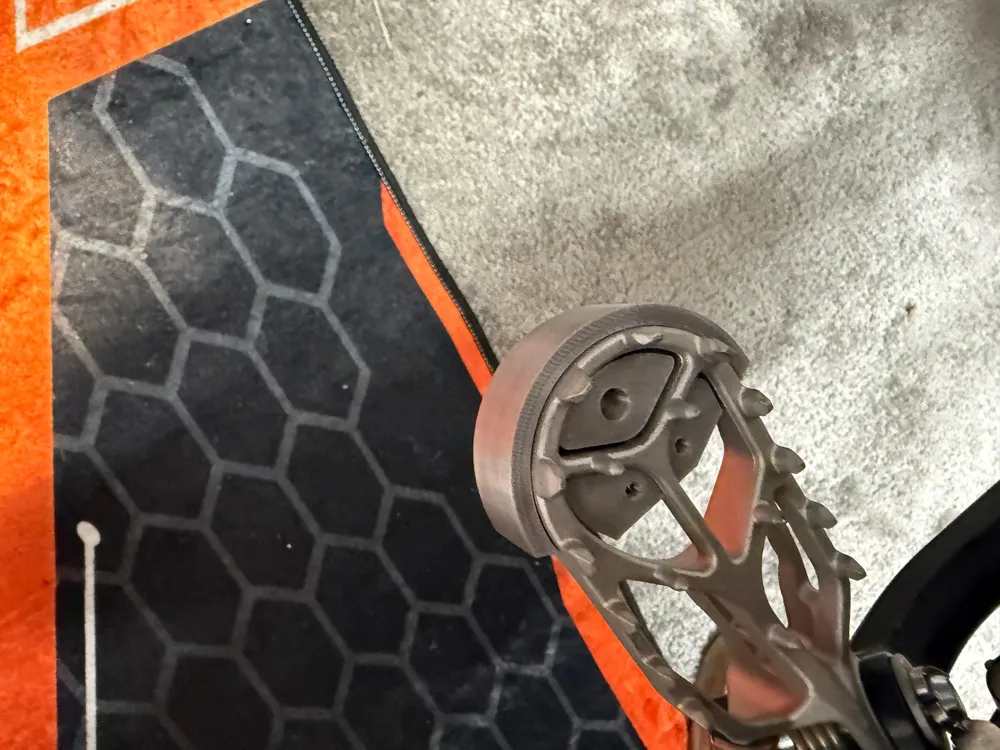

This set consists of **footrest grind pads (left & right)** including the **matching holders** for the **KTM SMR** and **Husqvarna FS** from model year **2025**.
The pads are intended as **wear and protective parts** and are perfect for **Supermoto use, training, and track days**

During sporty riding – especially in tight corners or with aggressive hanging-off – ground contact with the footrests often occurs. This set is designed precisely for that:

✅ **controlled contact**
✅ **protection against metal contact**
✅ **quick replacement** when the pads are worn out

✅ Suitable for the original footrests of the following models

• **KTM SMR** (from model year **2025**)
• **Husqvarna FS** (from model year **2025**)

📦 **Scope of delivery (STL-Upload):**

• Grind pad **left**
• Grind pad **right**
• **Holder left**
• **Holder right**

🔧 Advantages & Application Area

**Protection & Function**

The grind pads act as an **abrasion pad** and prevent you from directly grinding metal on the asphalt. This way:

• footrests and any adjacent components are protected
• the "grinding" can be controlled more cleanly
• you reduce the risk of hooking/catching when making contact

**Wear Part – quickly replaceable**

The pads are deliberately designed as a **replaceable wear part**.
When they are worn out: **print new ones, replace, keep riding**

**For sporty Supermoto setups**

Ideal for:

• Supermoto track / Kart track
• Cornering training
• Races / Training operation
• Riders who regularly make footrest contact

🖨️ Print Recommendation (important for durability!)

Since these parts are subjected to mechanical stress (impacts, abrasion, vibrations), material selection is crucial

⭐ Recommended Materials

**Top Recommendation (Maximum):**

• **Nylon / PA12**
• **PA-CF / PA-GF (fiber-reinforced)** → very robust and tough, ideal for Supermoto

**Good Alternative:**

• **ABS or ASA** → temperature stable, resilient

**Only conditionally suitable:**

• **PETG** → easy to print, holds up okay, but wears out faster

❌ **Not recommended:**

• **PLA / PLA Silk** → too brittle and heat-sensitive (can break)

⚙️ Slicer Settings (Guidelines)

For the parts to really last, it's better to **print strong** rather than "nice and fast":

• Layer height: **0.20 mm** (or 0.16 mm for more stability on edges)
• Walls: **5–7**
• Infill: **80–100%**
• Top/Bottom: **6–8 layers**
• Support: **only if necessary (but usually not)**
• Print orientation: **flat side on the print bed**
• Recommendation: **brim** for Nylon/ABS for better adhesion

💡 Tip: **More walls** often do more than "100% infill"!

🧩 Assembly / Processing

• The holders are designed to match the set and ensure a **stable attachment**
• Depending on the printer and material, it may be useful to:
  • **slightly rework** bores / screw holes
  • **deburr** edges
• Secure screws after mounting with **medium-strength threadlocker**
• Check briefly & retighten after the first ride/session

🔥 Notes on Usage

⚠️ This set is intended for **sporting use** and does not replace an official OEM safety part

• Check before every ride (cracks, material fatigue, play)
• Definitely replace in case of heavy wear or damage
• The harder the riding style and rougher the asphalt, the faster the wear

⭐ If you want maximum lifespan

✅ PA-CF / PA12
✅ 6–8 walls
✅ 0.20 mm layer
✅ clean print without underextrusion
✅ Print holders strong as well (not "economical")
