Hex Bit Holder French Cleat Frenchfinity

Organize your hex bits perfectly with this parametric holder for the Frenchfinity system.

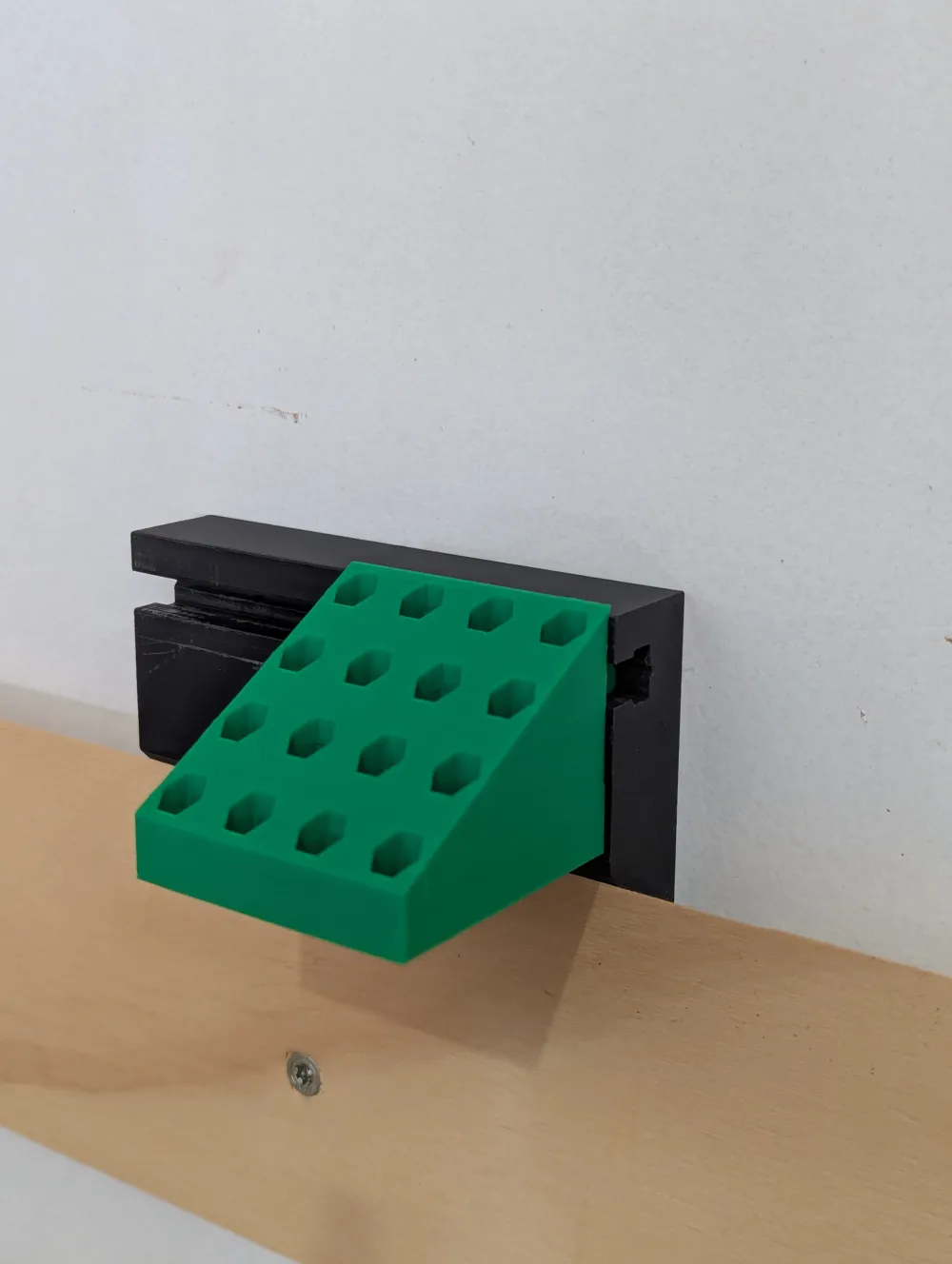

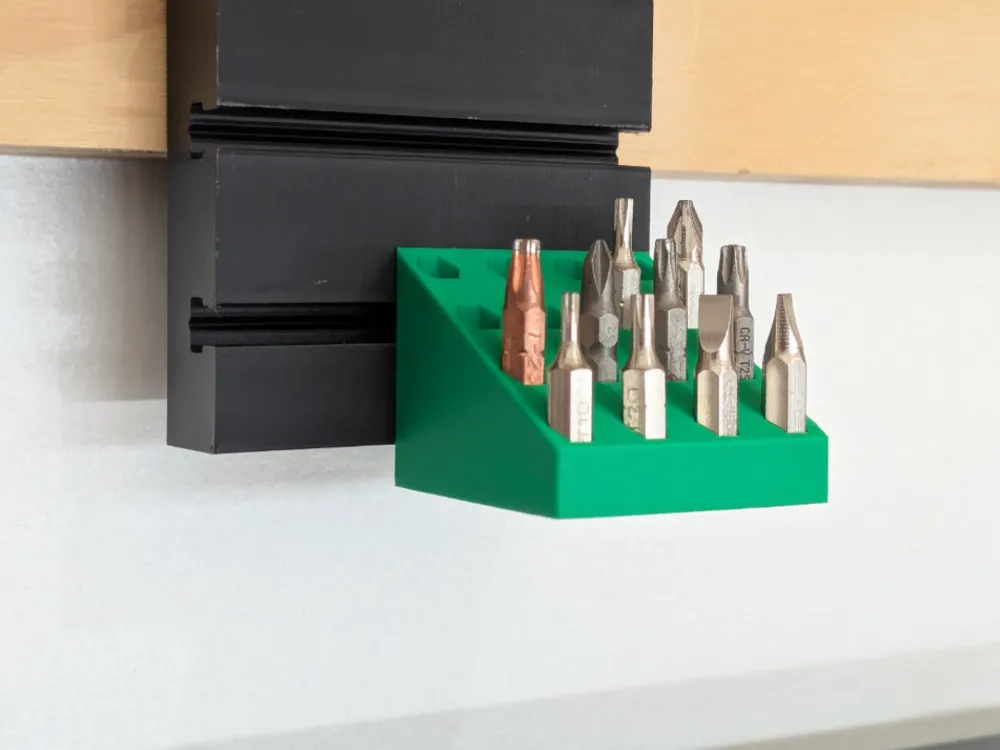

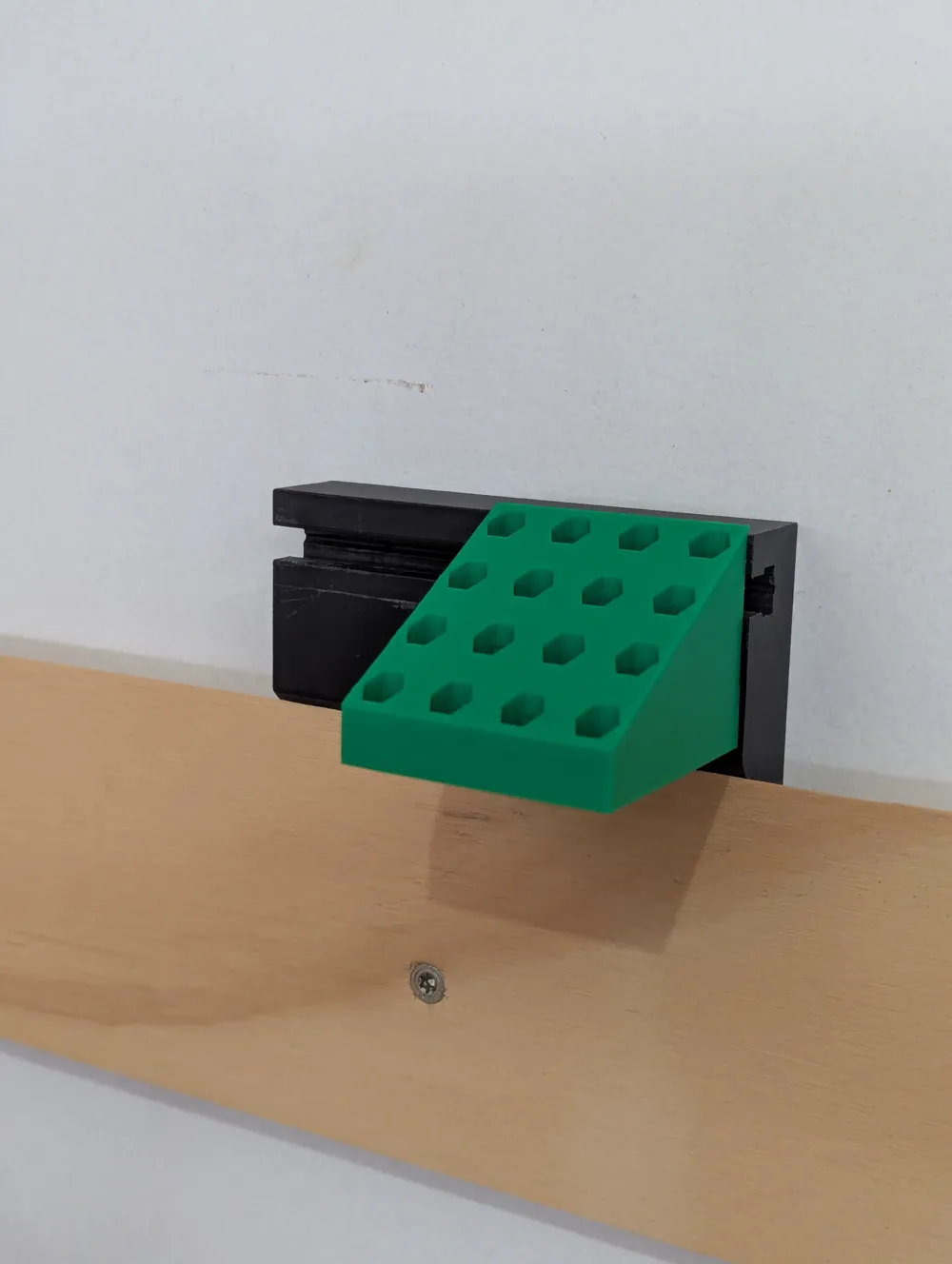

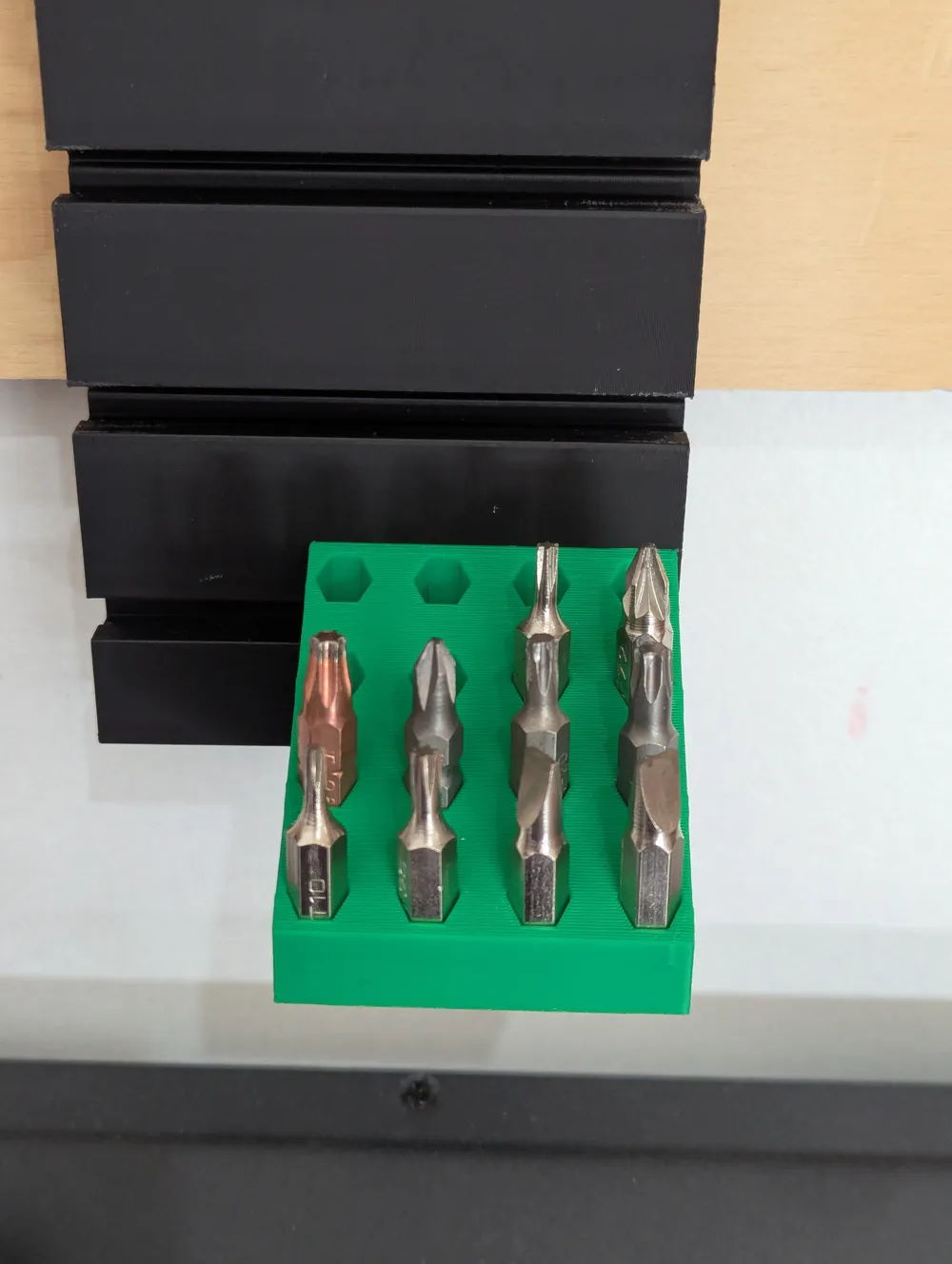

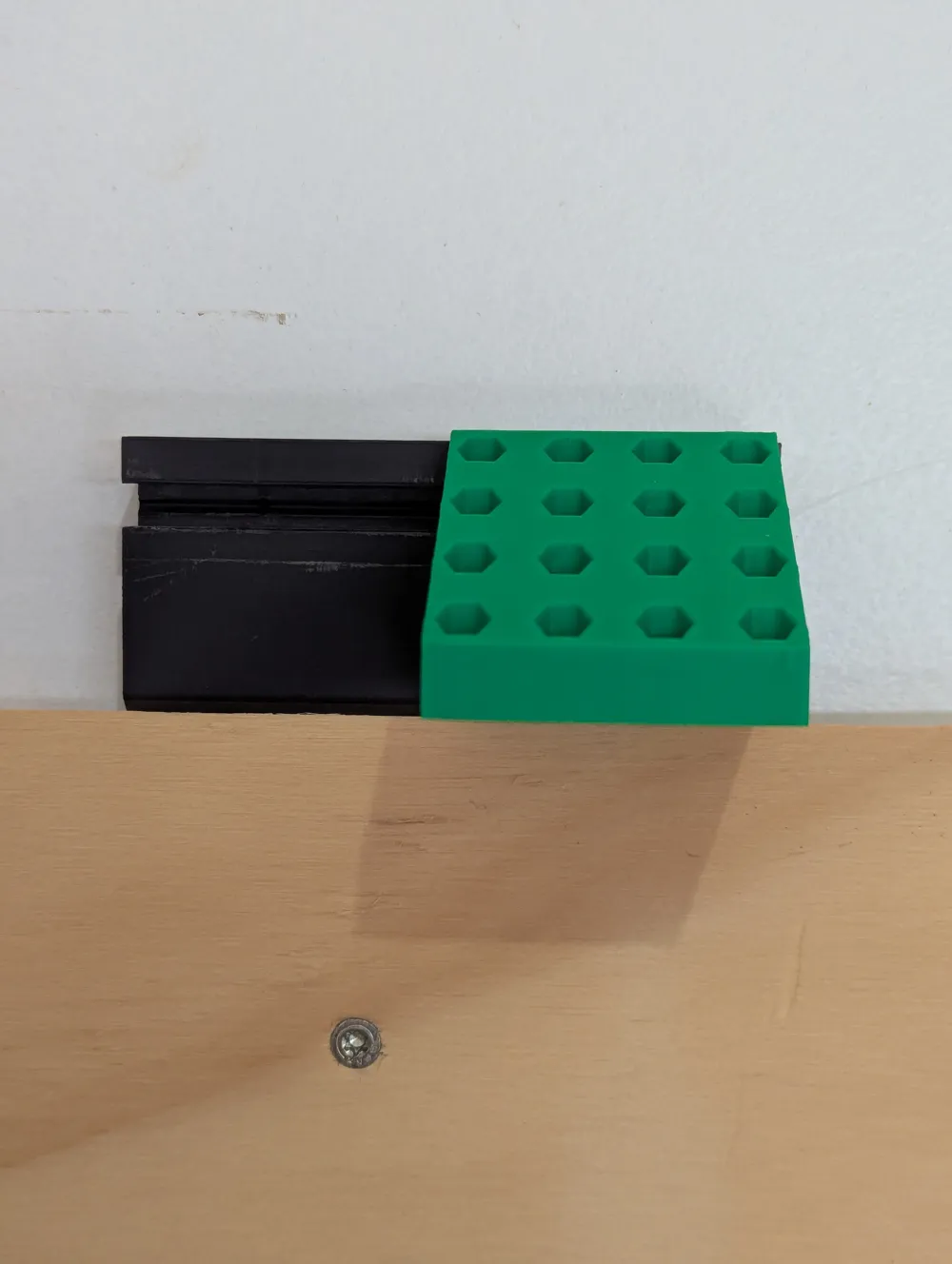

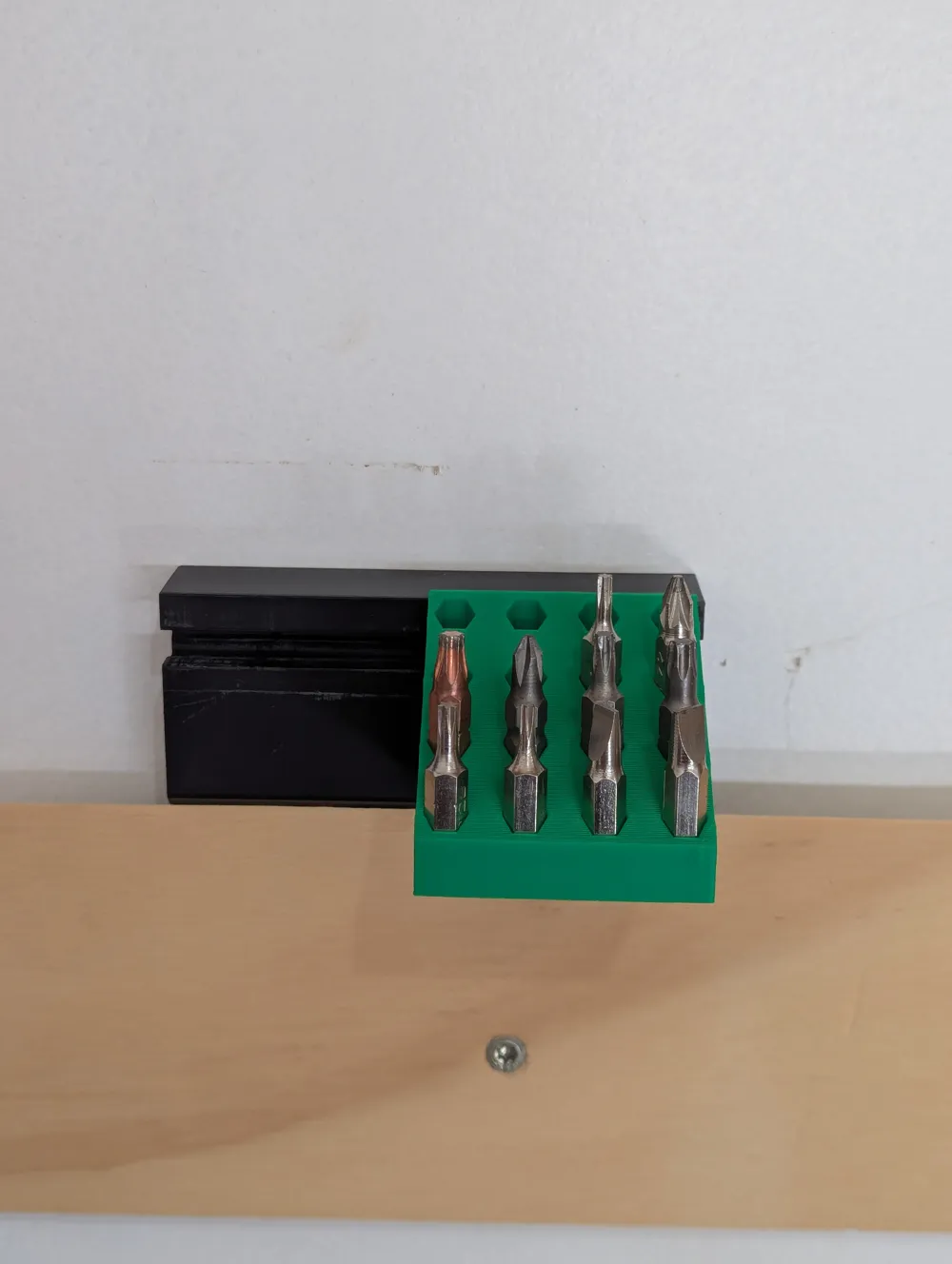

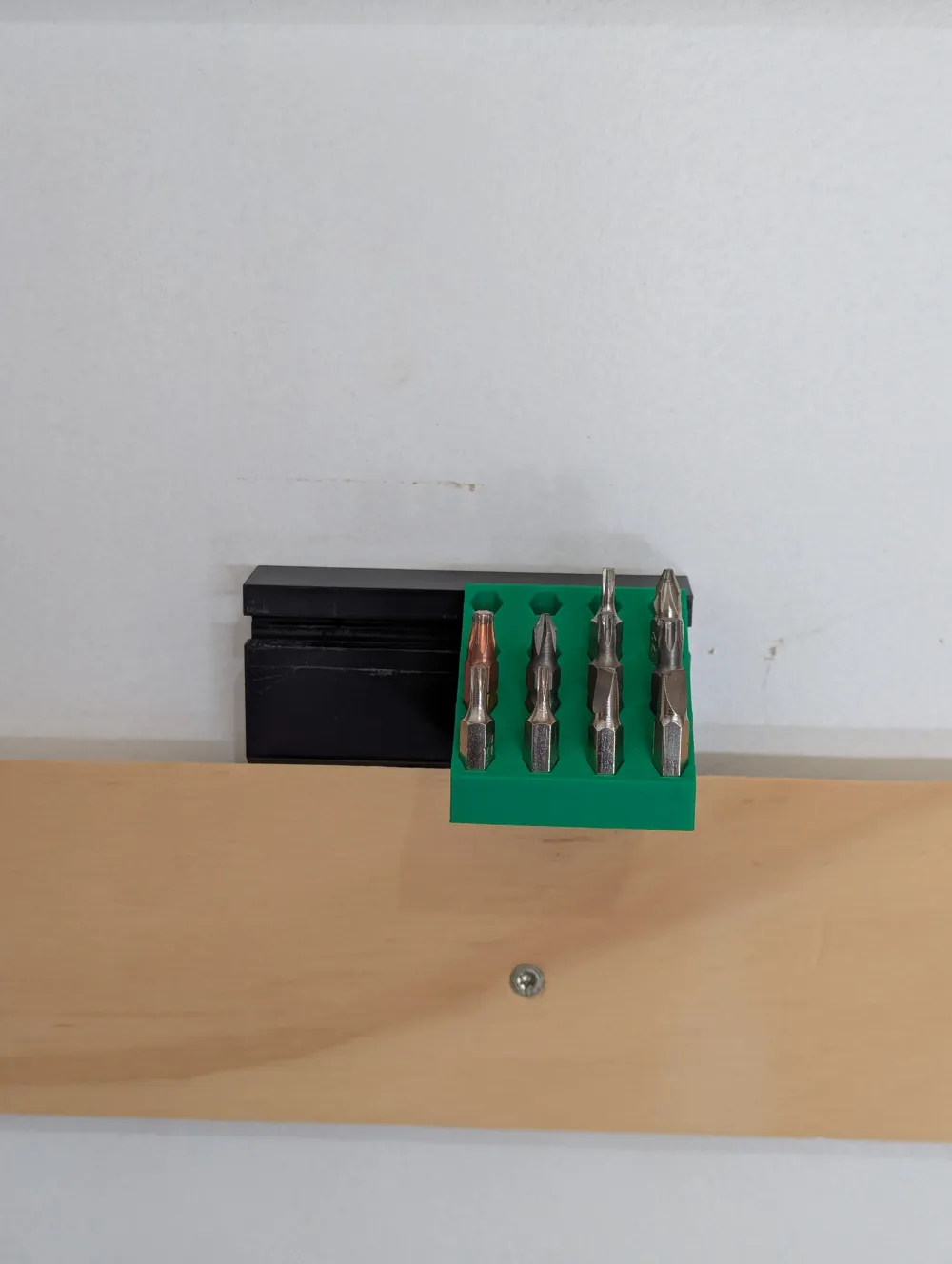

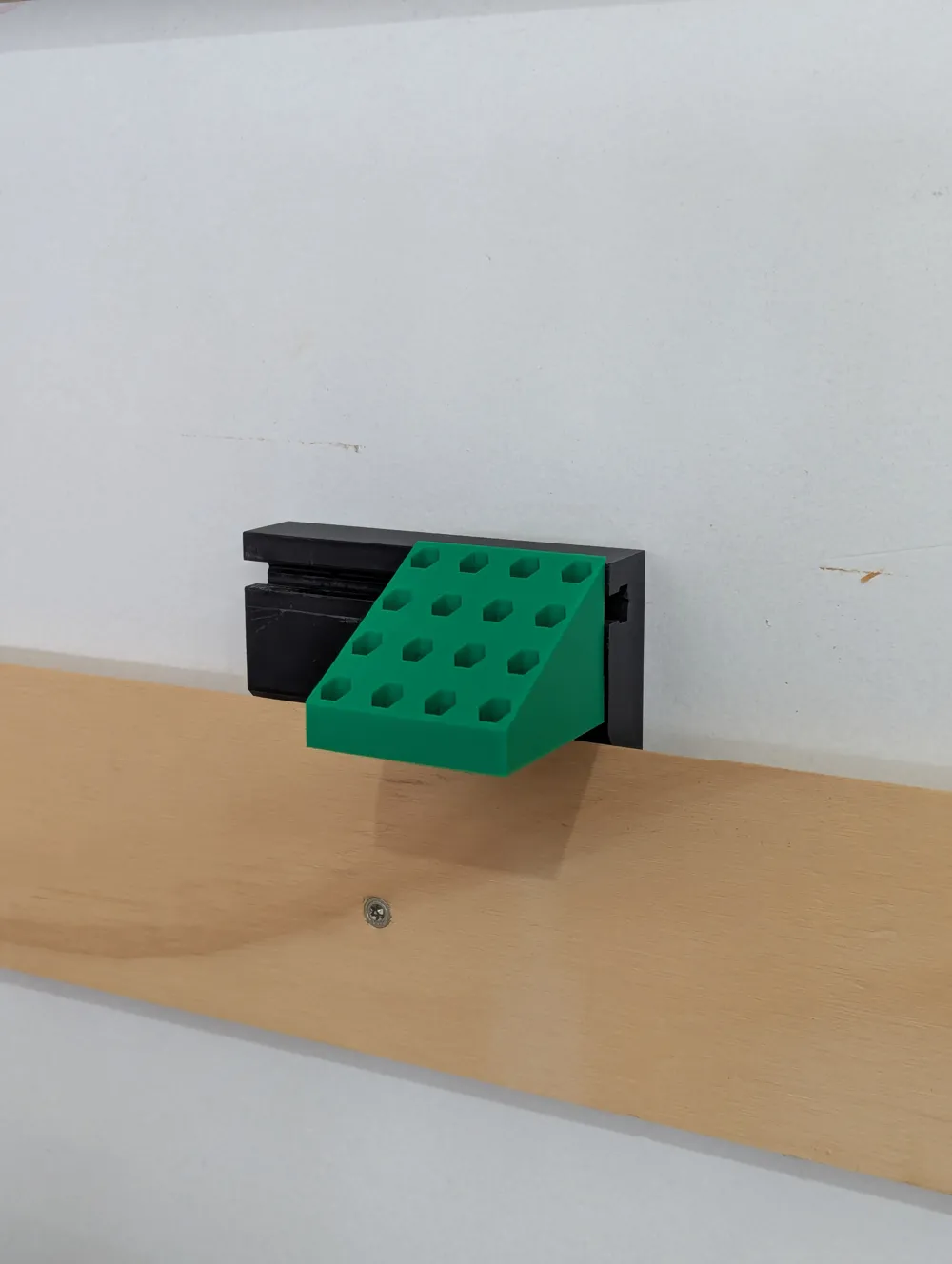

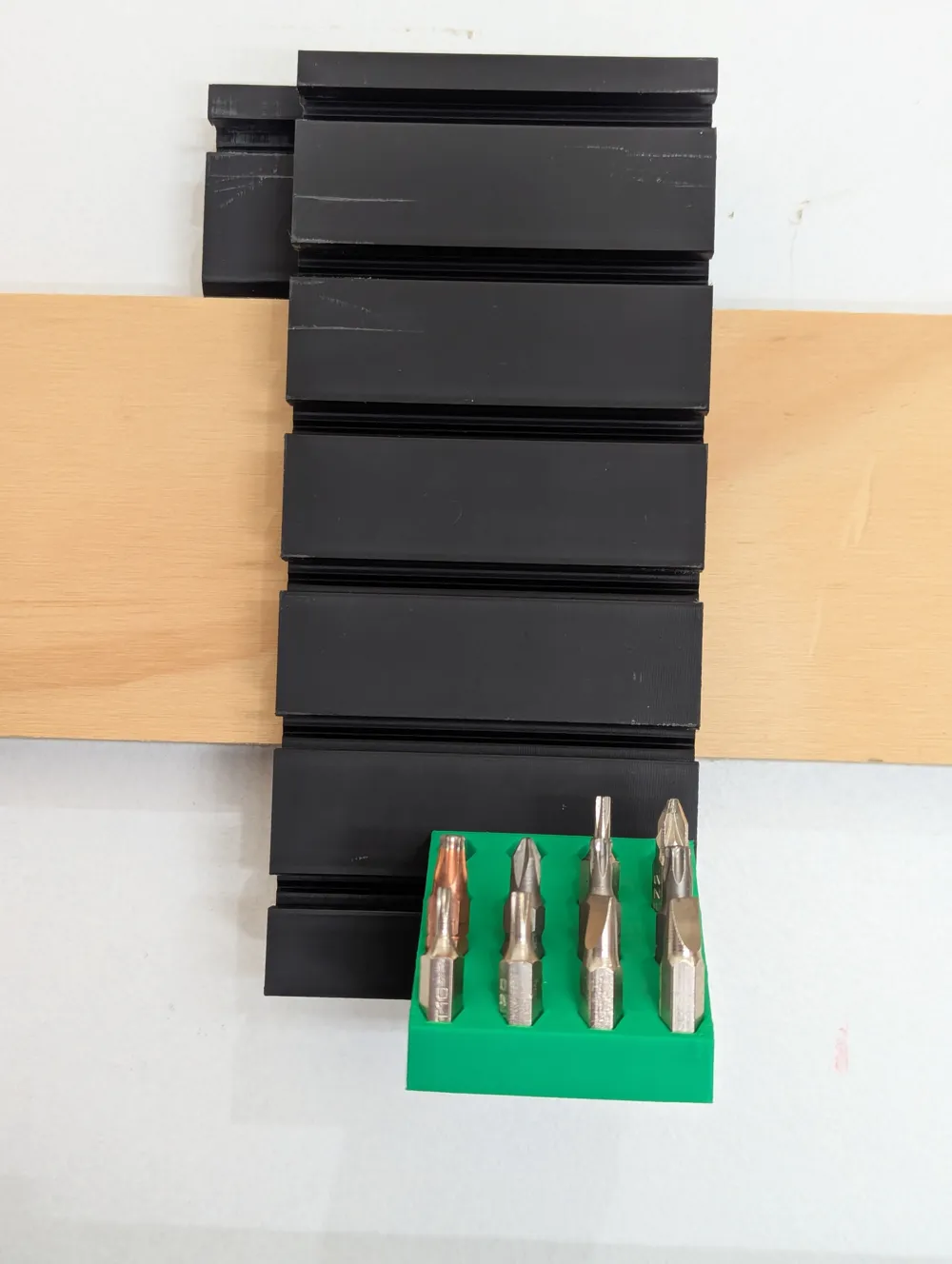

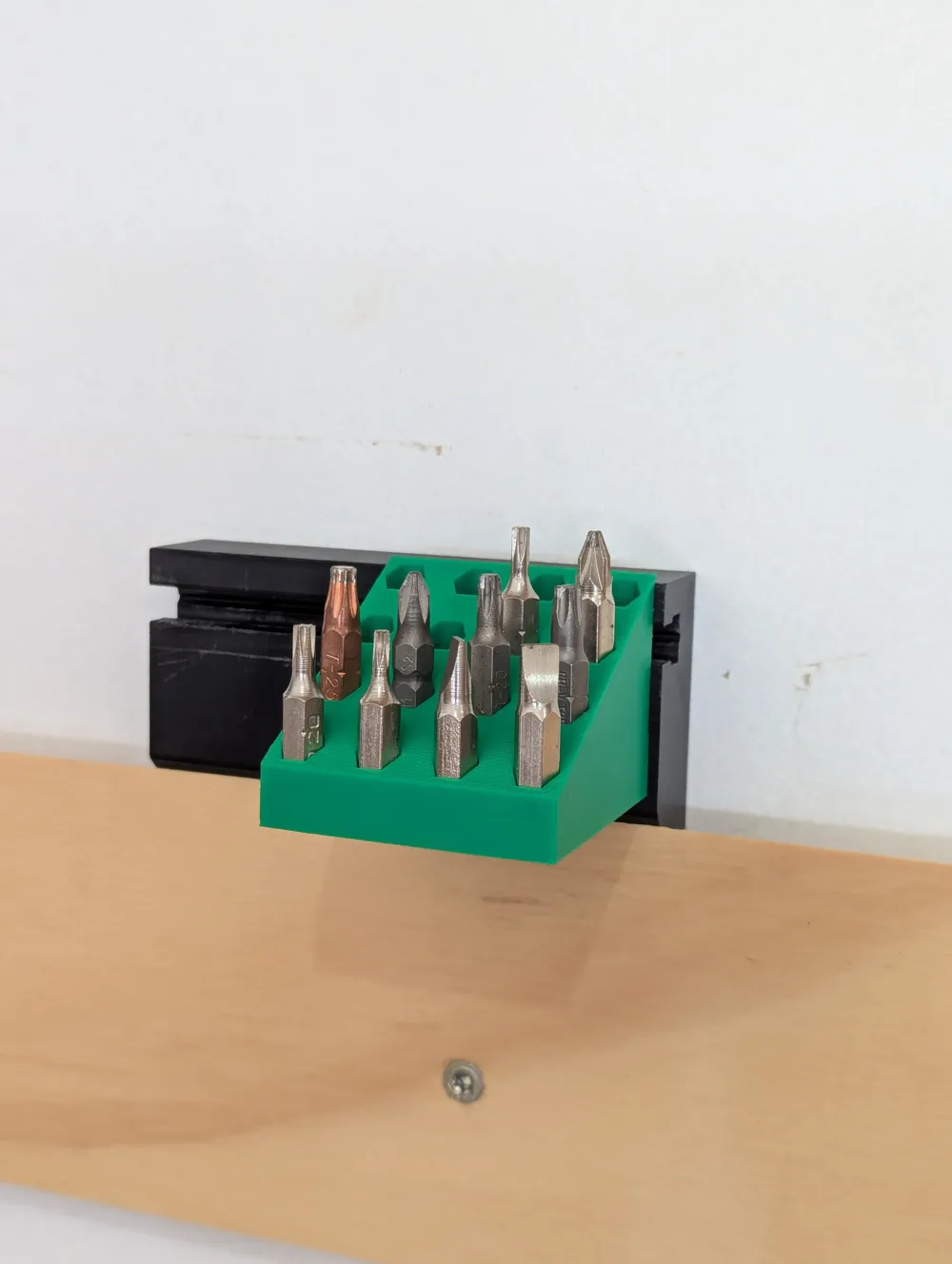

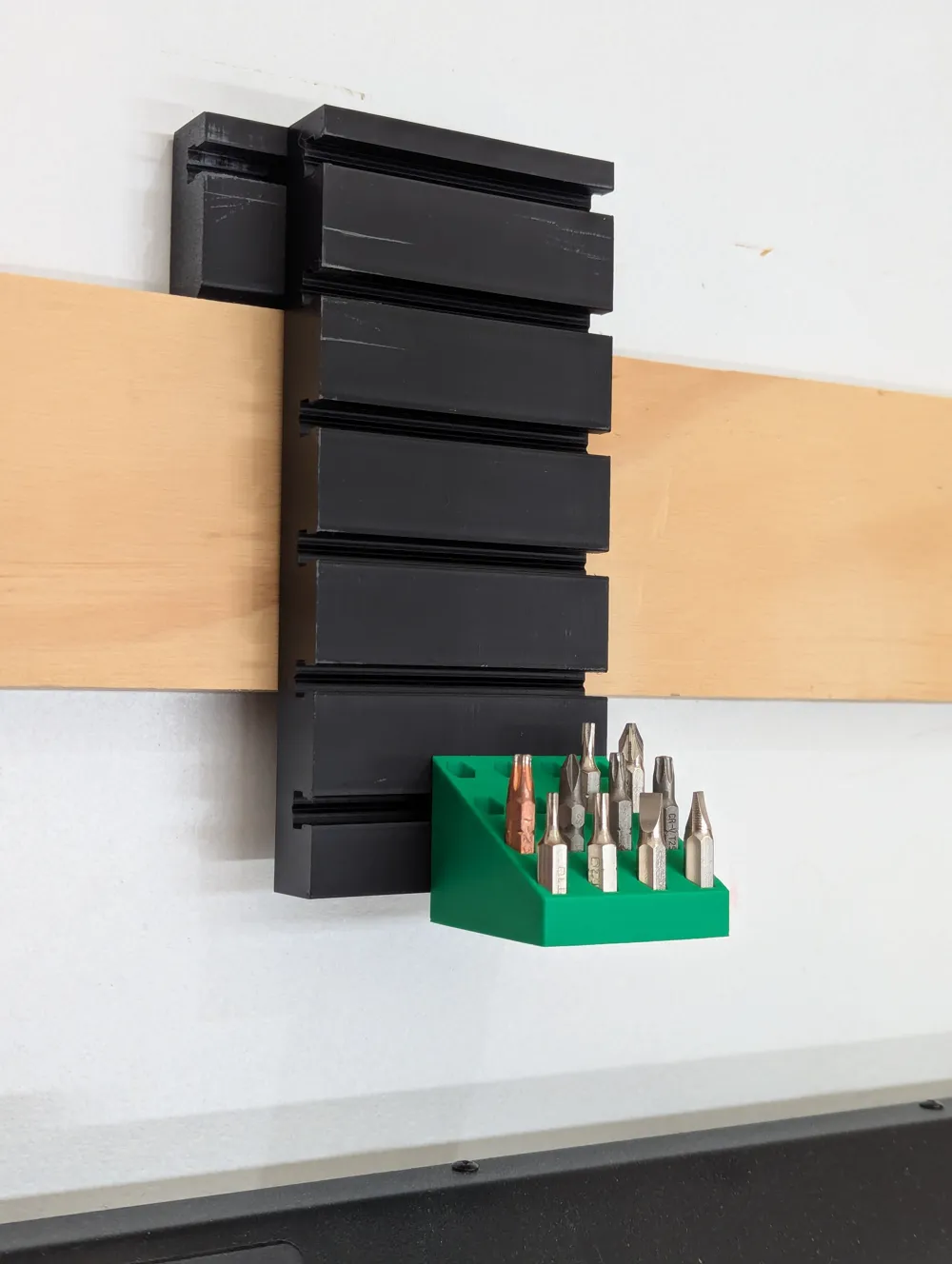

This is a fully customizable angled bit holder designed to fit standard Frenchfinity cleats. It features a solid-body construction with vertical holes, ensuring bits sit securely without poking through the bottom or back.

Key Features:

• Fully Parametric: Adjust the number of rows, columns, spacing, angle, and hole depth to fit your specific collection.
• Adjust Hex Size: Standard 6.35mm Hex Bit sizing but totally customizable to make the hex slots larger or smaller.
• Vertical Drilling: Holes are drilled vertically (straight down) regardless of the block angle. This prevents bits from falling out and keeps the openings perfect hexagons.
• System Compatible: Uses the standard Frenchfinity nut module for a perfect fit on your existing Frenchfinity rails. Works great on the Multi-Track Plate for custom storage

How to Customize:

1. Click "Customize" to open the MakerWorld parametric modeler.
2. Adjust Rows and Columns to match your set.
3. Tweak Bit Tolerance if your printer runs tight or loose (0.2mm is standard).
4. Change the Angle to suit your viewing preference (30° is default).
5. Change depth for hex bit

Print Settings:

• Material: PLA, PETG, or ABS
• Infill: 15-20% (Grid or Gyroid recommended)
• Supports: Use “Normal” support instead of “tree” for best results.
• Orientation: Print as aligned (flat base on the build plate).

Part of the Frenchfinity modular workshop system.

Thanks to @Bastelsaal for inventing the FrenchFinity system and making it freely available! Visit the FrenchFinity Website

What is Frenchfinity? Frenchfinity seeks to resolve the problem of a lack of standardization for French Cleat holders. The project strives for maximum user-friendliness, providing a simple plug-in system to minimize waste while maximizing flexibility.
