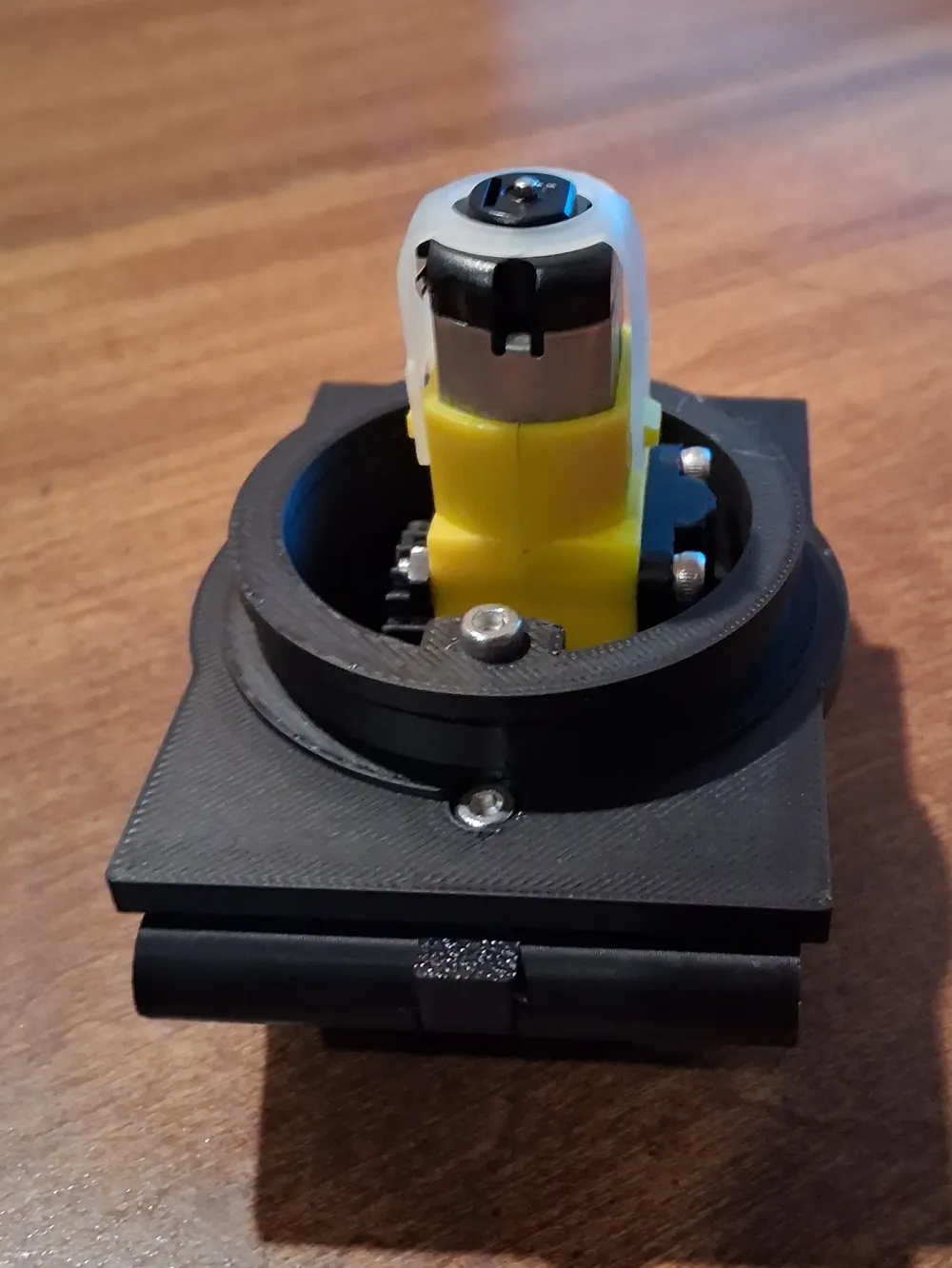

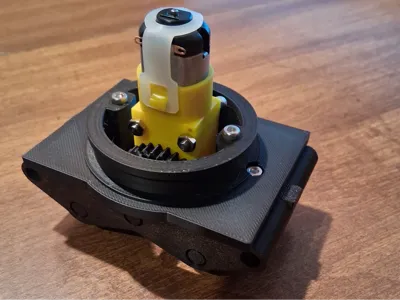

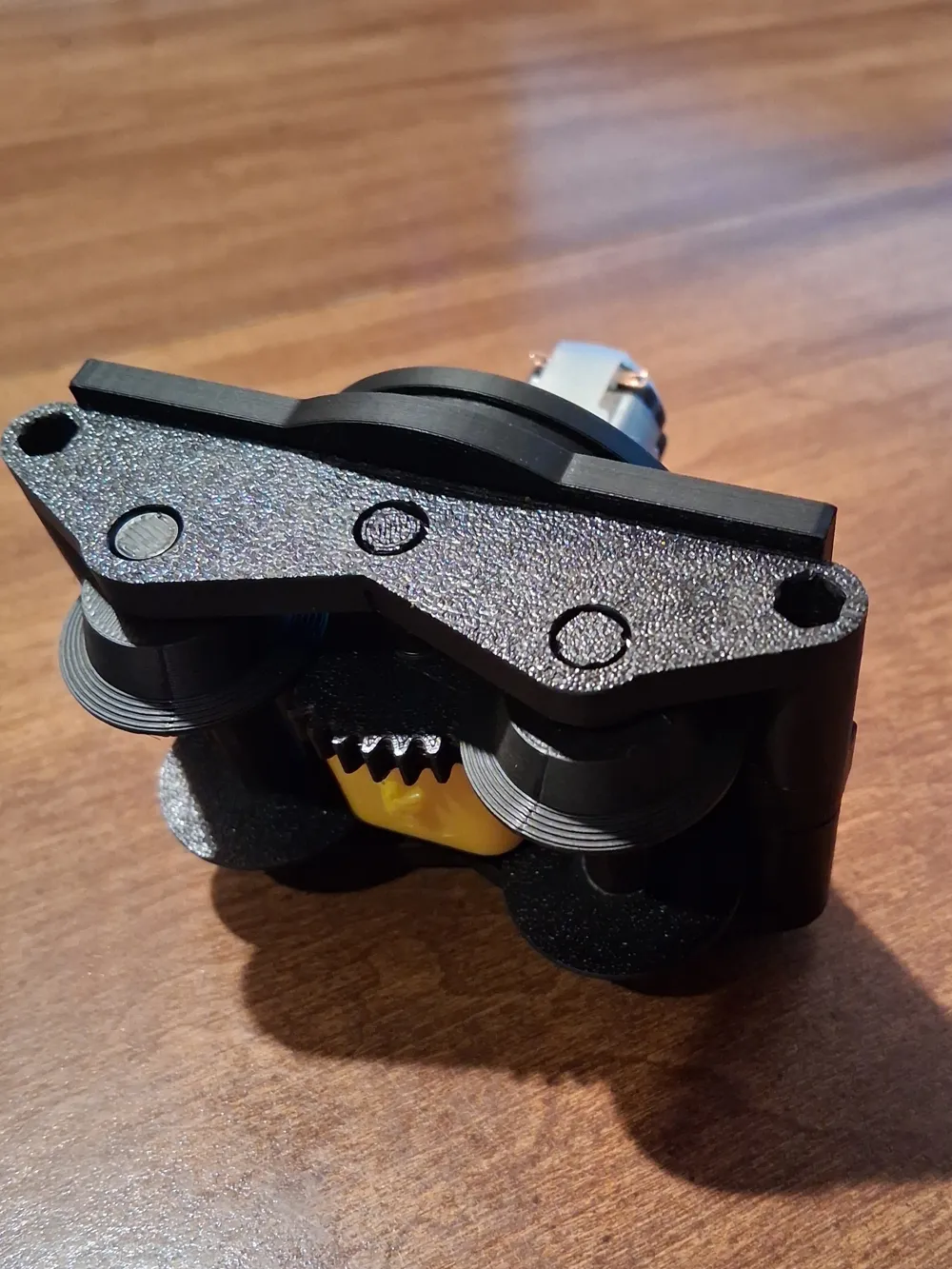

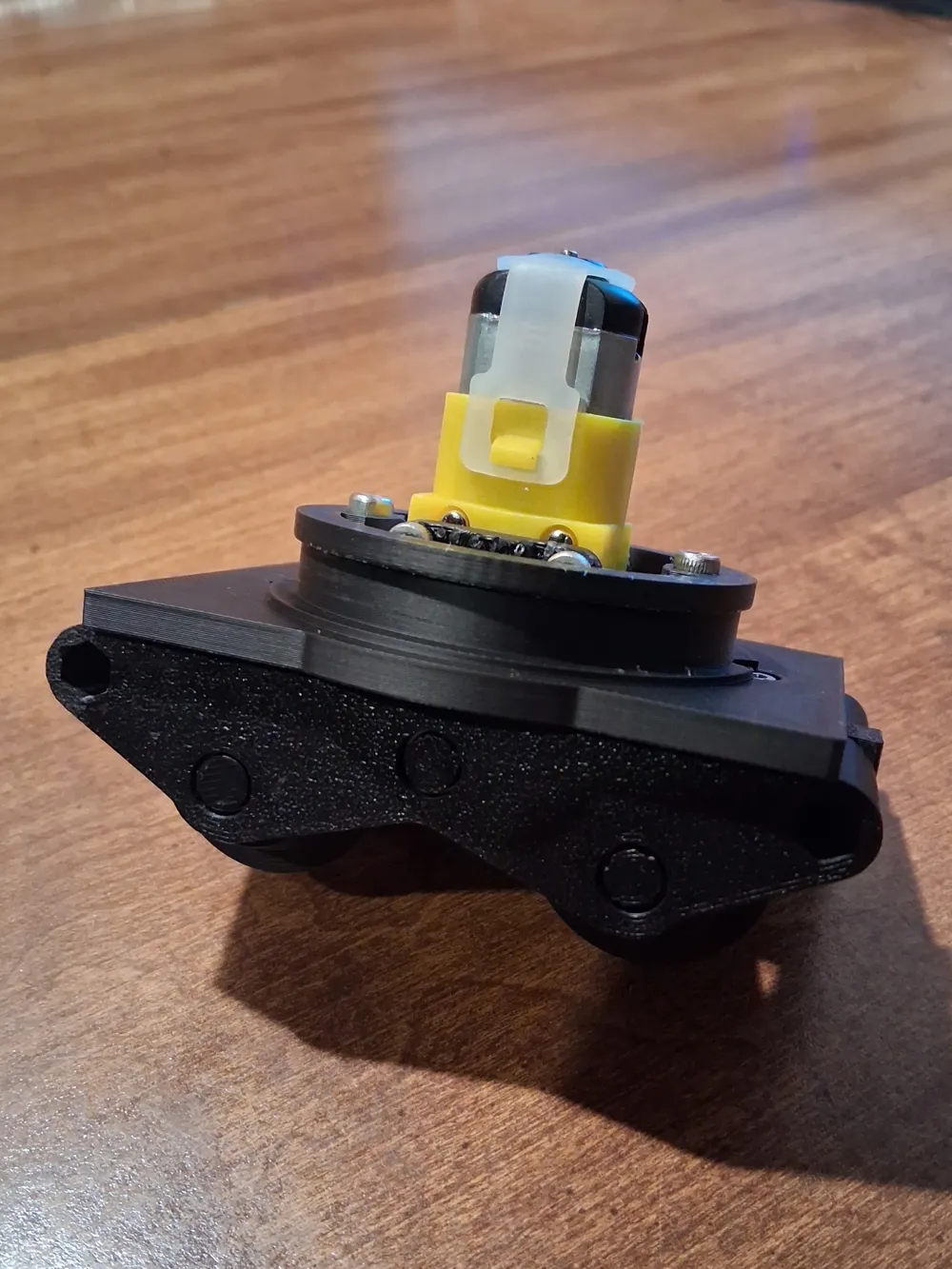

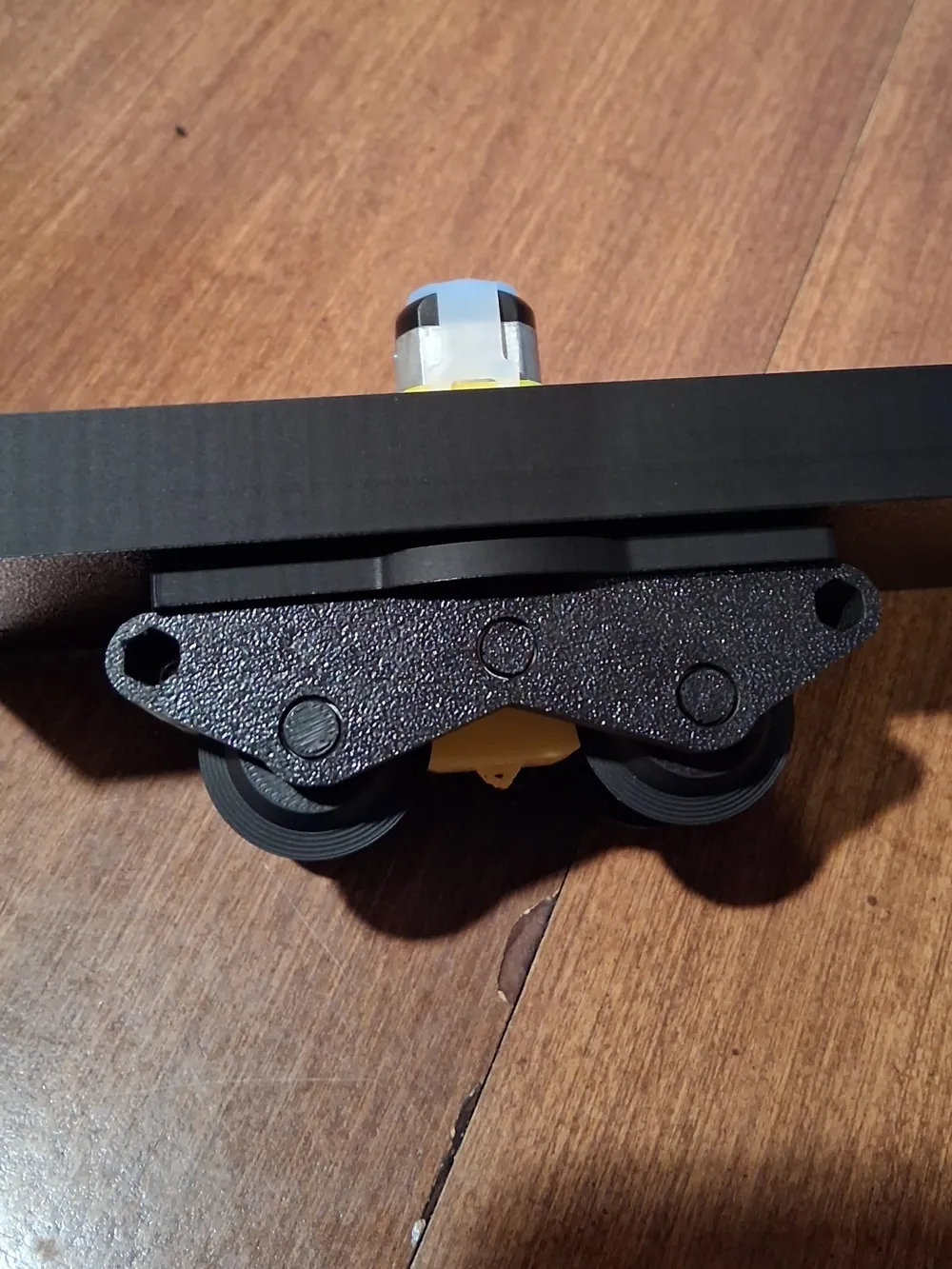

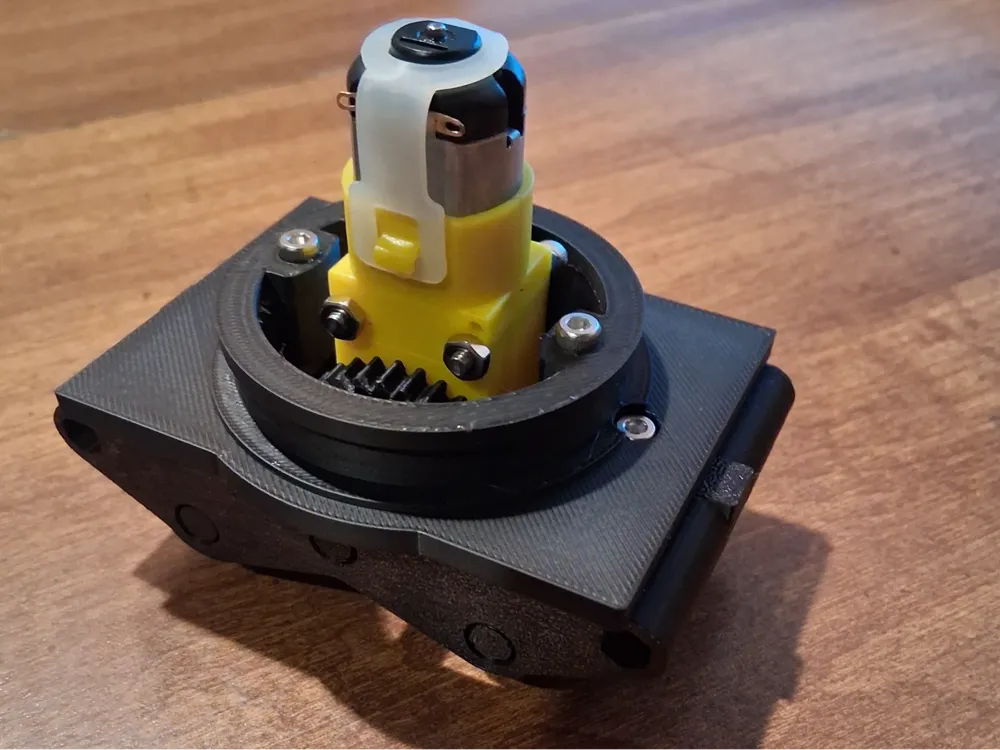

O-Gauge Powered Truck for 3D-Printed Locomotives

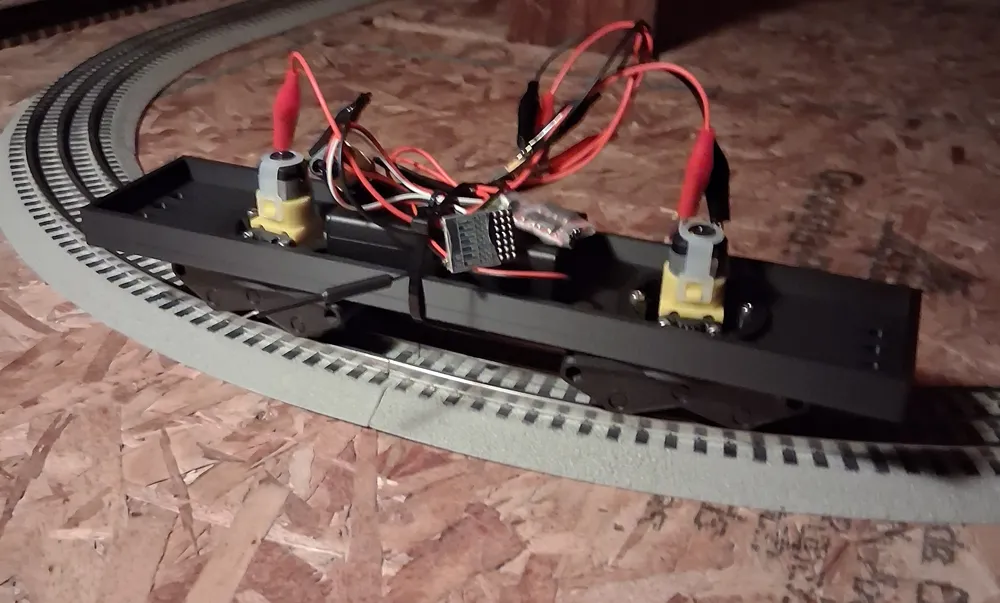

This is an O-gauge powered truck designed specifically for custom 3D-printed O-gauge locomotives. The truck is intended for use with 1:48 scale locomotives approximately 322 mm long, 68 mm wide, and 95 mm tall. The design uses commonly available bearings, and motors, making it well-suited for hobbyists building fully functional custom locomotives.
Truck Dimensions
- Overall height: 31 mm (to bottom of locomotive body)
- Width: 53 mm
- Length: 71 mm
Body Mount
- Body ring through-hole: 52 mm
- Designed to fit a 52 mm body opening perfectly
Wheel Specifications
- Scale: 1:48
- Wheel tread diameter:
- 21.15 mm at the tire
- Tapers to 17.15 mm
- Wheel thickness: 7.5 mm
- Wheel bore: 7.2 mm
Flange
- Flange diameter: 27.15 mm
- Thickness:
- 1 mm at the flange
- Tapers to 2 mm at the tire
Axle Specifications
- Axle diameter: 8 mm
- Axle length: 52.5 mm
- Distance between wheel flanges: 25.50 mm
Stepped Axle Features
- Wheel mount step:
- 7 mm diameter
- 8.5 mm long
- Bearing step:
- 6 mm diameter
- 5 mm long

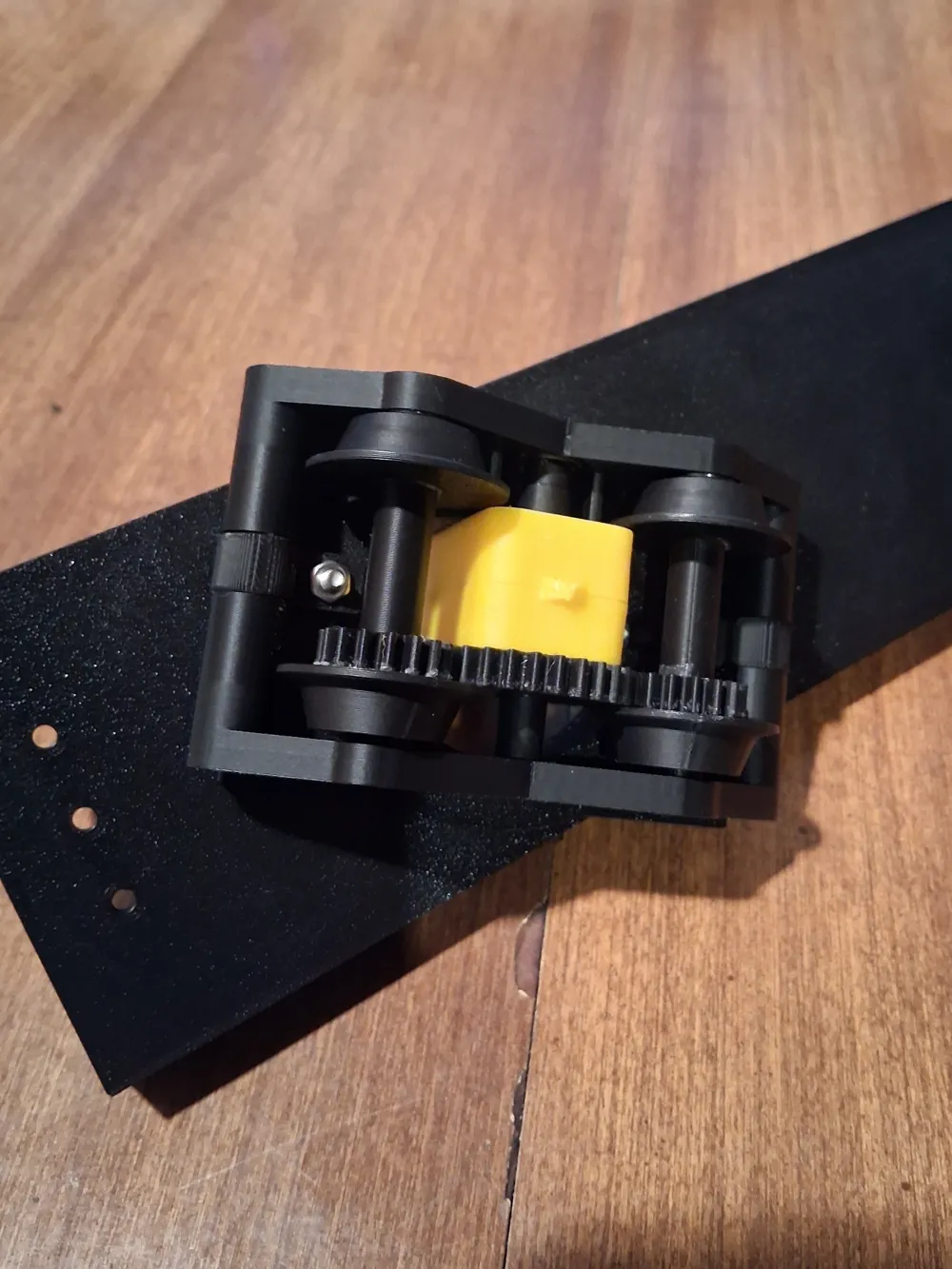

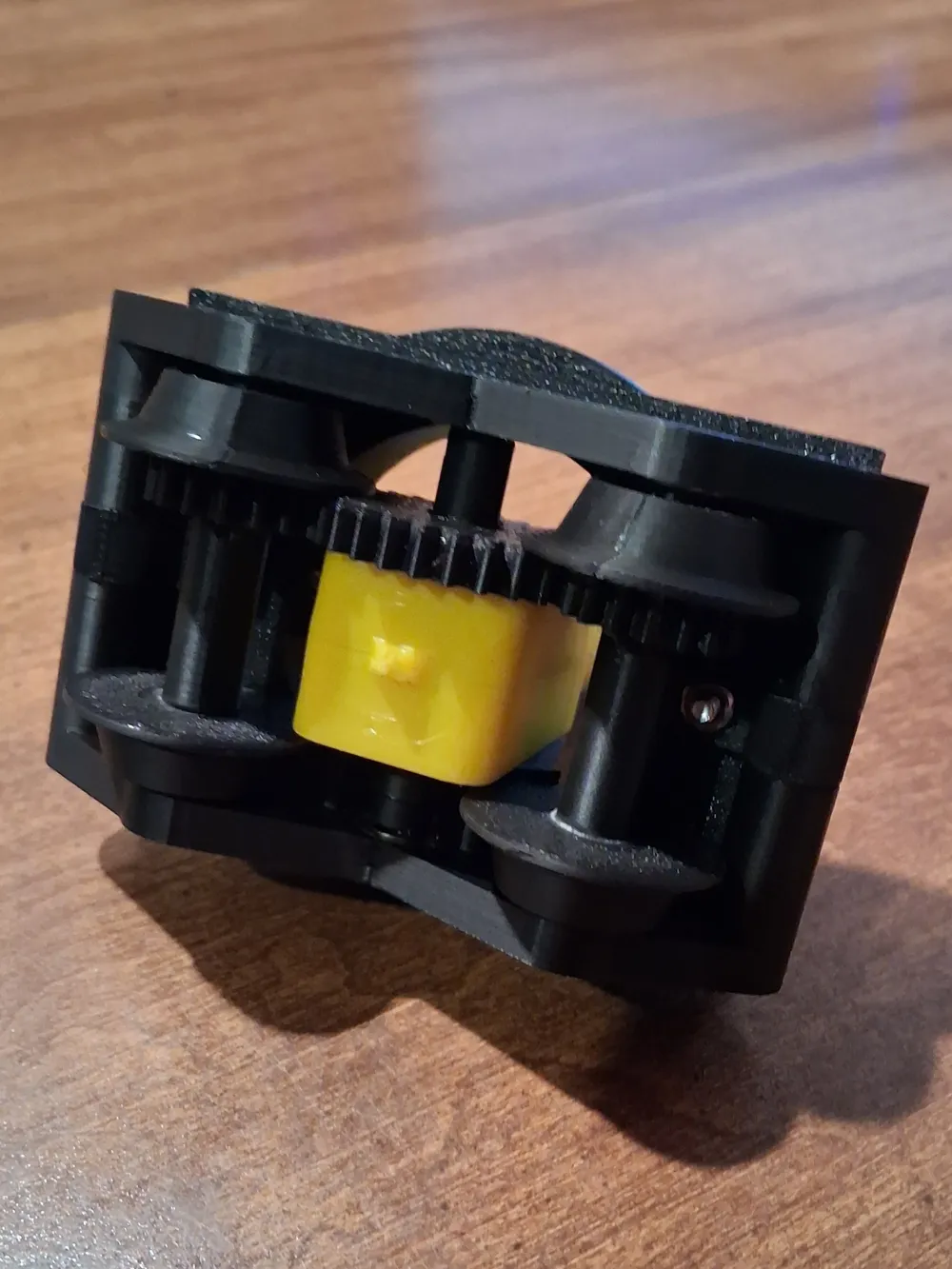

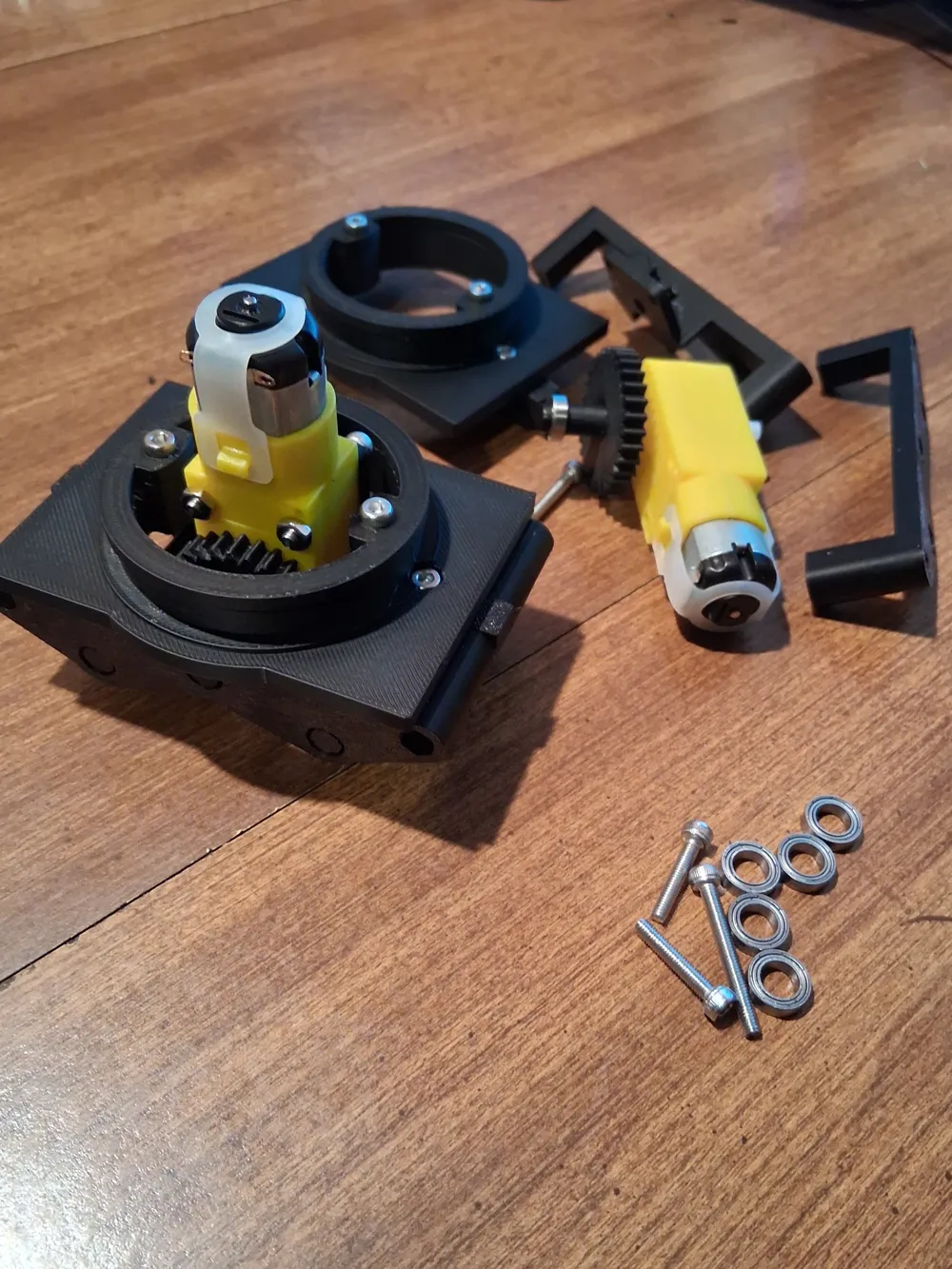

Drive System
- Gear train:
- Two 16 mm, 16-tooth gears
- One 30 mm, 30-tooth gear
- Or Gear train:
- Two 12 mm, 12-tooth gears
- One 34 mm, 34-tooth gear
- Gear bore: 8.2 mm
Bearings
- Type: 6 × 10 × 3 mm ball bearings
- 6 mm ID × 10 mm OD × 3 mm thick
- Quantity: 6 bearings per truck
Motor
- Motor type: TT motor
- These motors are widely available online and commonly used in hobby and robotics applications.
