A1 AMS Lite Hanger
Print Profile(1)
Description
Below is the video description:
Below is the text description:

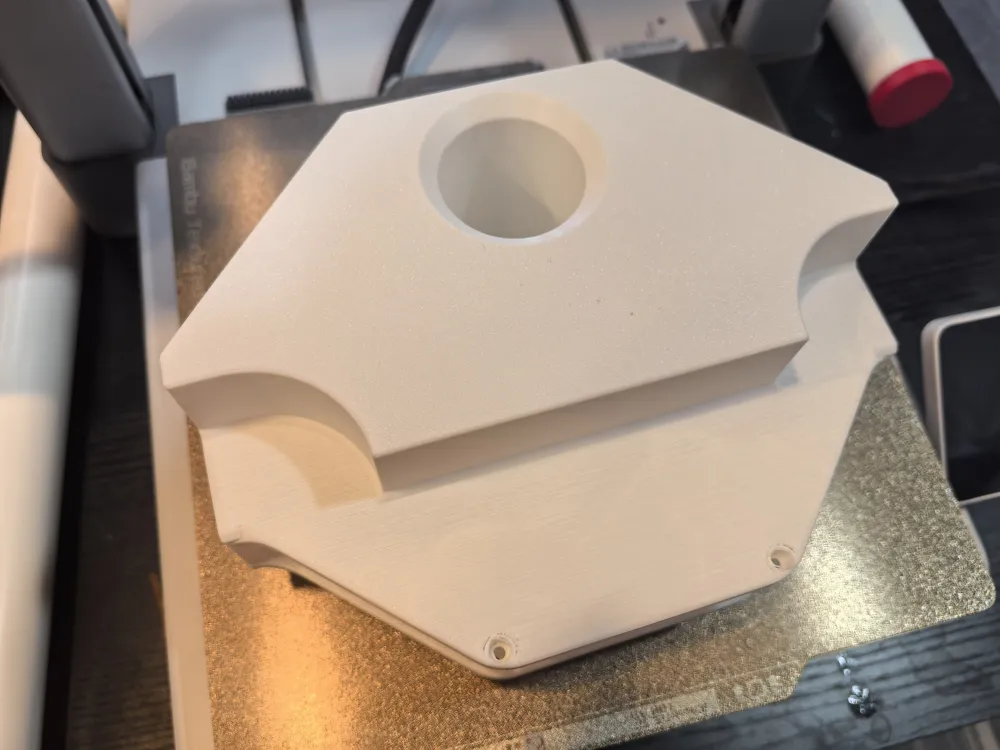

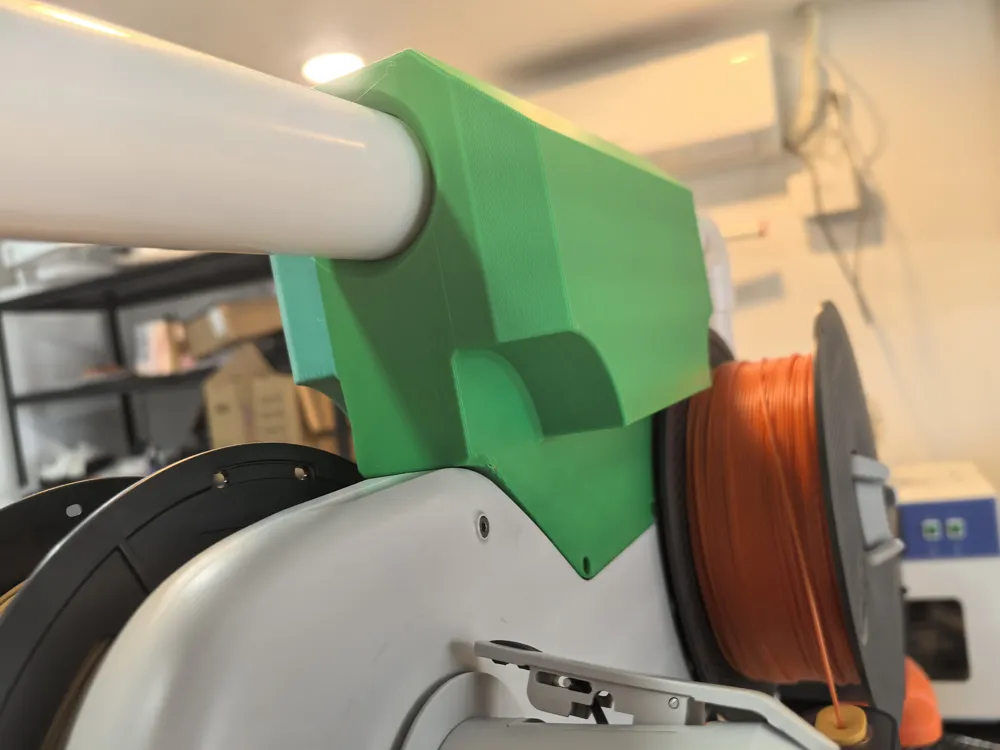

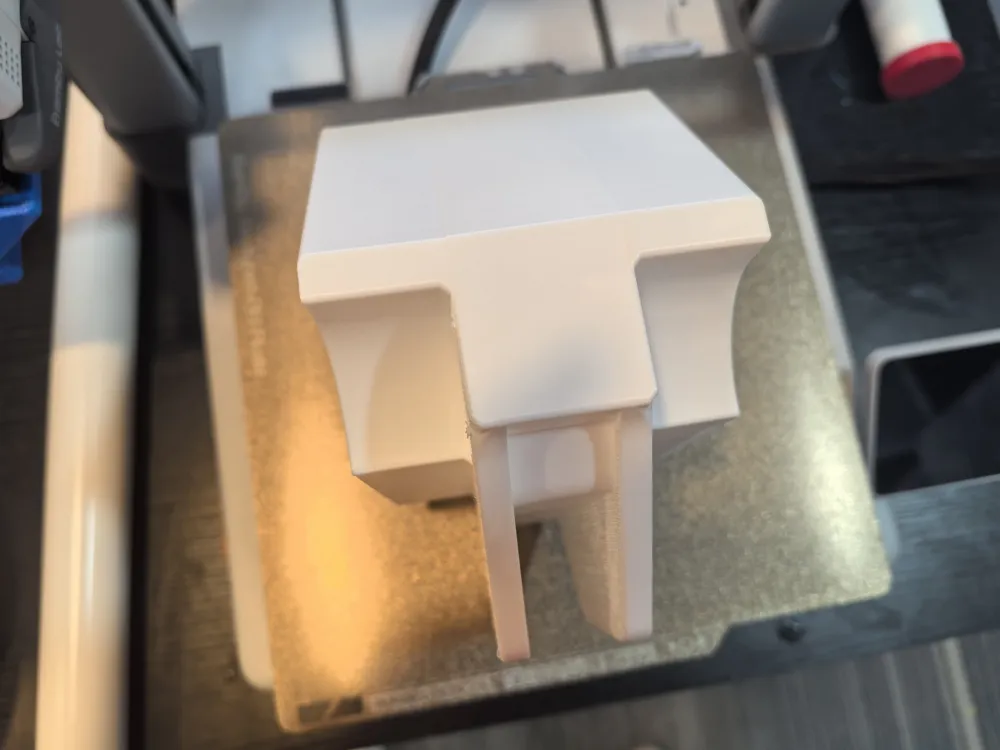

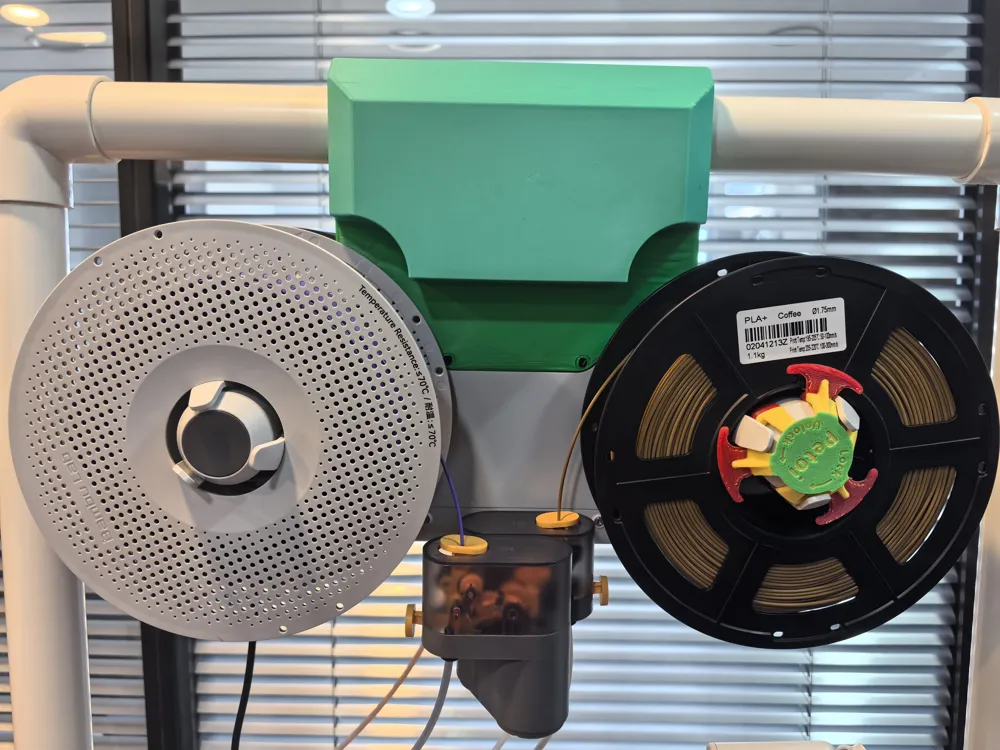

This bracket is used for inverted installation of AMS lite, using PVC 40 pipes to build the main frame. One of two types of brackets needs to be printed. The file contains two brackets with different orientations; the bracket on plate 1 is more versatile. If you can't decide, choose the bracket on plate 1 in the 3mf file.
In addition to the print files, the following parts are required:
1. 40 PVC pipes, horizontal bars: 50cm * 2; vertical bars: 90cm * 2; desktop supports: approx. 40cm * 2, total 3.6m. 2x 90° elbows; 2x 4-way connectors.
2. 4-pin extension cable, Taobao ≤ 10 yuan/piece
Bracket advantages: stable, low cost; inverted installation is more conducive to filament feeding, avoiding excessive friction caused by bent PTFE tubes.

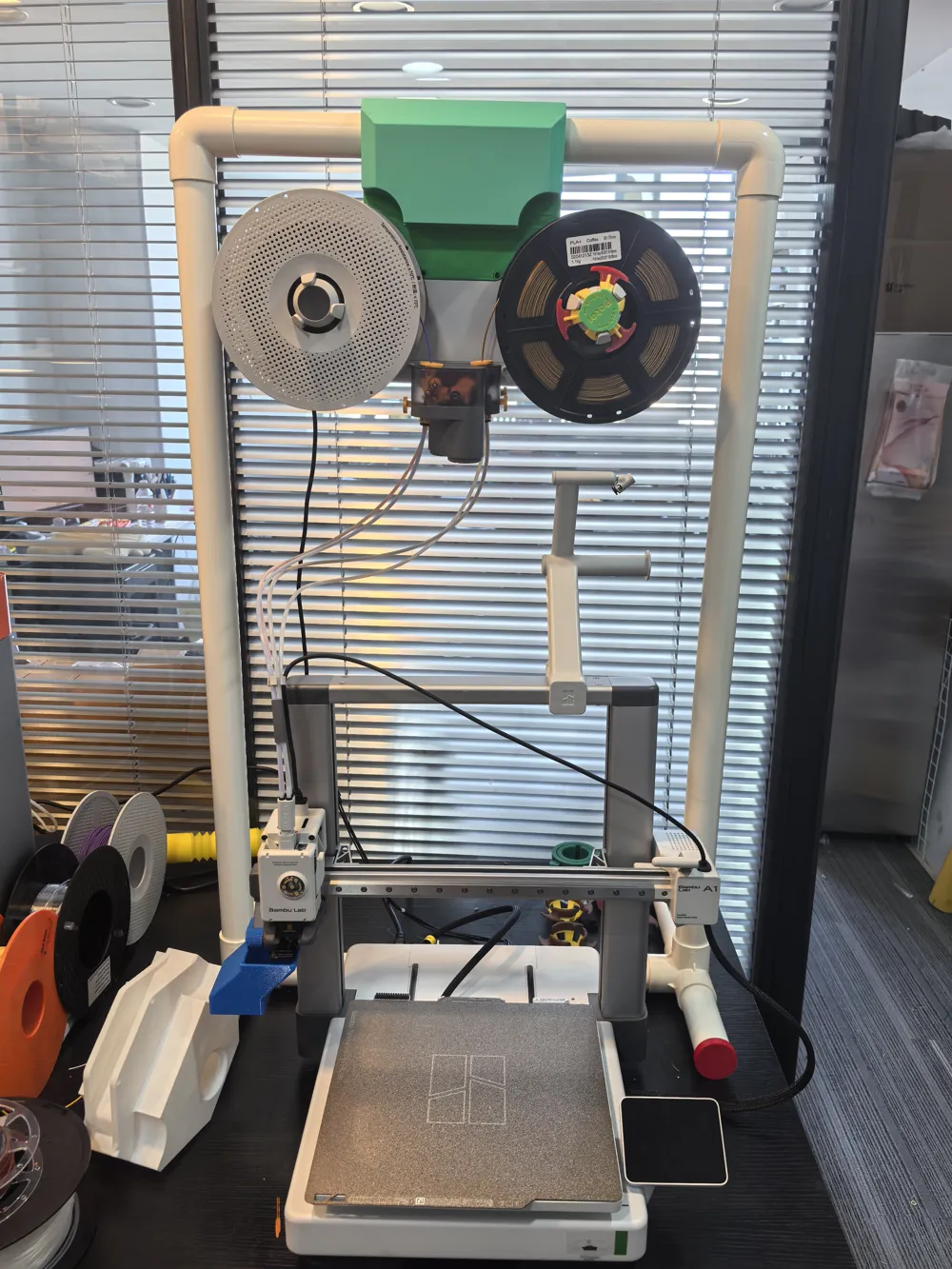

Installation: Unscrew the 4 screws of the original bracket and replace them with the printed parts. Install the PVC according to the diagram.
