Boca Jrs Tankard | 1 Liter - Fileteado.

Description

Celebrate 120 years of Xeneize passion with this exclusive design! 💙💛💙

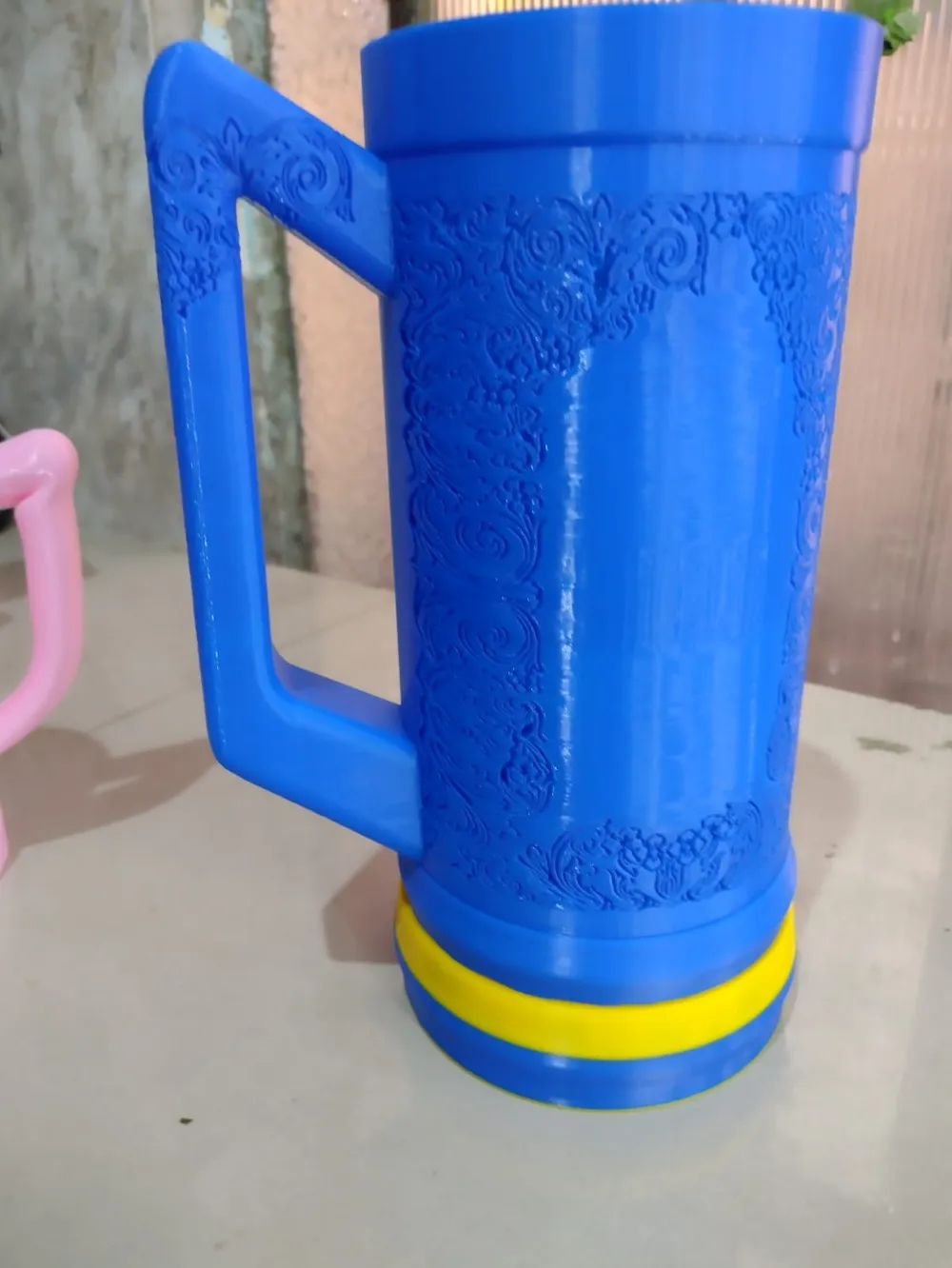

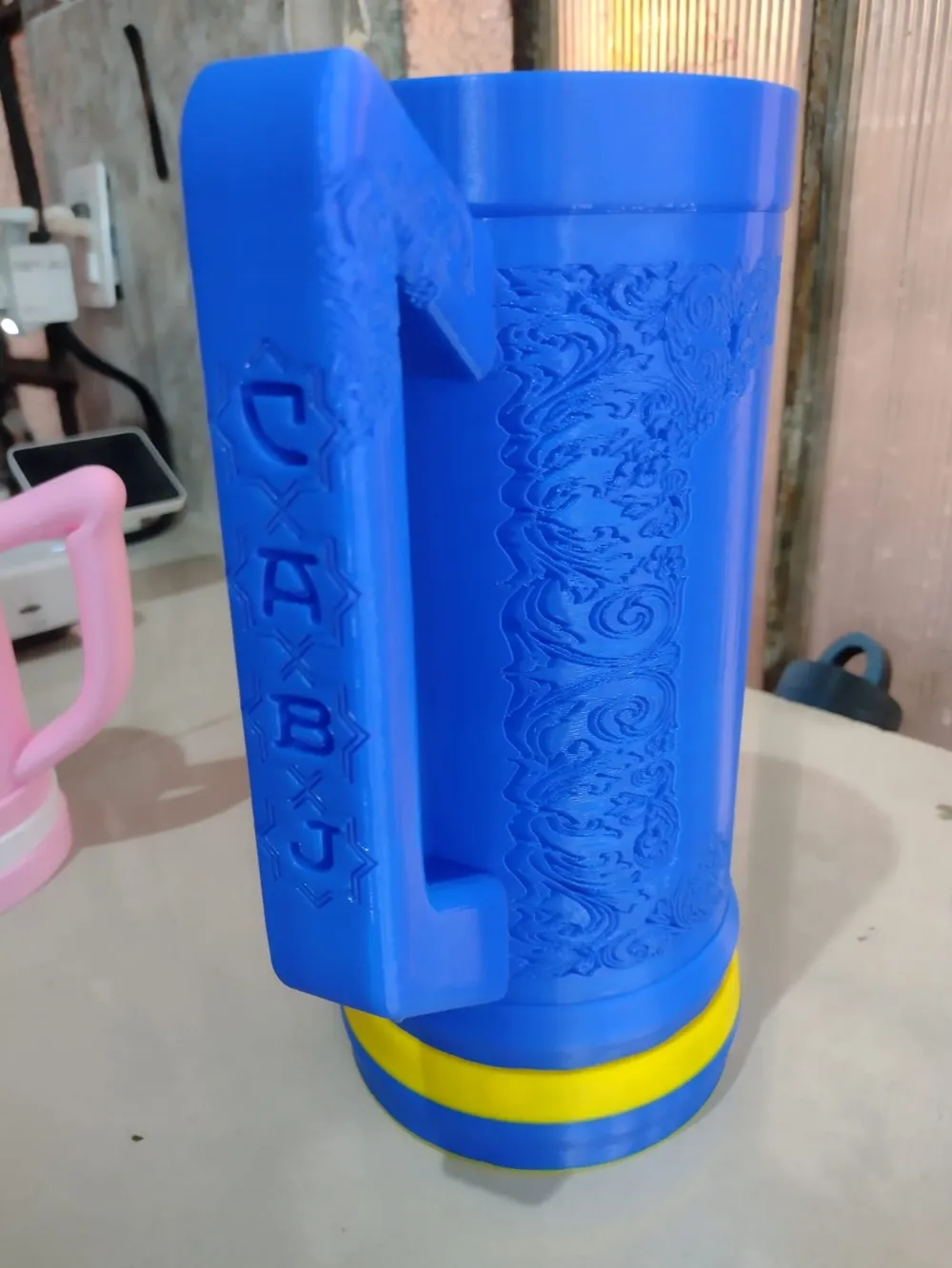

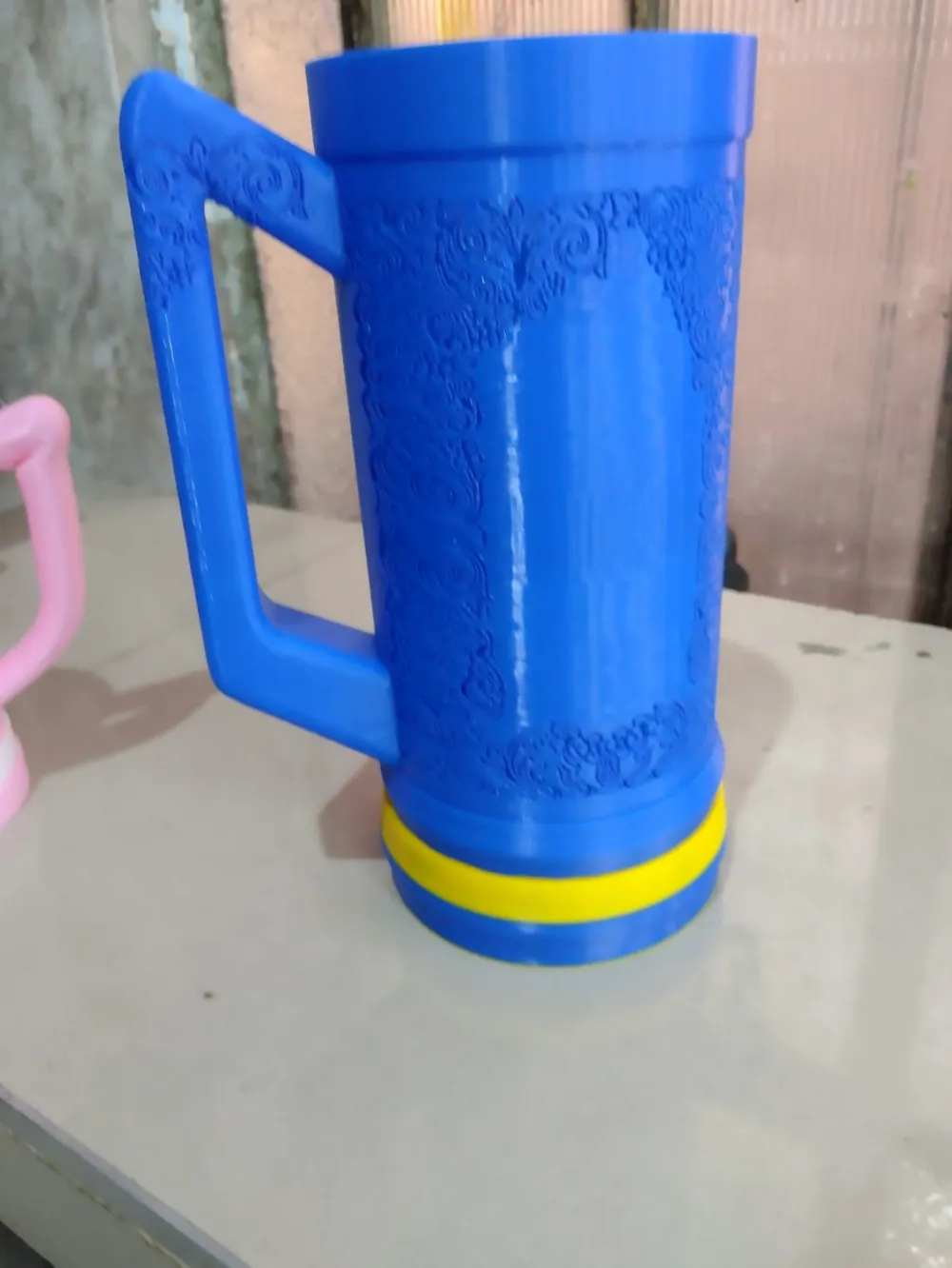

This is a 1 Liter Tankard meticulously designed with embossed Fileteado Porteño details and the CABJ crest. It's the perfect gift for any Boca fan or to enjoy a cold drink while watching the game.

The best part of this design is that you DO NOT need an AMS system to achieve the multicolor result on the base. It's designed so that any standard printer can do it with manual changes.

✨ Main Features:

• Actual Capacity: 1 Liter (ideal for pre-games and matches).
• Artistic Design: High-definition "Fileteado" style side texture.
• Logo on the Base: Personalized hidden detail on the bottom.
• 120th Anniversary Crest: Includes the crest applique for gluing or interlocking.
• No Complex Supports: Designed for easy printing.

⚙️ Printing Instructions (IMPORTANT: Non-AMS Method)

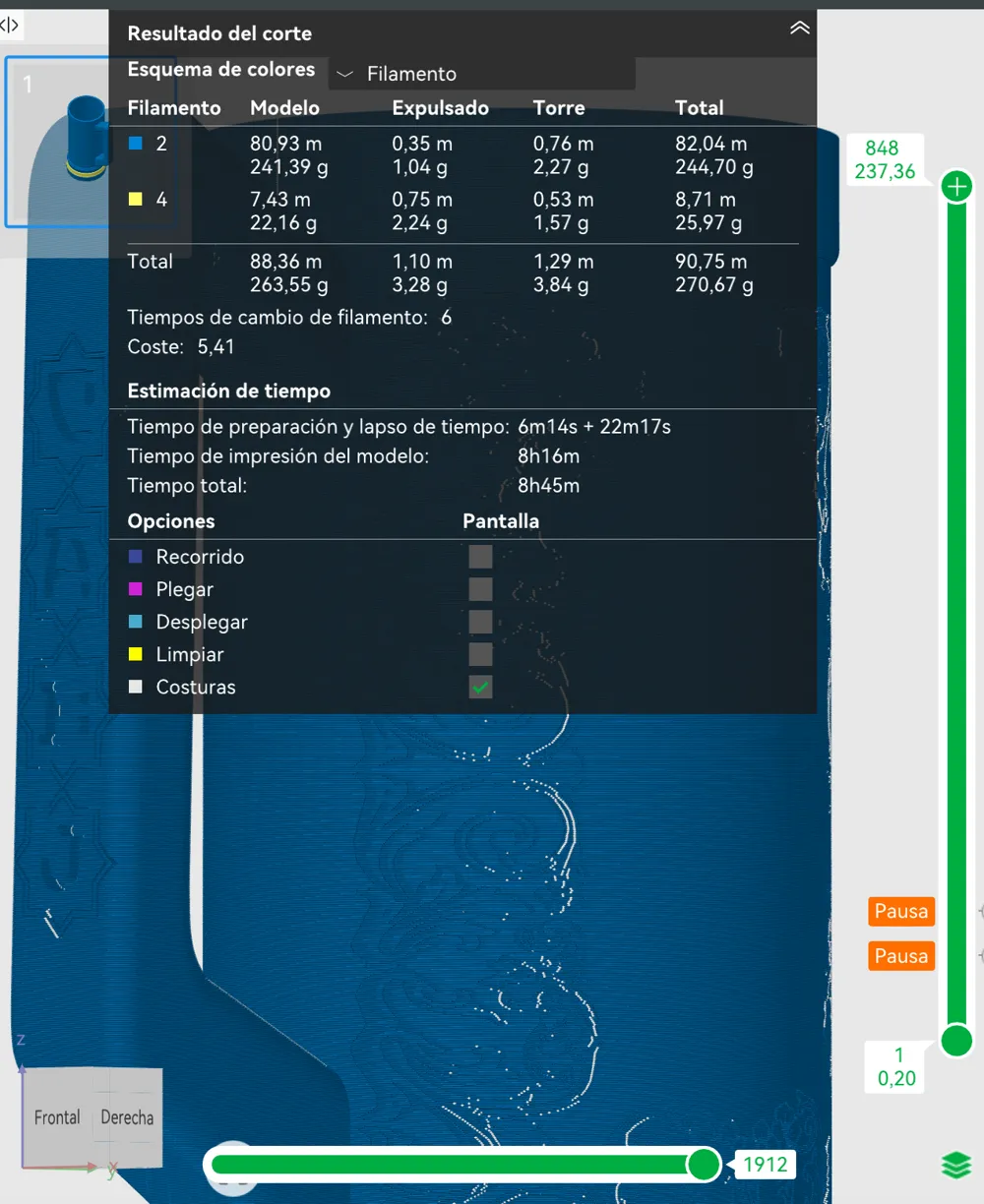

This model achieves the flag colors (Blue and Gold) using the manual filament change method. You don't need AMS, but you do need to pay attention at the start of the print.

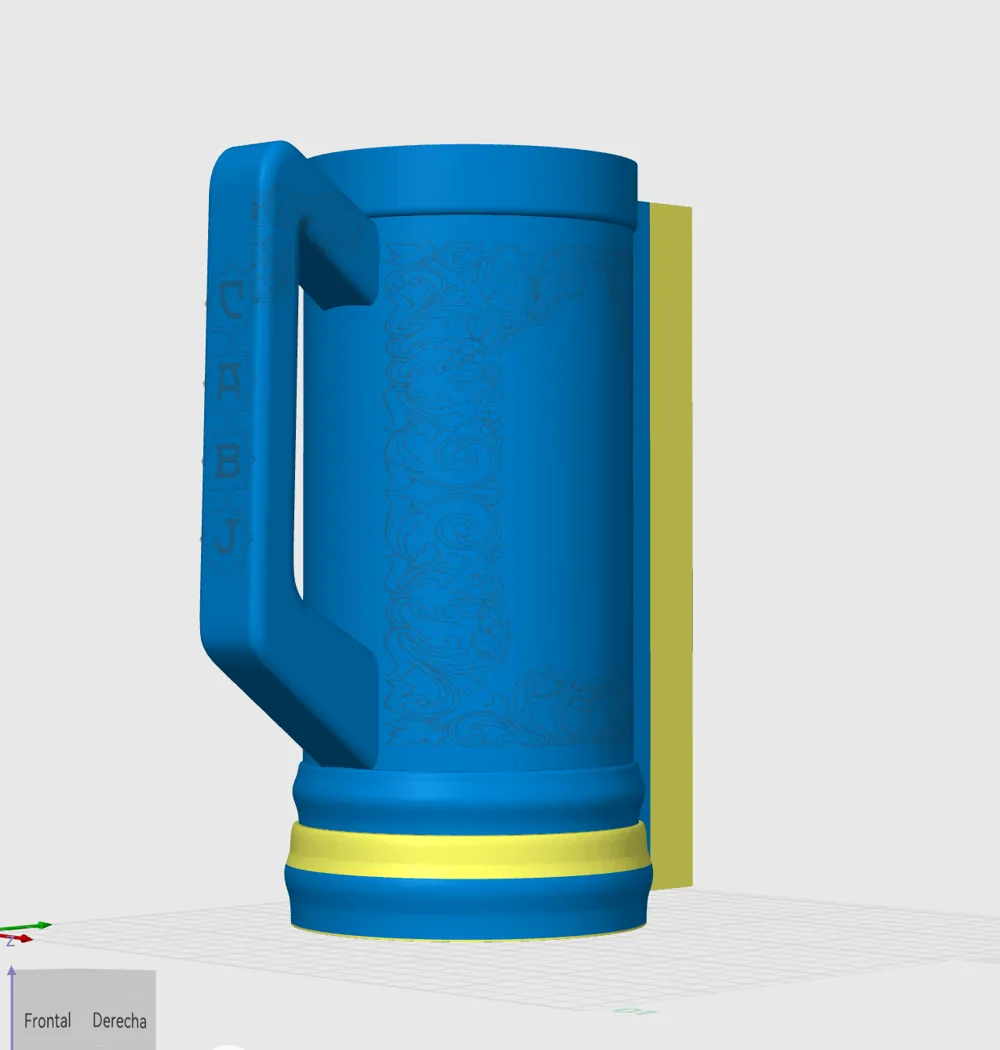

Color Configuration (Base): The trick is in the first layers to achieve the ring and the bottom logo:

1. Start (Layers 1 to 3):
   • The printer will make movements towards the purge/dumping tower.
   • You must manually change the filament every time the extruder moves to the dumping tower during these first 3 layers to alternate between Yellow and Blue as appropriate for the logo/base.
2. Main Body:
   • From layer 4 (or when the bicolor base finishes), leave the BLUE filament to print the entire body and the Fileteado details.
3. Top Stripe (Optional):
   • If you want the top yellow stripe, program a "Pause at height" in your slicer just before the top edge begins and change to YELLOW.

🛠 Recommended Parameters:

• Material: PLA (PLA+ or PETG is recommended for greater strength).
• Layer height: 0.2mm (for good detail in the Fileteado).
• Walls: 3 or 4 perimeters (to ensure it is waterproof and strong).
• Infill: 15% - 20% (Gyroid recommended).
• Supports: Not strictly necessary for the body, but check the ear/handle according to your printer.

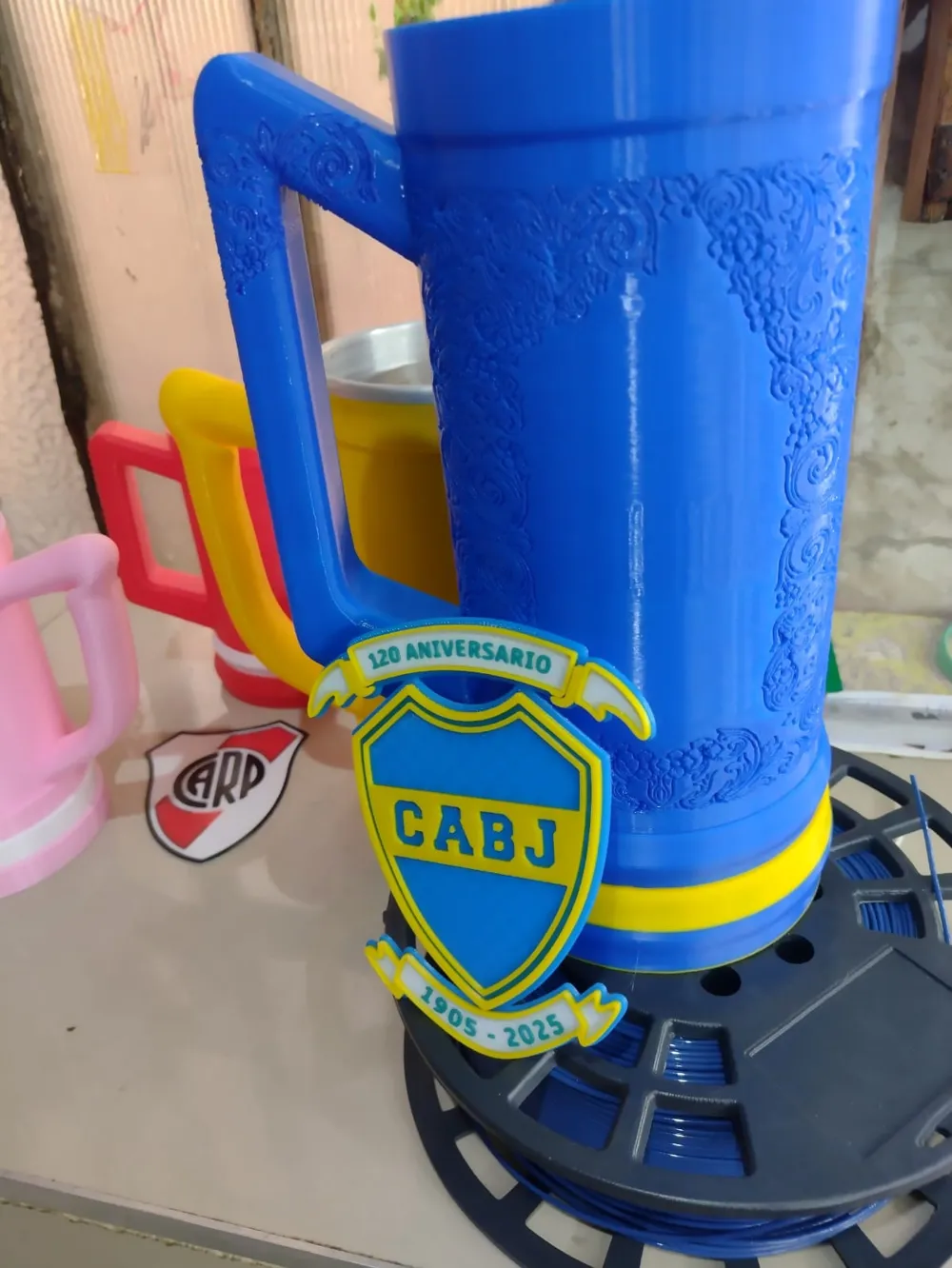

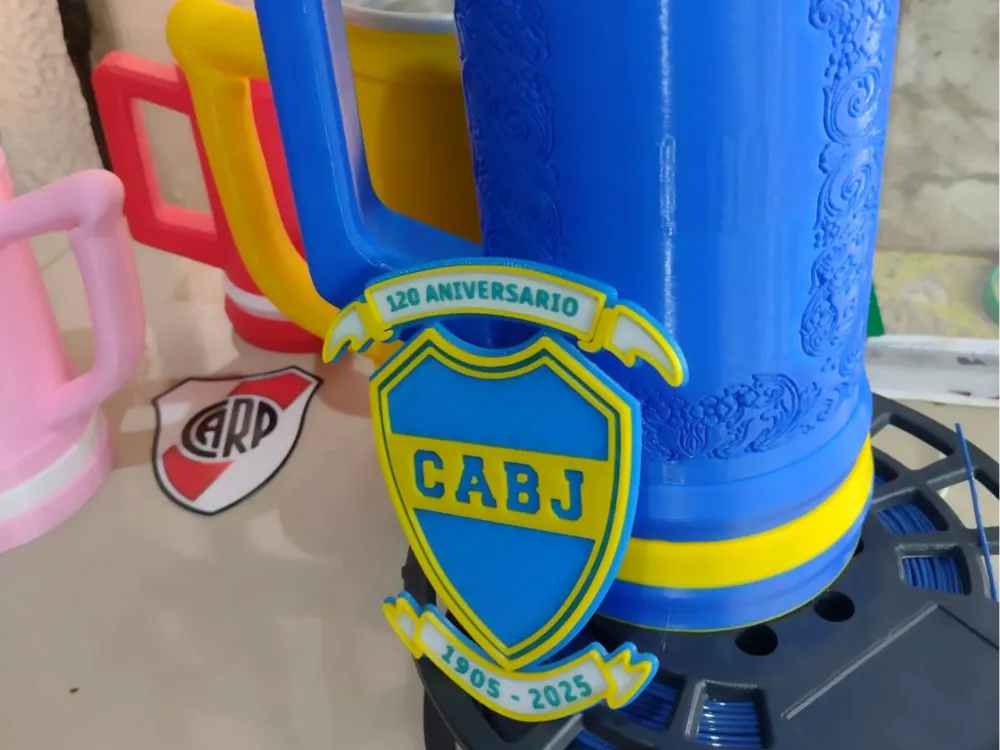

📦 Crest Assembly

The "120th Anniversary" crest is printed separately (you can use a pause at height to easily make it bicolor) and glued to the front of the tankard with instant adhesive (cyanoacrylate).
