Description
Selling the model and the printed version is not allowed.
At least Bambu Studio v.2.4.0.70 is required for the print profile

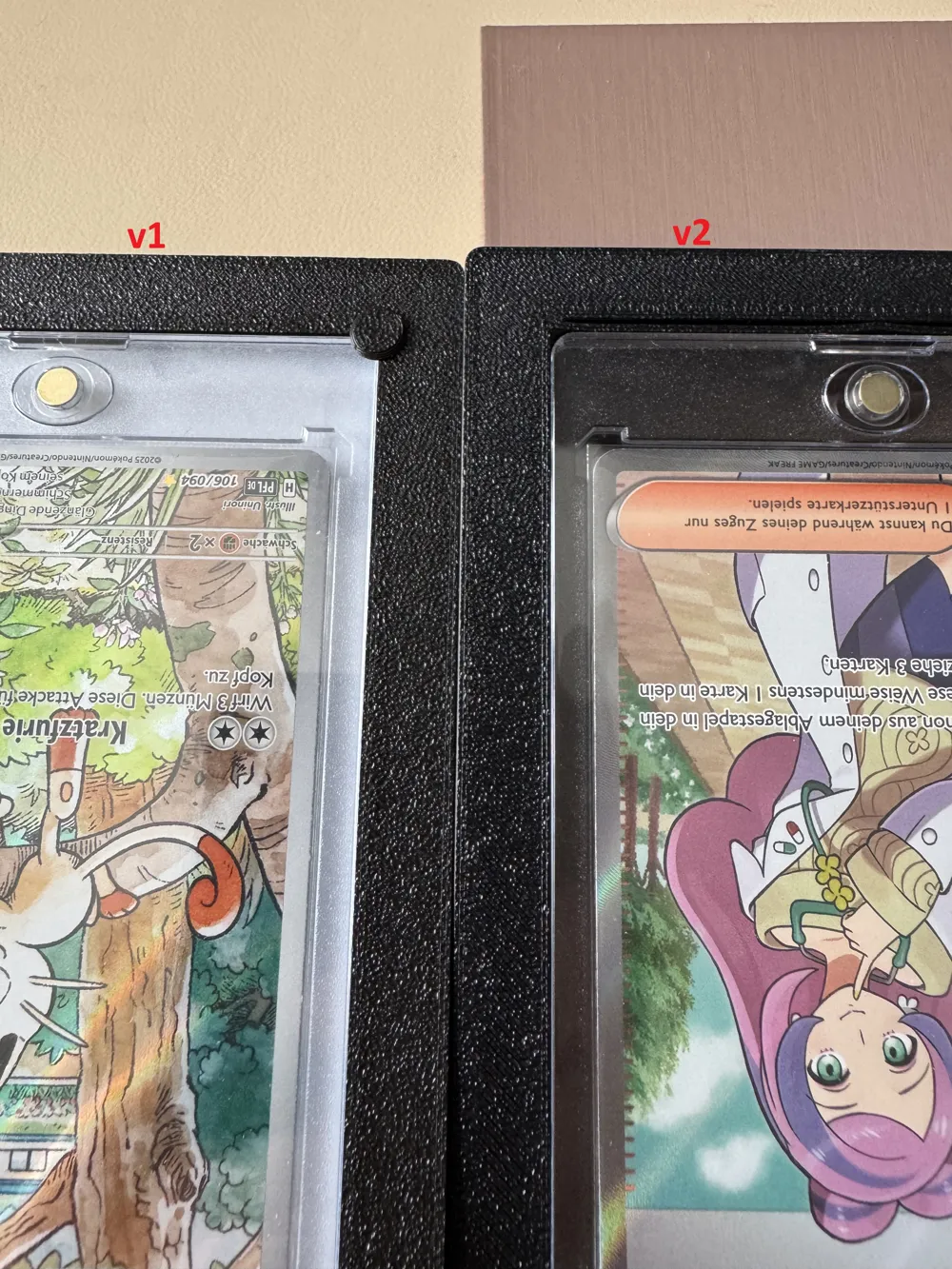

Update: I have added another print profile (Frame v2). With this, no more mounting pins are needed for the One-Touch-Sleek-Case and removing the case is much easier
Required parts:
- At least 3x M2x8 (For pogopin / cable strain relief, another 2x M2x8)
- LED strip (which one is up to you, I use a WS2812B) + controller
Assembly:
Insert diffuser
Slightly bend the diffuser and carefully place it into the frame
Insert short pins
Press the short pins into the designated holes.
Note: Some force is required here.Attach LED strip
Adhere the LED strip to the back of the housing (on the frame)
Mount case and long pins
Place your One-Touch-Sleek-Case into the front and insert the long pins crosswise.

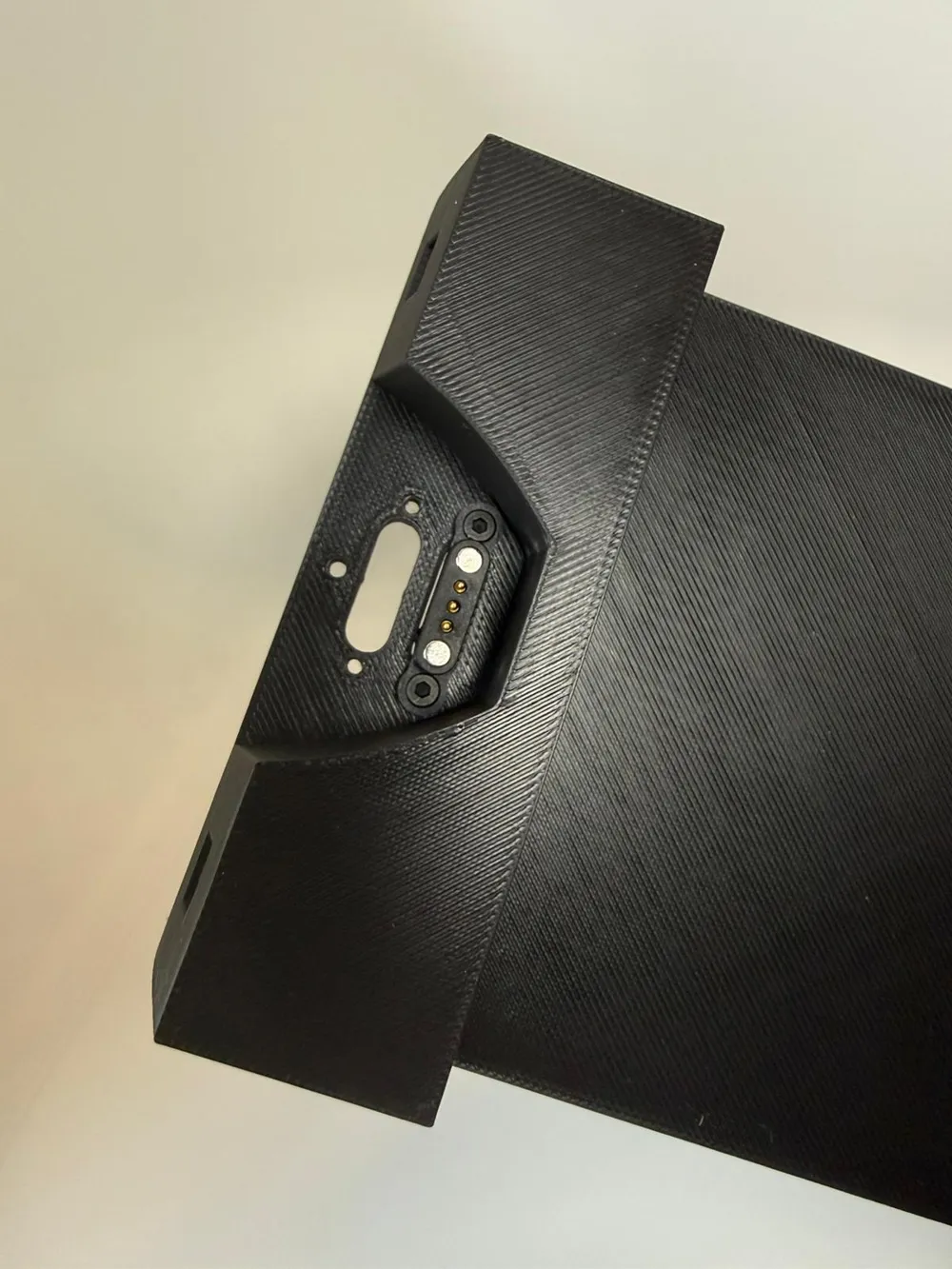

Note: Some force is also needed here. Lightly push against it from the back.- Mount the pogopin on the cover or pull the cable through and secure it with the strain relief
- Insert the feet and done! :)
