Build Plate Holder for Vertical & Angled Storage

Build Plate Holder for Vertical & Angled Storage

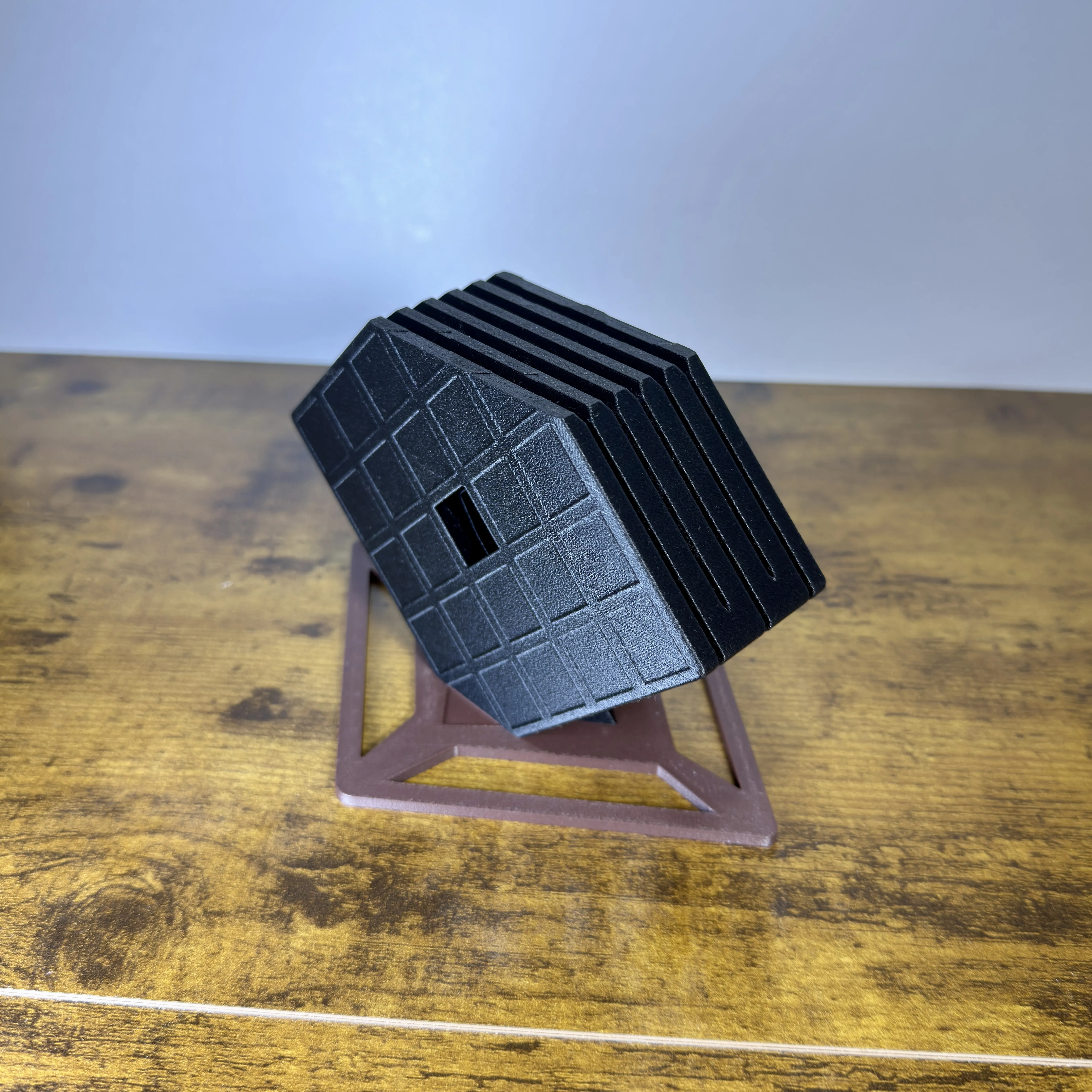

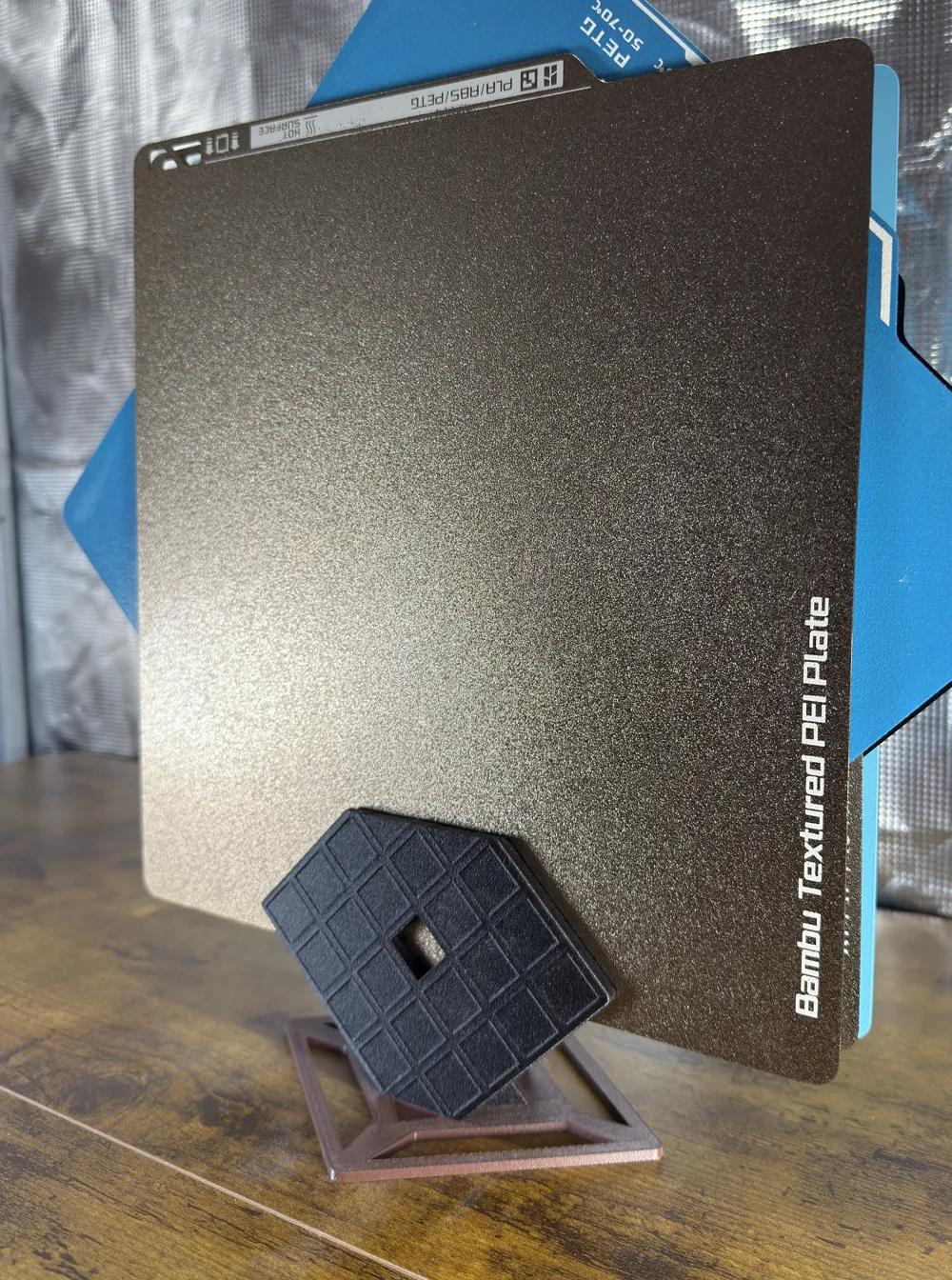

This freestanding build plate holder is designed to store five Bambu Lab 256×256 build plates in a compact, organized layout. It supports the standard plates used on the Bambu Lab X1, P1, and A1 series and is intended for placement next to the printer or on a workbench.

The holder uses an angled offset layout with side-entry slots. Plates are inserted from the side while remaining visible, making it easy to line up the correct slot during loading and removal. Shallow guide grooves are built into each slot to help plates slide into position smoothly without binding.

Each slot includes a V-shaped bottom contact point that centers the plate and holds it securely. This helps prevent lateral movement and keeps plates aligned, even when the holder is partially loaded.

The base is designed with a no-tip geometry. When force is applied from the side or during plate insertion, the outer edges of the base can flex slightly and guide the stand back into an upright position rather than allowing it to tip. This behavior helps maintain stability during normal use without requiring added weight or fasteners.

The angled offset layout improves access and spacing while also serving as a deliberate design choice to keep the holder compact and visually balanced in a workshop setting.

Key Features

• Designed for Bambu Lab 256×256 build plates
• Holds up to 5 build plates
• Side-entry slot design for easy loading and removal
• Integrated guide grooves to assist plate alignment
• V-shaped bottom supports to center and retain plates securely
• No-tip base geometry with flexing edges to guide the stand upright
• Angled offset layout for access, spacing, and visual clarity
• Freestanding, single-piece print
• No supports required

Design Variants

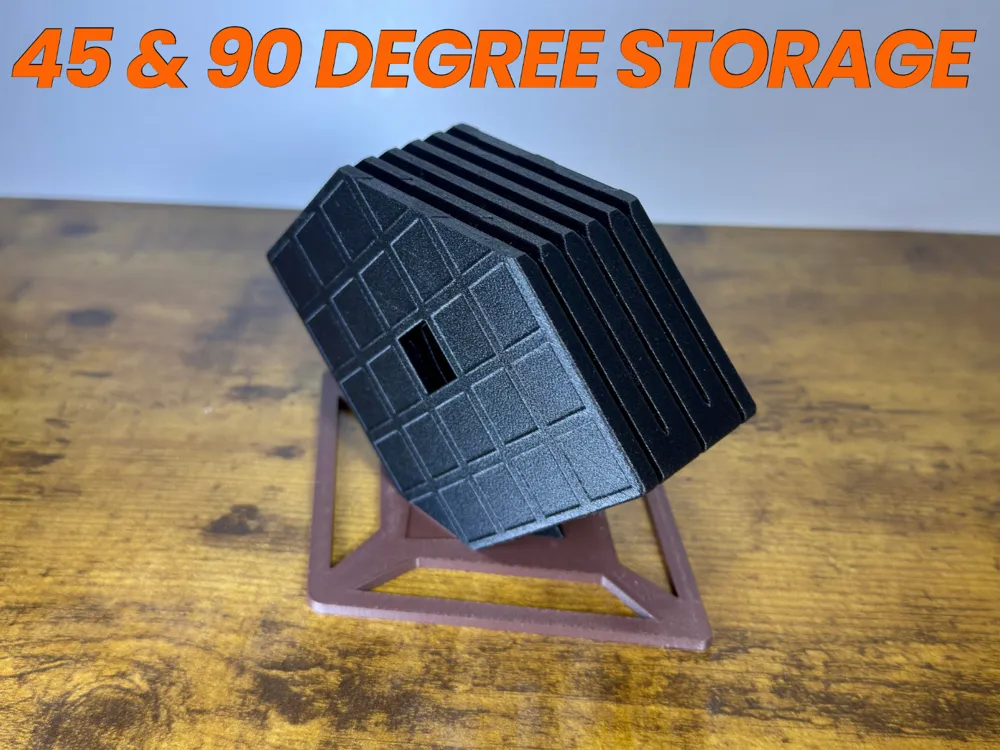

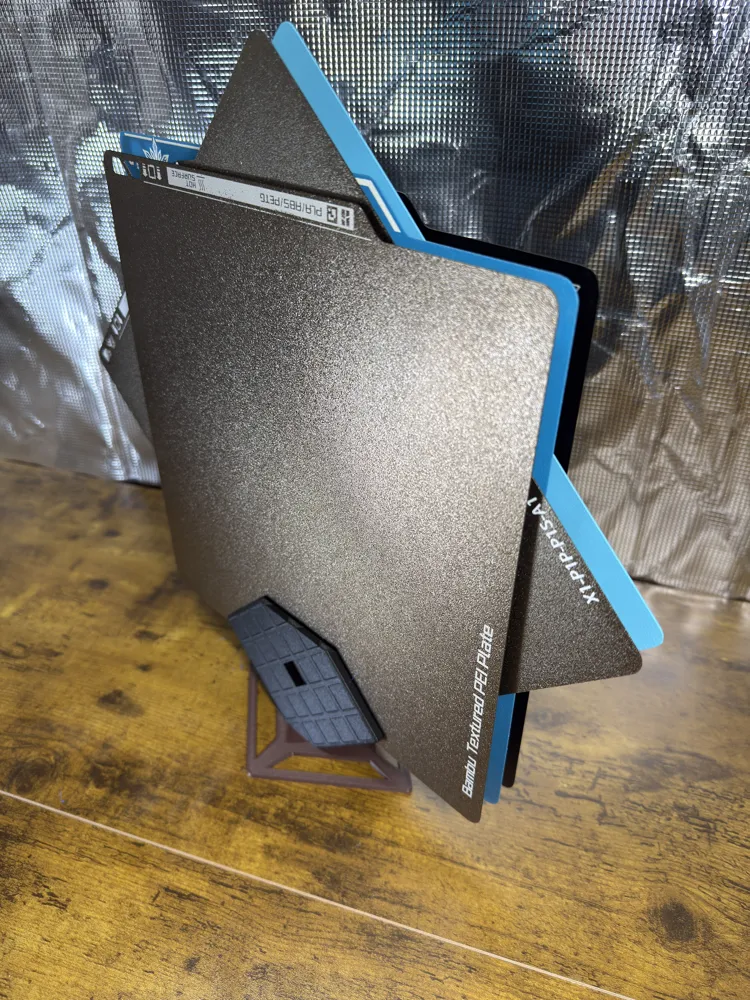

Current Variant is staggered with every other build plate at a 45 or 90 degree angle.

• Angled offset layout with alternating plate angles
• (Upcoming) 45-degree only layout, where all slots hold plates at the same angle

Each variant is arranged on its own plate for clarity and ease of selection.

Printing Information

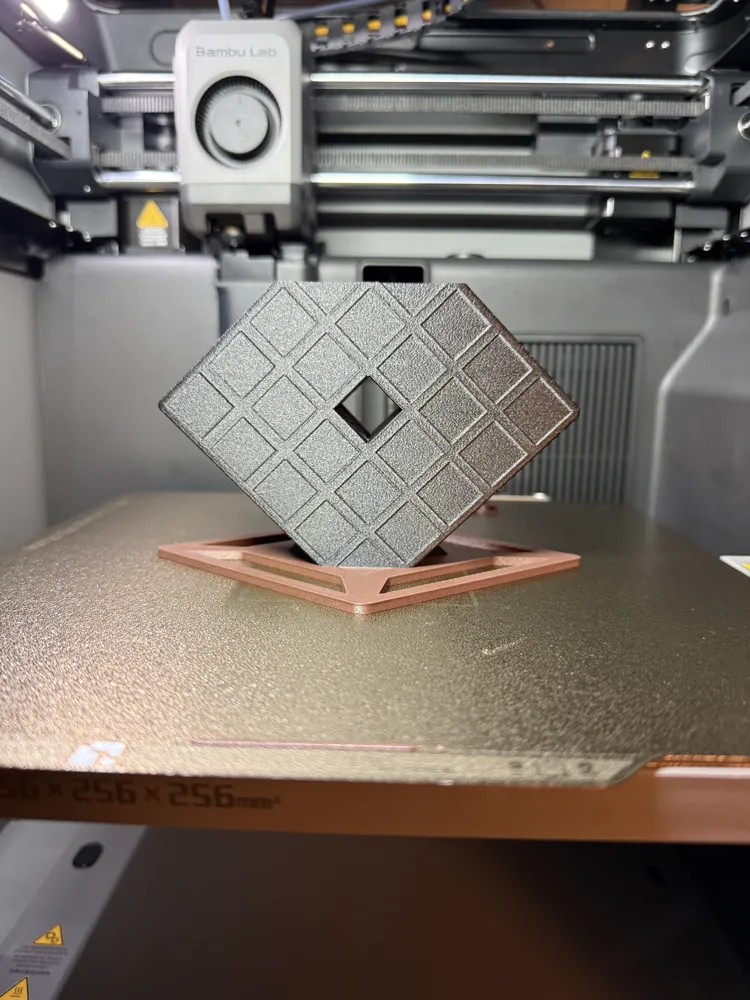

• Orientation: Print flat on the bed as provided
• Supports: None
• Materials tested: PLA and PETG
• Smooth and textured build plates tested

All photos shown are of printed models using these settings.

Assembly

No assembly required.
The holder prints as a single piece and is ready to use once removed from the build plate.

Design Notes

This model was designed specifically around the Bambu Lab 256×256 plate format. The side-entry slot geometry, V-shaped contact points, and base flexibility were refined through test prints to improve stability and ease of use. The angled offset layout is not required for function but was intentionally included to balance usability, spacing, and overall appearance.

This is an original design created for efficient build plate organization in a workshop environment.

Short Description

Angled offset stand for five Bambu Lab 256×256 build plates with side-entry slots, V-shaped supports, and a no-tip flexing base.
