Wall Mount for Power Strip

Construction

The wall mount was designed using Fusion 360 software, allowing for precise and perfectly fitting manufacturing.

Usage

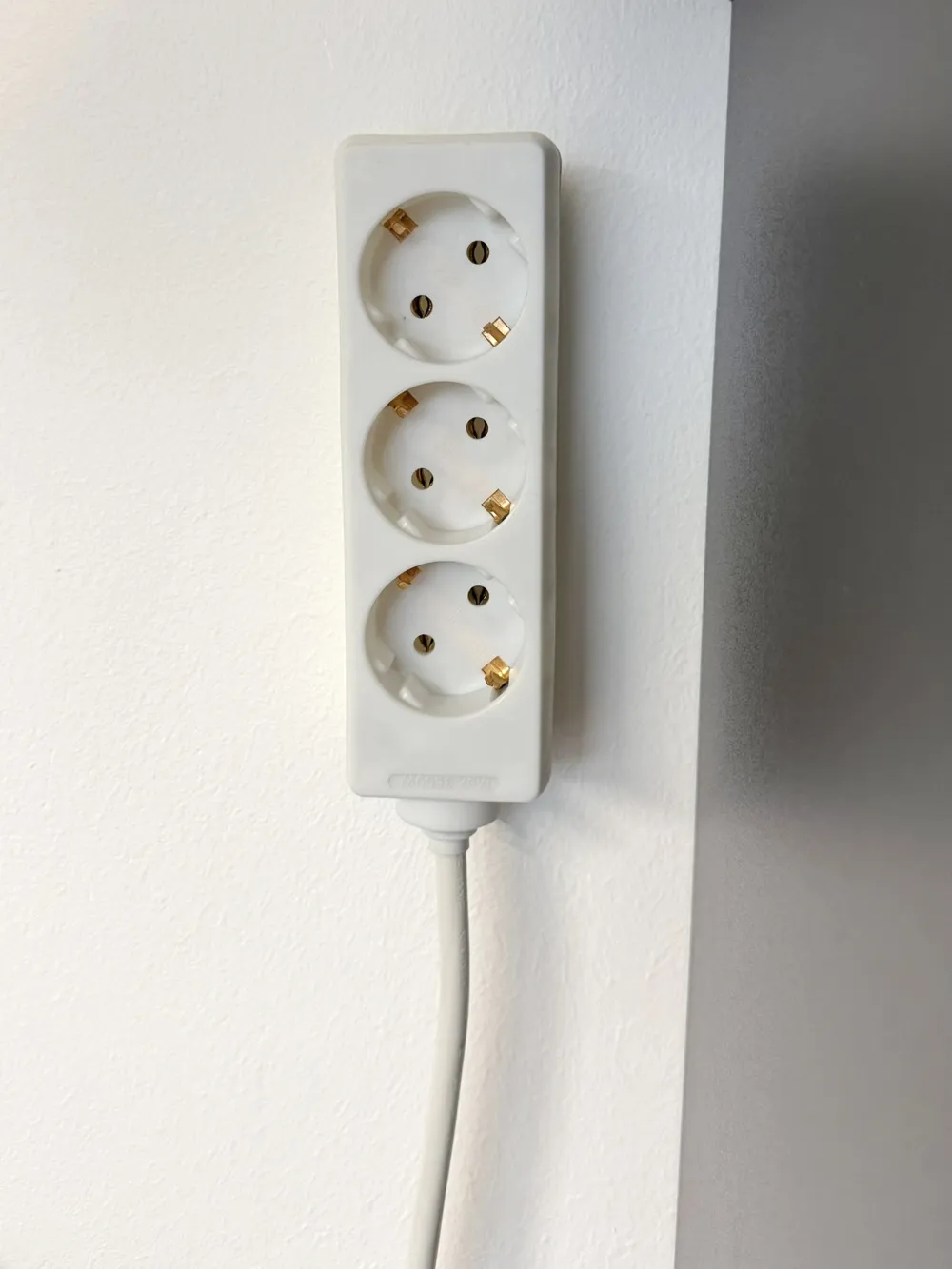

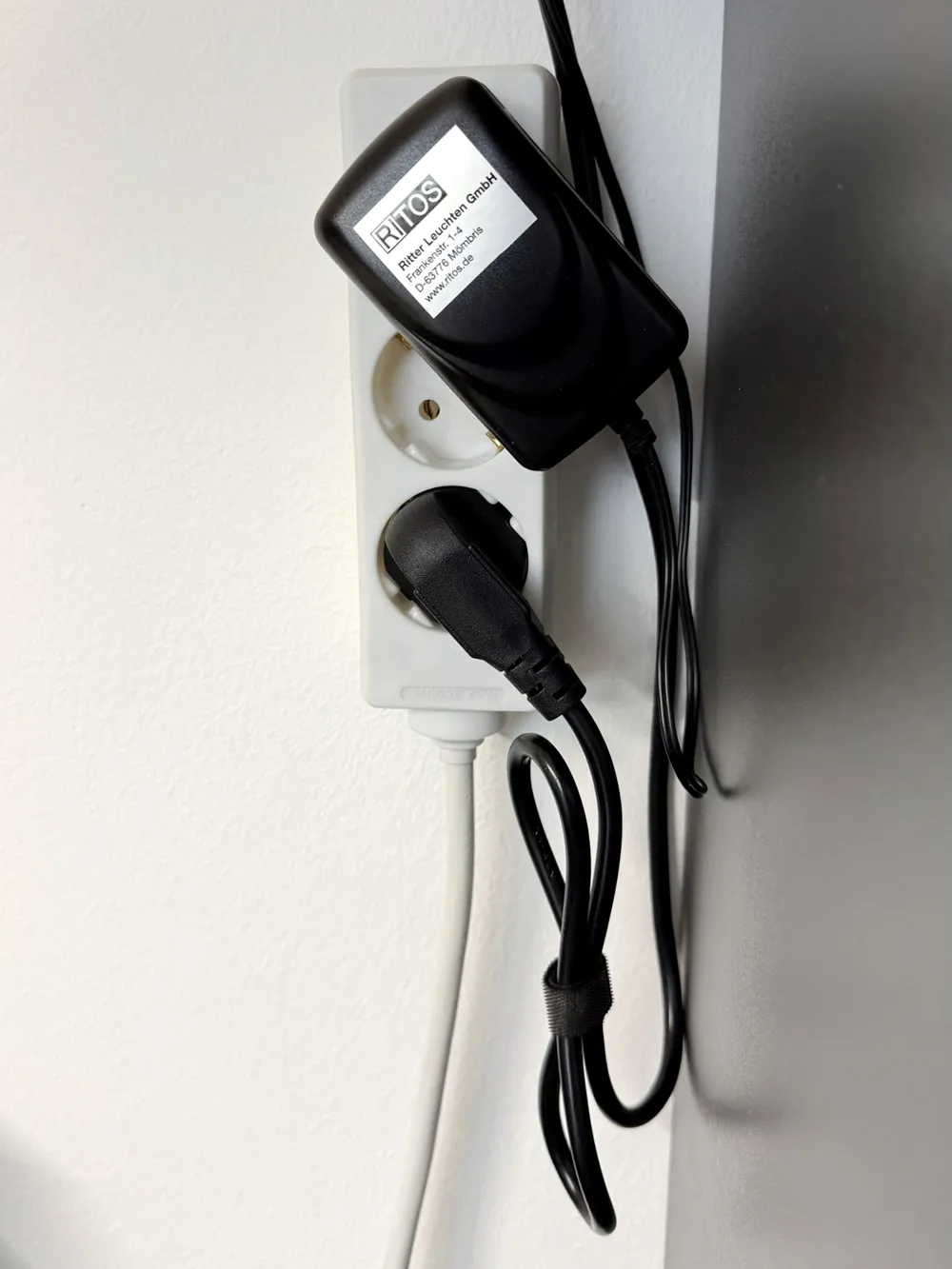

This mount is used to install a power strip on the wall. The contact surface extends over the entire underside of the mount, reliably preventing the power strip from accidentally tipping over.


For the most discreet installation possible, it is recommended to use a filament in the color of the power strip or the wall. If the mount is to serve as a decorative element, any desired color is, of course, available.

Base Dimensions

•    Length: 155 mm
•    Width: 46 mm
•    Height: 7 mm
•    Corner Radius: 4 mm


If other dimensions are needed, I can make a custom adjustment.

Printing

Printing the mount is very easy. No support structures are needed, and an Automatic Material System (AMS) is also not required.

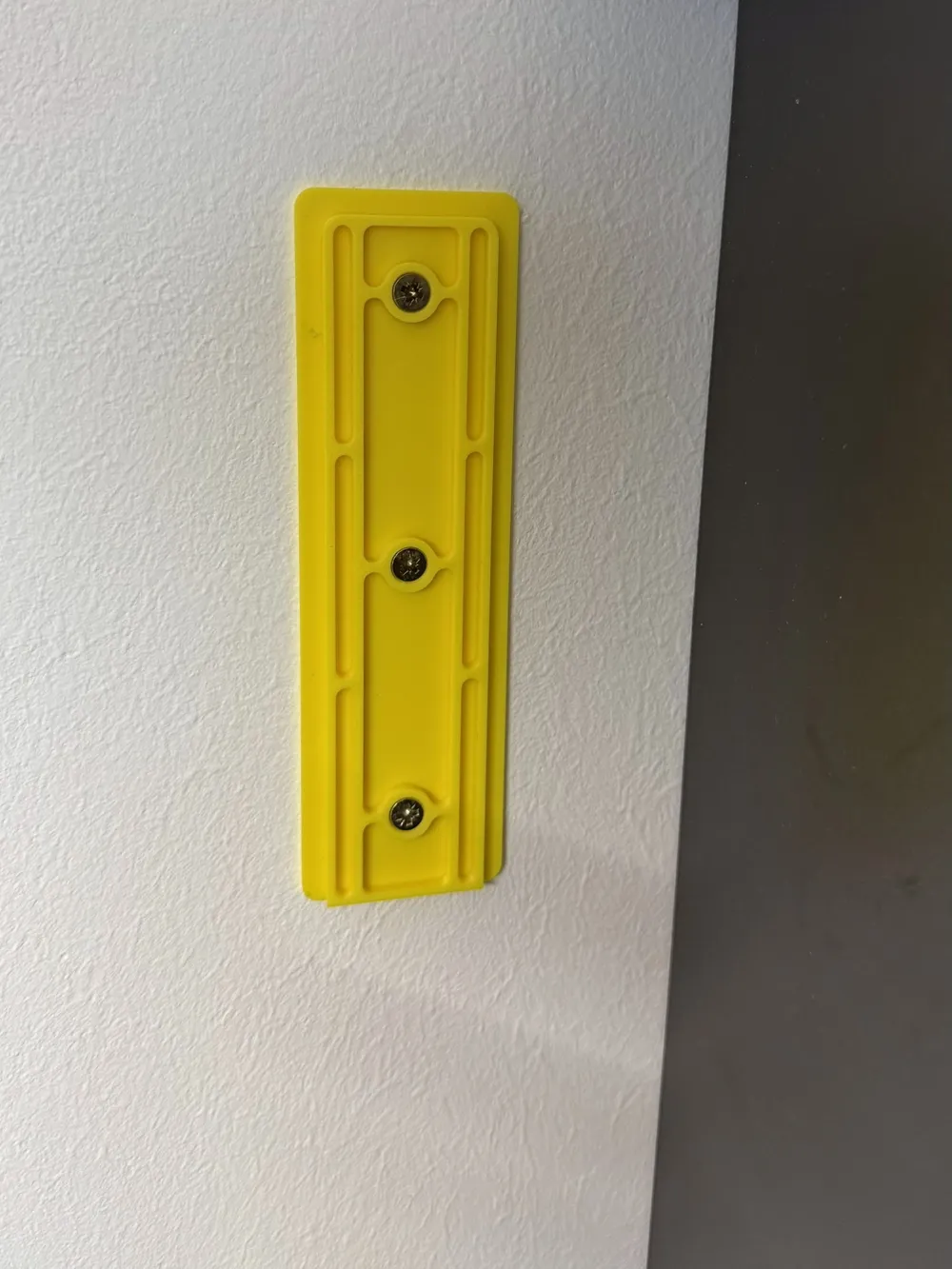

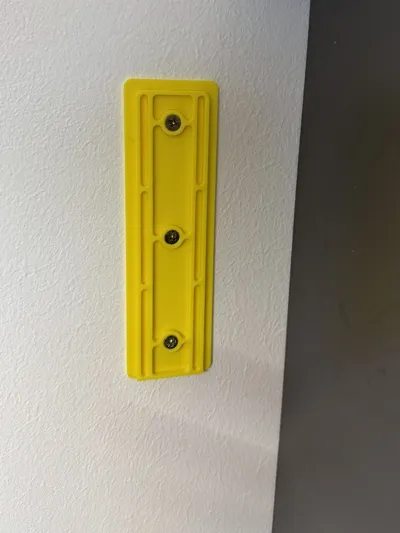

Installation

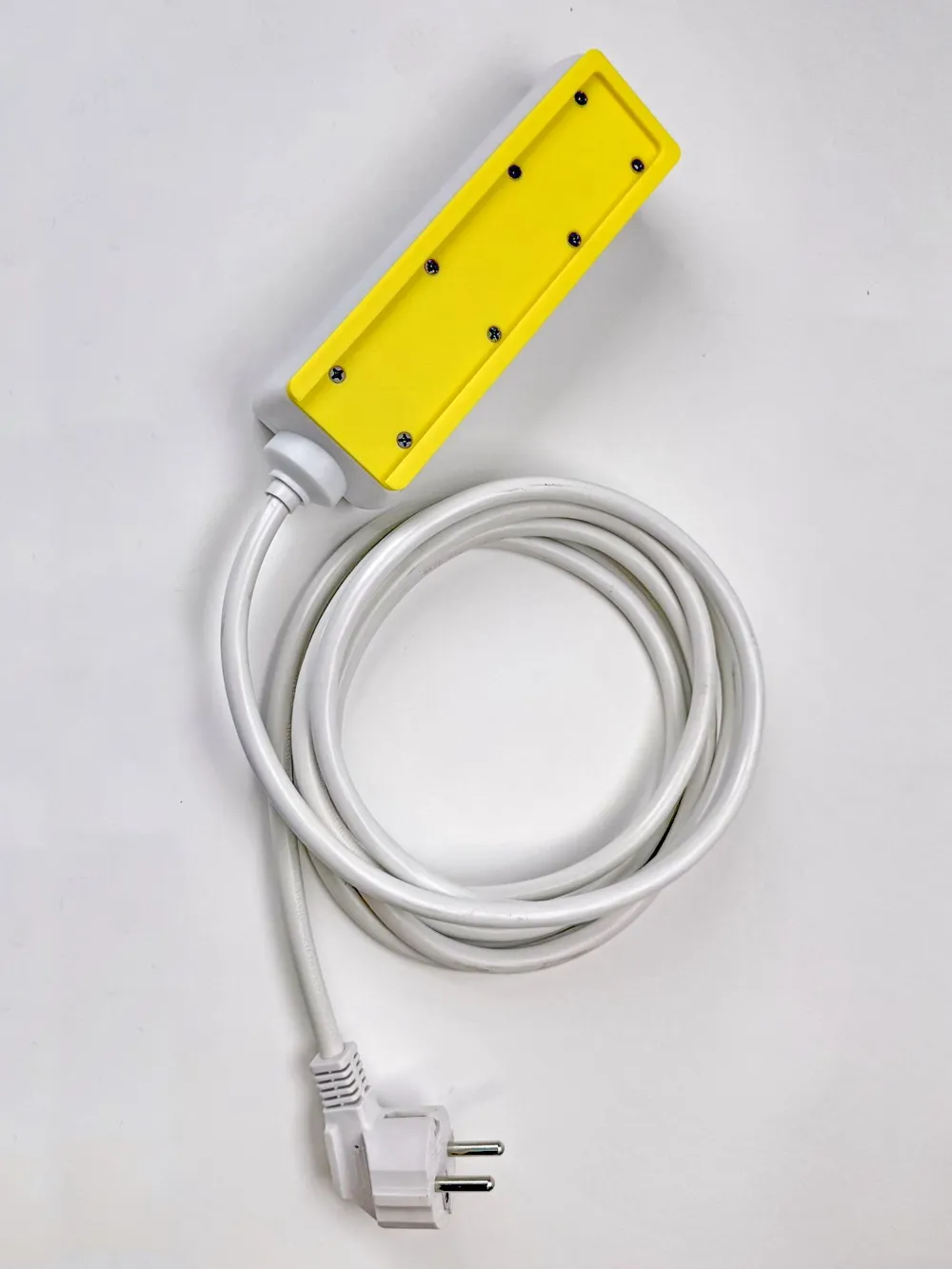

There are two options for attaching the mount: either screw it directly into the base of the power strip with self-tapping screws or attach it with double-sided adhesive tape.

Safety Notice

Installation must only be carried out when the power is off. Ensure that no screws come into contact with live parts. If you do not have the necessary expertise, please have the installation performed by a qualified professional.

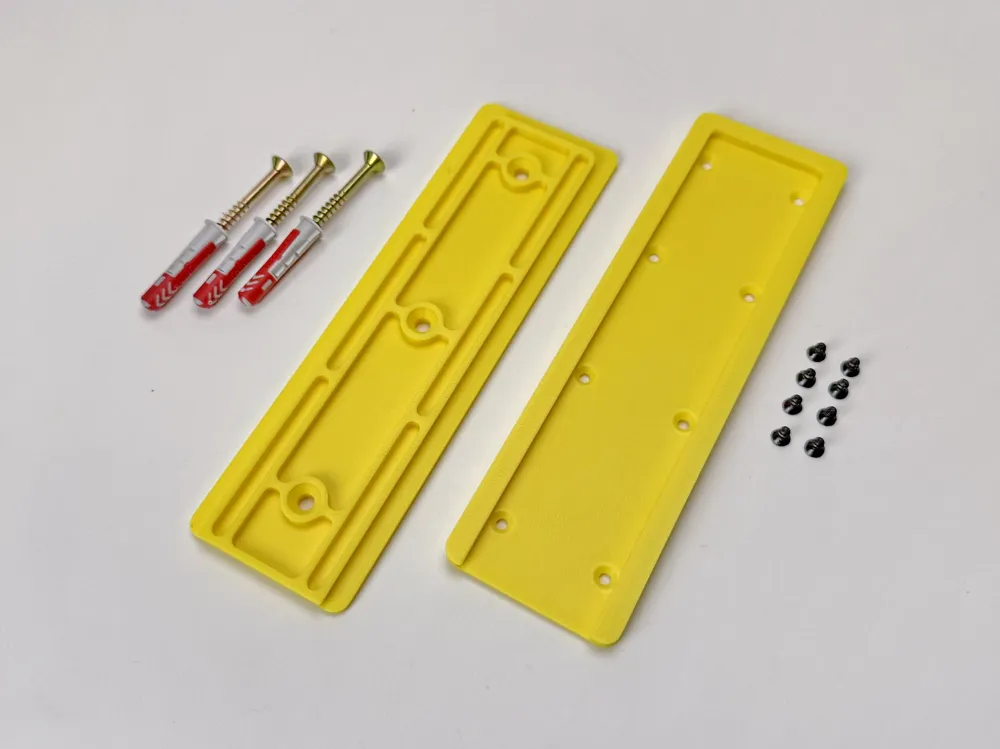

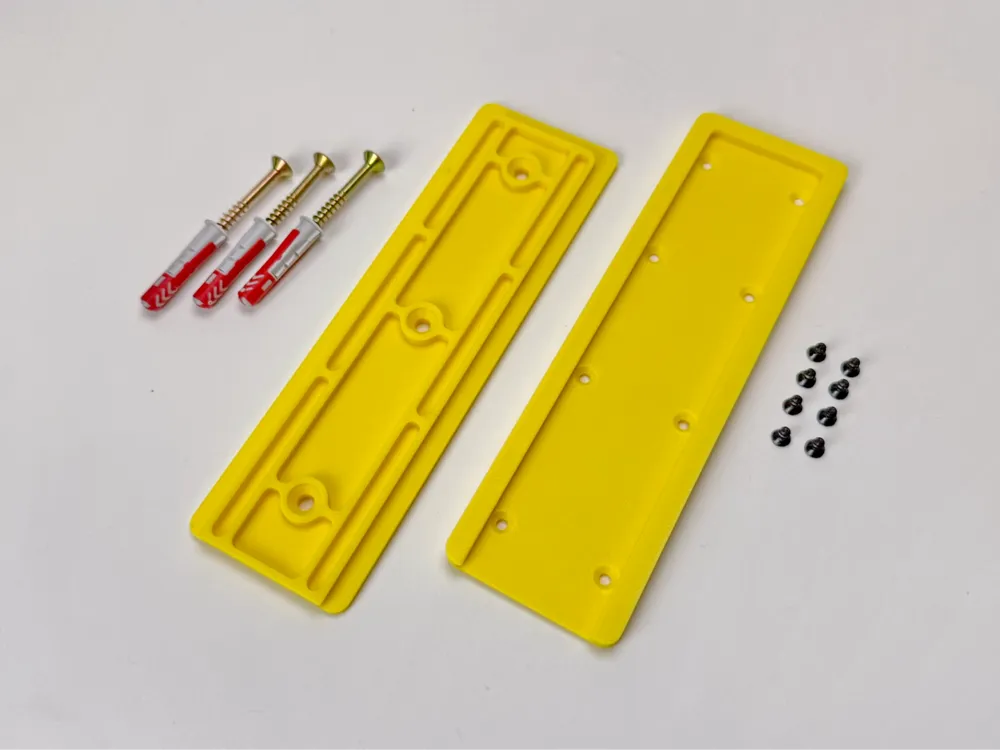

Required Materials

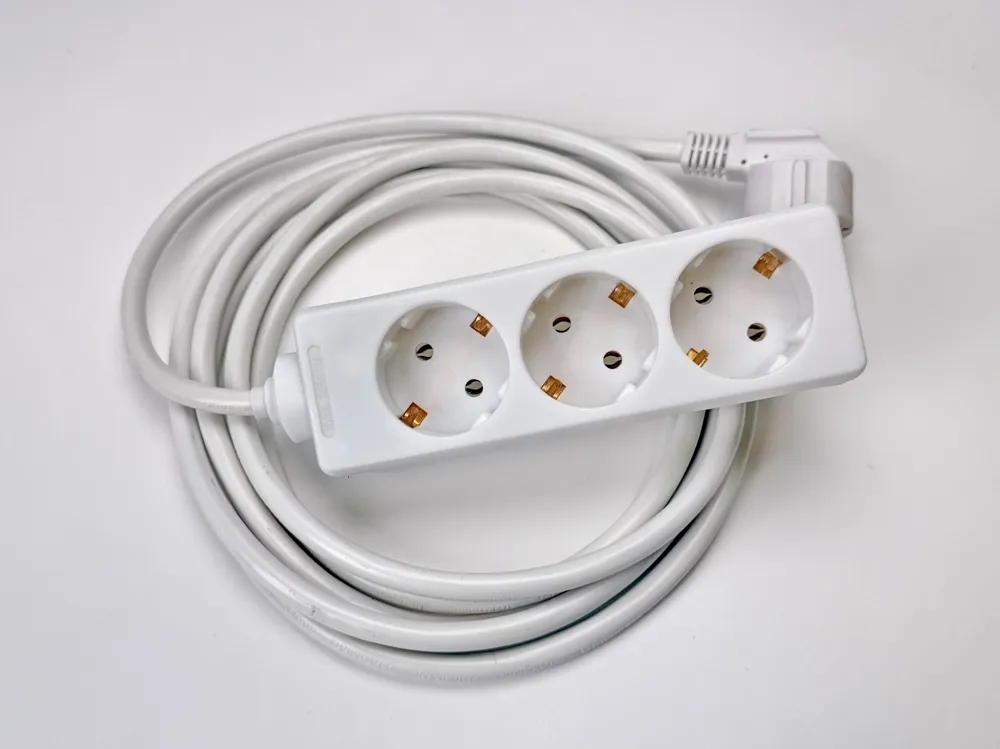

•    1x 3-way power strip
•    3x wall plugs
•    3x countersunk screws 3x40 mm
•    8x self-tapping screws 3x6 mm
