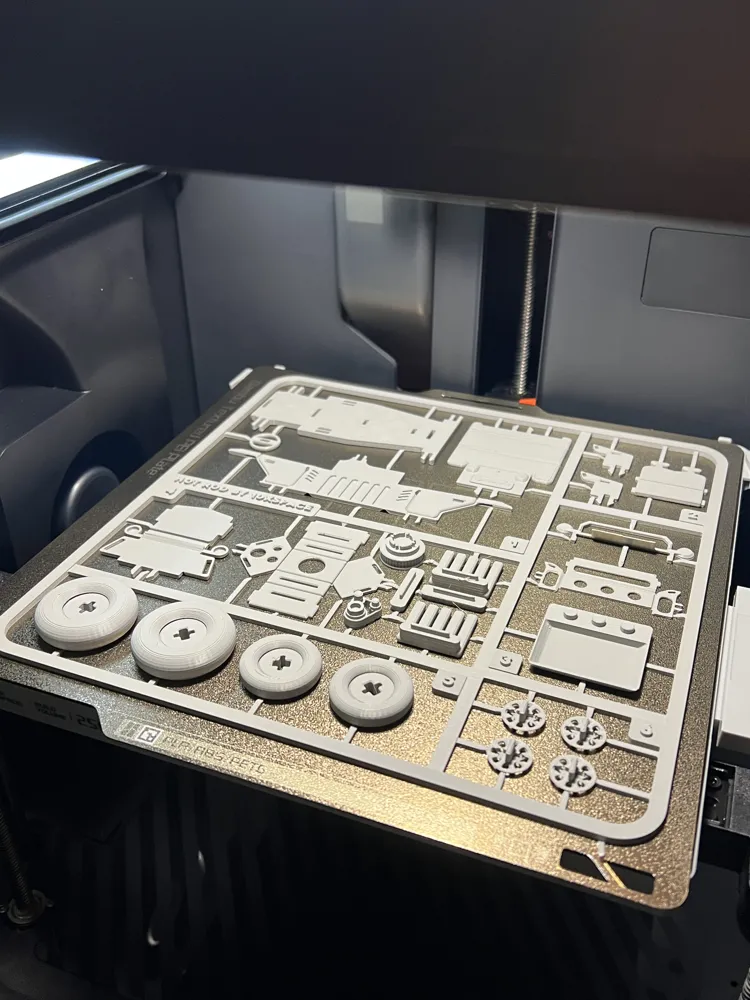

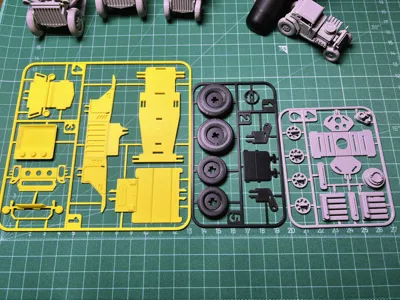

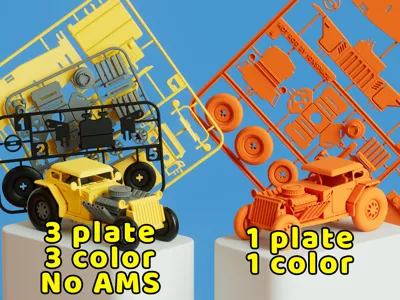

Its 3 plate, multi-color version. NO AMS needed ✅ Supports: Not needed ✅ Orientation: Print flat on the bed ✅ Material: PLA / PETG / ABS (any hard filament) ✅ Infill: 5%+ ✅ Initial layer speed: 20 mm/s (recommended for better adhesion) ✅ Recommended: Ironing ON for a cleaner top surface and smoother assembly

Multi-Color Version (10% infill, 0.2mm layer, ironing)



✅ Supports: Not needed ✅ Orientation: Print flat on the bed ✅ Material: PLA / PETG / ABS (any hard filament) ✅ Infill: 5%+ ✅ Initial layer speed: 20 mm/s (recommended for better adhesion) ✅ Recommended: Ironing ON for a cleaner top surface and smoother assembly

Single-Color Version (10% infill, 0.2mm layer, ironing)

3 Plate multi color version for A-1 mini ✅ Supports: Not needed ✅ Orientation: Print flat on the bed ✅ Material: PLA / PETG / ABS (any hard filament) ✅ Infill: 5%+ ✅ Initial layer speed: 20 mm/s (recommended for better adhesion) ✅ Recommended: Ironing ON for a cleaner top surface and smoother assembly

Multi-color for A1 MINI (10% infill, 0.2mm layer, ironing)

3d-boss


[Improved ironing] 0.2mm layer, 2 walls, 10% infill

3D Manufaktur Fürth

Hot Rod Auto.png

Scaled this modell down, so that i could print it on my A1 mini.

Scaled for A1 mini - 0.18mm layer, 2 walls, 10% infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

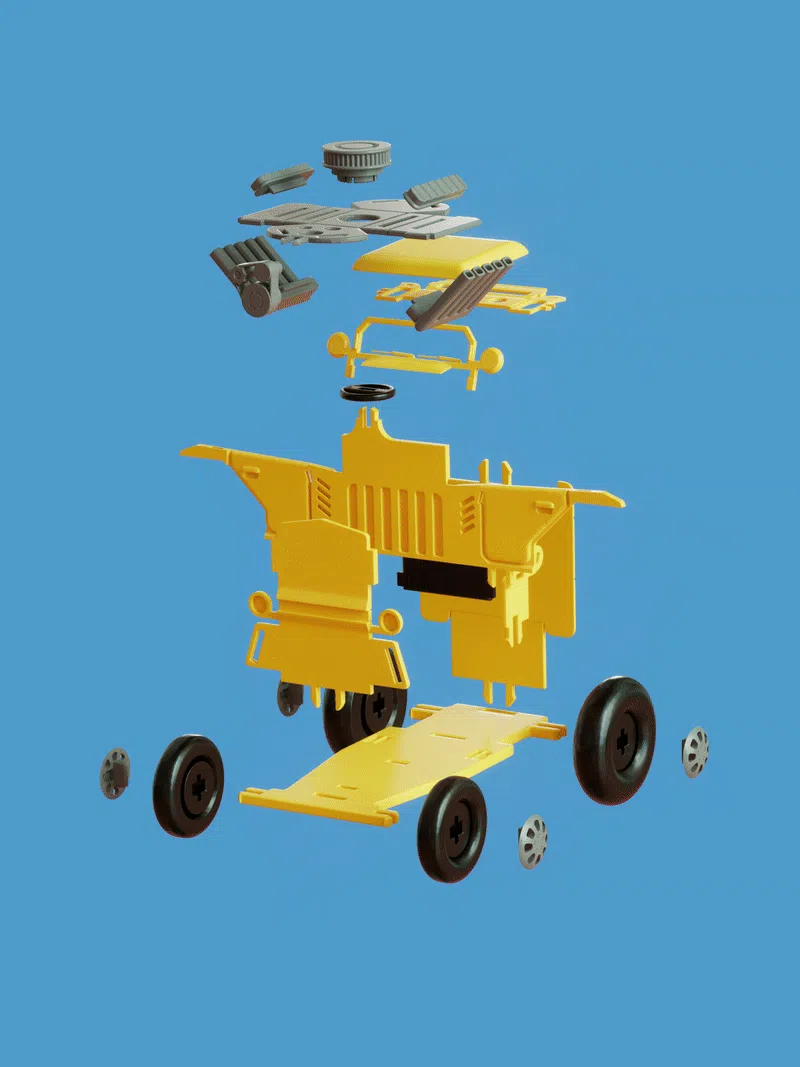

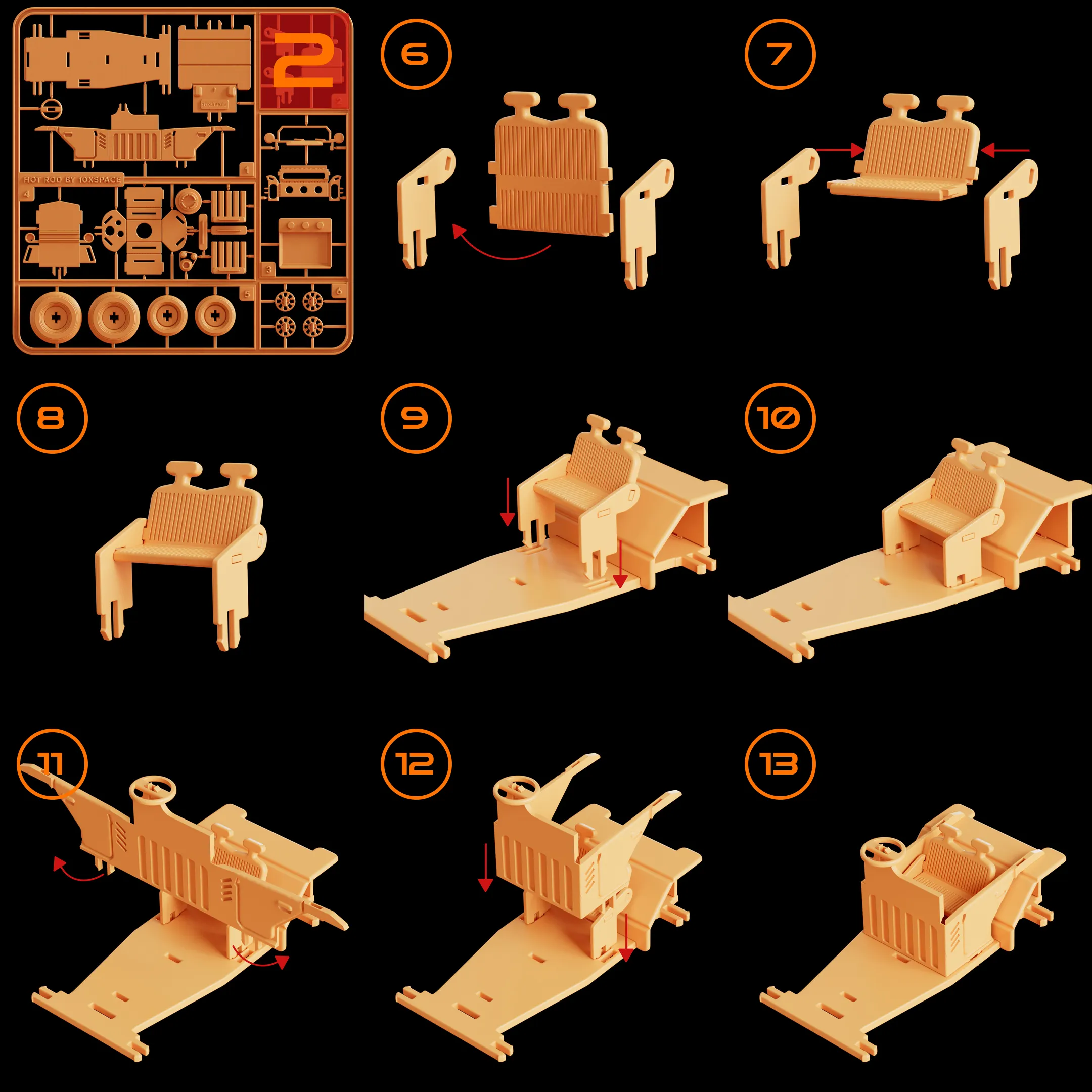

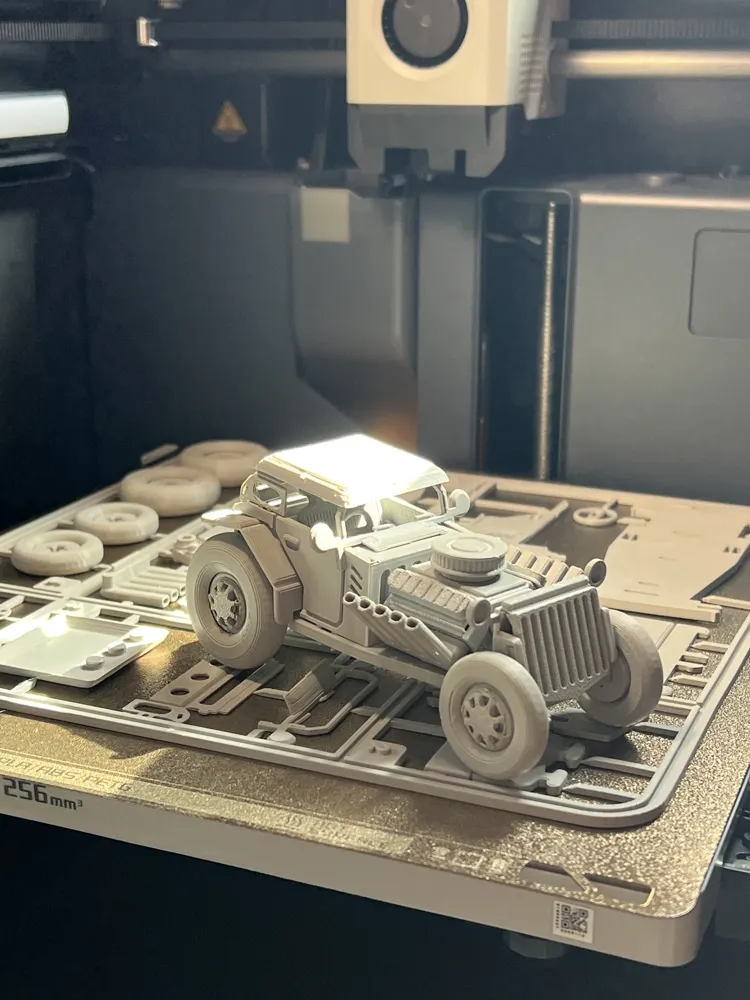

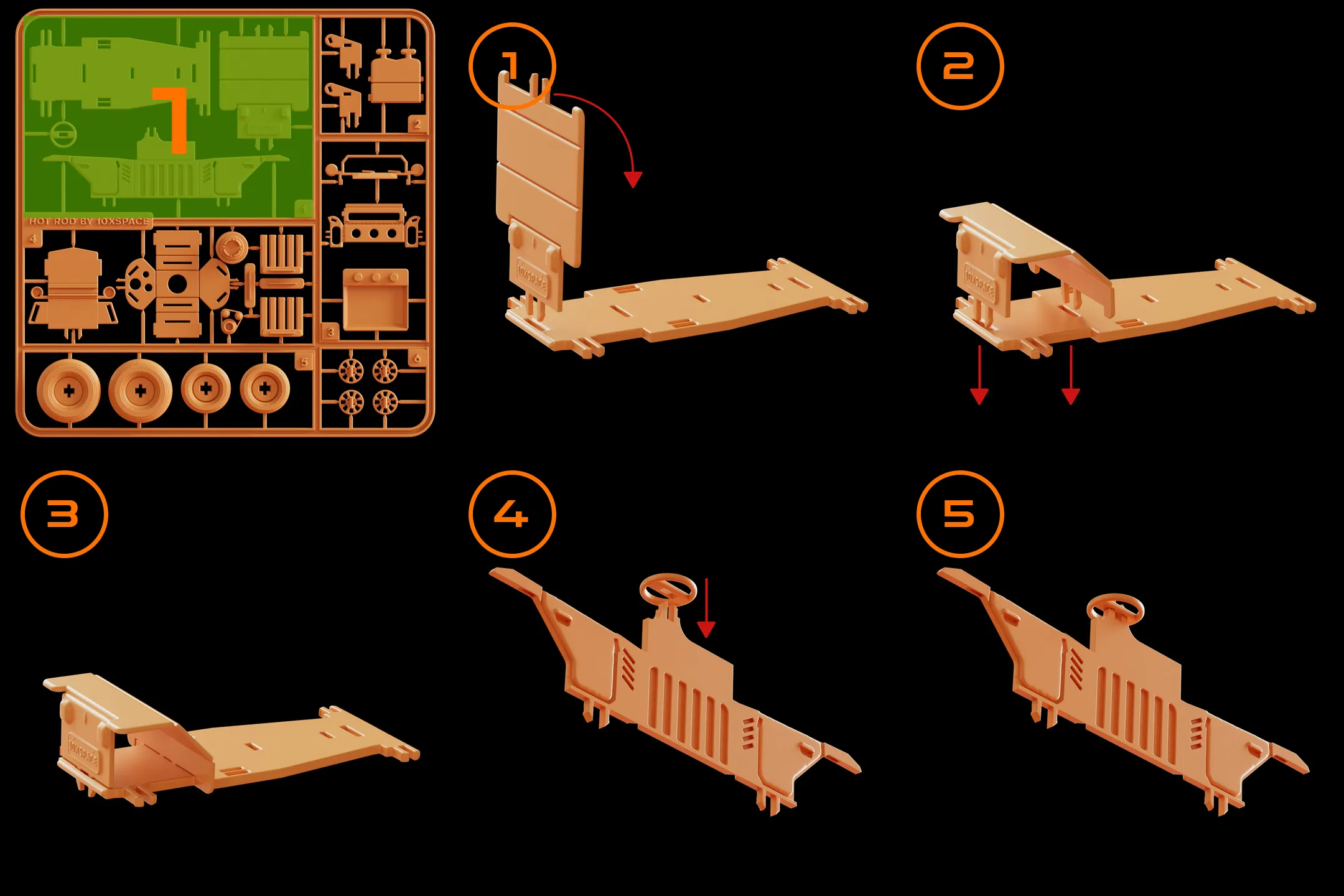

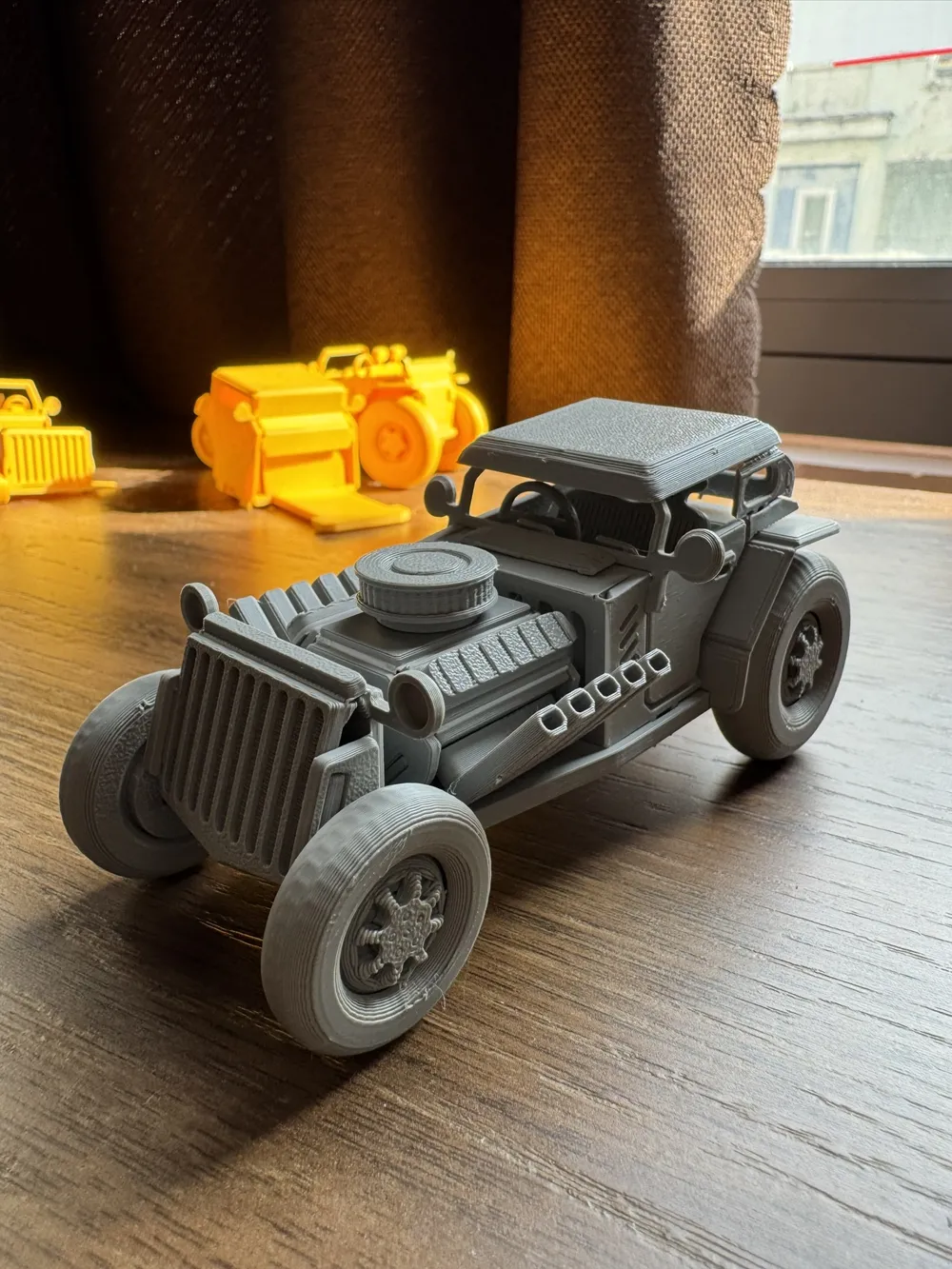

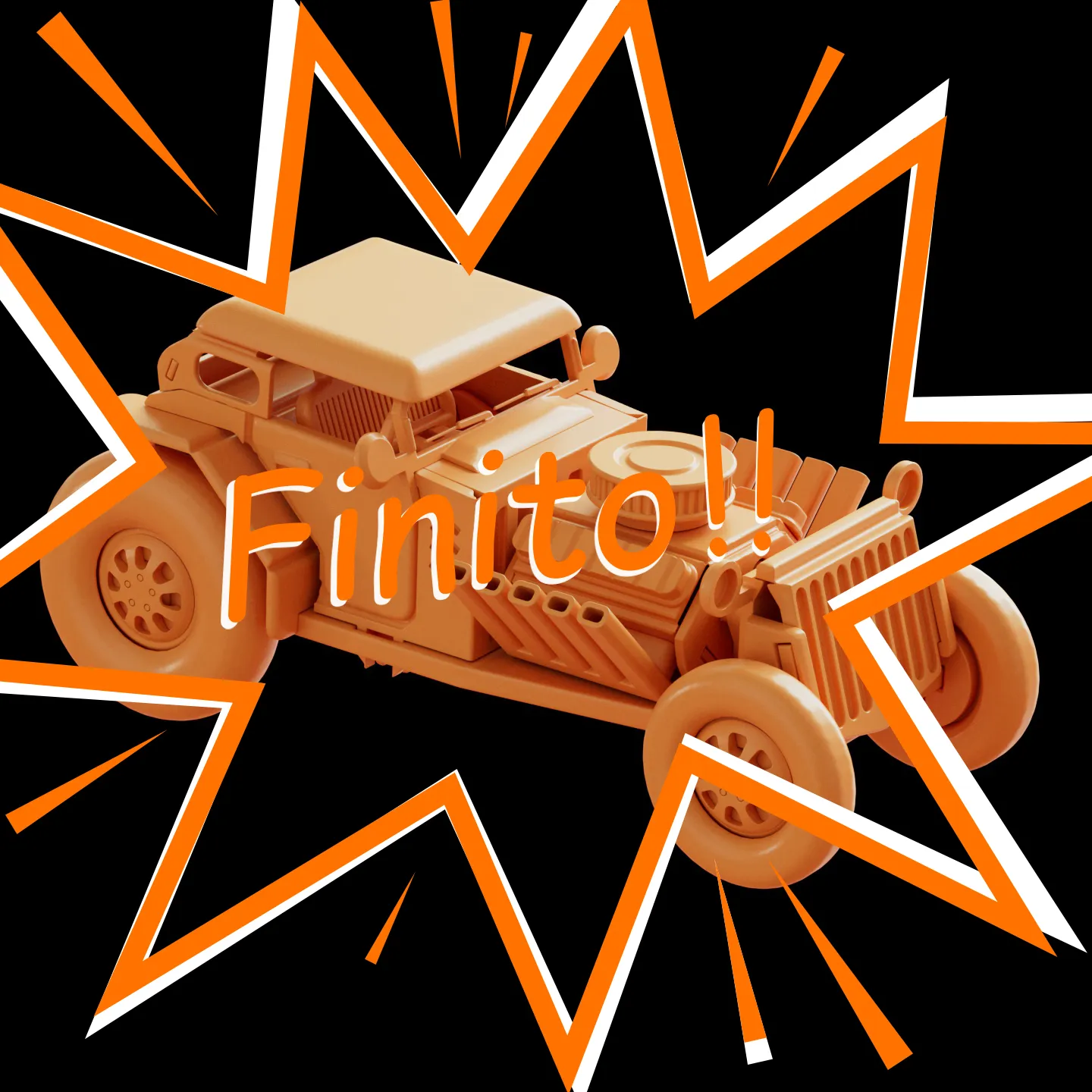

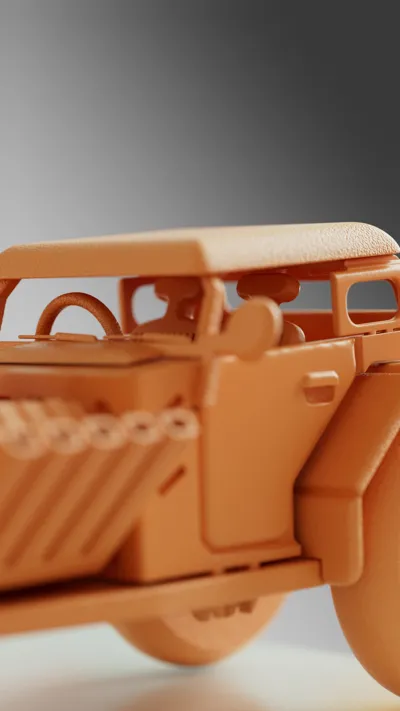

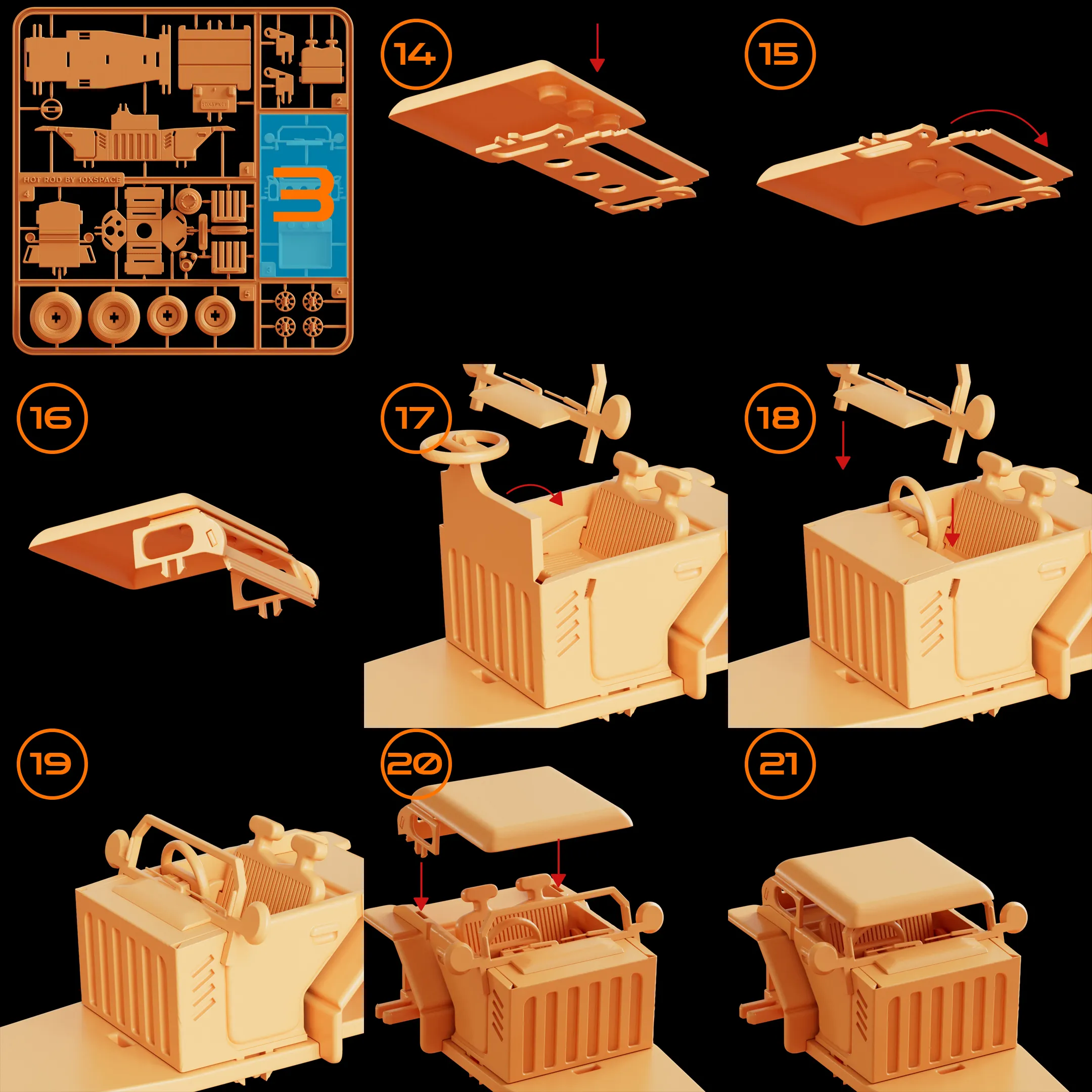

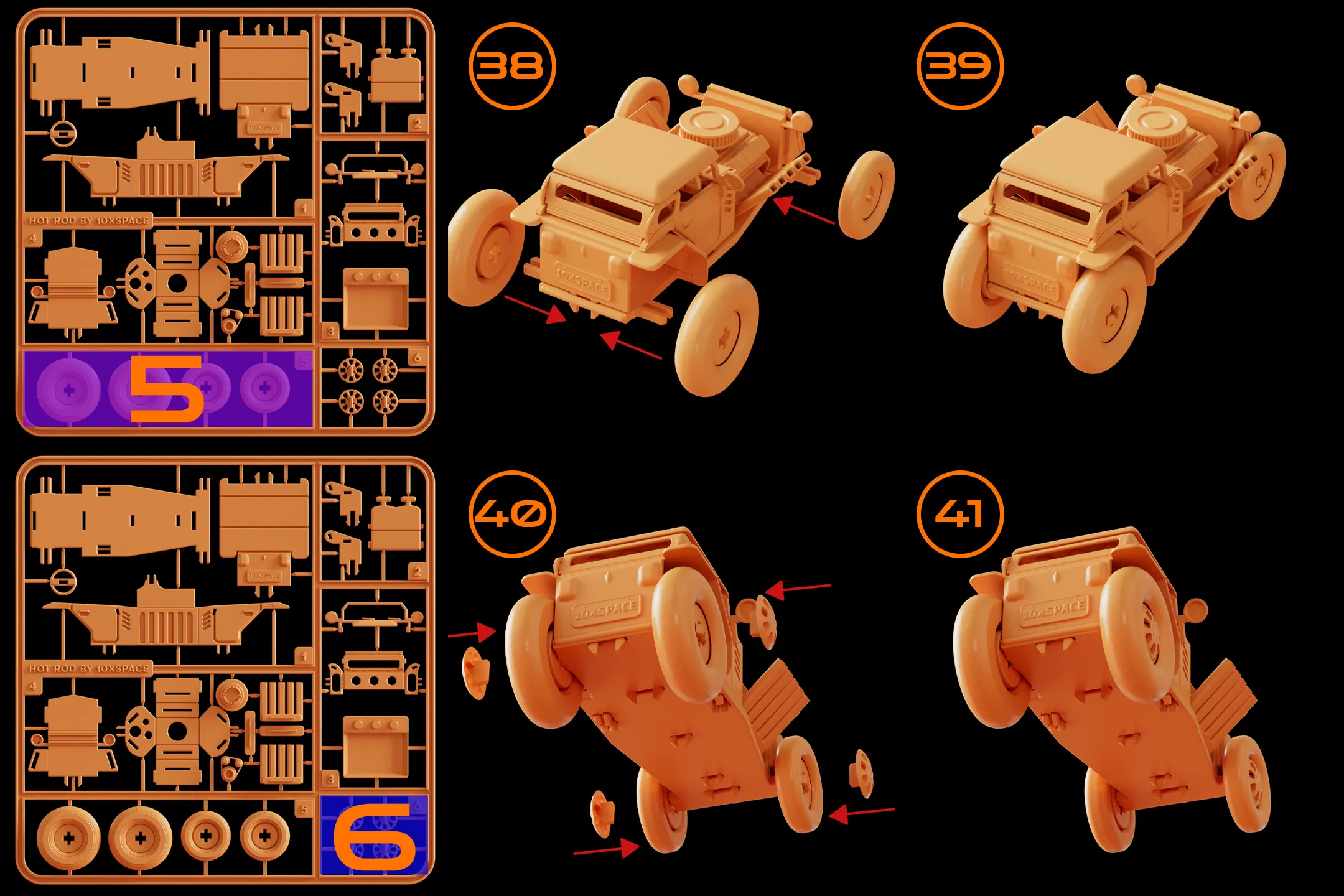

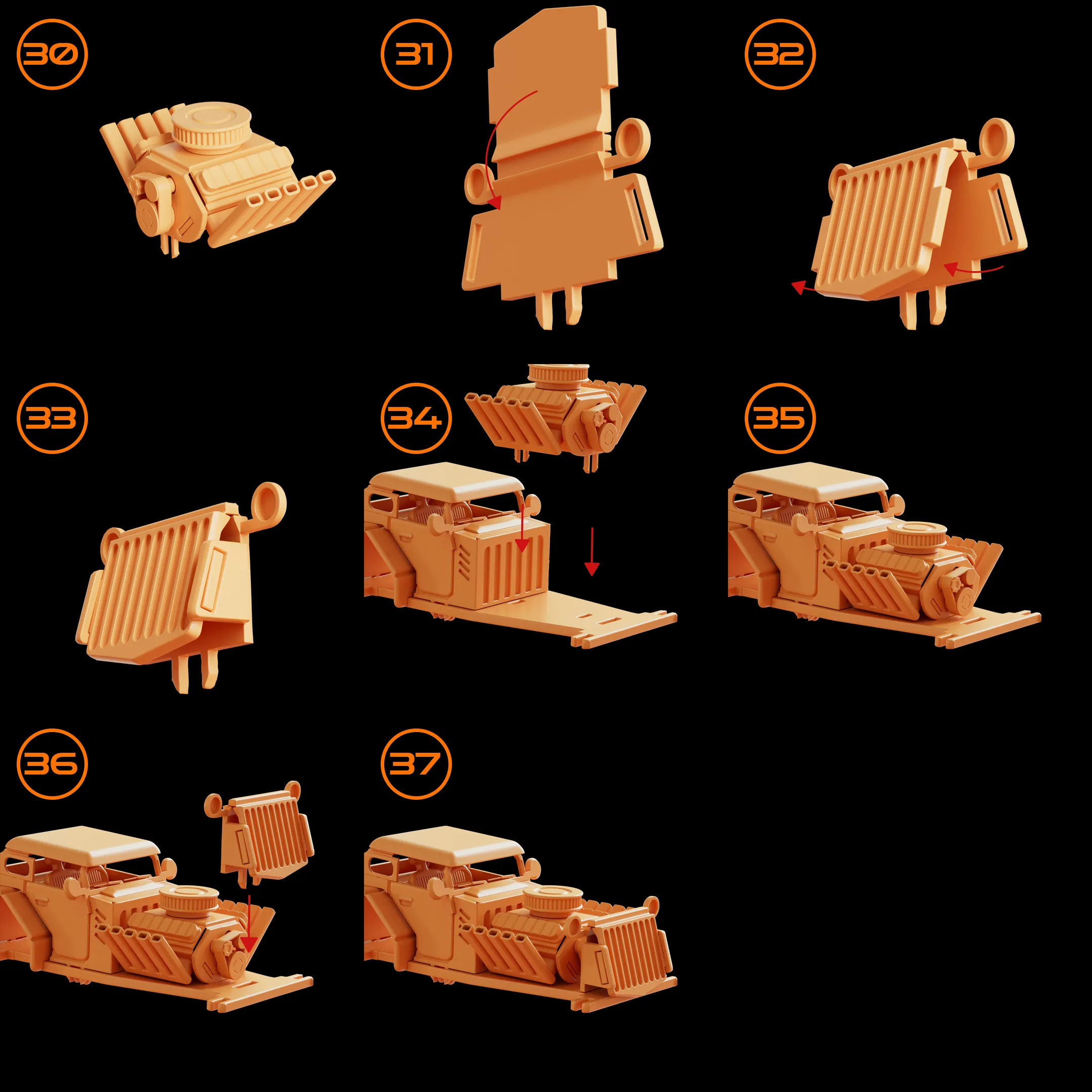

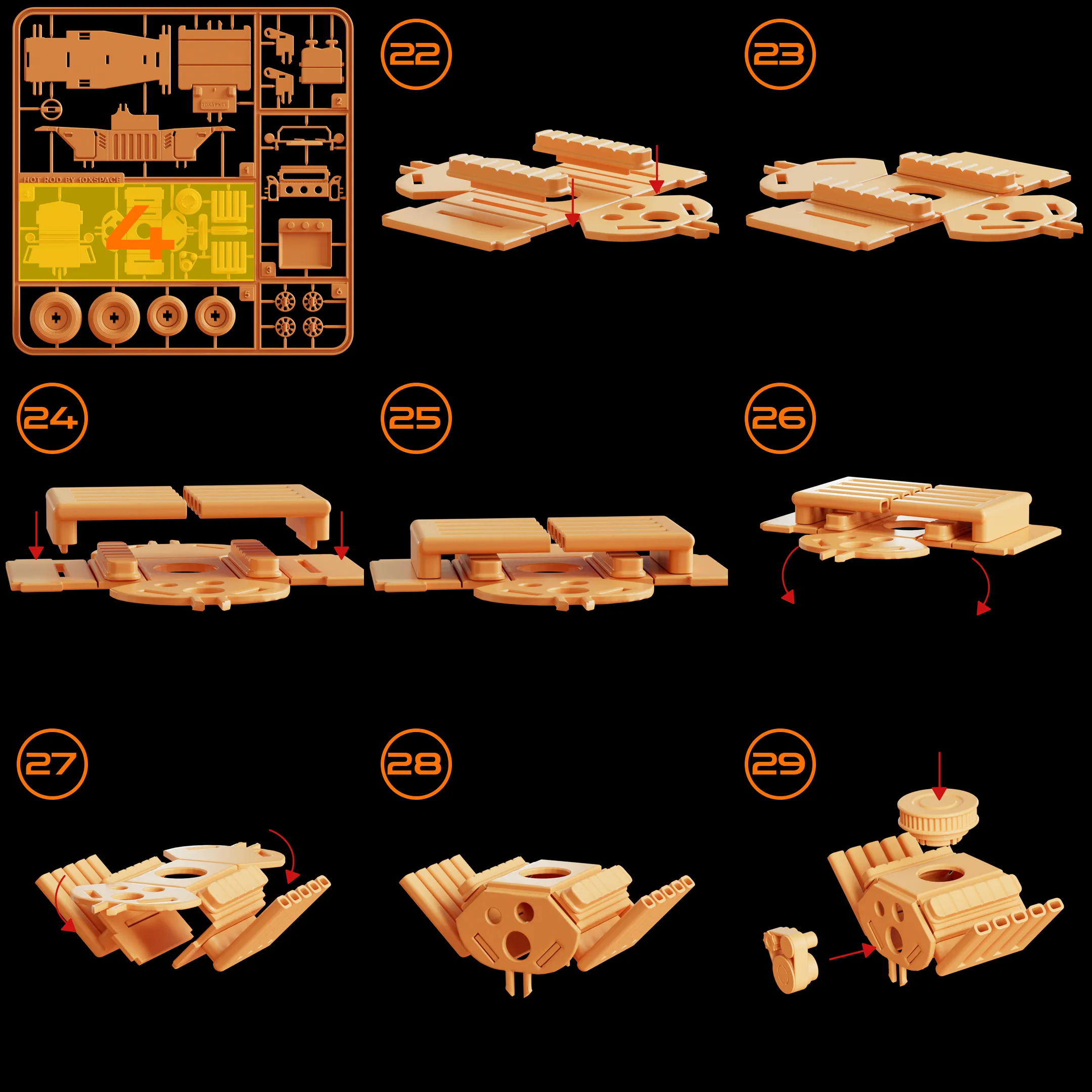

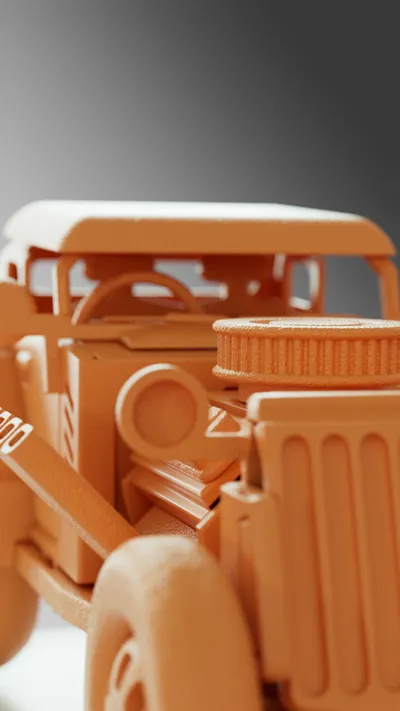

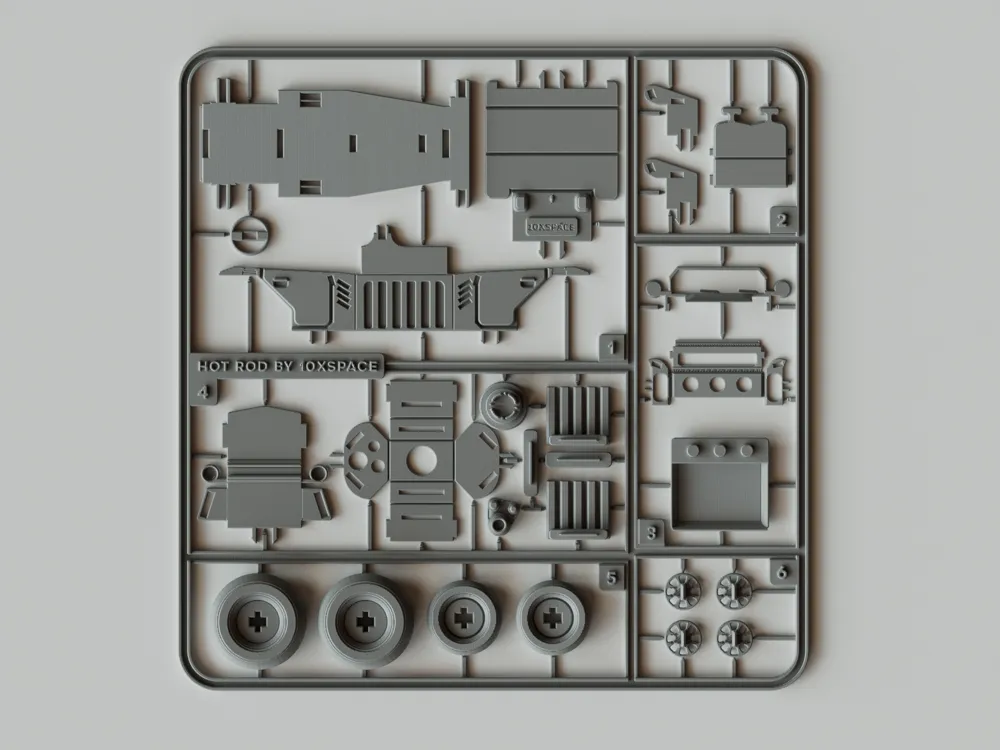

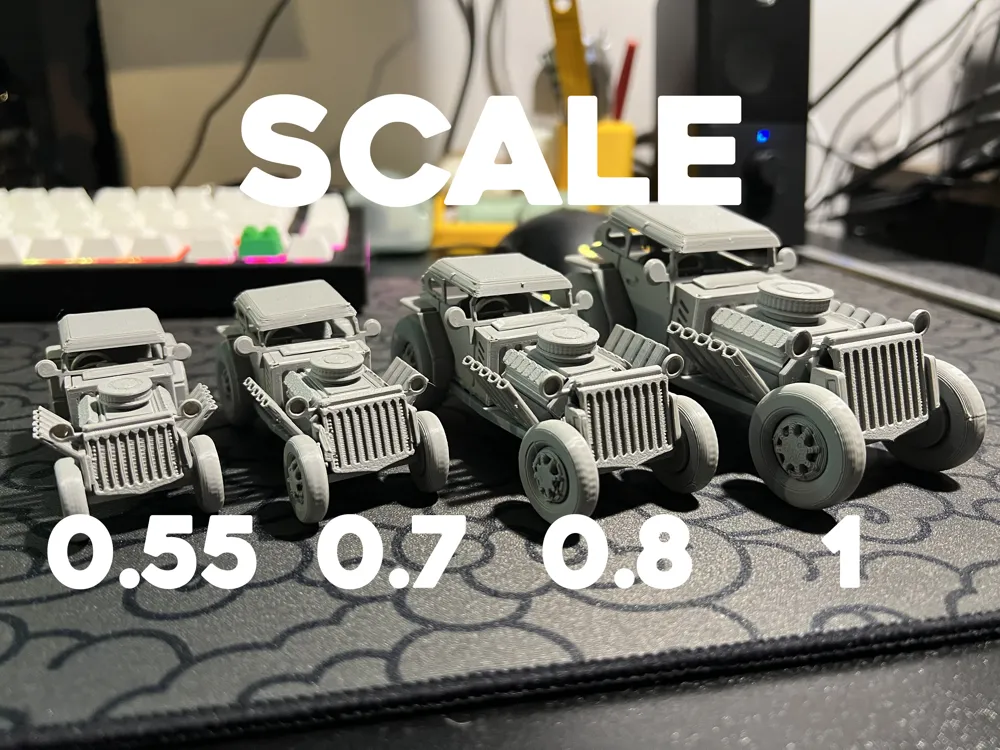

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you enjoy this model, a Boost really helps and supports future designs. Thank you!</boostcontent></boostme> A one-color, Multi-color card Hot Rod that prints flat and assembles into a mini car. Simple, fun, and satisfying to build, perfect for desk display. Key Features<ol><li>NO GLUE, NO TOOL, NO AMS needed</li><li>Easy and satisfying to assemble</li><li>Works with most hard filaments (PLA recommended)</li><li>Great for display or as a gift  <figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/4c5137c2ab11470a.gif"></figure></li></ol><h3>Scaling Info</h3>I tested 55% / 70% / 80% and it works, but I strongly recommend printing 100% first. After you build the original size once, you’ll understand the assembly and then scaling down becomes easier. If you scale the one-color version for the A1 mini, some joints might get tight. The multi-color version fits much better, so I’d recommend that for A1 mini users.  🎥 Full assembly tutorial (video)  <figure class="media"><oembed url="https://youtu.be/m-uSS5q_iz8"></oembed></figure> 📸 Includes step-by-step pictures in the post. I made this assembly guide for the one-color kit card. For the multi-color version, use the numbers on the edges and follow the assembly order based on those numbers.<figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/d21b419c6ab15b8a.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/49afb0db4e642eba.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/dc5ab51655361d41.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/8b9ac66733356a36.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/da5dff35a3f05a06.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/61b78aa0f163a126.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002306664/design/e878099028418c42.jpg"></figure><h3>Share Your Print</h3>I’d love to see your results. Post your make in the comments 🙌 If you enjoy it, a Boost helps a lot and supports more designs like this.  Instagram: <a target="_blank" rel="noopener noreferrer ugc" href="https://www.instagram.com/10xspace/">https://www.instagram.com/10xspace/</a> Youtube: <a target="_blank" rel="noopener noreferrer ugc" href="https://www.youtube.com/@10xspace.design">https://www.youtube.com/@10xspace.design</a><h3>Safety Warning</h3>WARNING: CHOKING HAZARD — Small parts. Not for children under 3 years.

HOT ROD- KIT CARD (NO AMS)
