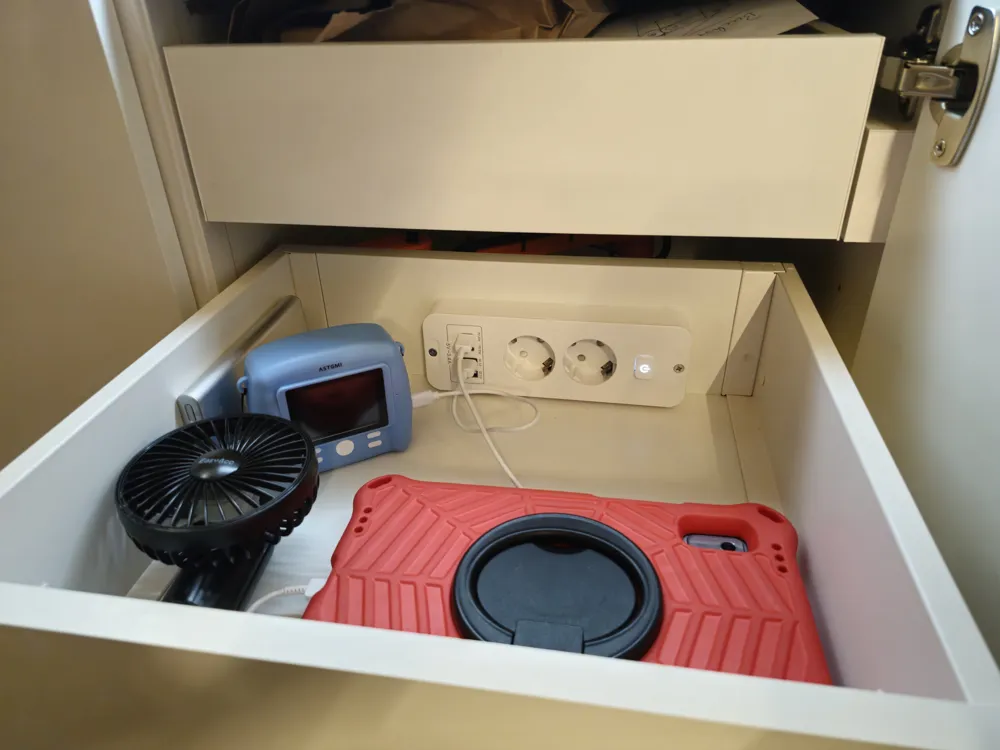

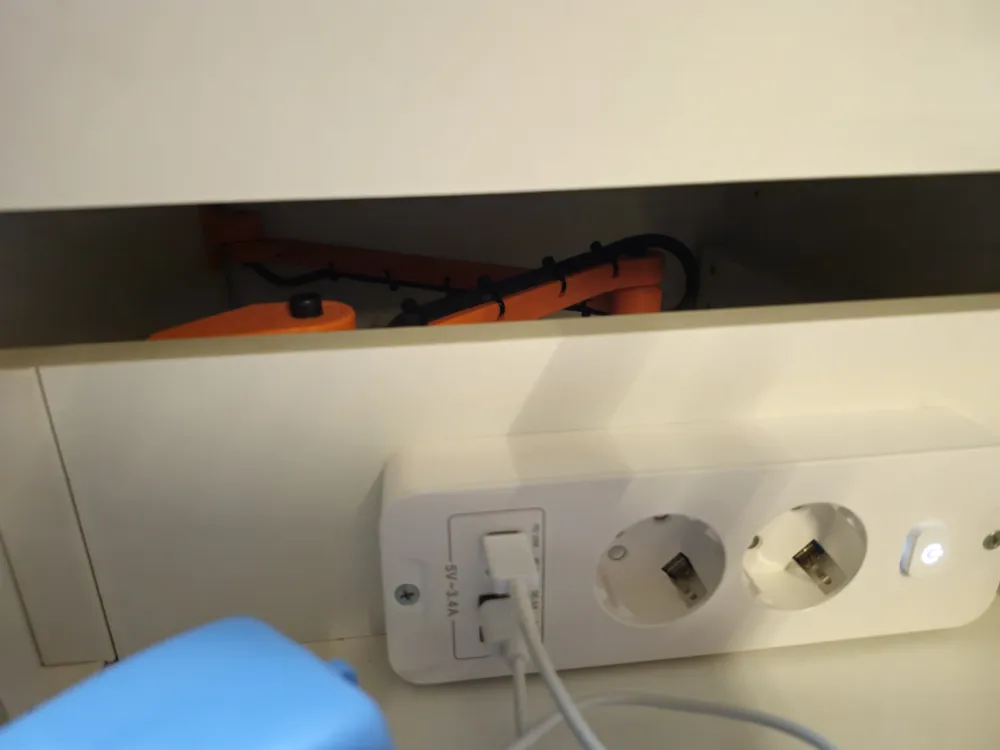

Drawer Cable Management - Charging Phone in Drawer

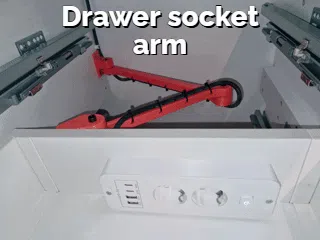

This 3D-printed ball-bearing cable arm allows for secure and flexible cable routing in movable drawers.

The design ensures that cables are neatly guided when opening and closing the drawer, without getting pinched or damaged.

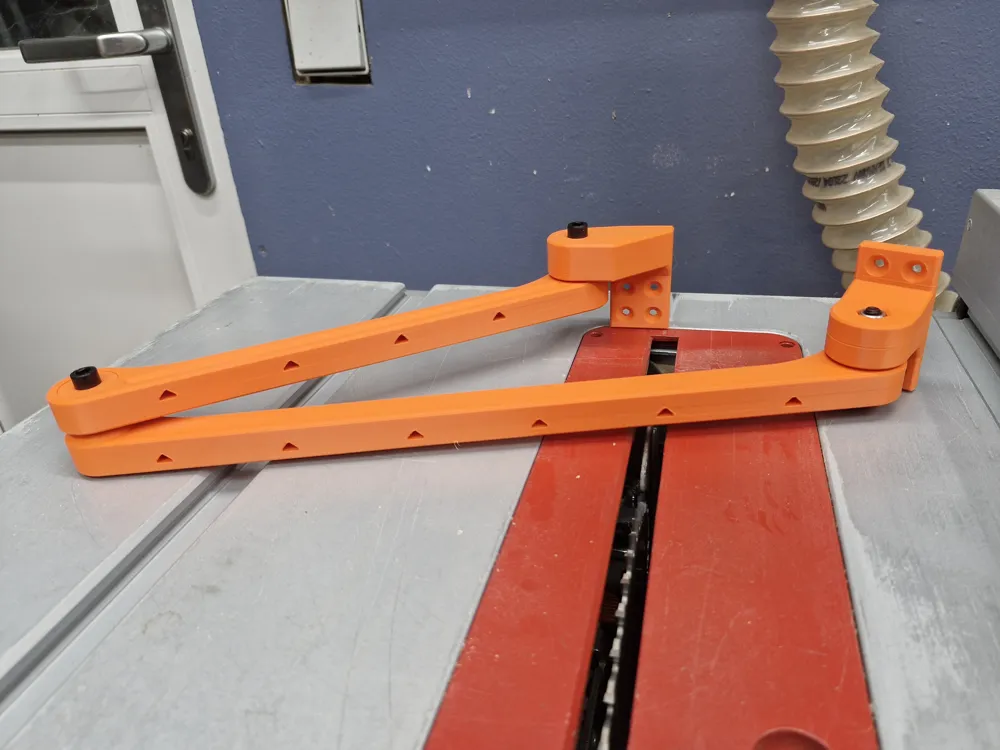

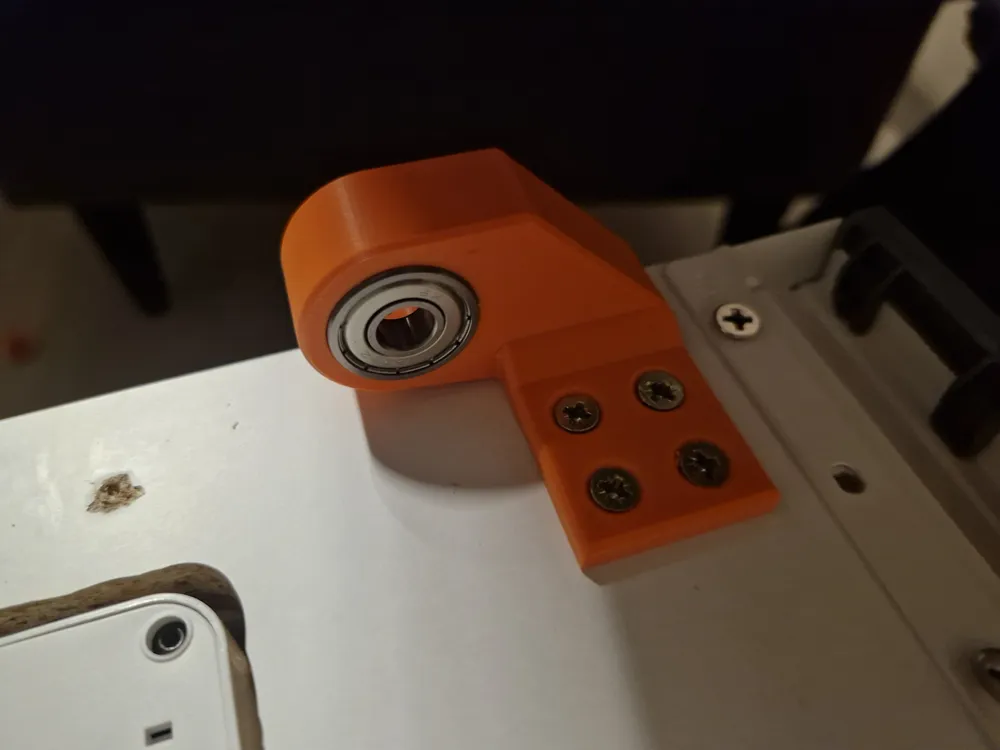

Thanks to the articulated construction with ball bearings, the cable management remains stable and very easily movable at the same time.

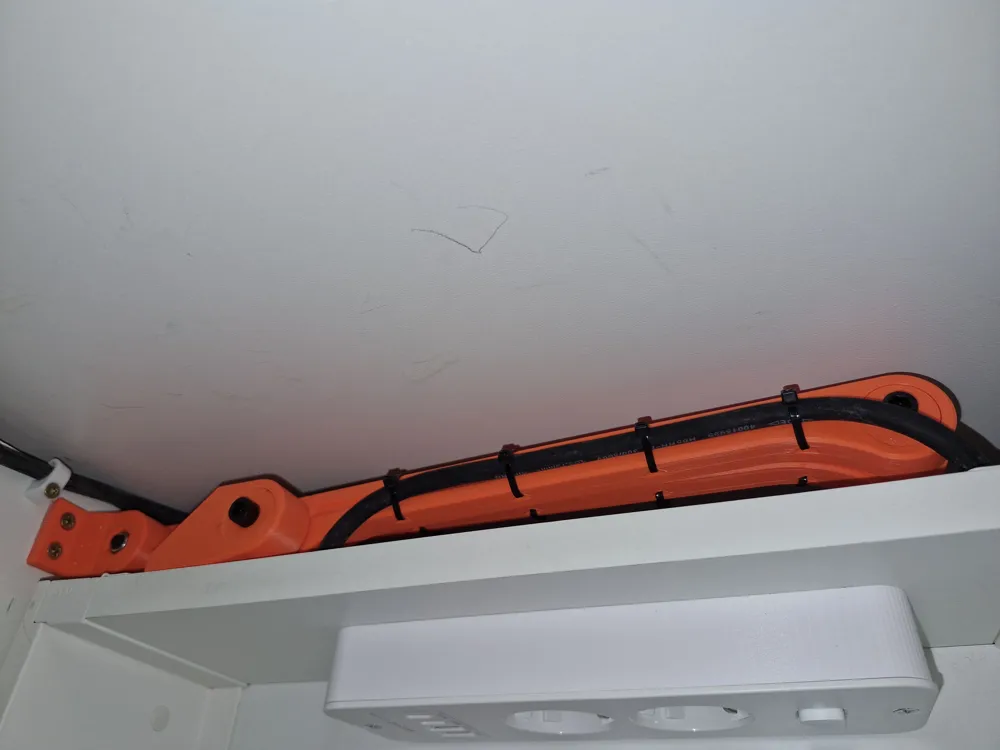

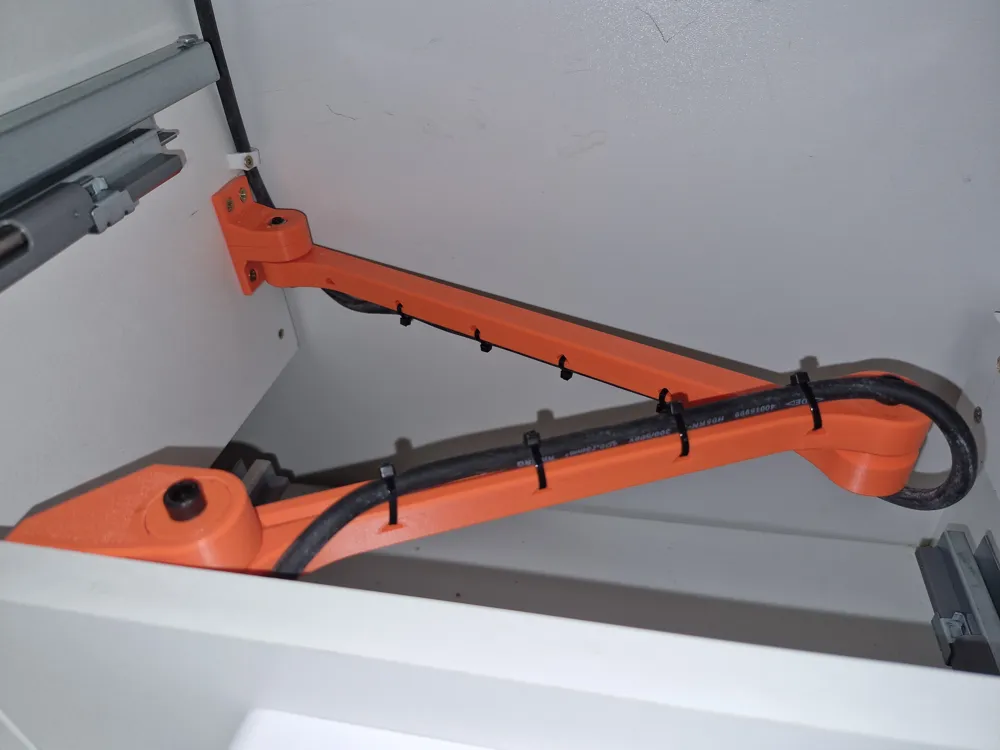

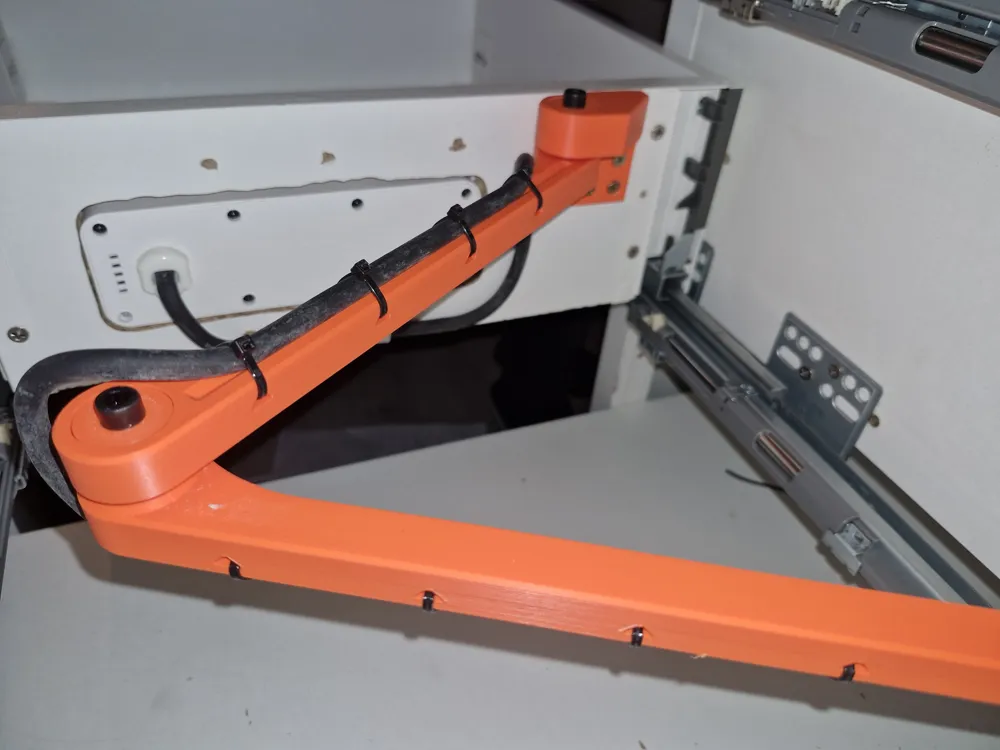

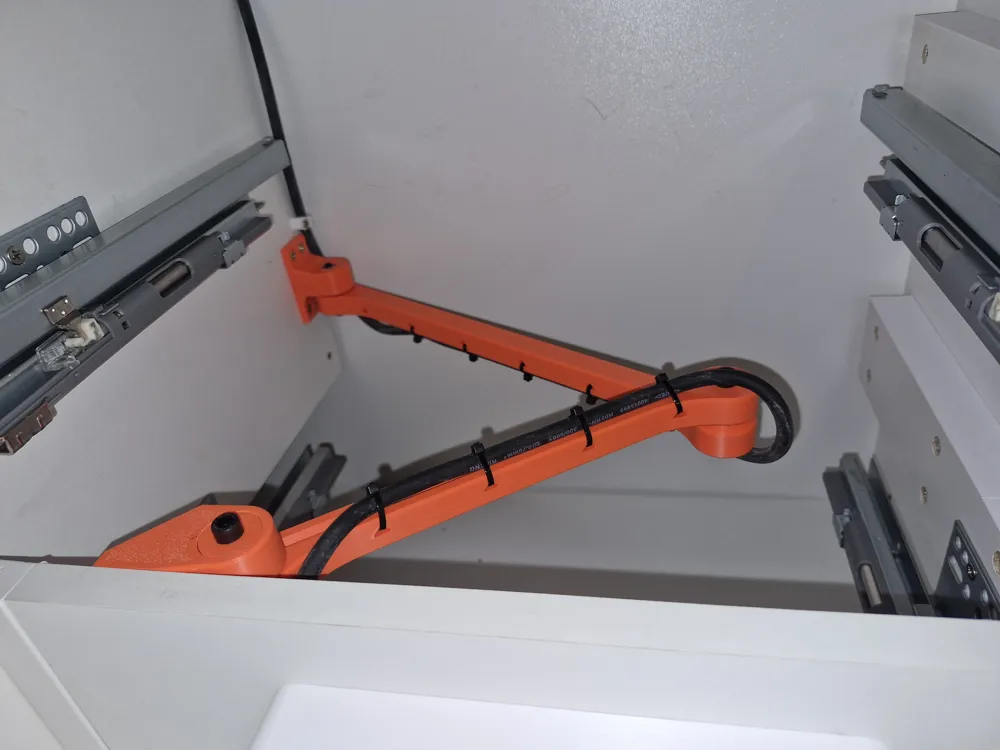

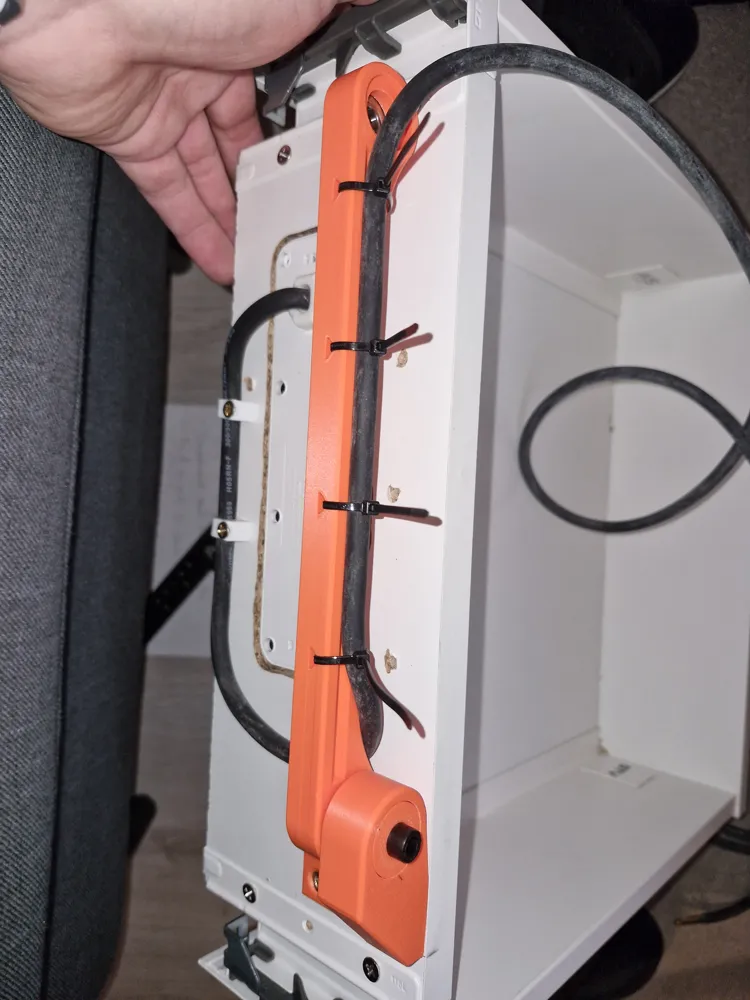

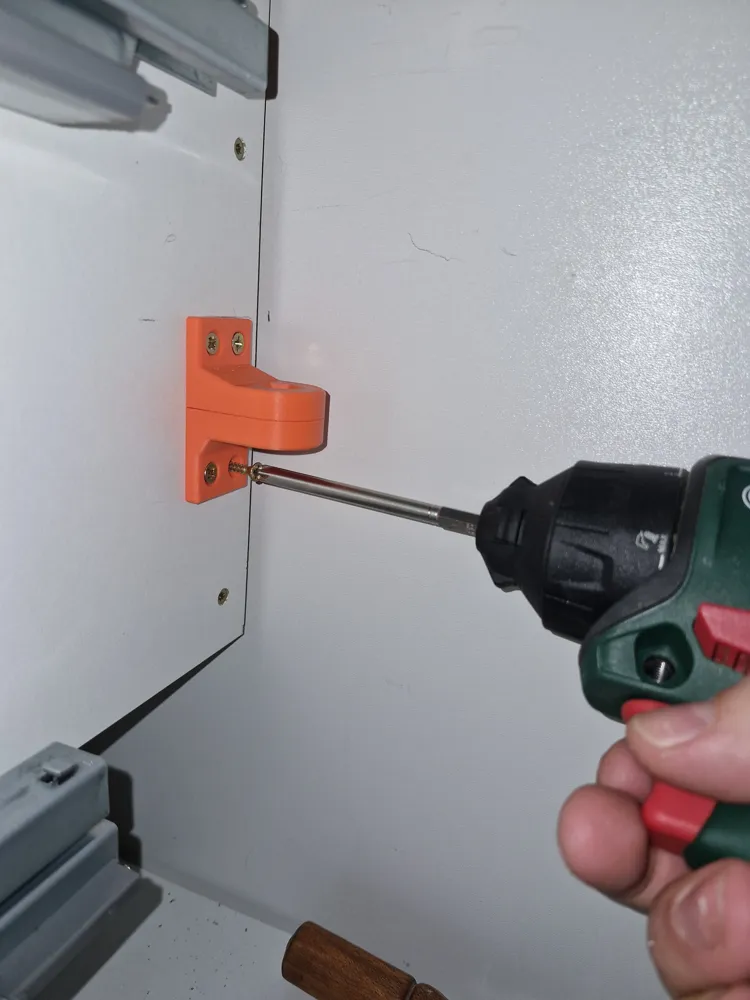

The arm is mounted on the side or the back wall and reliably guides the cable along the intended path using cable ties. Ideal for DIY projects, furniture technology, electronics enclosures, or workshop solutions where power or data lines are needed in movable elements.

Thanks to its modular design, it can be easily assembled and disassembled, and the 3D-printed cable arm is easily adaptable and can be used for different cable lengths and thicknesses. Perfect for makers, DIY enthusiasts, and anyone who wants to bring order and functionality to their projects.

159909127800

Suitable for drawers:

Depth: up to 500 mm extension depth

Width: at least 400mm

Clearance behind the drawer: min. 50 mm

Cable:

To ensure enough flexibility, I used a 3x0.75mm² cable with a rubber sheath.

Have fun
