FRC 2" Vectored Wheel (Print In Place)
Print Profile(1)
Description

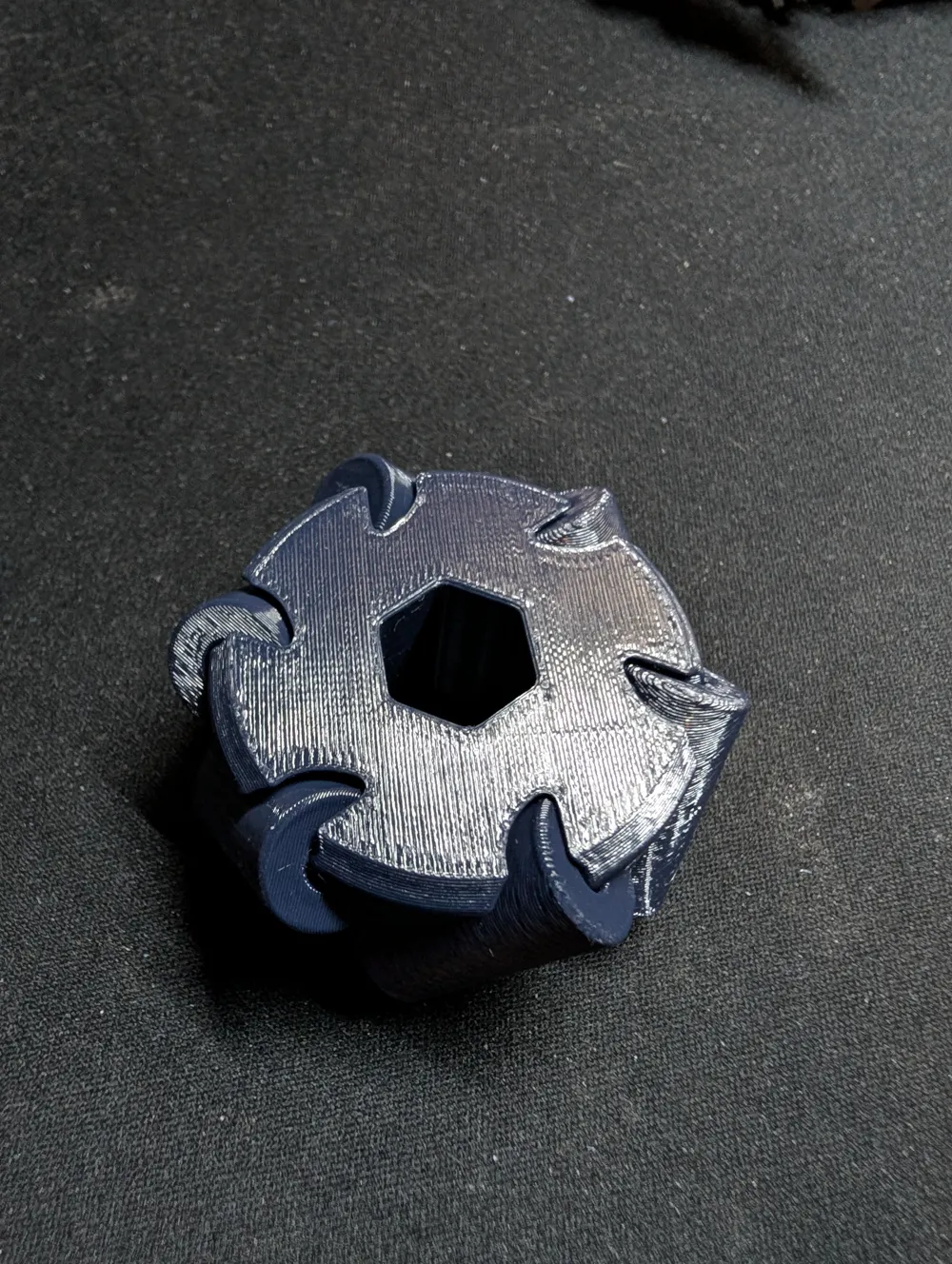

A 2in vectored intake wheel designed to be printed in one piece and be used as soon as you remove from the build plate without any additional hardware. The design is adapted from 2910's print in place vectored wheel.
An 1/8" boss was added to the top surface to make stacking multiple wheels adjacent to each other possible without additional spacers. Some of the clearances were adjusted for the rollers to spin more reliably and also the hex size was also adjusted to make it a slip fit on a standard ½" Hex Shaft.
There are plates for both LH and RH wheels with and without the boss.
