Heavy Duty Mounting Plates (Flat) | M4 Holes

Need to connect two parts rigidly? These 3D printable flat bars are designed for structural applications in DIY projects, robotics, or furniture repair.

Key Features:

• Reinforced Design: The area around the bolt holes is thickened/reinforced to prevent cracking under screw tension.
• Standard Dimensions: All plates are 20mm wide and 3mm thick.
• M4 Compatibility: Holes are sized for M4 screws (loose fit for easy assembly).

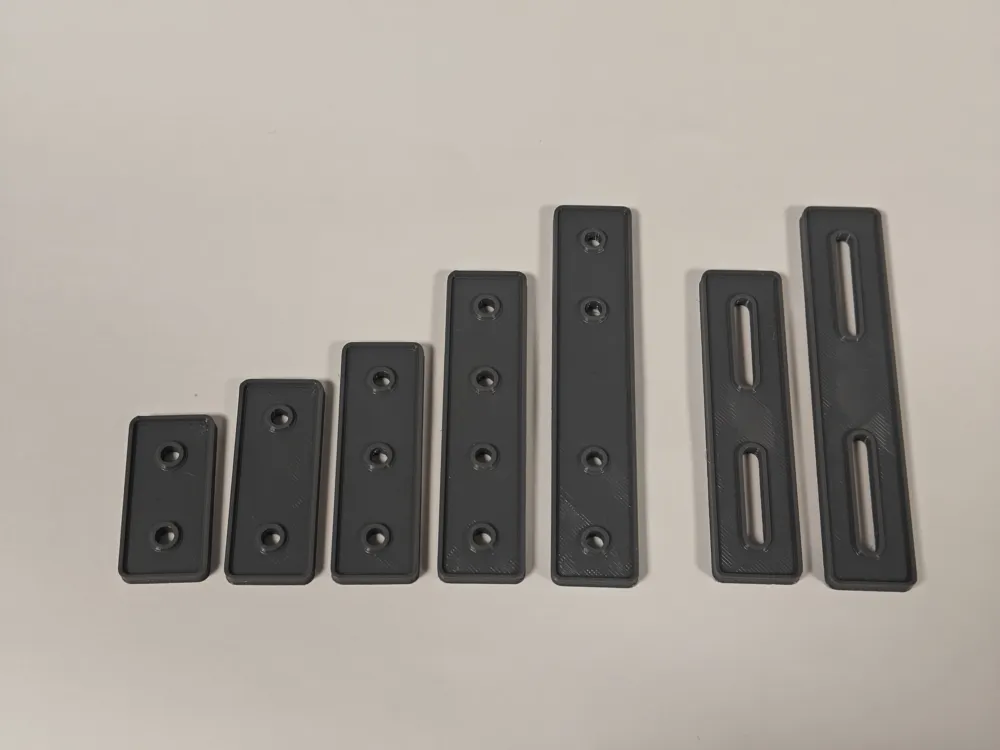

The Set Includes 5 Lengths:

• Fixed Hole Versions:
  • 40mm
  • 50mm
  • 60mm
• Adjustable (Slotted) Versions:
  • 80mm (Features elongated slots for adjustment)
  • 100mm (Features elongated slots for adjustment)

Printing Instructions:

• Orientation: Print flat on the bed.
• Material: PETG or ASA recommended for mechanical strength, PLA is fine for indoor use.
• Infill: 35% or higher (Grid or Gyroid) for stiffness.
• Perimeters: Use 4-5 wall loops. This is crucial – walls provide more strength than infill in thin parts like this.
