BMCU base with added feed thread
Print Profile(2)
Description

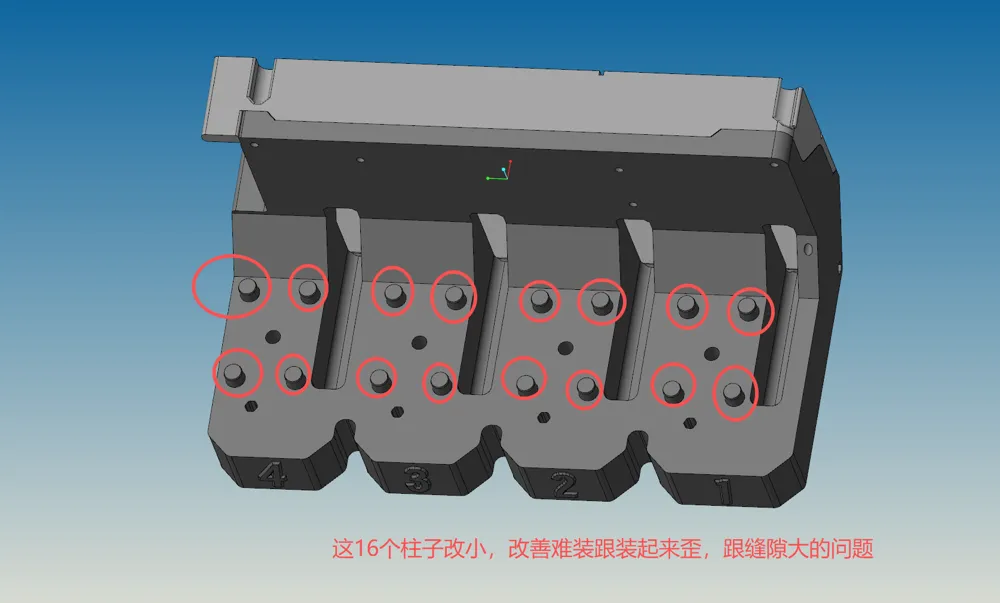

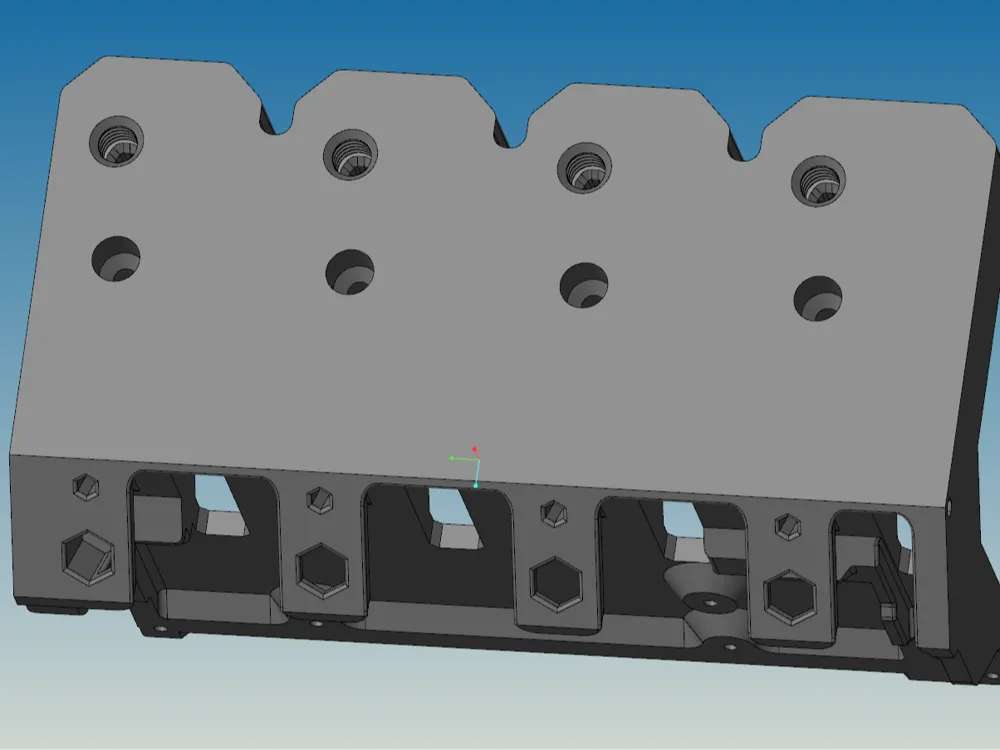

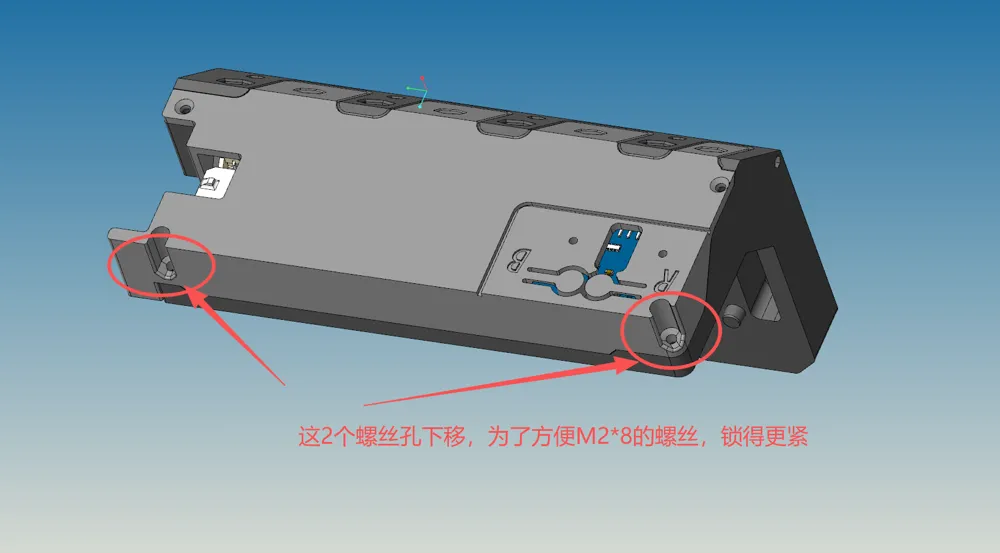

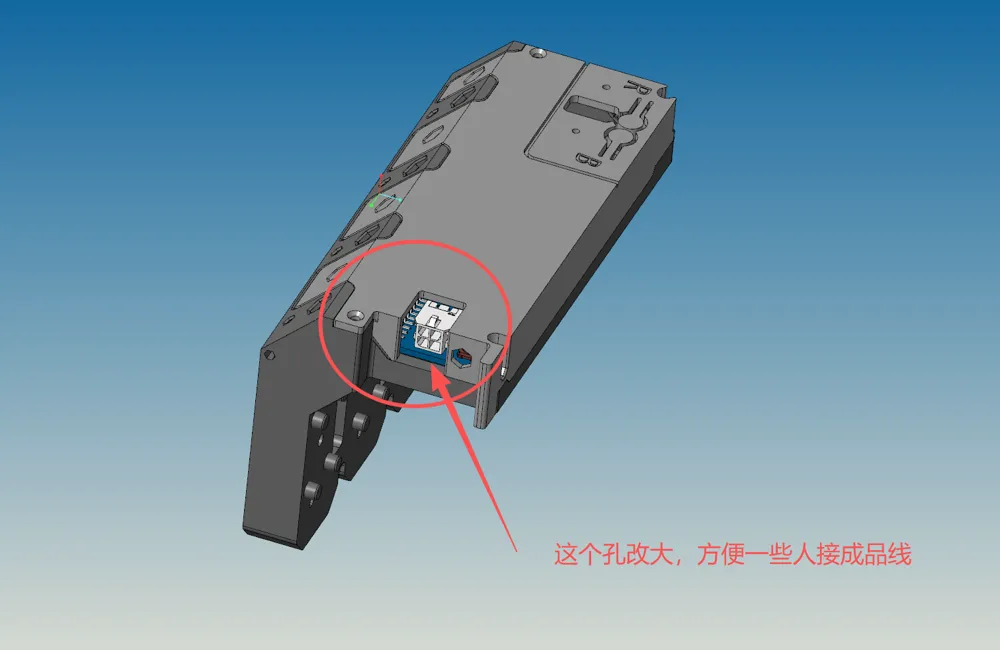

The base top cover now includes threads for the pneumatic head, an enlarged feed opening, and modifications to prevent the 4 sub-channels from skewing when inserted tightly. It also resolves issues with the top and bottom cover screws not tightening securely and is adapted for the 4PIN cable of the finished BMCU cable. This base is a universal version, compatible with versions 370 and above (including 370 dual buffer, dual microswitch, and steel ball versions). If printing this version, please print the top and bottom shells together. It is only compatible with generic motherboards; C-port versions are not supported. Personal modifications and extended versions are also not compatible
On March 5th, a new base top cover with a C-port was added. If you have already printed my version, you can simply print the top cover; otherwise, print everything again. For boards without a C-port, just print the first print profile
