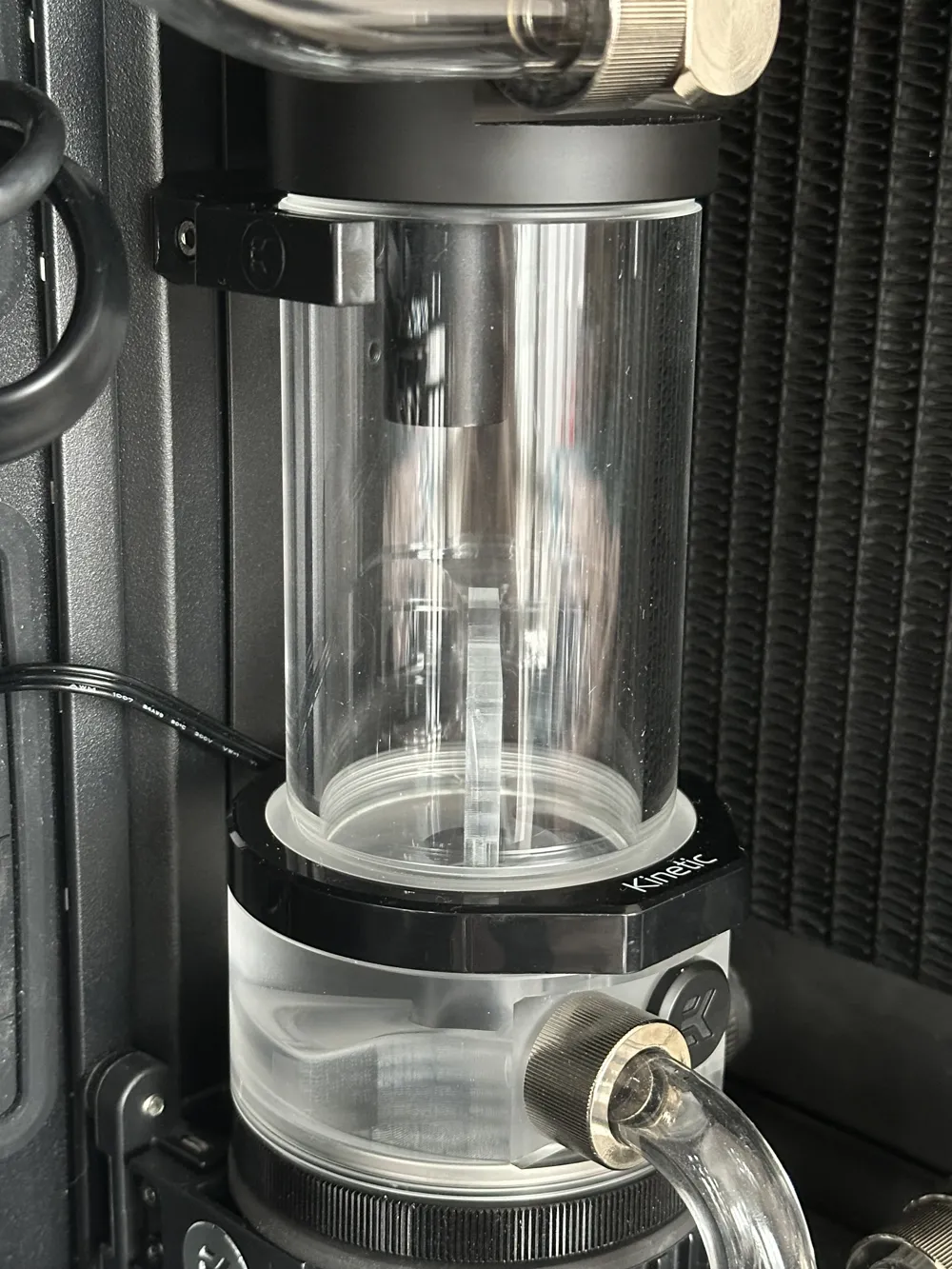

Inlet pipe for EKWB multiport reservoir top part.
As this part contains differently sized thread (M16x1,5) you need specific tube to fit in it. I have modeled and printed 2 versions:

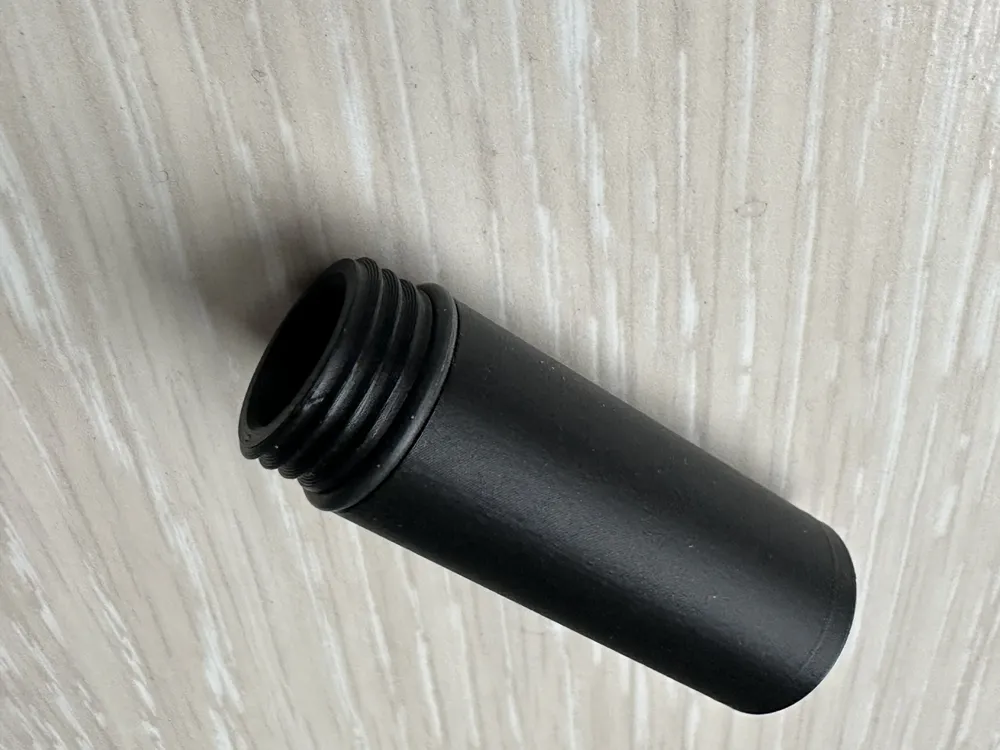

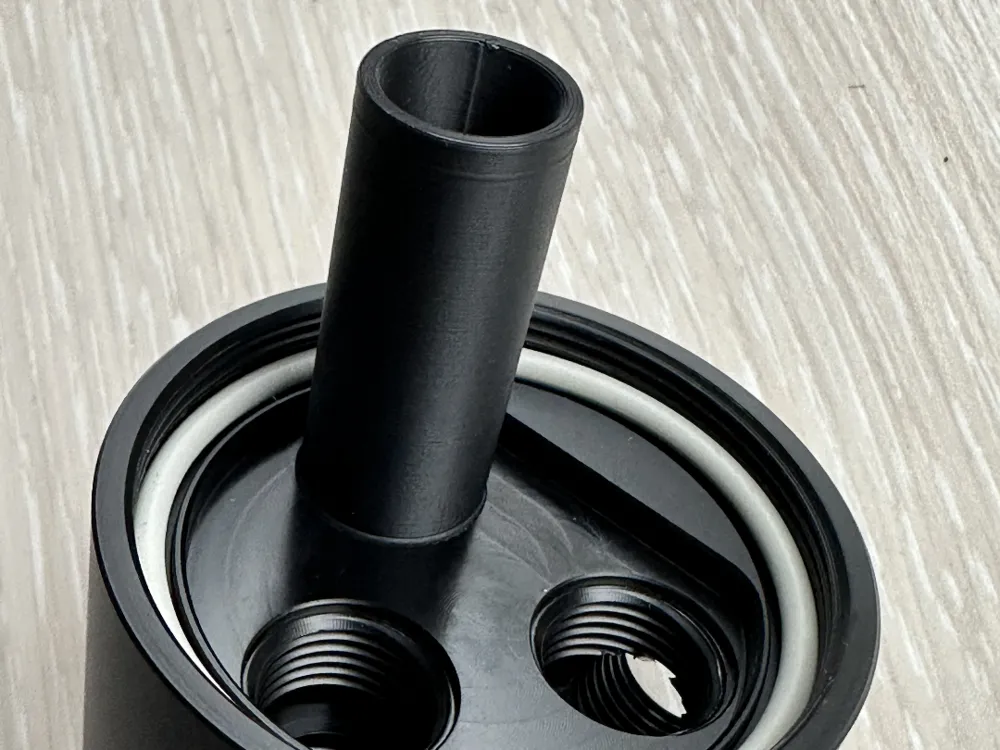

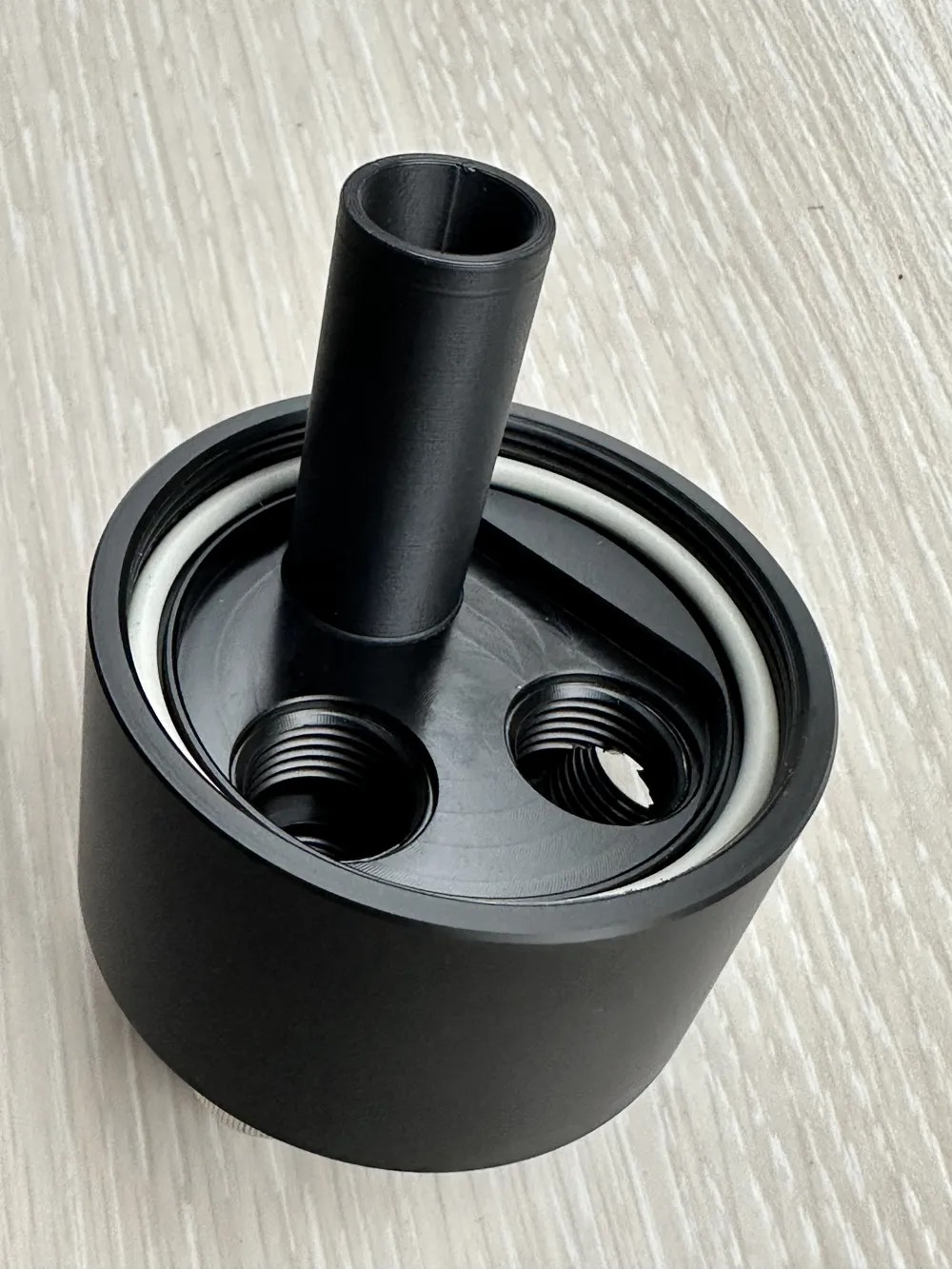

- 40mm long inlet pipe with inner trumpet design to slower down water flow coming to the reservoir

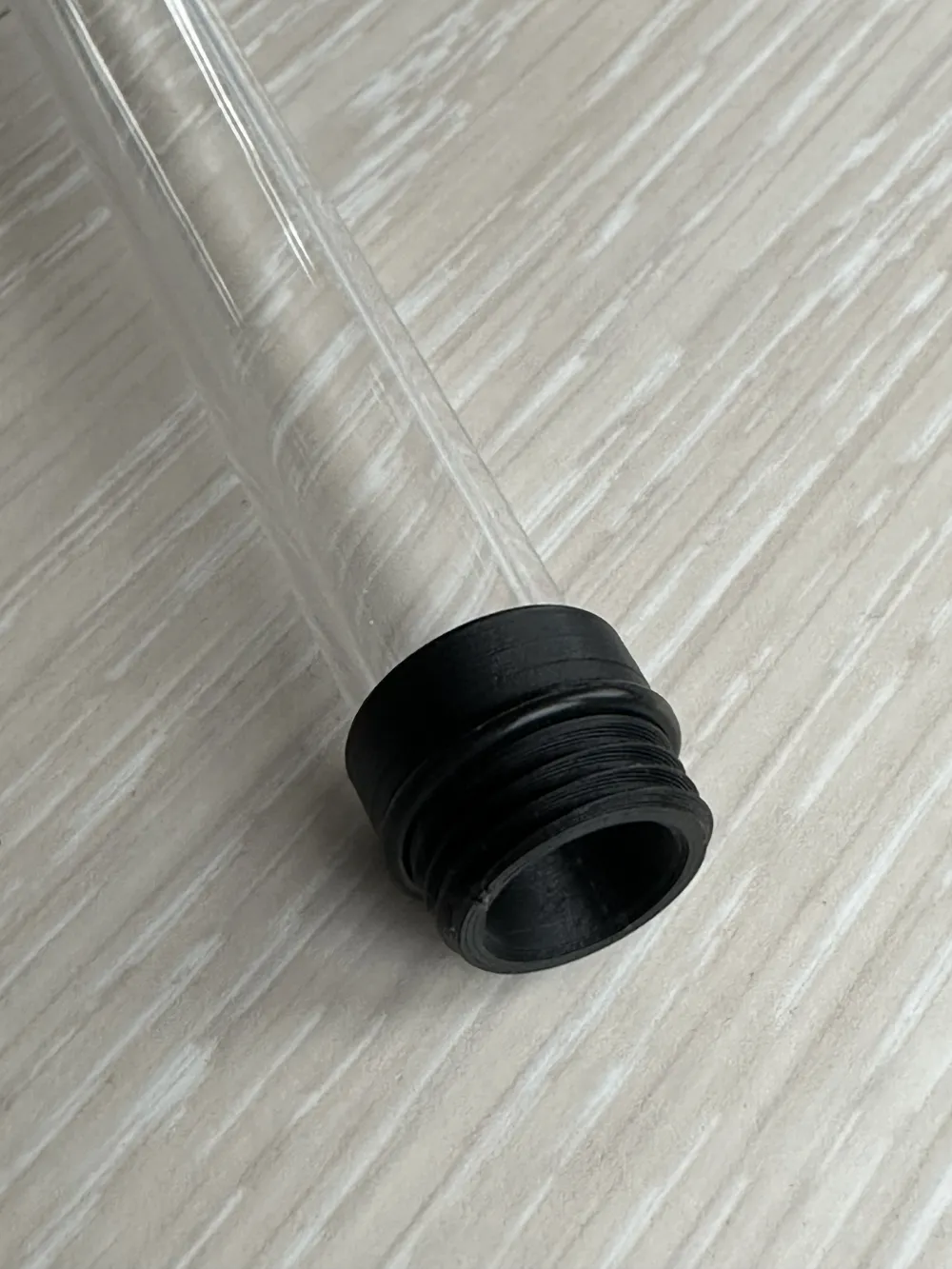

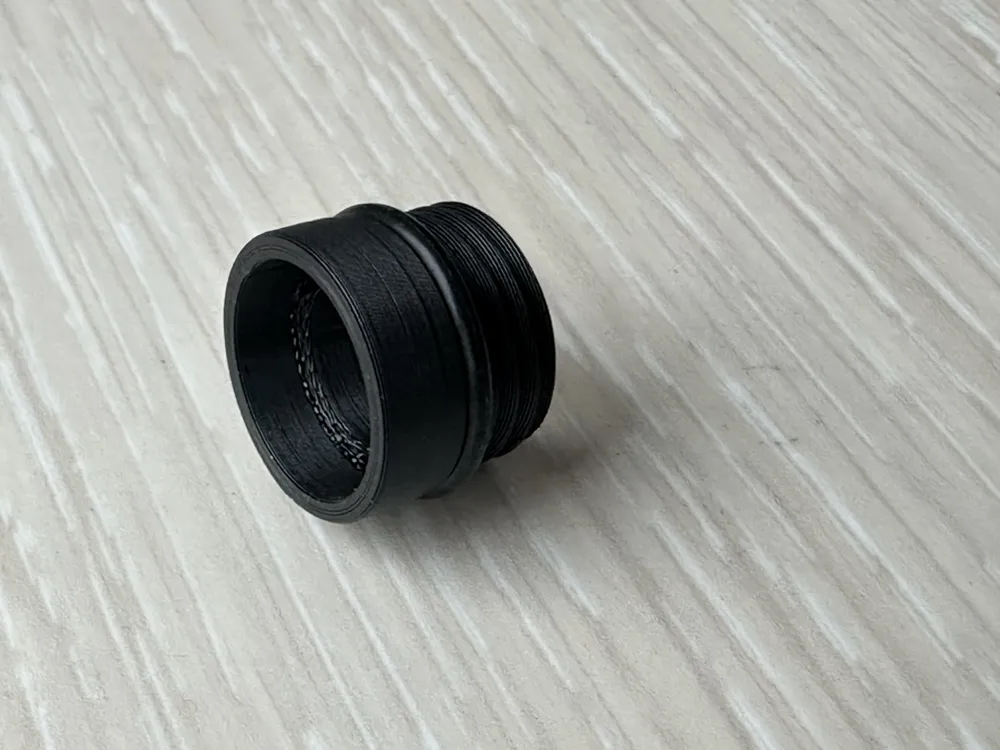

- threaded insert for 14mm acrylic pipe just in case you want to use clear acrylic pipe

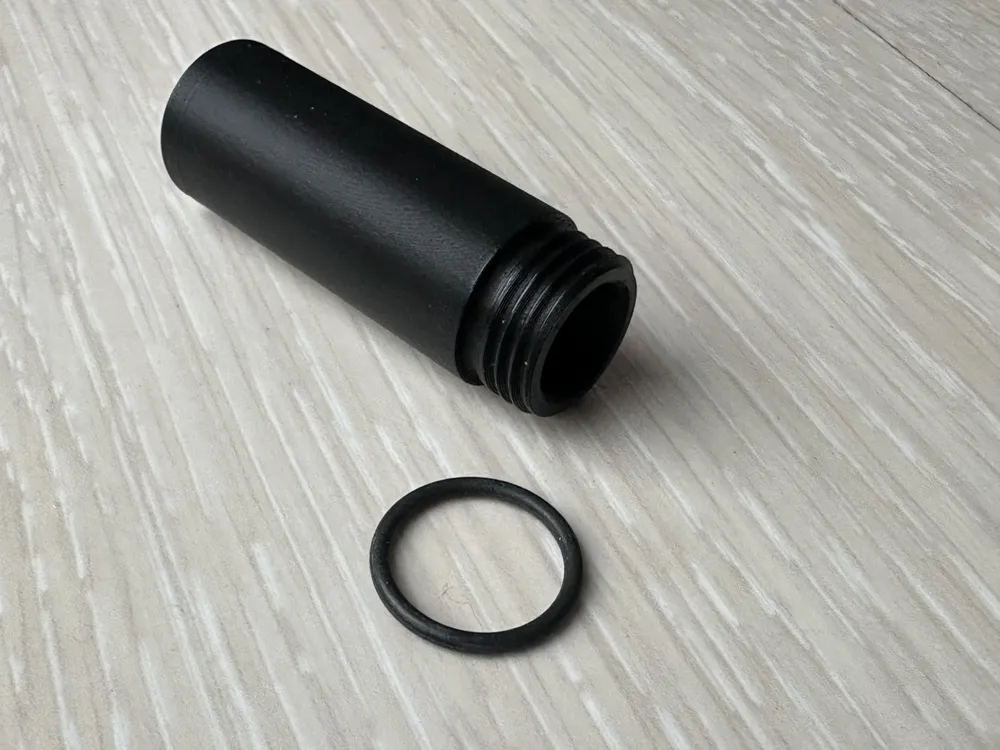

both include groove for fitting the seal O ring
