I designed a Case for the DIY project TinyLev Acoustic Levitator from UpnaLab.
https://www.instructables.com/Acoustic-Levitator/
I saw this Case (https://www.instructables.com/Acoustic-Levitator-Case/) but if you have not a Lasercutter, its not so nice to print. So i designed a new one for easy 3d printing. No Supports needed!
Extra material you need:
Material List: (Affiliate Links)
- TinyLev acoustic levitator DIY Kit
- Bourns 10K ohm precise potentiometer (BOURNS 3590S)
- XL6009 LM2577 Booster DC-DC voltage regulator (with screen)
- switch on-off-on
- switch on-off
- LED 5mm white (8pcs)
- LED 5mm UV (2pcs)
- Countersunk screws 2,5mm, 8mm length

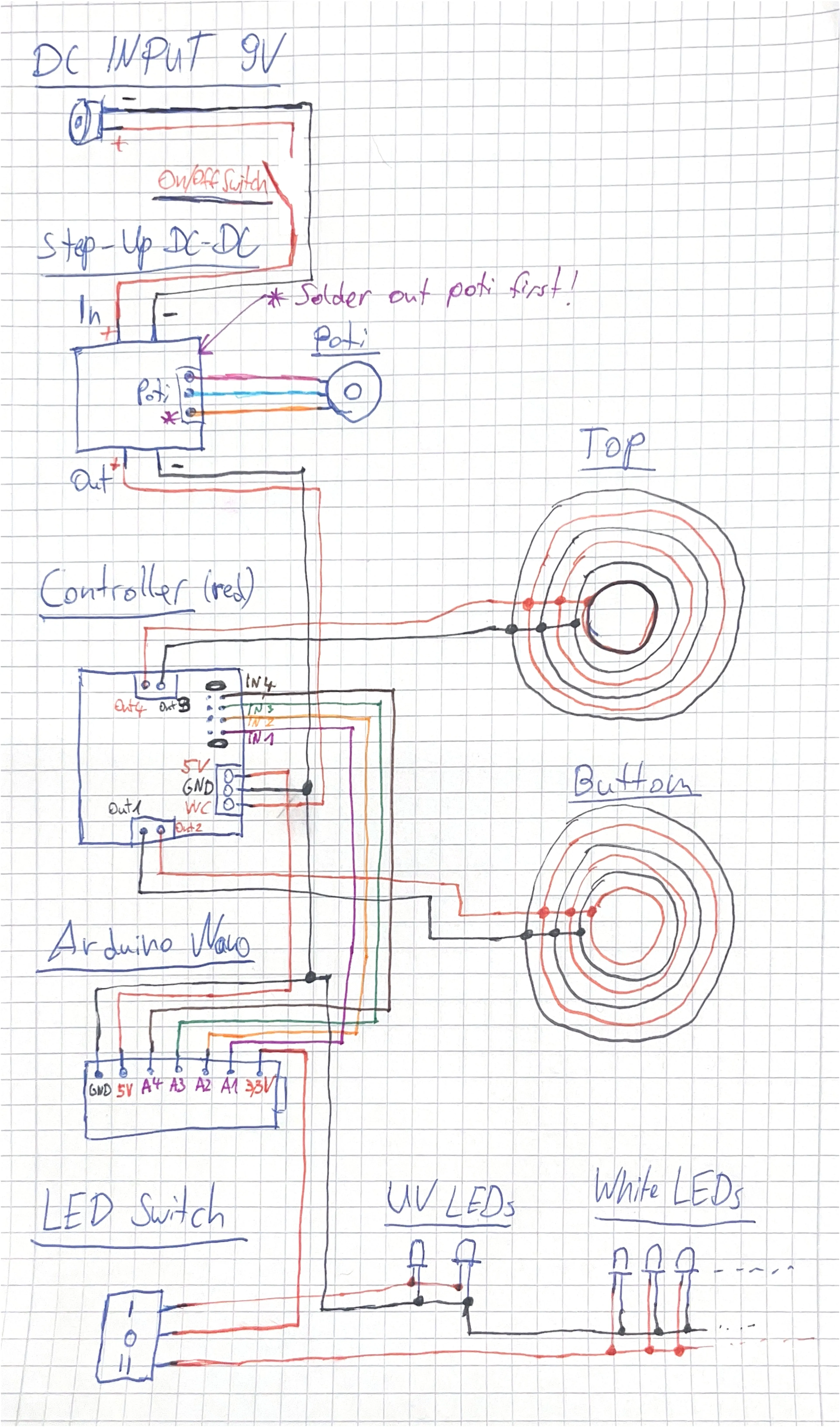

For the instructions of the connection of the extra material, please visit this instruction:
https://www.instructables.com/Acoustic-Levitator-Case/
Use a hot glue gun to mount the electronic parts.
You need to drill a few holes to insert all of the transducers. However, this is only necessary on the outermost ring.
It is also advisable to drill the holes to 2.5mm for the two covers. (But only with the covers!)
I also added a STEP file and the Fusion 360 file, if you like to do a remix :)
If you are happy with it, I am very happy about a small donation.
LEAVE A LIKE <3
Print it with 15% Infill. This is much enough.
NO SUPPORTS NEEDED!
Optional: You can print the Foots(Fuss) in Flex (TPU/TPE) and use 2k epoxy glue to mount it on the bottom.
