Generator - Parametric Vent and Hole Covers

🛠️ One Model, Infinite Solutions

Stop searching for the "right size" vent cover. This fully parametric system allows you to generate the perfect grill or hole plug in seconds. From circular bathroom vents to rectangular cable tidies or even solid wall plugs – this model handles everything with a professional, sleek finish.

✨ Key Features:

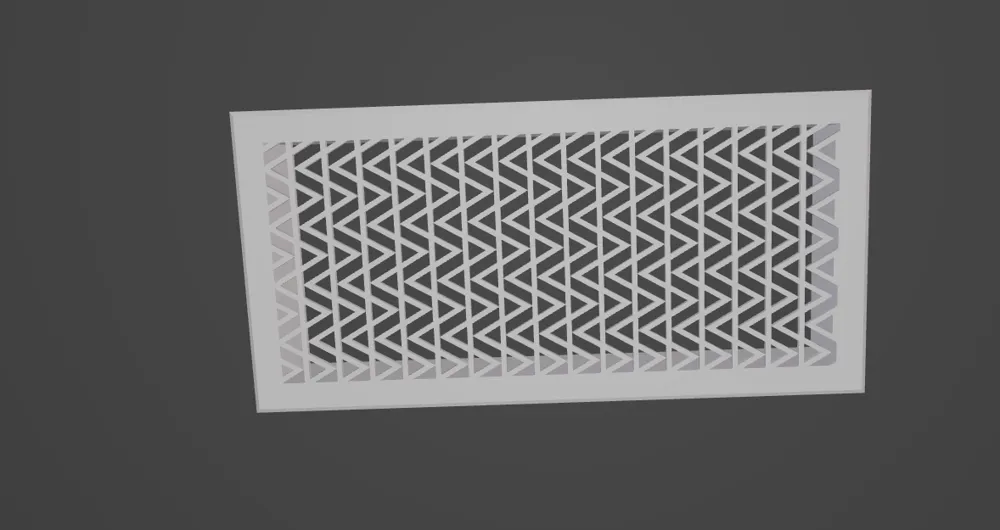

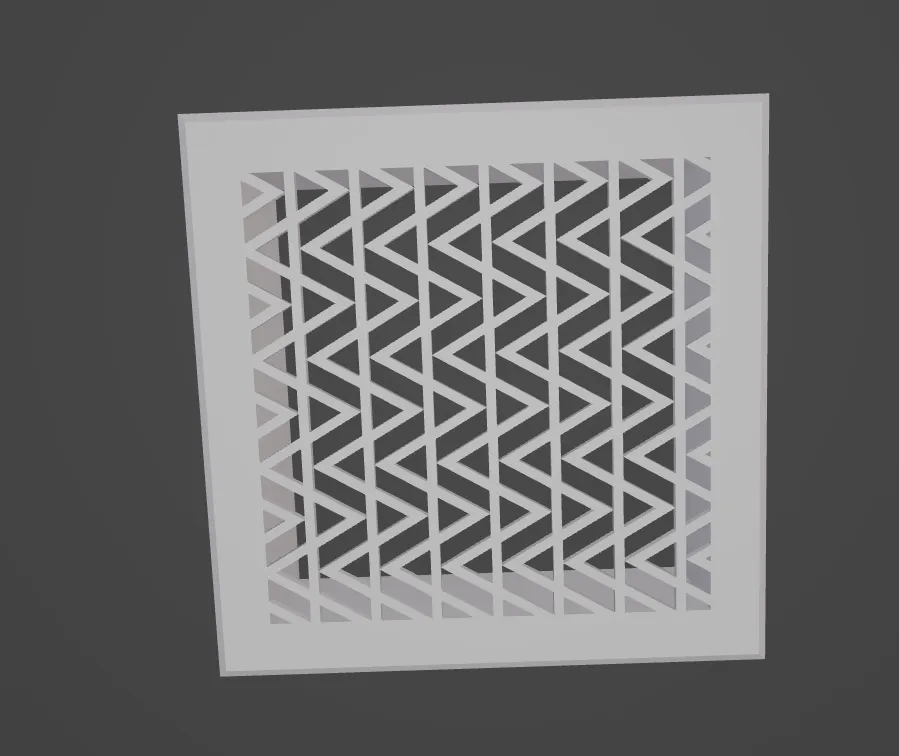

• 3-in-1 Geometry: Choose between Circle, Square, or Rectangle bases.

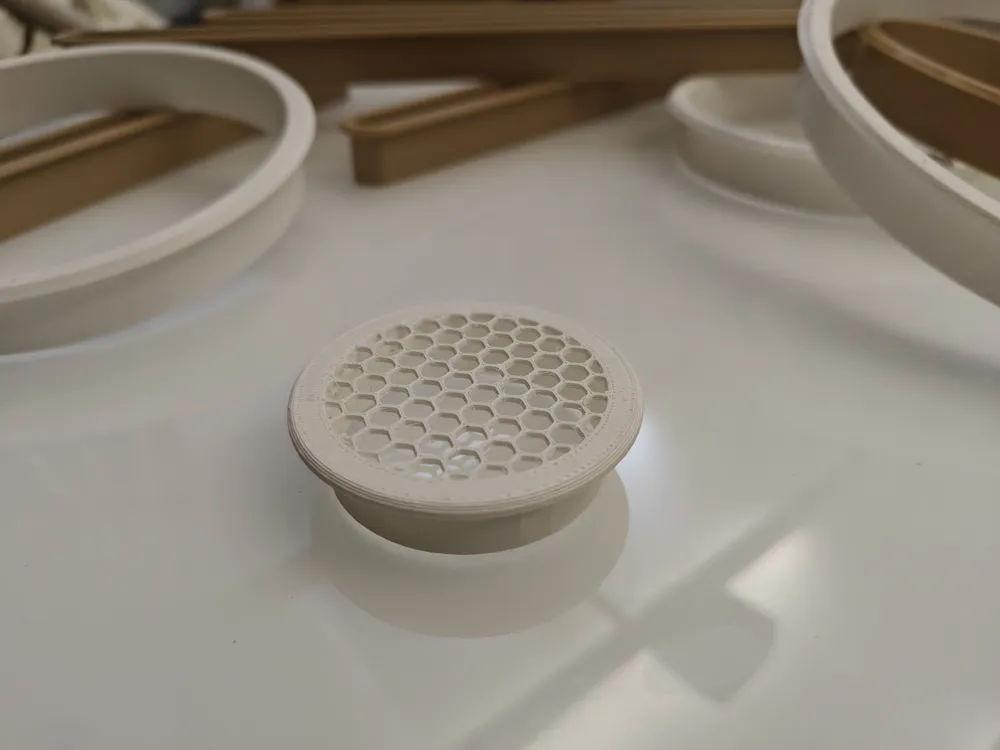

• 7 Designer Patterns: Includes Honeycomb, Louvers, Stars, Circles, Grid, Lines, and a Solid option for permanent hole covering.
• No-Support "Flat-Bottom" Louvers: A custom mathematical approach ensures that even tilted louvers have a flat first layer for perfect bed adhesion without any supports.

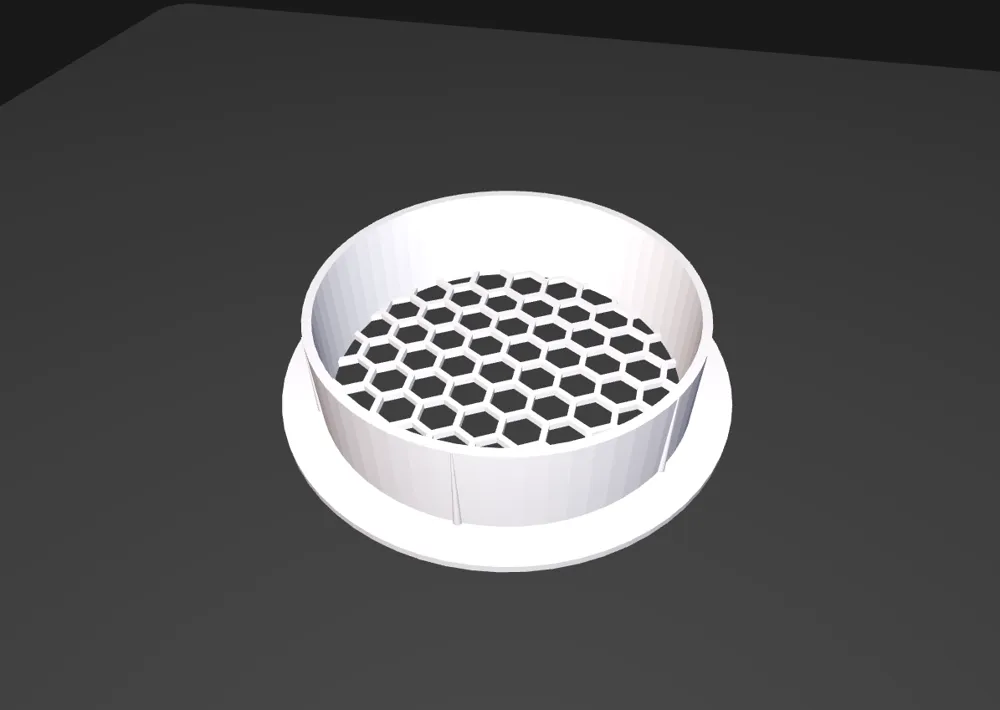

• Smart Friction-Fit Ribs: Features adjustable perimeter ribs that compress during installation, ensuring a rock-solid fit without the need for glue or screws.
• Modern Aesthetics: A clean 45-degree chamfered flange provides a low-profile, premium look that blends into any interior.

🚀 Quick Start Guide:

1. Measure: Check the diameter or width/height of the hole you want to cover.

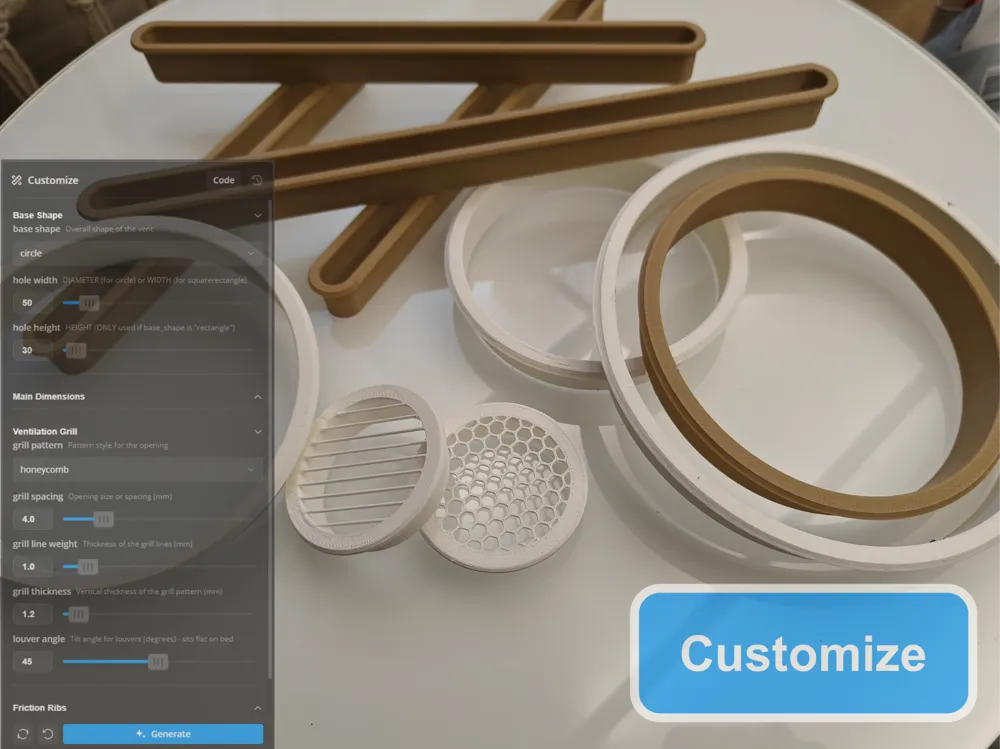

2. Customize: Use the MakerWorld Customizer to input your dimensions.
3. Choose Style: Pick a pattern that matches your room's aesthetic.
4. Print: Use the provided high-quality print profiles.

🖨️ Recommended Print Settings:

• Material: PLA (Standard), PETG (High Humidity/Heat), or ASA (Outdoor/UV).
• Walls: 3-4 Wall Loops for maximum durability of the grill pattern.
• Layers: 0.20mm or 0.16mm for a smooth chamfer finish.
• Supports: NONE. Designed for 100% support-free printing.

💡 Pro-Tip for Perfect Fit:

If your hole is slightly irregular, the Friction Ribs are your best friend. Increase the Rib Radius Bottom by 0.1mm - 0.2mm in the customizer to create an even tighter "snap-in" effect!
