Liquid Transfer Funnel

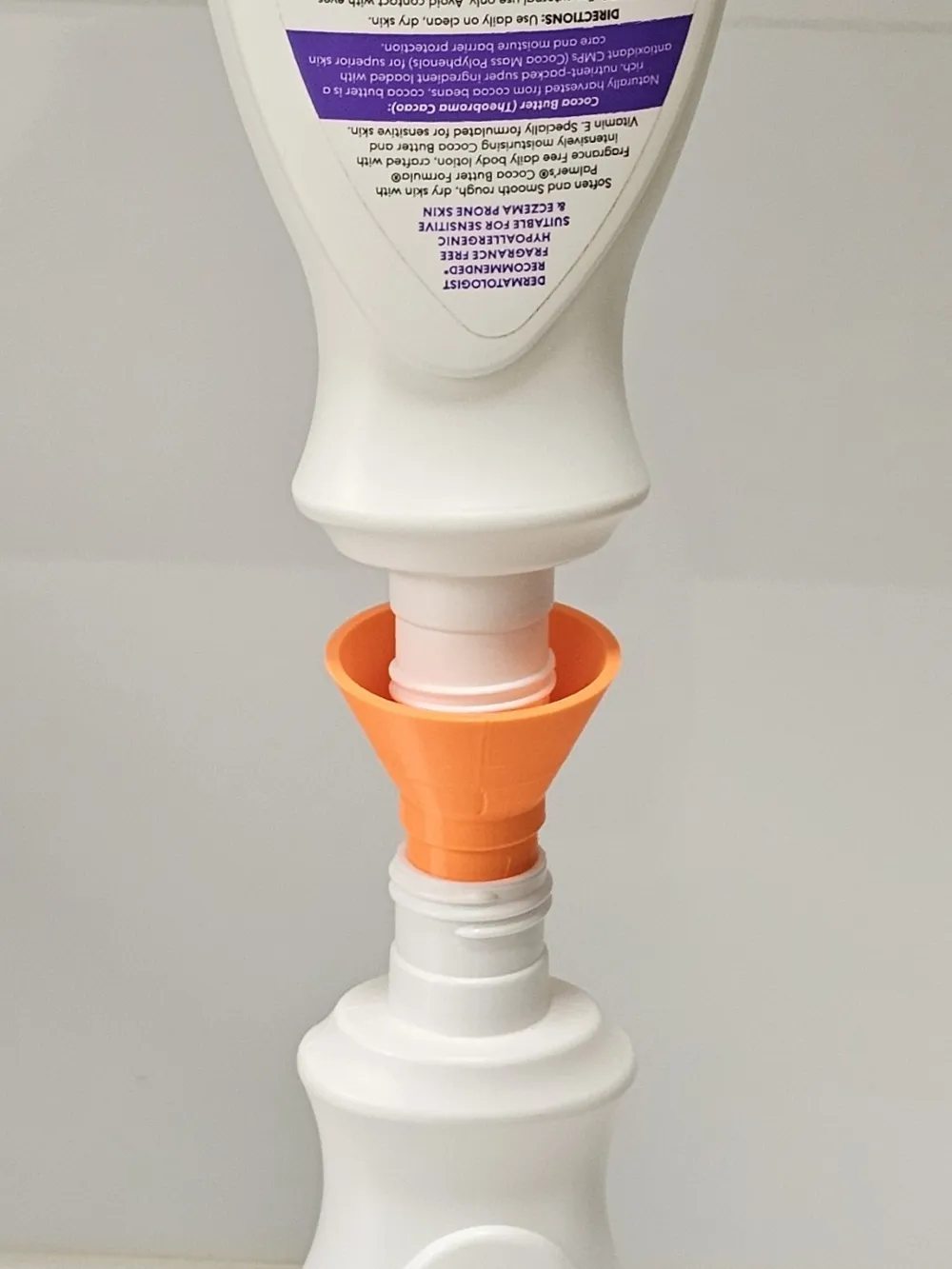

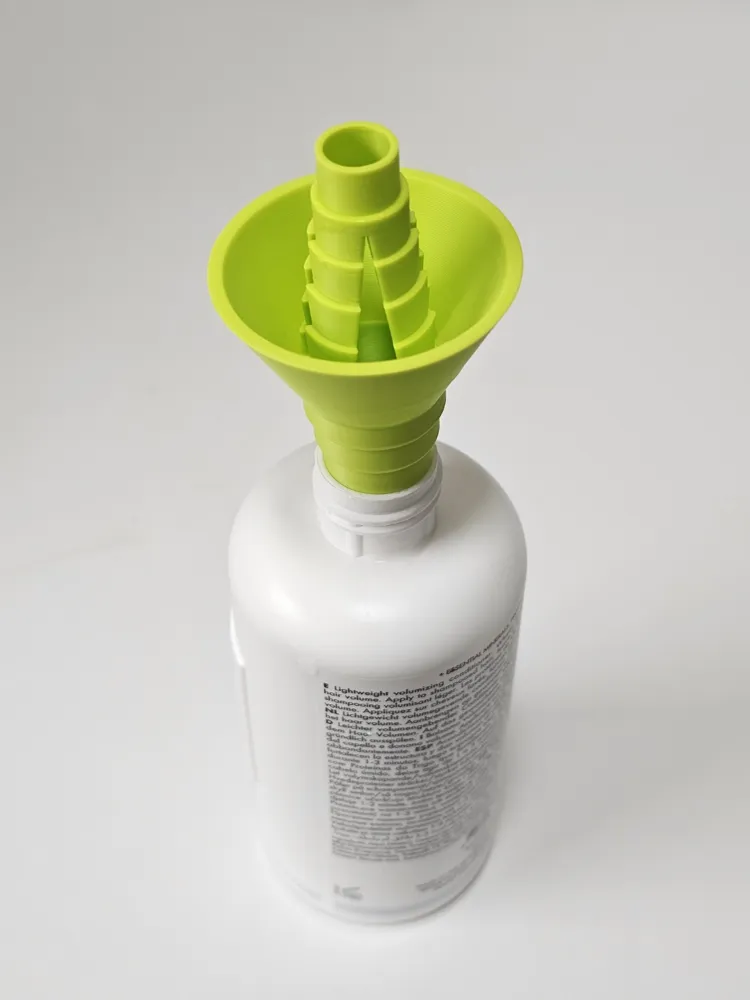

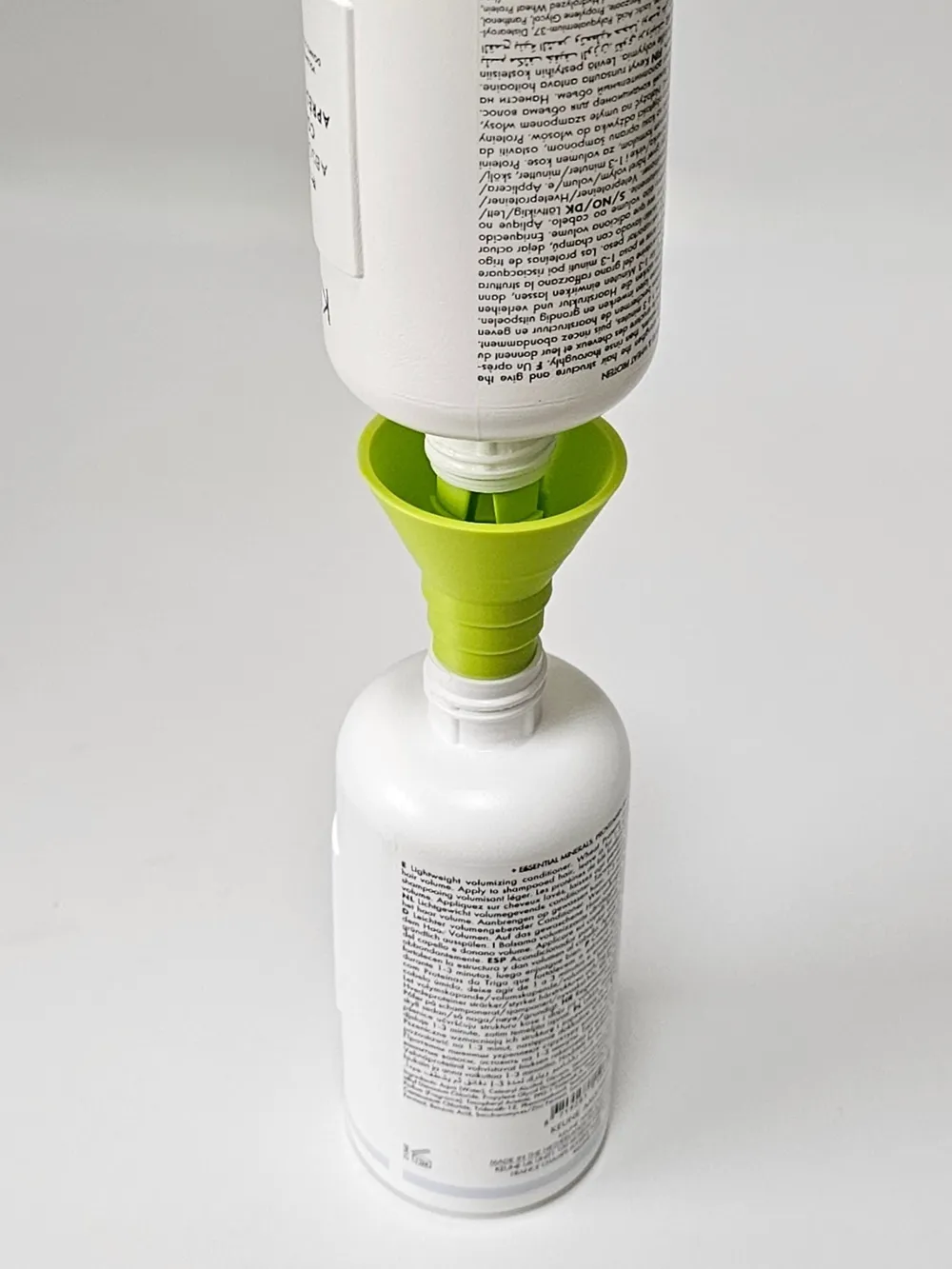

This model combines liquid transfer connectors and bottle funnel adapter. Designed to simplify pouring, emptying, and transferring all kinds of liquids - from kitchen oils and sauces to soap, detergents, workshop or even craft liquids.

• There are three print profiles for Regular, Large and Extra Large sized funnels.
• The supplied print profiles have settings enabled for a brim which is needed for best results.

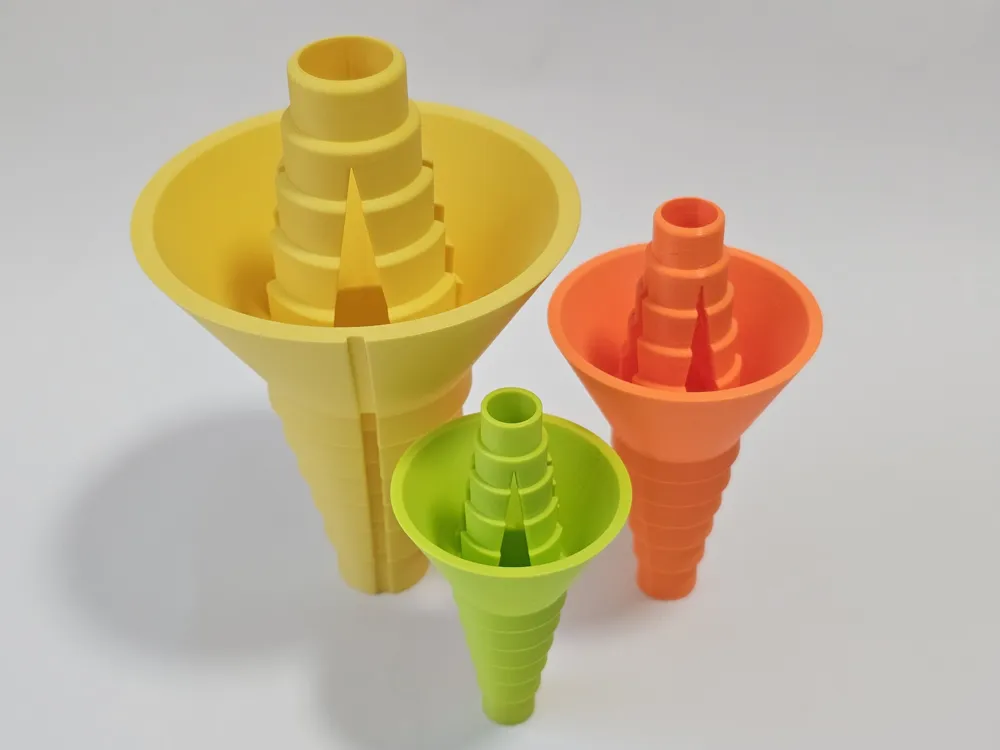

• Funnel sizes (approx.) - Regular  50mm(w) x 90mm(h)    Large  60mm(w) x 108mm(h)    Extra Large  95mm(w) x 140mm(h)

Note on Thick Liquids: This model is designed for free flowing liquids. Thicker fluids (like heavy gels, glues, syrups, honey, etc.) may flow very slowly or not at all.

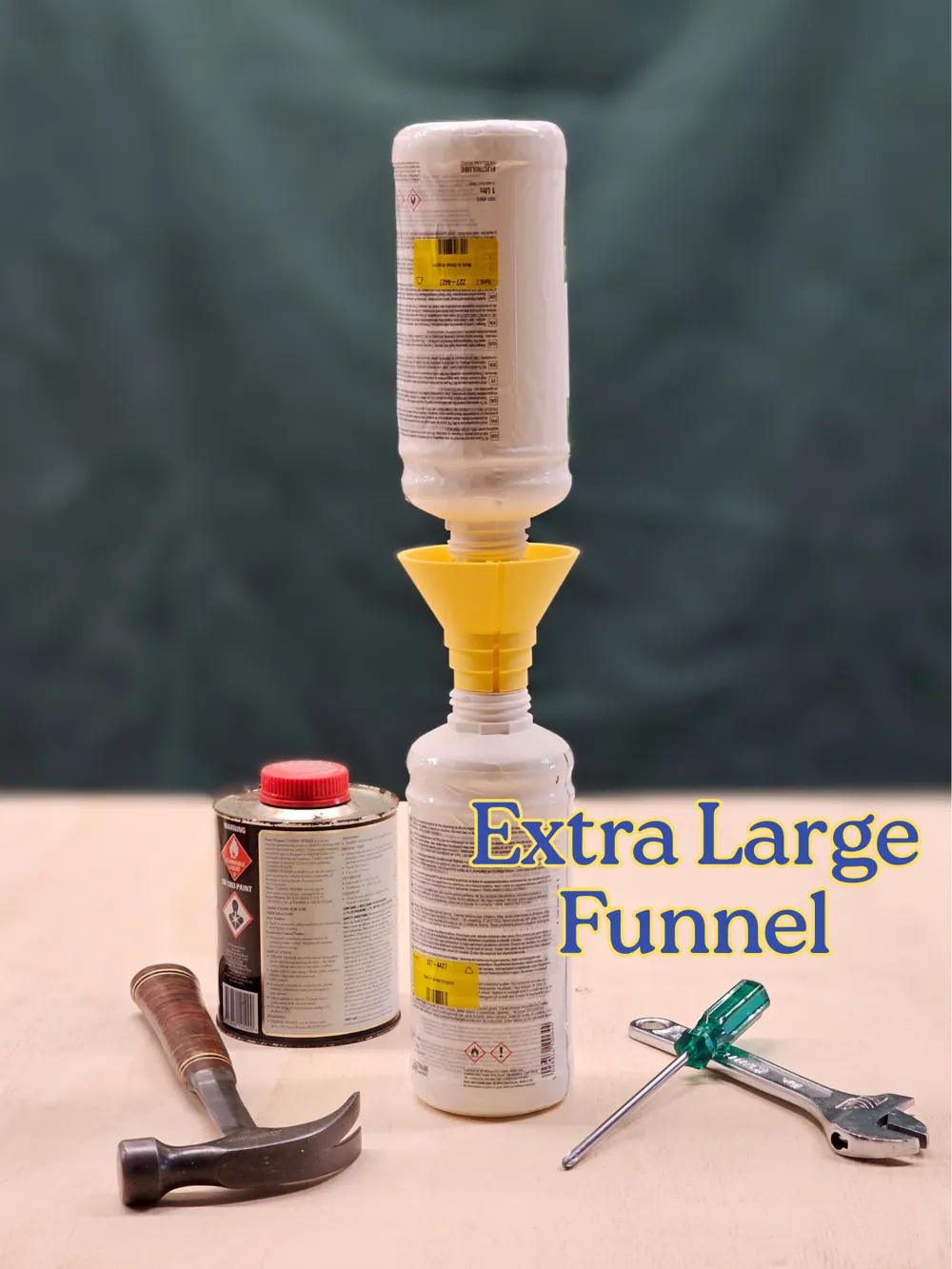

Update 12-05-2026 - Added an Extra Large funnel, perfect for large bottle transfers such as workshop and laundry liquids.

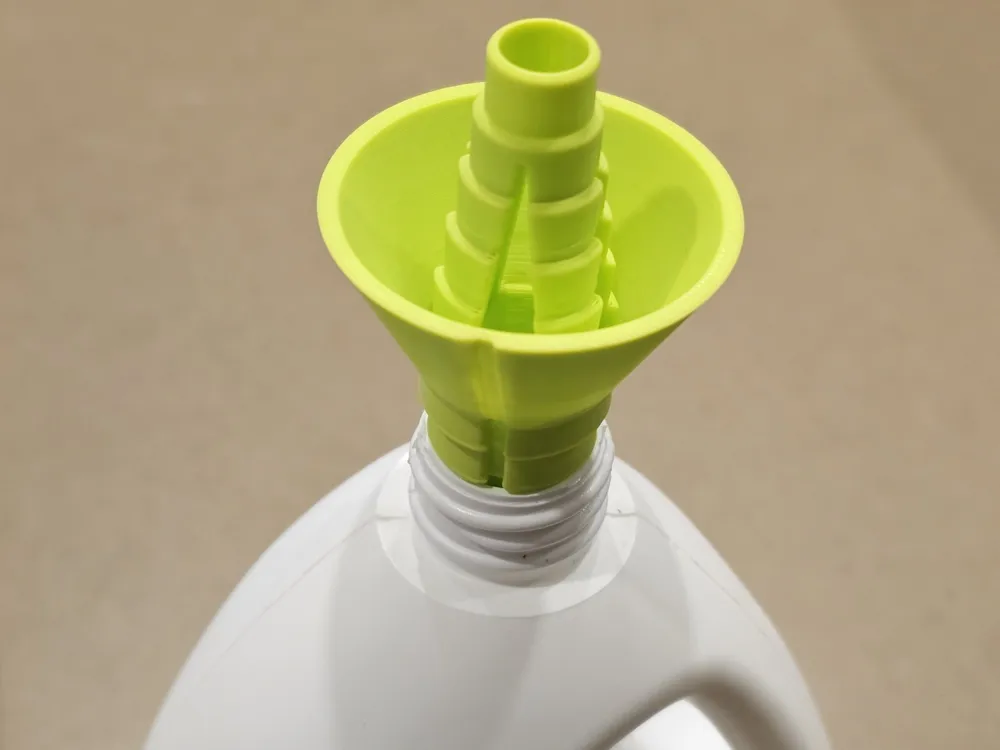

Update 14-03-2026 - v3 -  Integrated Air-Venting: Added a vertical vent channel to the spout. This creates a dedicated air-escape path, preventing vacuum seals and allowing liquid to flow much faster into the receiving bottle.

Update 03-03-2026 - v2 - Optimised the model and streamlined the top neck for better flow with thicker liquids. Uses slightly less filament as well.

🚀 Tips for Print Success

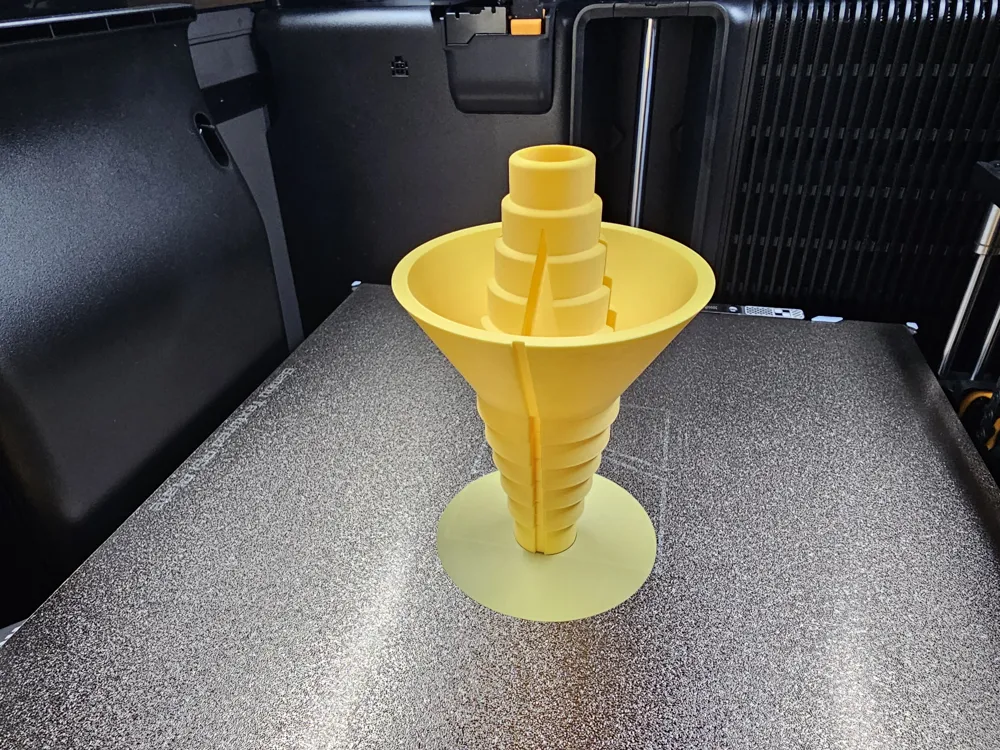

This model is a tall, thin print. While the included 3MF profiles are optimized for success, tall prints are more sensitive to printer maintenance. If you experience a failure, please check the following:

• Clean Your Build Plate: Wash your plate with warm water and dish soap (like Dawn). Finger oils are the #1 cause of tall prints detaching mid-way.
• Run Machine Calibration: If it's been a while, run a full calibration (Vibration Compensation and Bed Leveling) to ensure the nozzle doesn't "catch" on the model as it gets higher.
• Dry Your Filament: Wet filament can cause "blobs" or curling. If the nozzle hits a hardened blob, it can knock the print off the bed.
• Check Your Z-Offset: If you aren't using a Bambu printer with auto-leveling, ensure your first layer is getting a good "squish" for maximum surface area contact.

Happy Printing!
