Air purifier based on Xiaomi filter element
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
28.5 h
4 plates
Open in Bambu Studio
Boost
2
5
0
0
5
1
Released
Description
Content has been automatically translated.

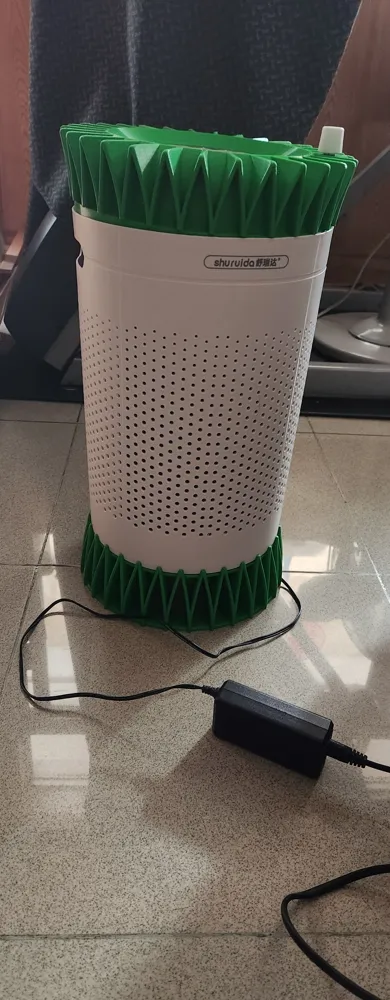

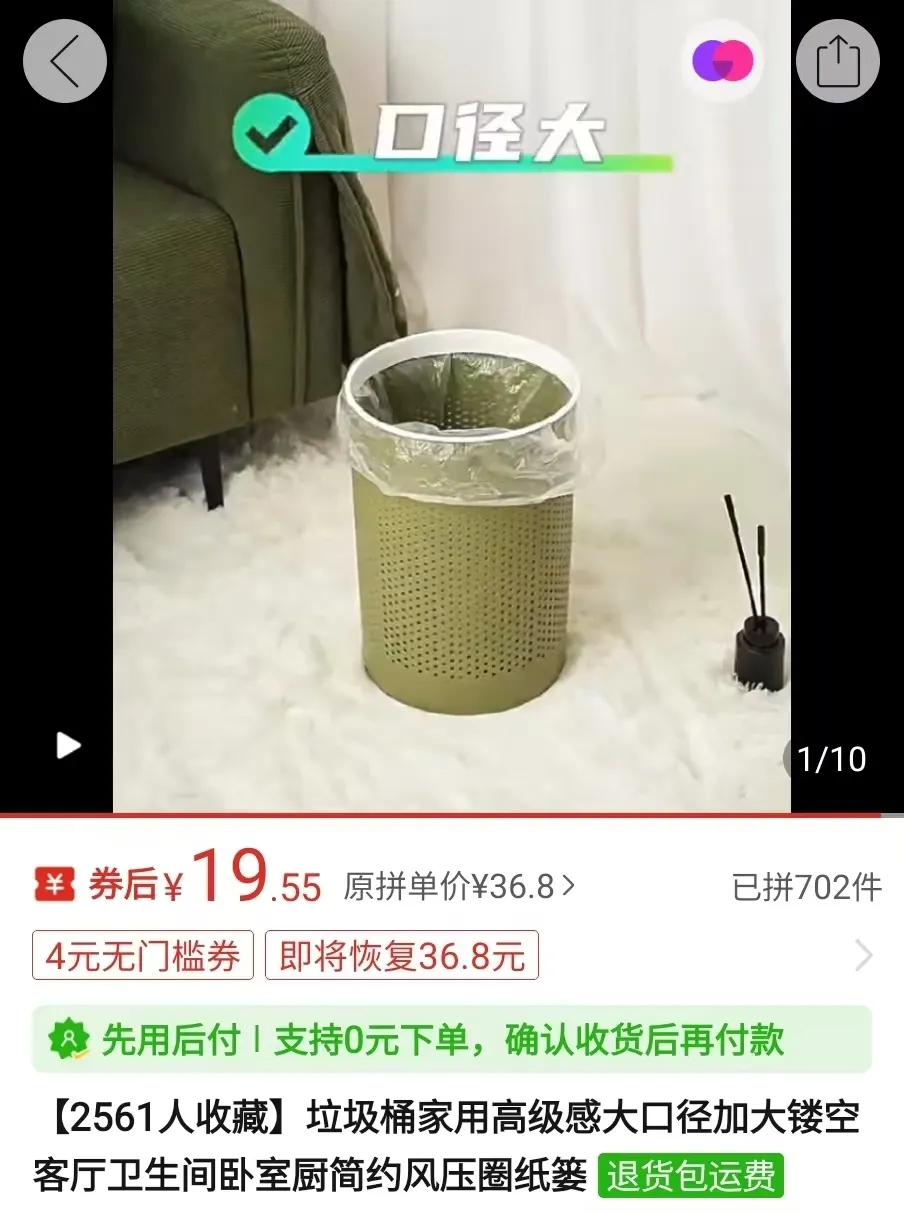

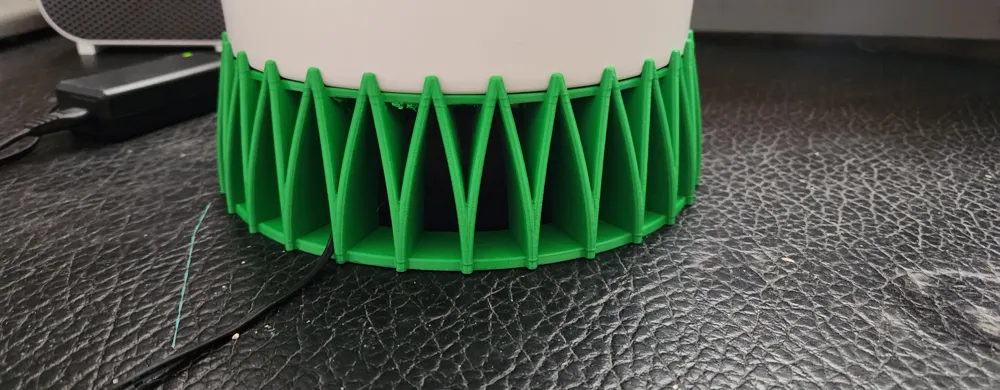

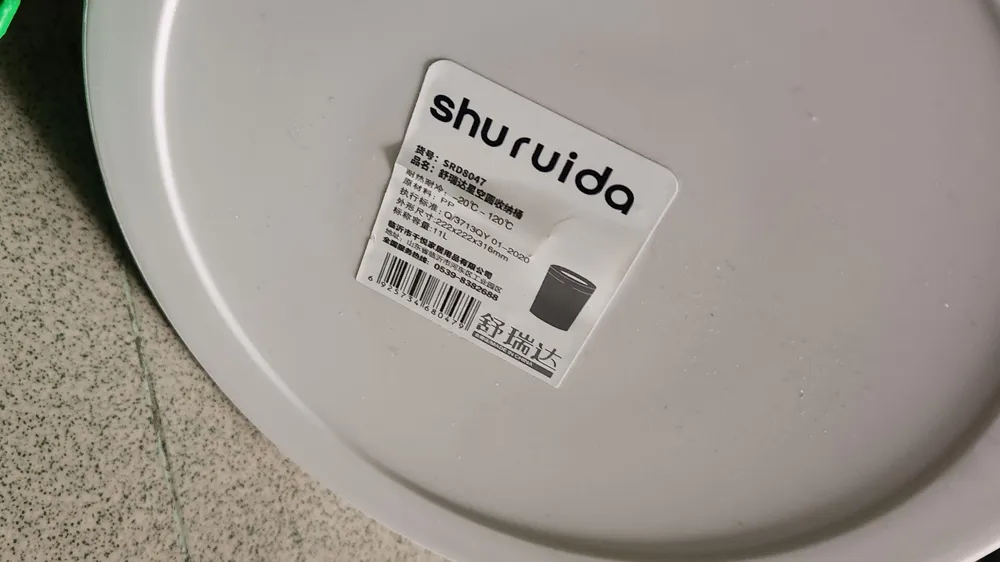

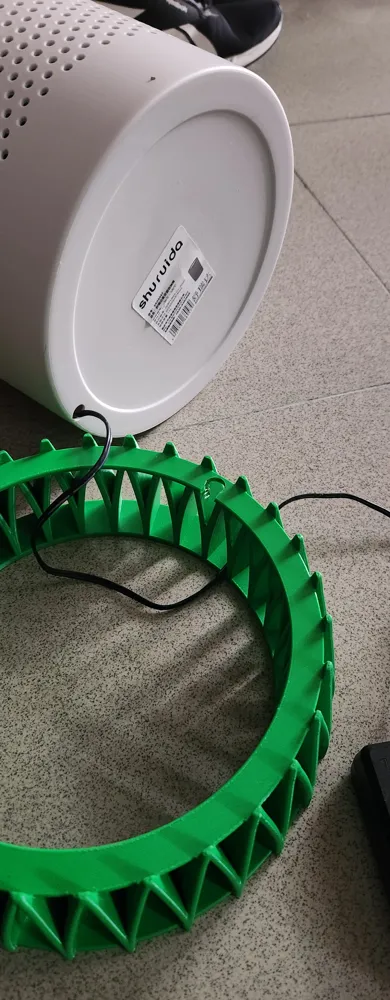

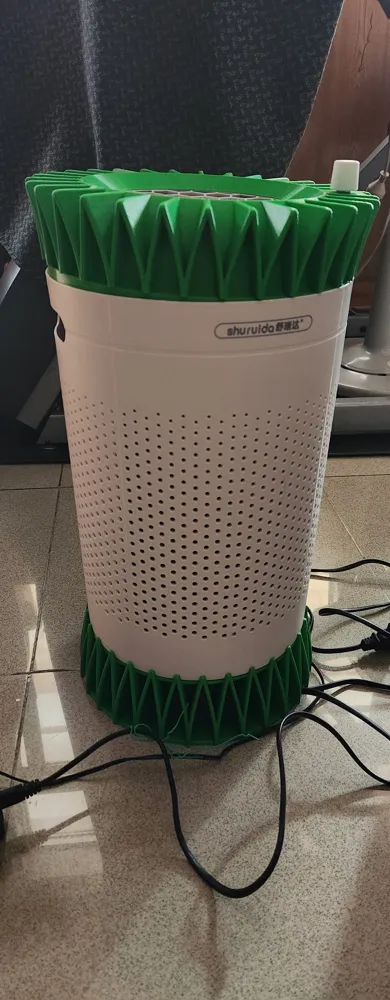

The design draws inspiration from several experts on this site The upper and lower components have a consistent style and an external finished casing (trash can) was added to prevent the filter element from being exposed The brand of the trash can is shown in the photos and the upper component was modeled based on this type of trash can

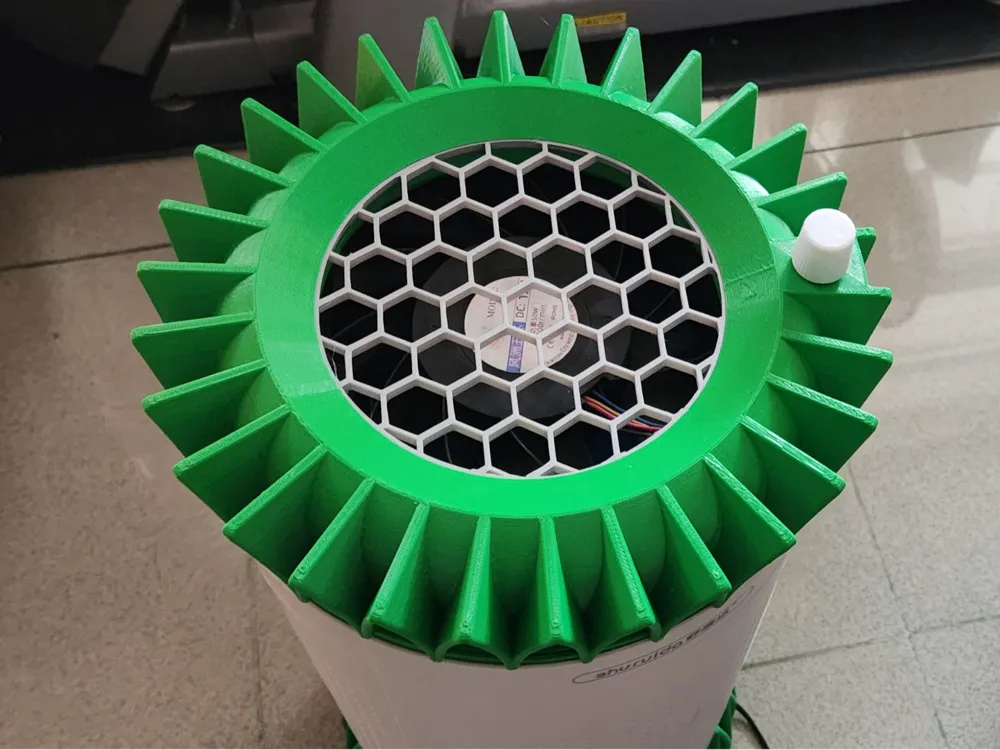

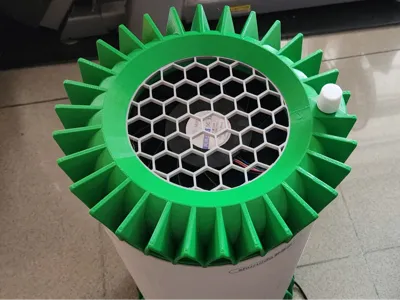

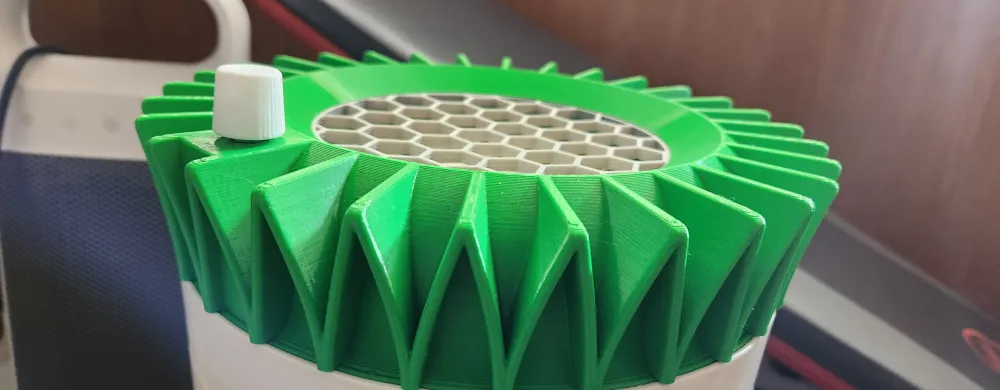

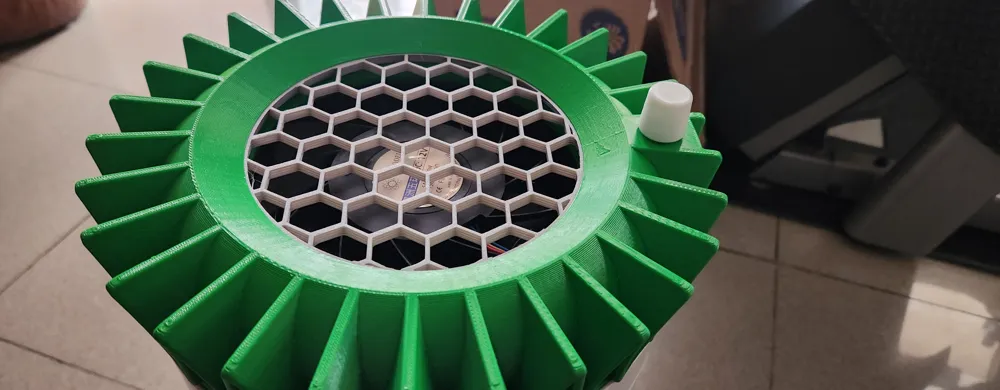

A speed control knob position is designed on the top A 5A speed controller will suffice
Purchase a fan with a connector and wires then simply cut the wire in the middle and connect the speed controller

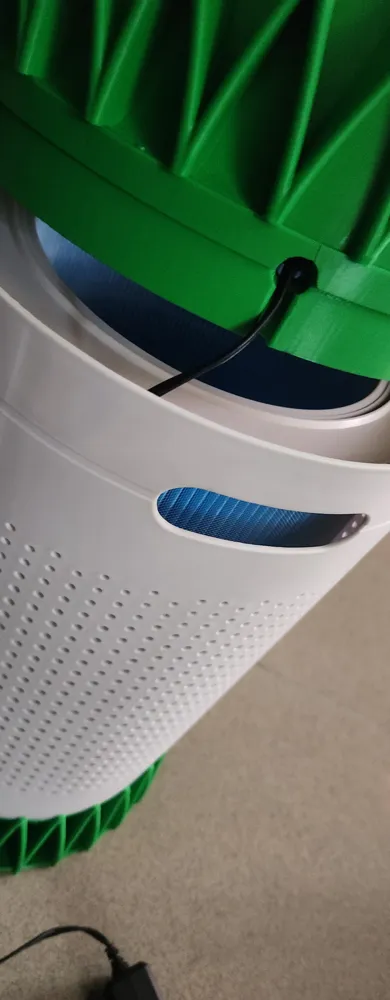

The wiring is routed from inside the trash can
