7 inch Touch Display Case elecrow
Print Profile(2)
Bill of Materials
- Linsenkopfschraube M5 x 2:
- Mutter M5 x 1:
Description

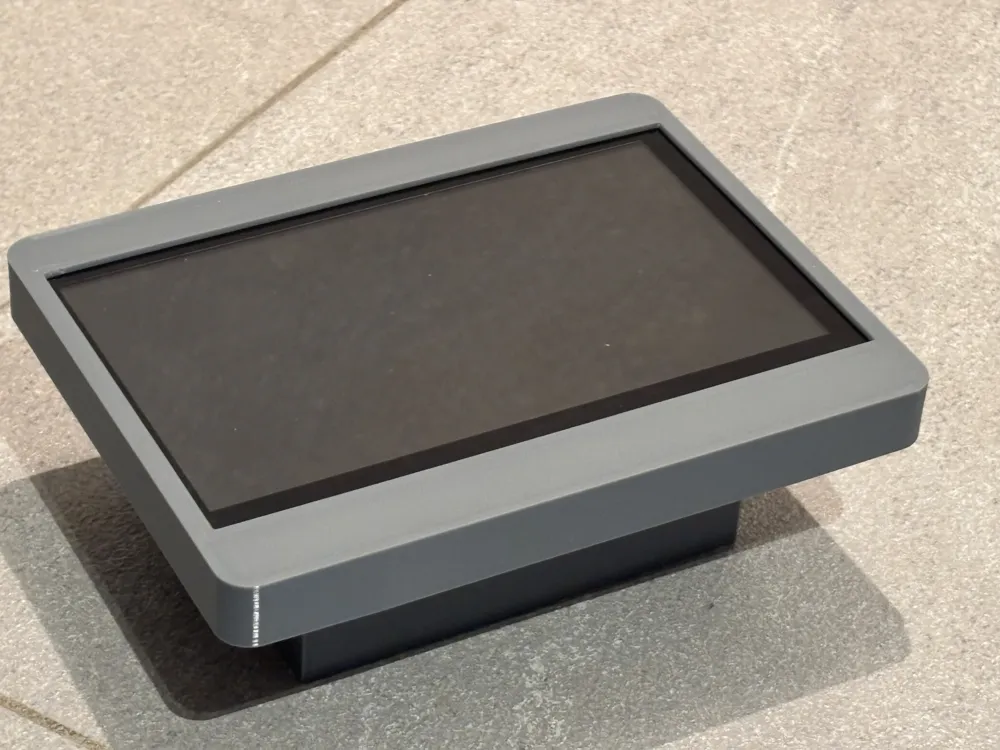

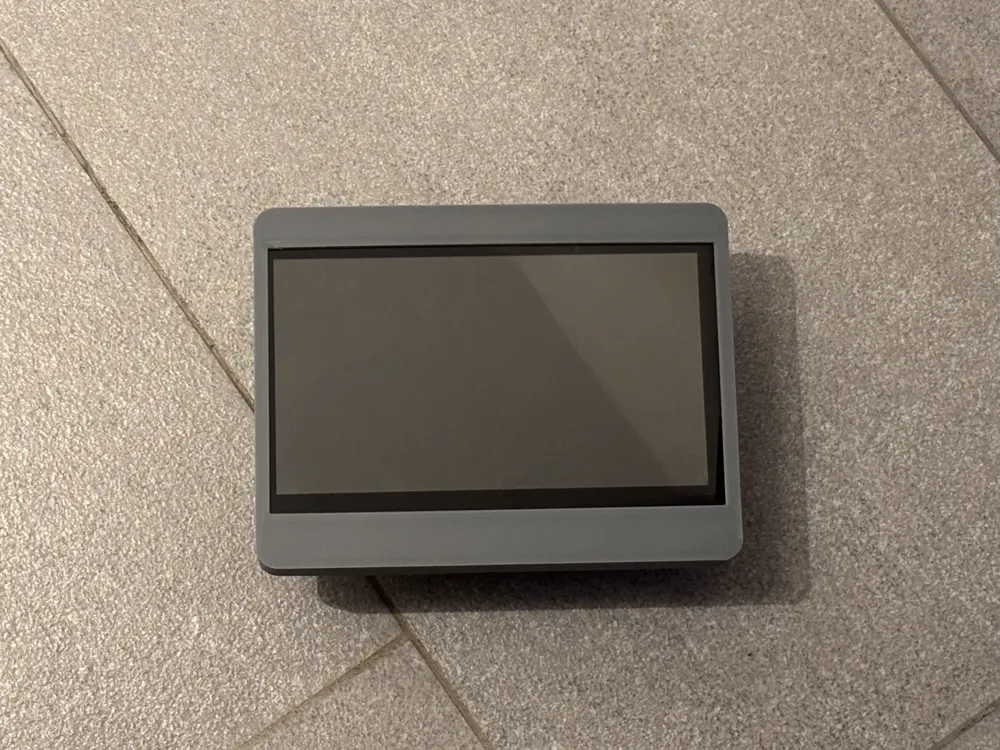

Case for 7" Elecrow Touch Display – Wall Mount

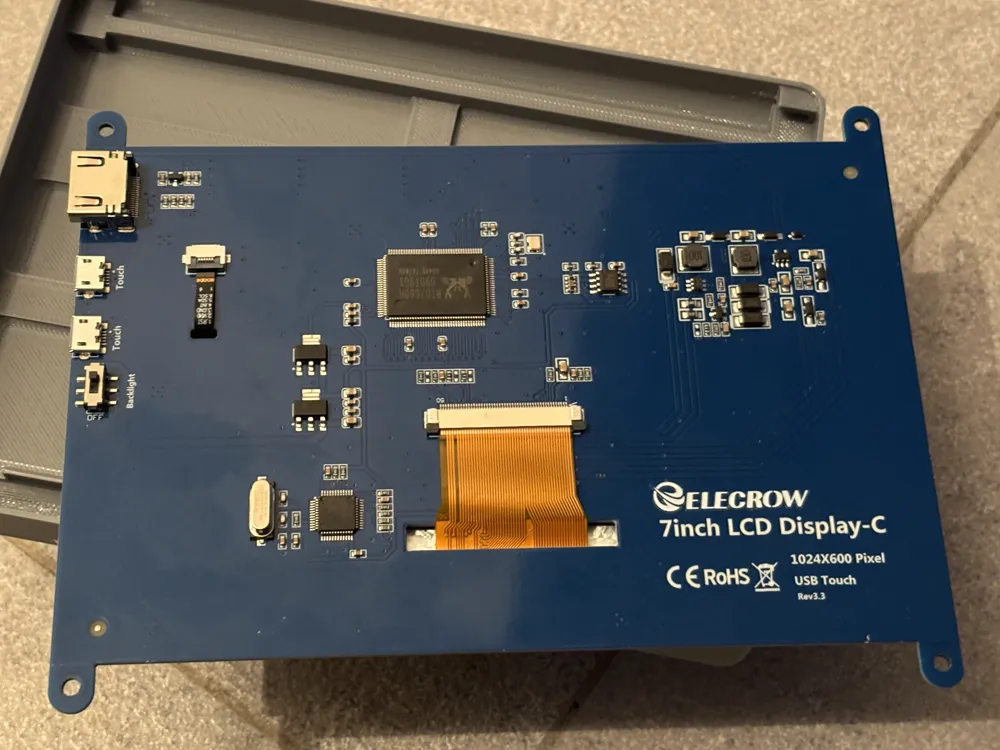

This 3D printable case has been specifically developed for a 7-inch Elecrow Touch Display (see figure). It reliably protects the circuit board and allows for a clean, space-saving wall mounting.

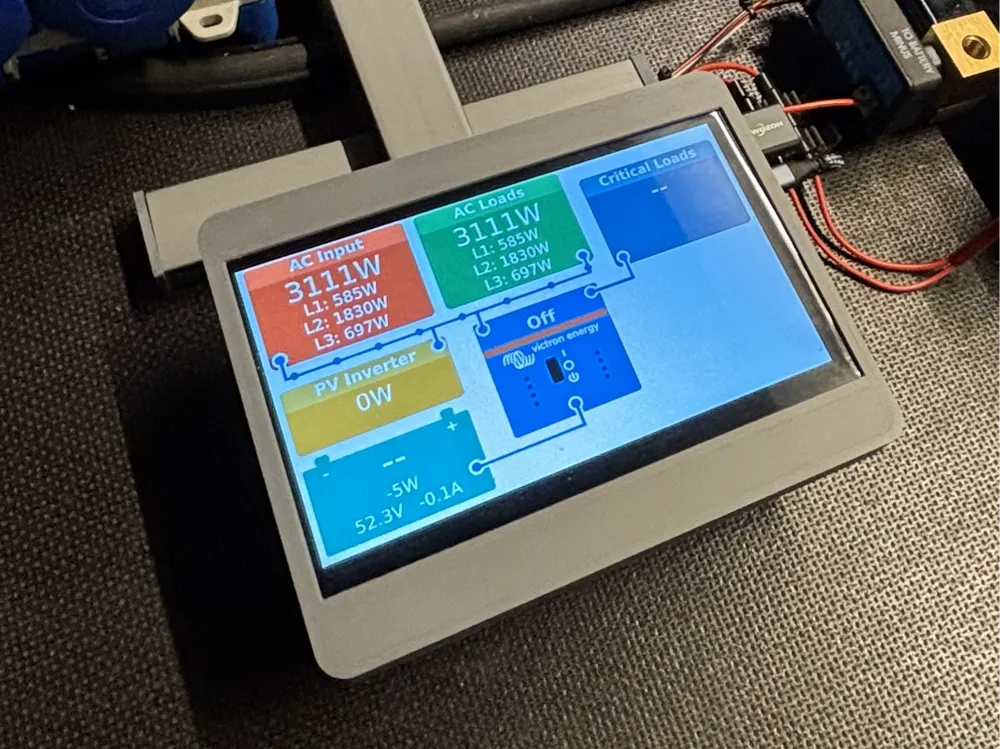

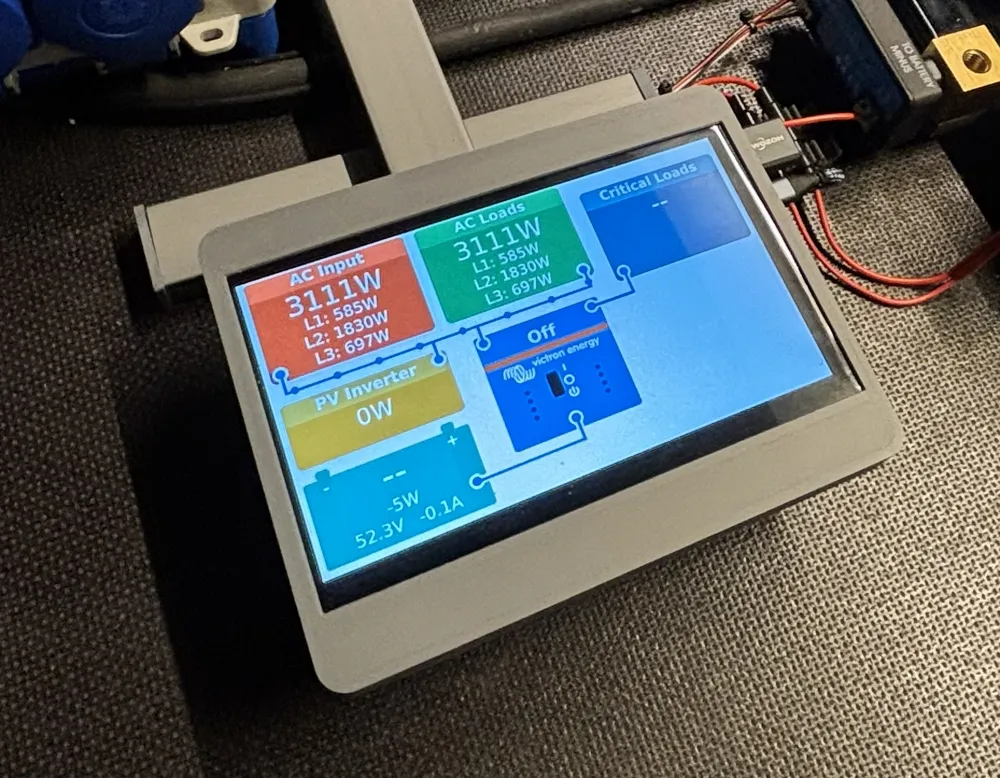

The case is simply pushed onto an existing wall mount and is ideal for smart home panels, information displays, or DIY projects in living or working areas, preferably the type shown, or also from other manufacturers with the same dimensions and connections

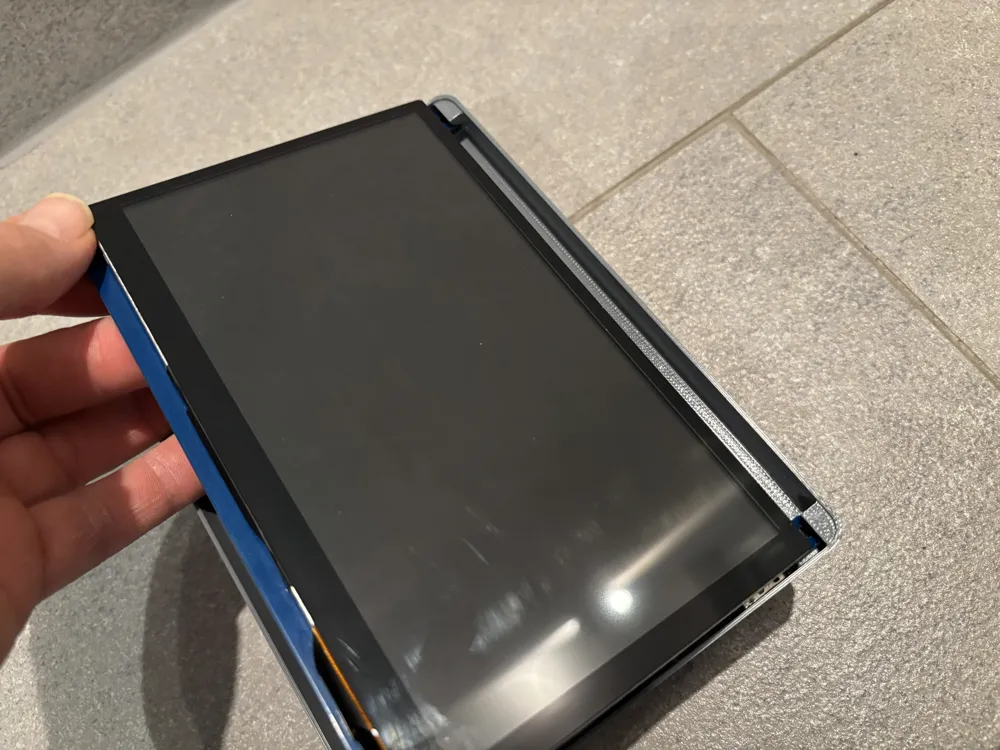

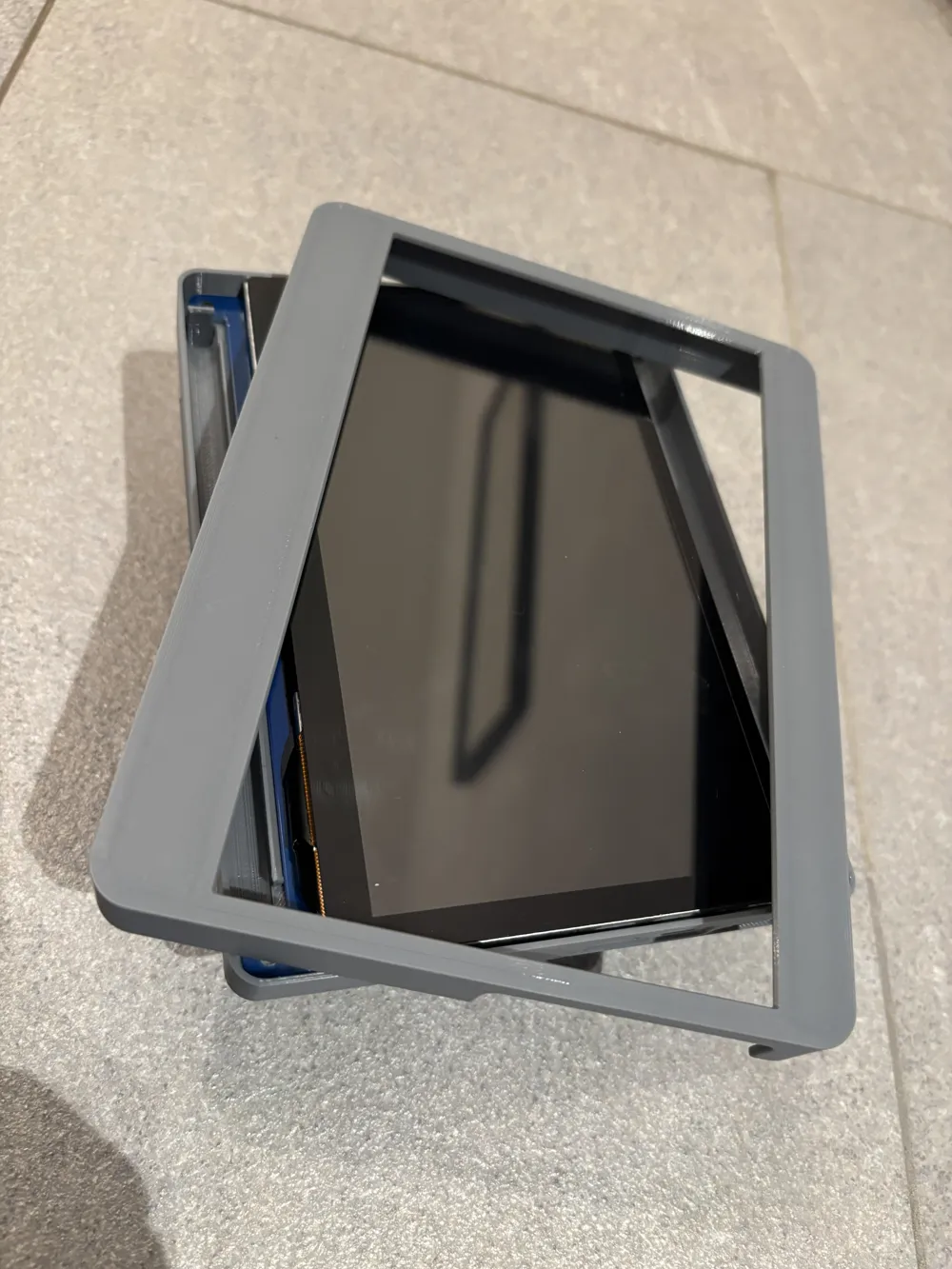

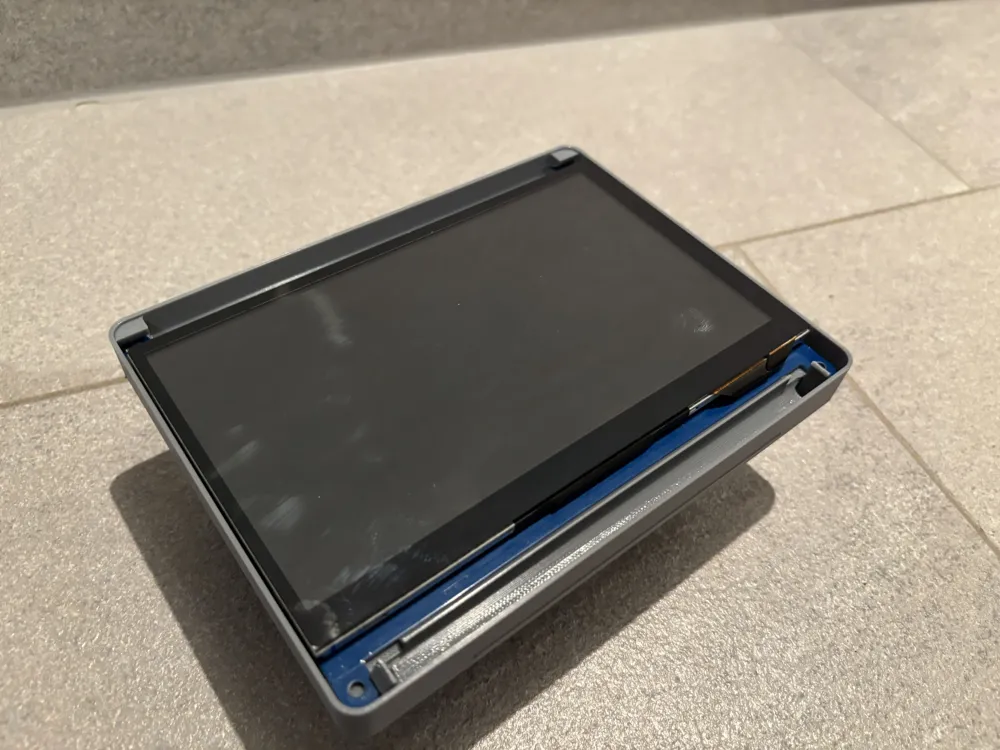

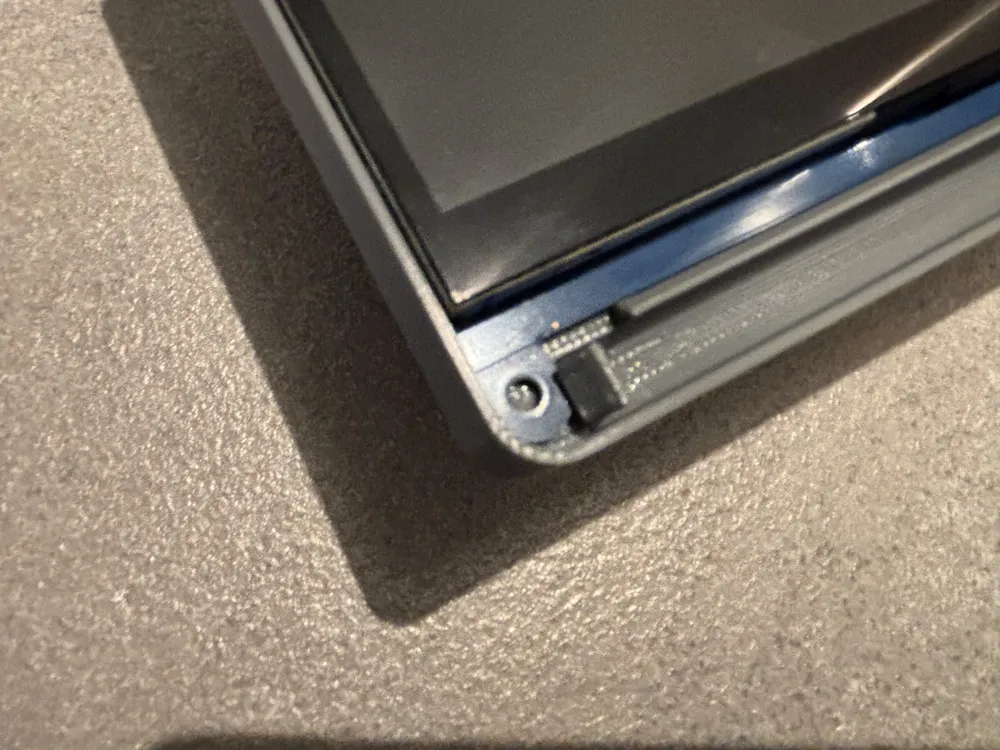

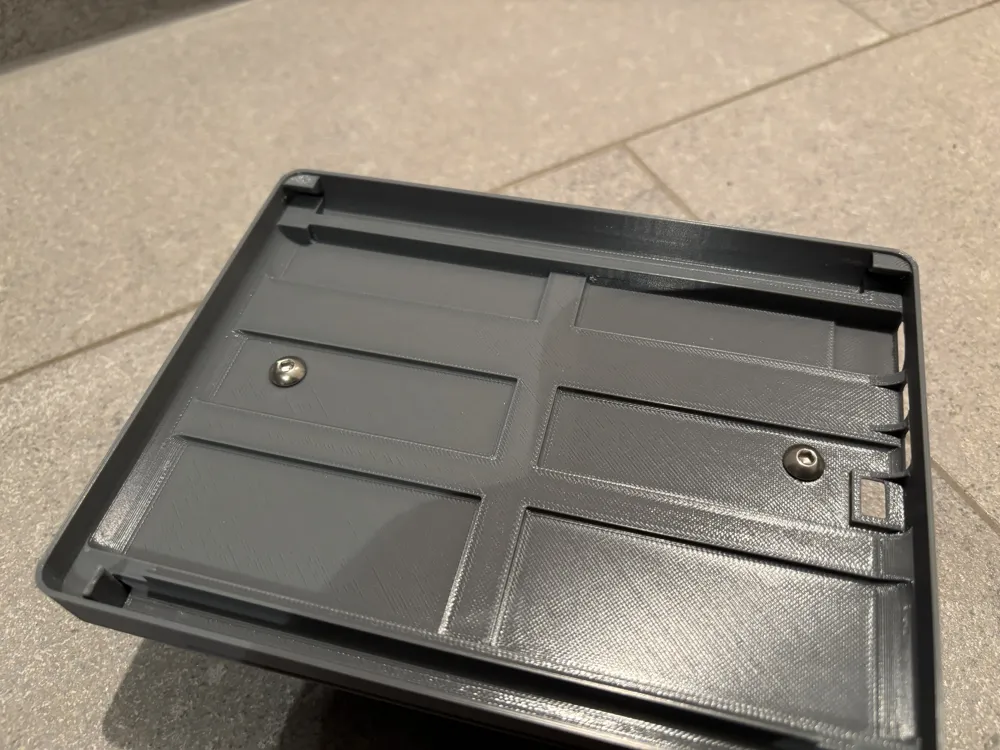

The display is slid in from the top under two "retaining tabs" and snaps into place at the bottom. To simplify printing, the rear retaining rail is designed as a screw connection.
- Precisely fitted for 7" Elecrow Touch Display
- Plug-in system for quick mounting on a wall bracket
- Stable and enclosed design to protect the display
- Suitable for vertical wall mounting

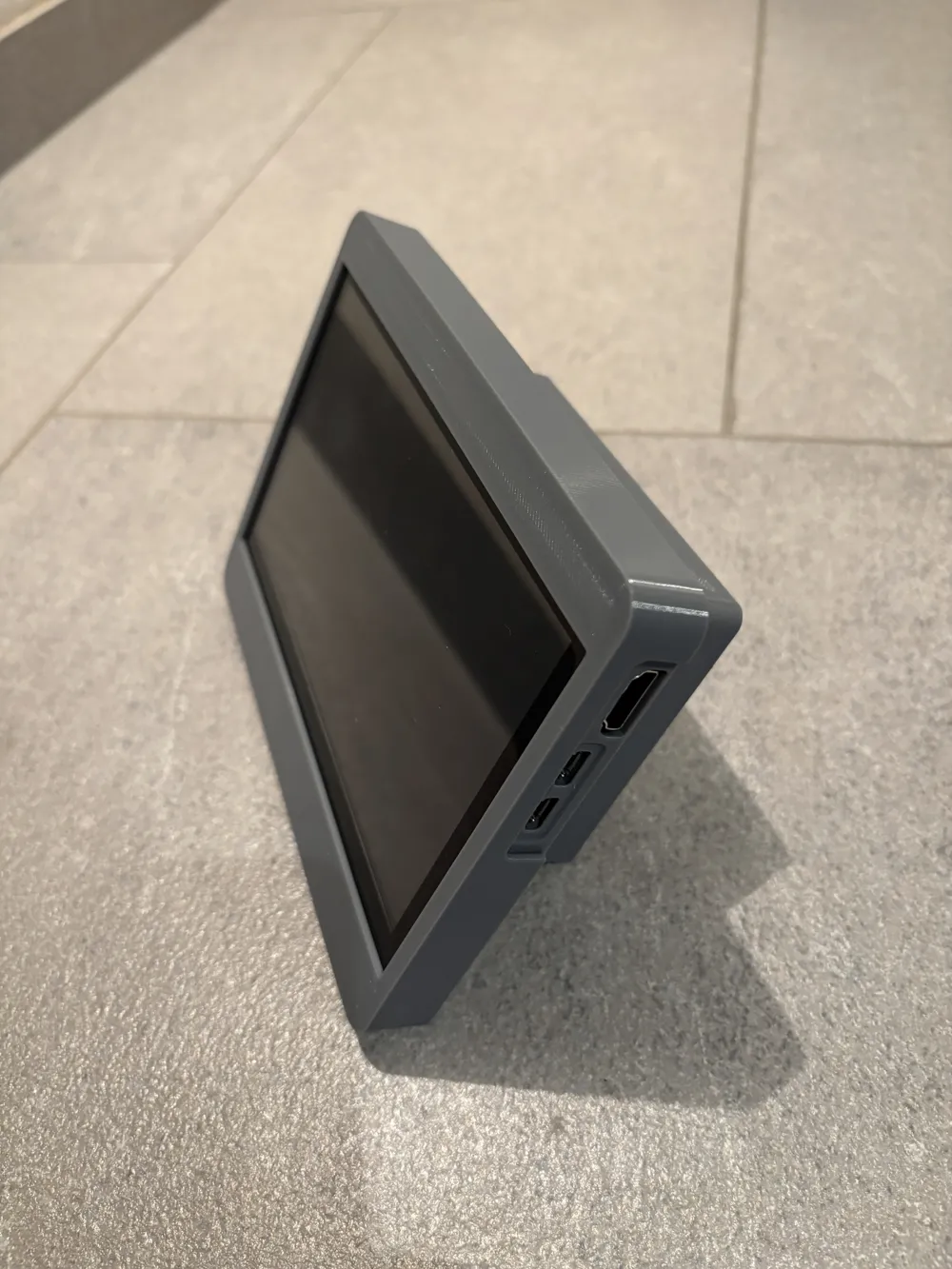

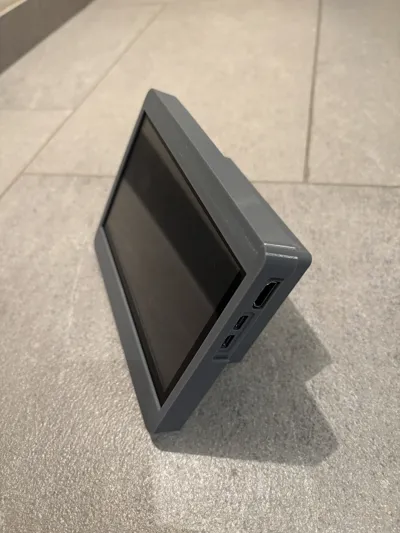

- Optional cable routing from the back to the right connection side of the display

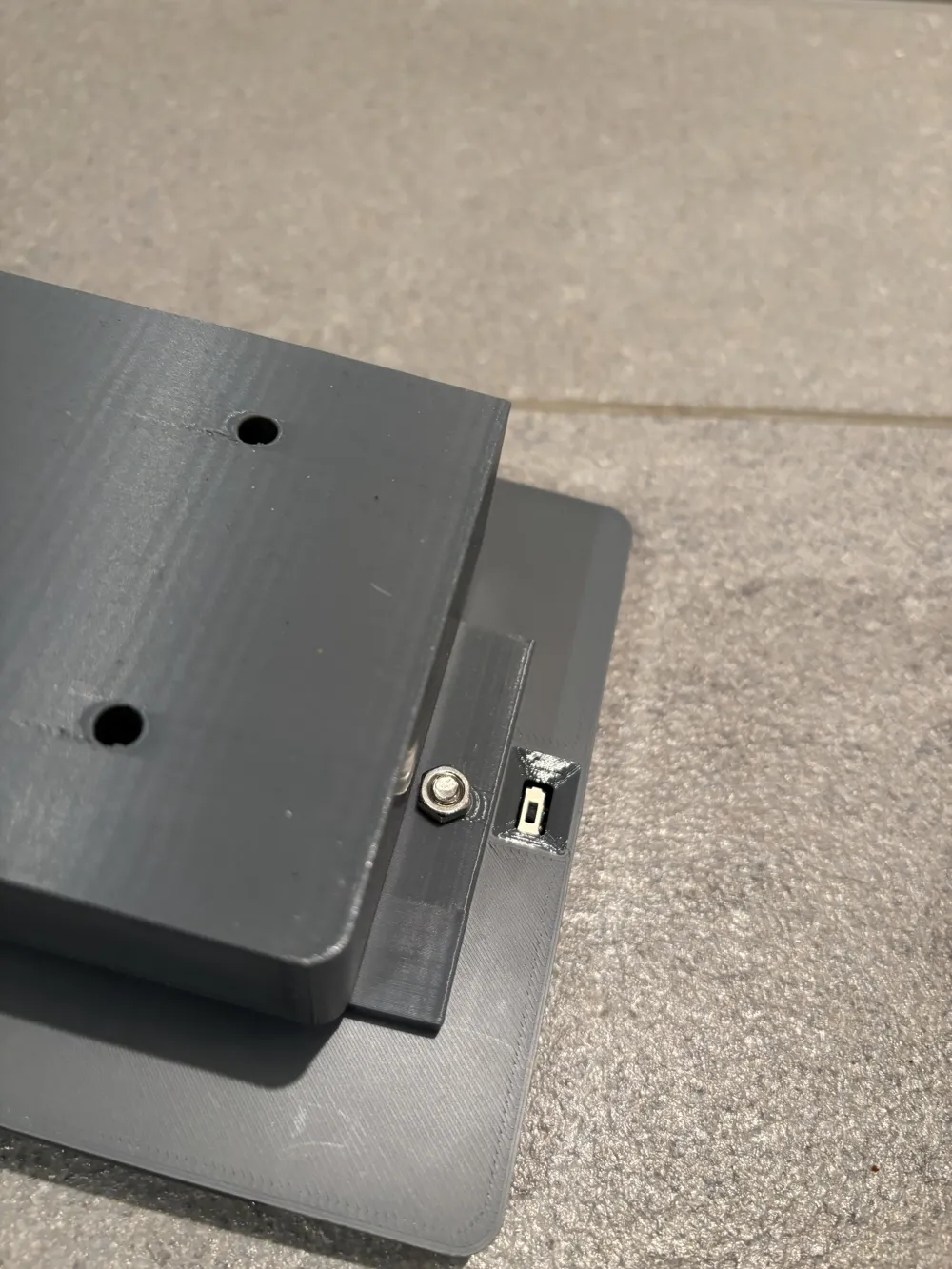

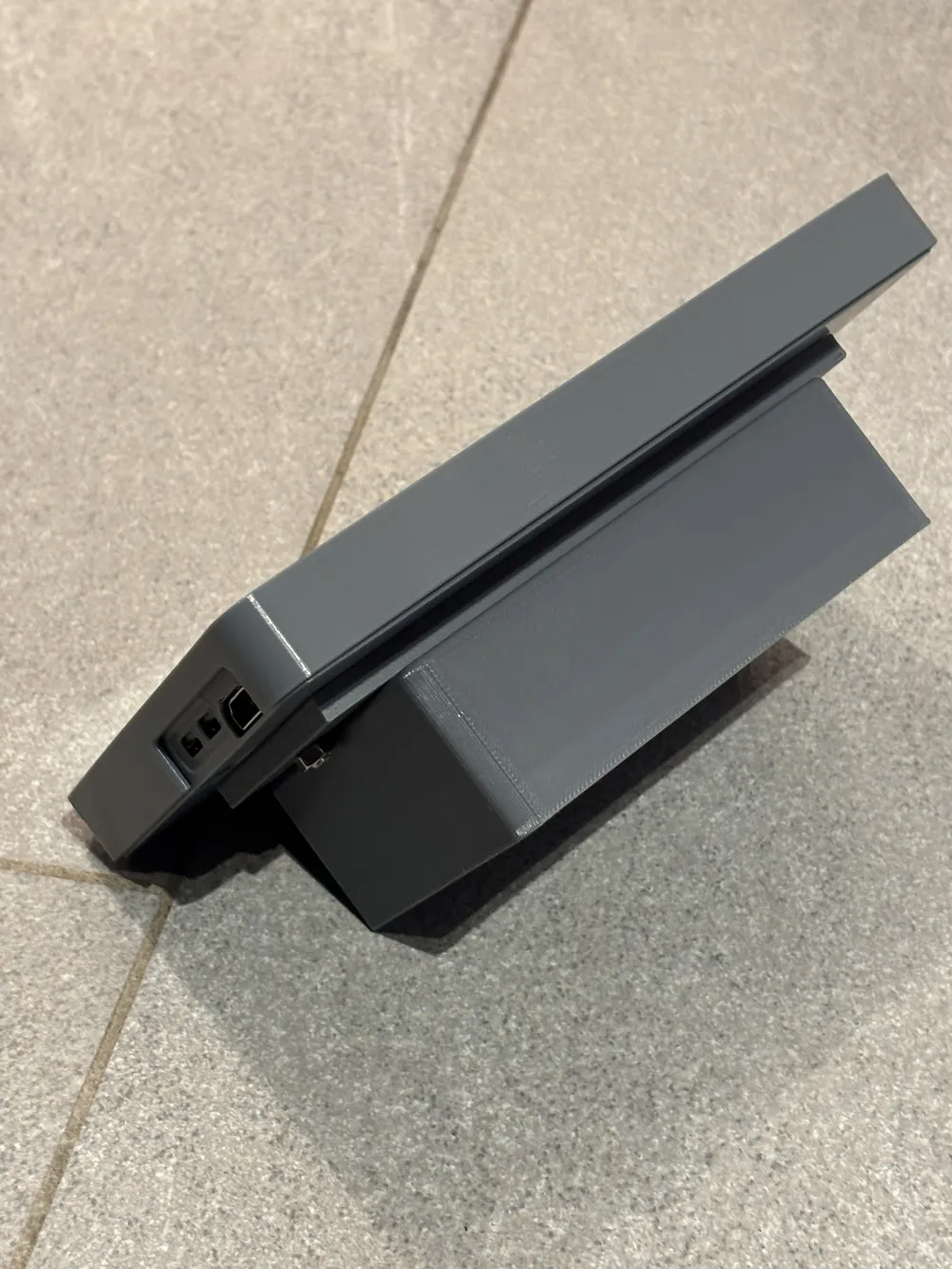

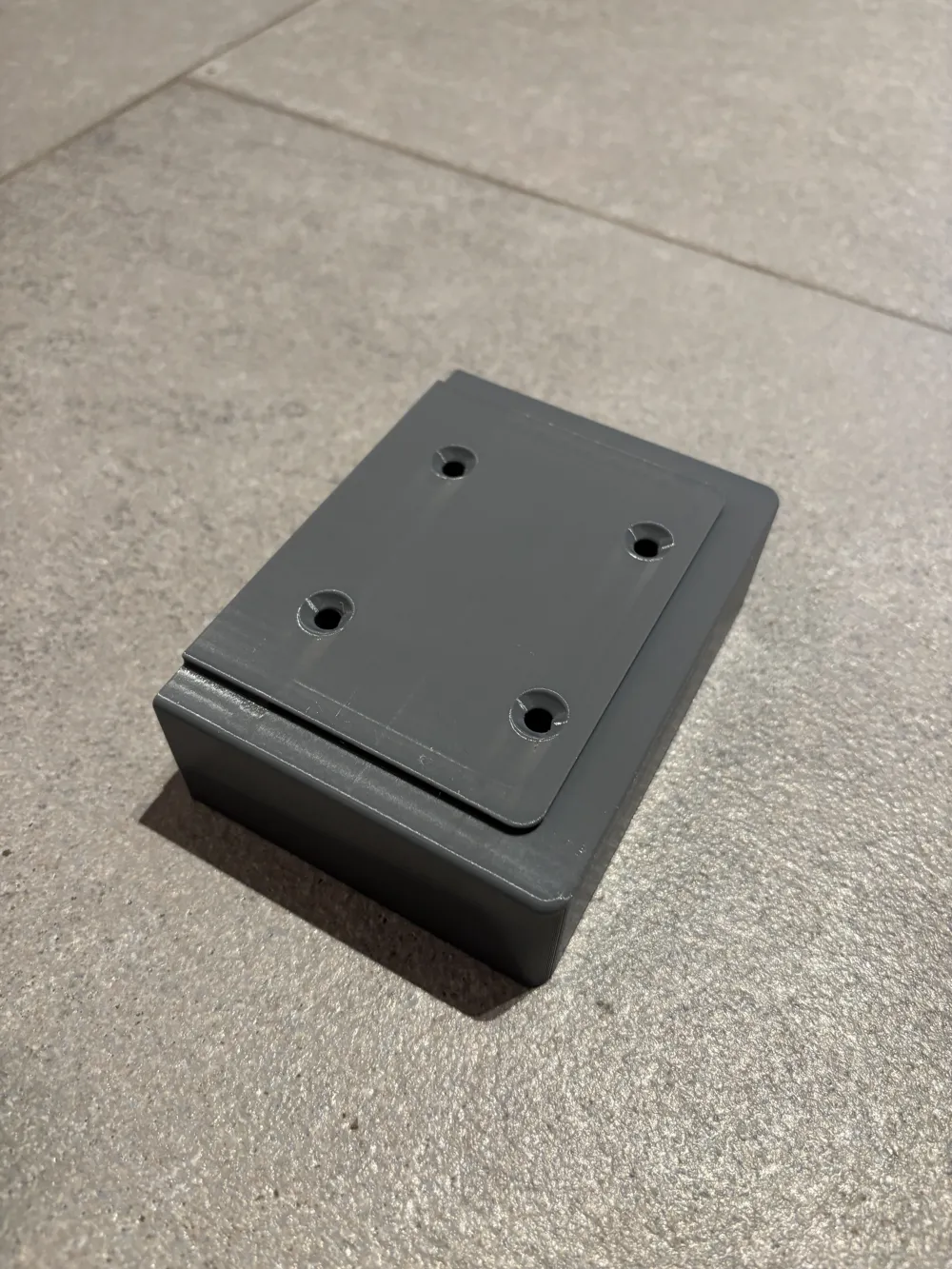

- Two different height (22/40mm) wall mounts, with each version the on/off switch on the back is accessible
Further versions, e.g. a holder as a table stand, are in progress…..
