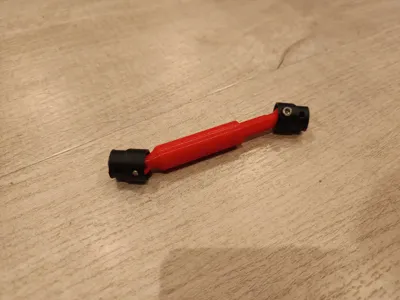

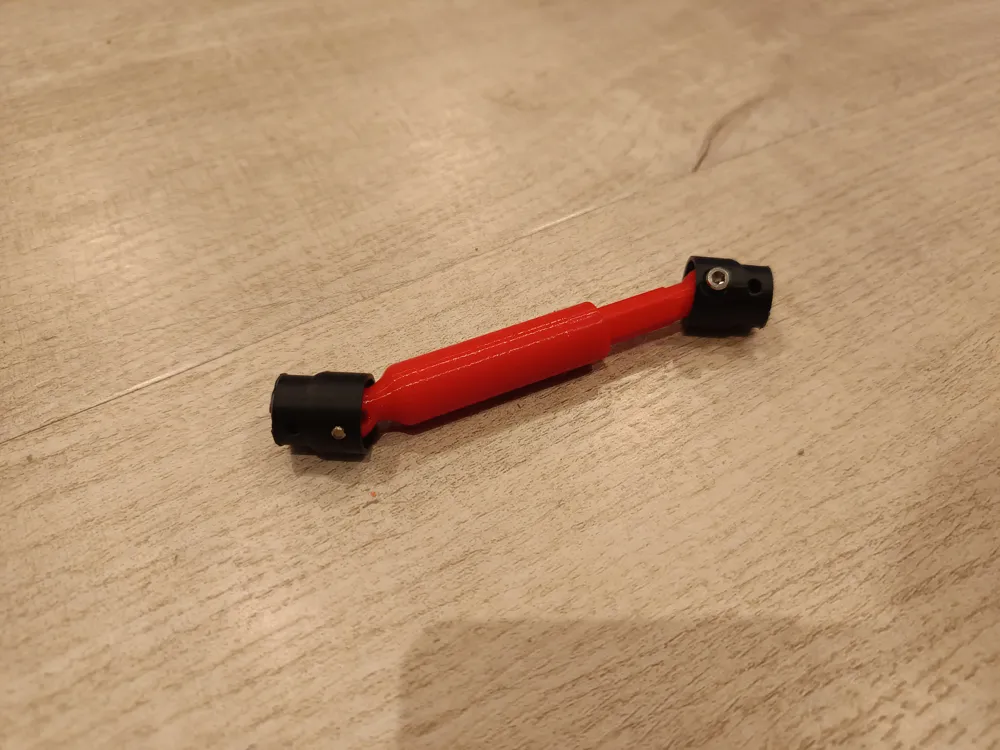

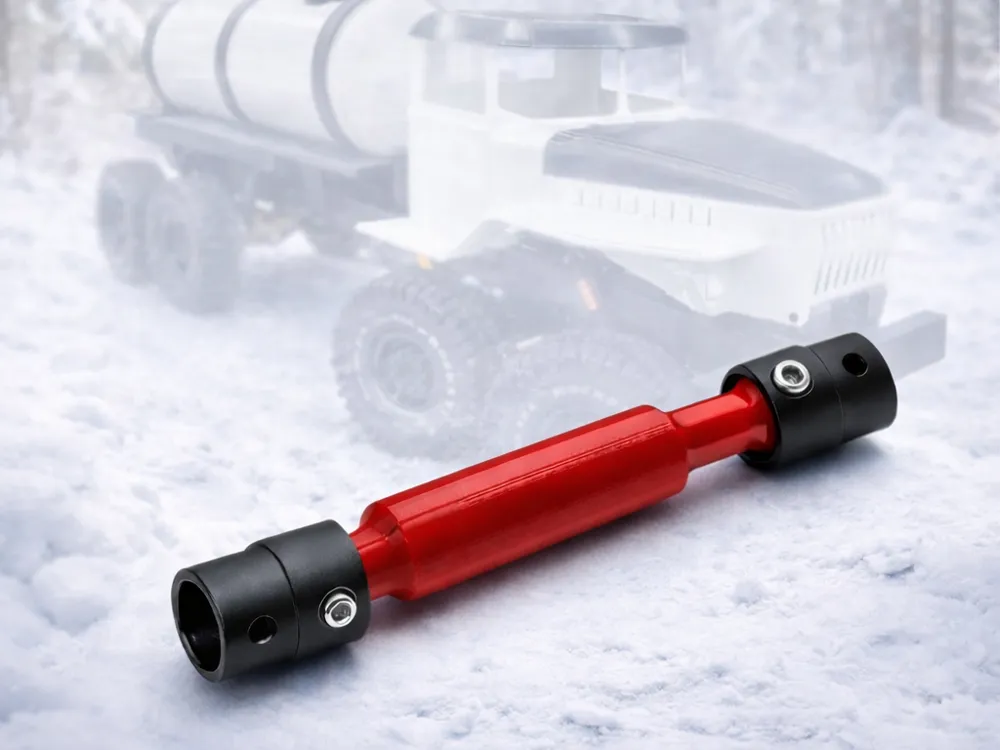

I didn't have suitable universal joints for my 8x8 offroad Truck project so I decided to design them myself
After some tests, I came up with a version that works quite well
They are designed for 5mm pinion shafts
I have made 3 sizes for now :
- 80-100mm (suitable for my 8x8 model)
- 87-110mm
- 95-125mm (suitable for my 8x8 model)
To make them you will need for each universal joint :
- 2 M3x16 screws
- 2 M3 heat set inserts
- 2 M3x6 screws
