Spring Latch Mechanism Examples
Print Profile(1)
Bill of Materials
- Springs x 1: You need springs for this to work, cheap 420 pack on Amazon should do it.
Description
This is my experiments with some latch mechanism that I want to incorporate in some other mounting designs, they are meant to be small.

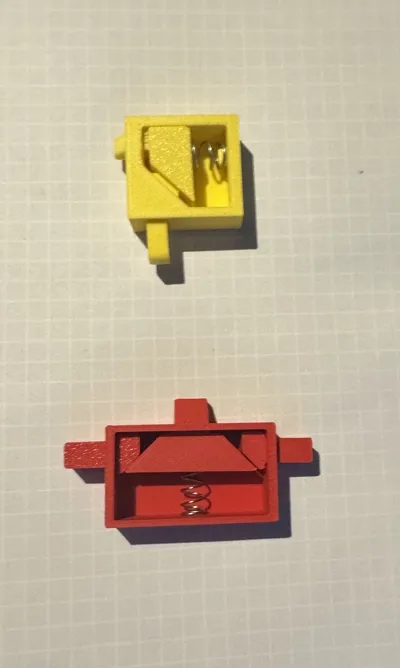

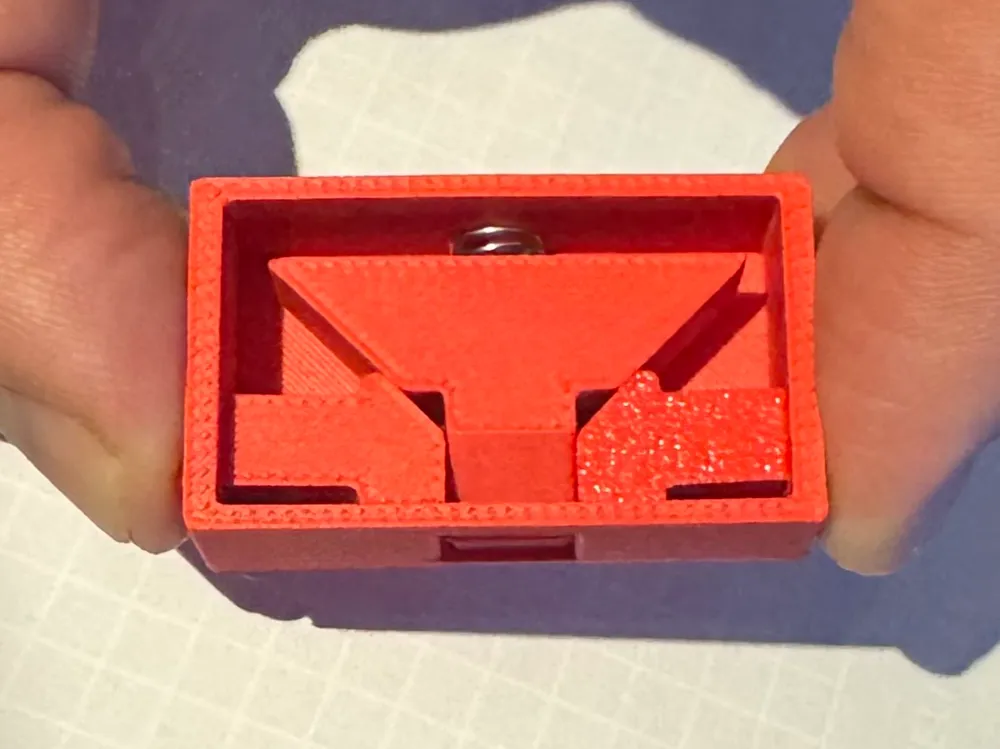

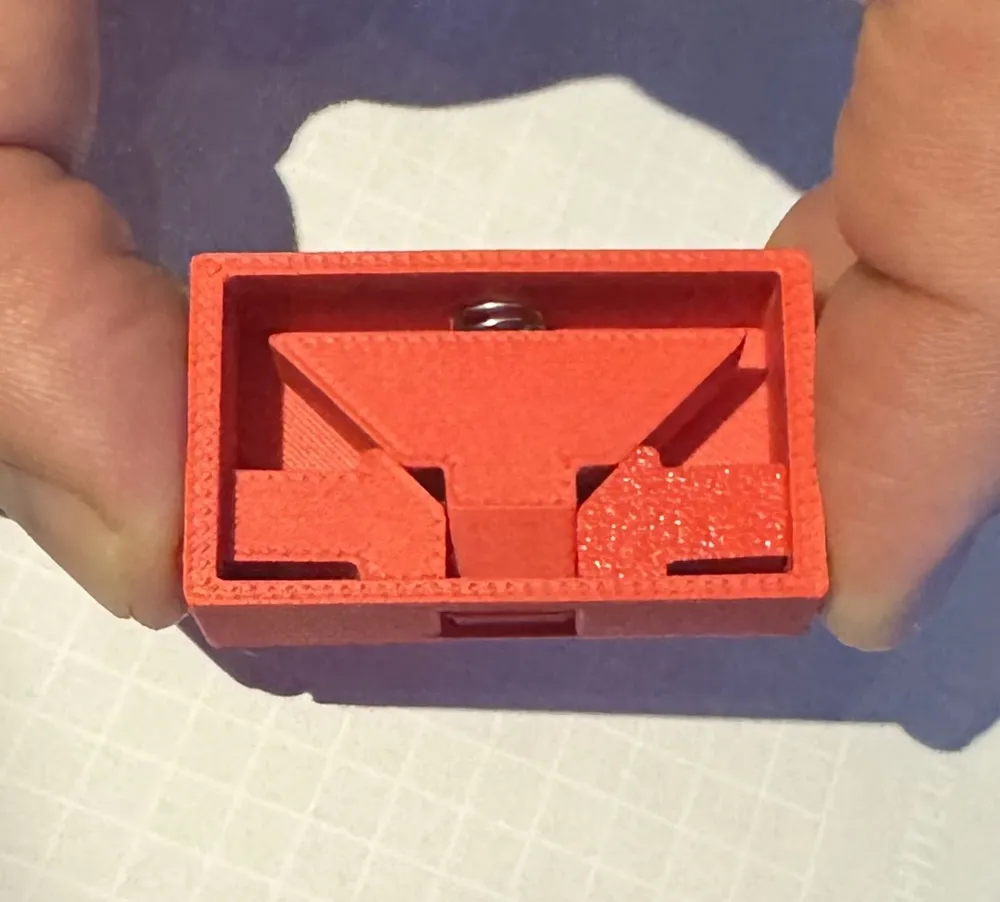

The double button is most satisfying and easier/better mechanism in my opinion, the single button gets a bit tough to press in due to the surface frictions.

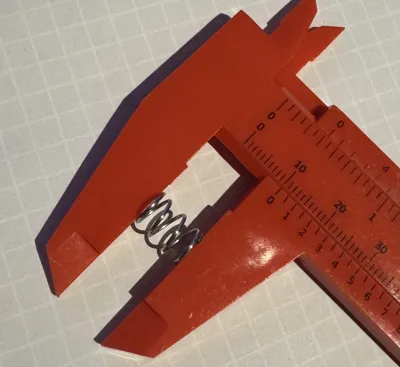

The spring for the double mechanism is 15mm long, 6mm wide.
The spring for the single button is 10mm long, 7mm wide.
Find some spring aprox this size and try, I bought a set of 420 springs cheap on Amazon.
So these models are meant to be put into other models, so feel free to do so and share here on Makerworld, be sure to link to me and give me some creds if you end up using them, thank you.
Boost Me (for free)
If you find it useful, a boost would go a long way! Thanks!
