Description
Summary

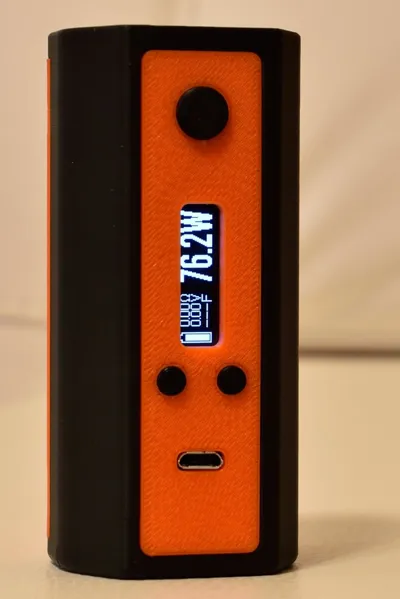

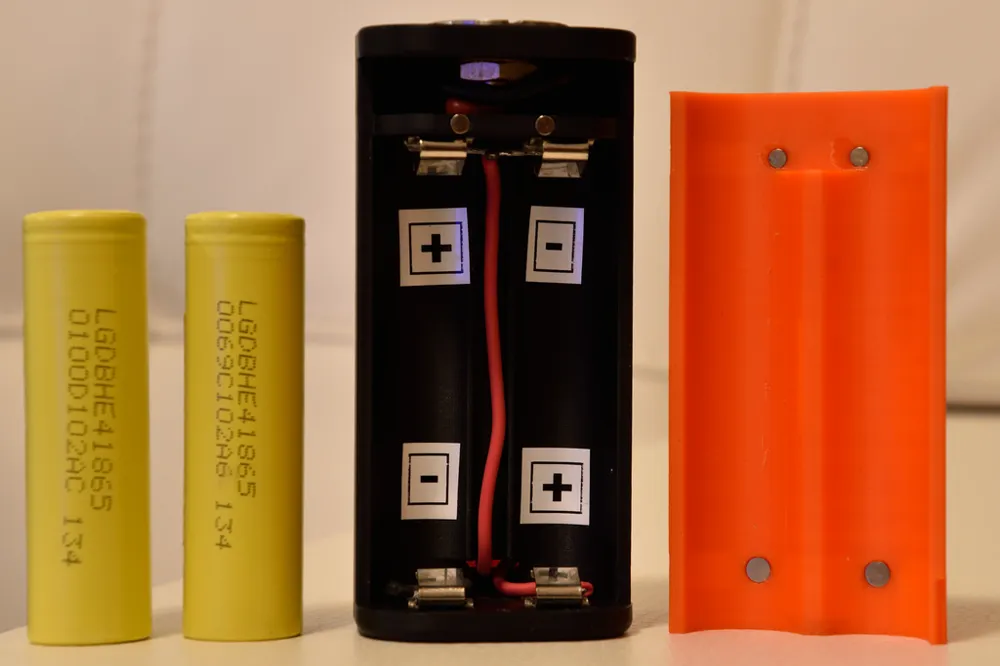

This box box mount 2 18650 battery.
U can use it:
- for DNA200 (limited at 133w) with 2x18650 in serie;
- for DNA75 with 2x18650 in parallel.
Size are: 37x43x94
For the DNA200 wiring u can read here: http://www.thingiverse.com/thing:976359 or search in Evolv Official Forum.
To mount u need:

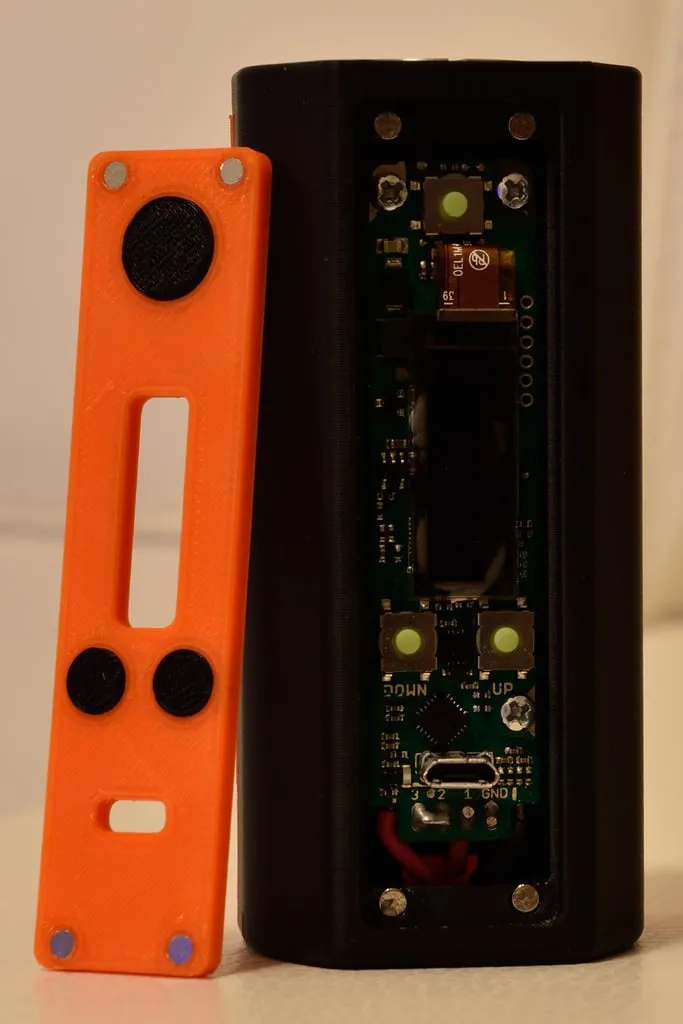

- 3x M1.6-M2.0 x 5 mm to fix the DNA to the body;

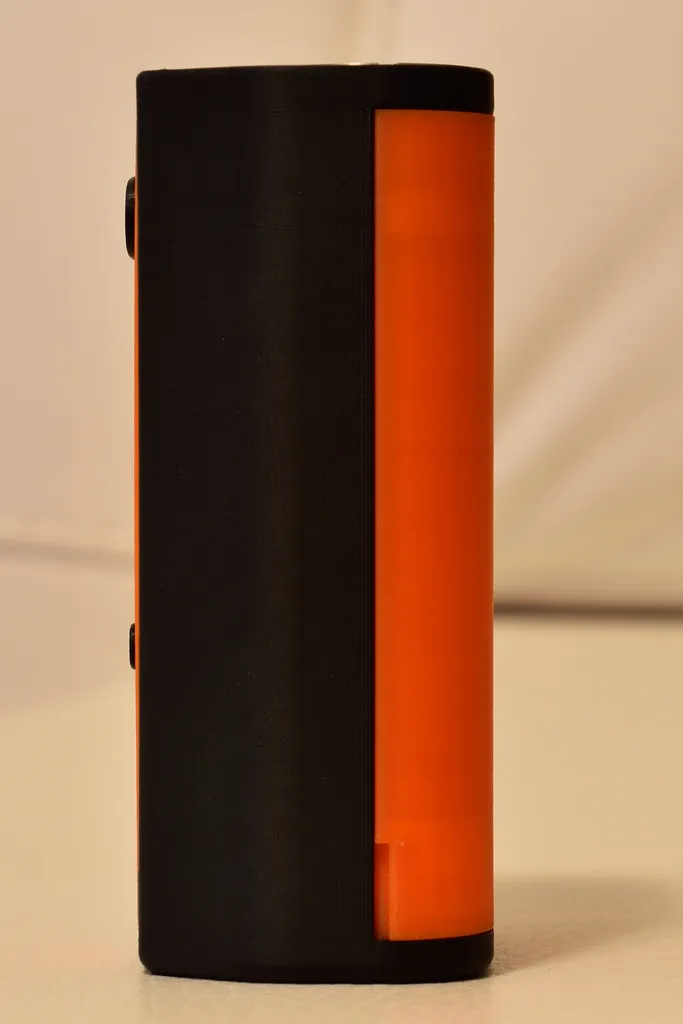

- 6x magnets 3x2 for the body (lateral panel);
- 2x magnets 5x1 for the front panel;
- 8x magnets 3x1 for lateral and front panel;

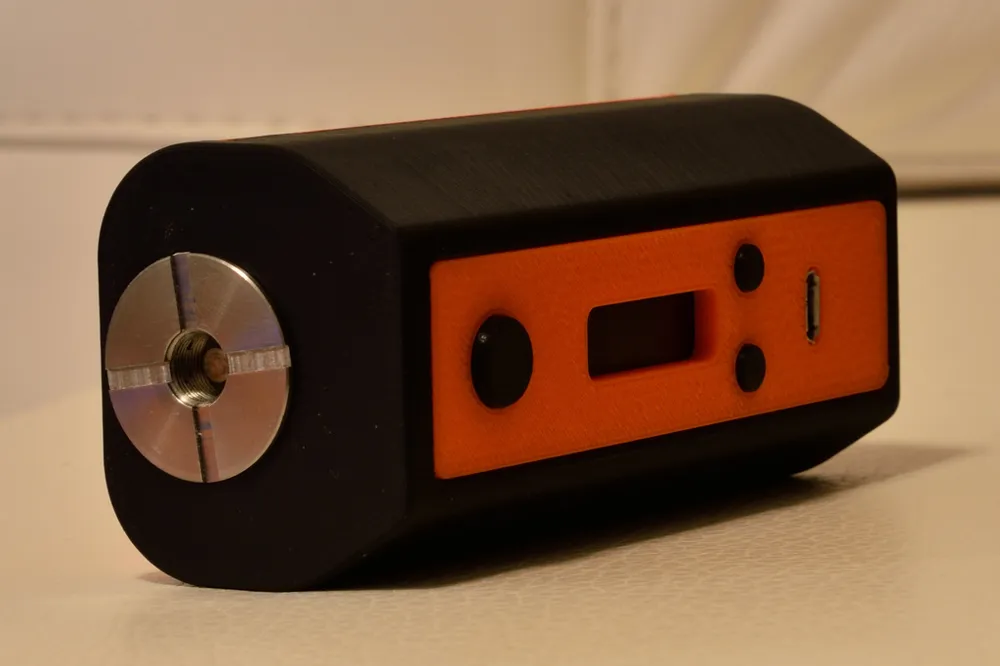

- a drip cap (hole is 10 mm);
- keystone 5209 or similar (contacts): on Amazon http://fave.co/2bsgxvX;
- some wire.
U can choose to short, normal and long fire.
Project is released.
Update 14/06/2016
Uploaded: body_v2, front_panel_v2 and lateral_panel_v2.
If u print body_v2 u need use front_panel_v2.
Lateral_panel_v2 work with body and body_v2.
