M-Nub mod for Magnus TDC Chamber by Specna Arms
Print Profile(2)
Description

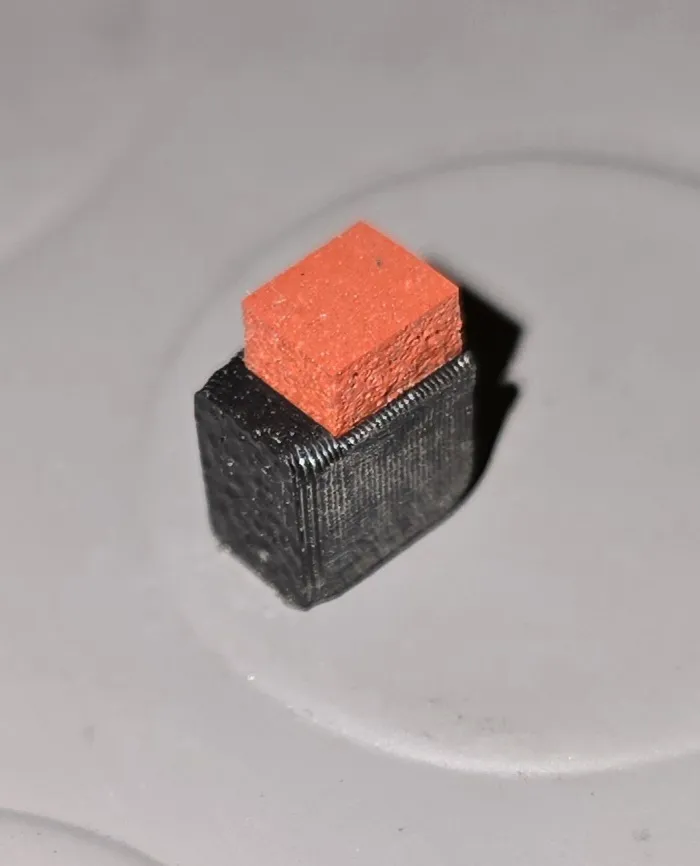

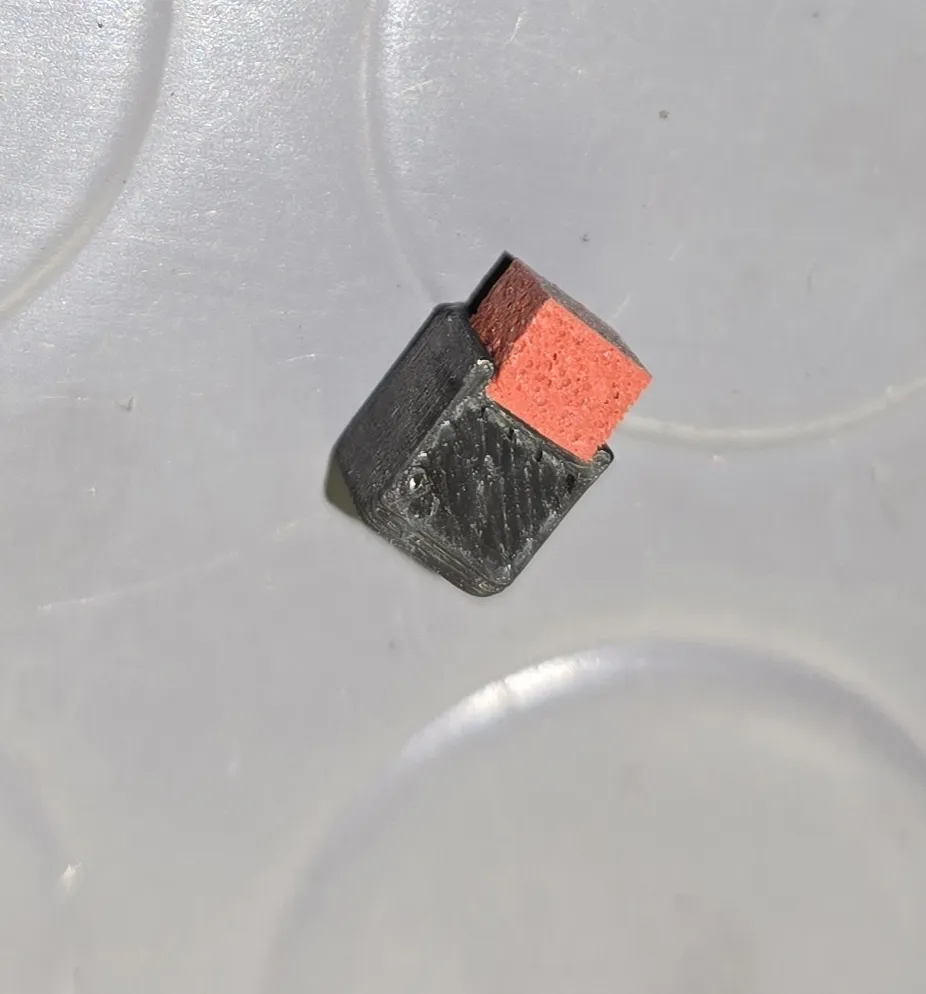

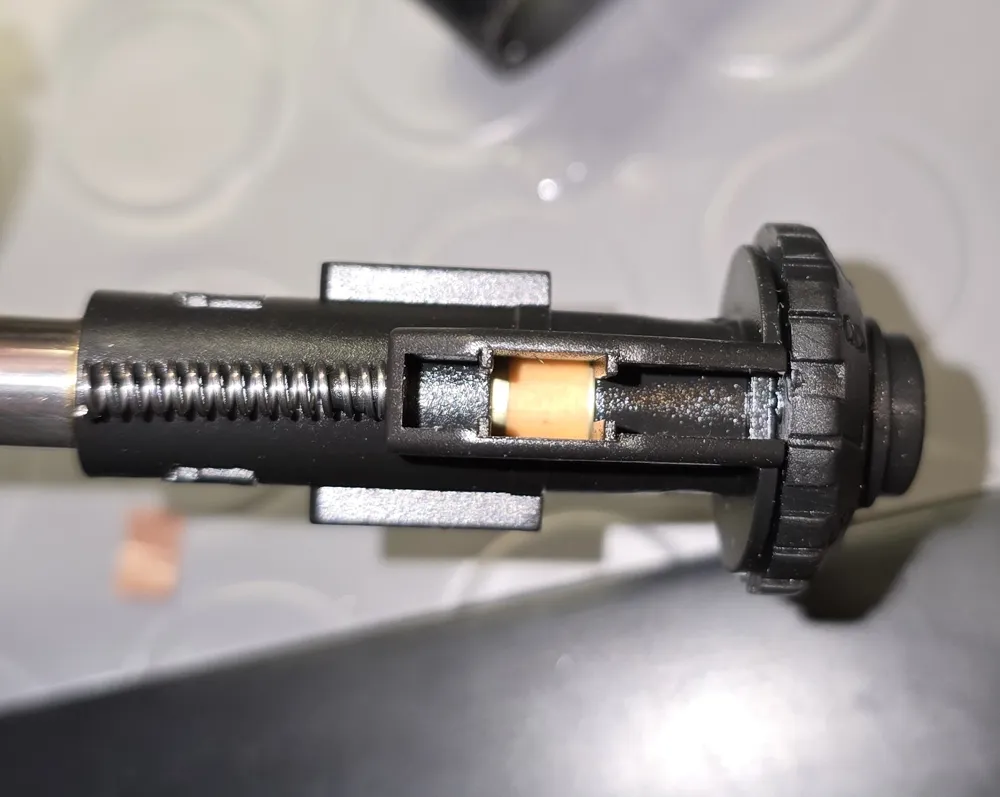

This is a simple template for installing an m-nub in the Magnus hopup chamber.

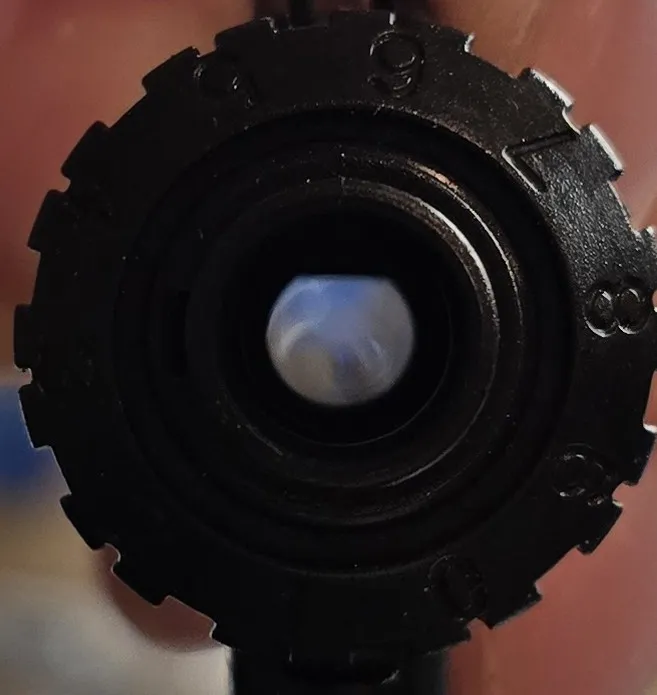

The original nub (omega) works well on standard and flat buckings, but it puts too much pressure on rhop patches and maple leaf-style buckings. So I had the idea of creating a custom housing, achieving excellent results, on par with high-end hopups.

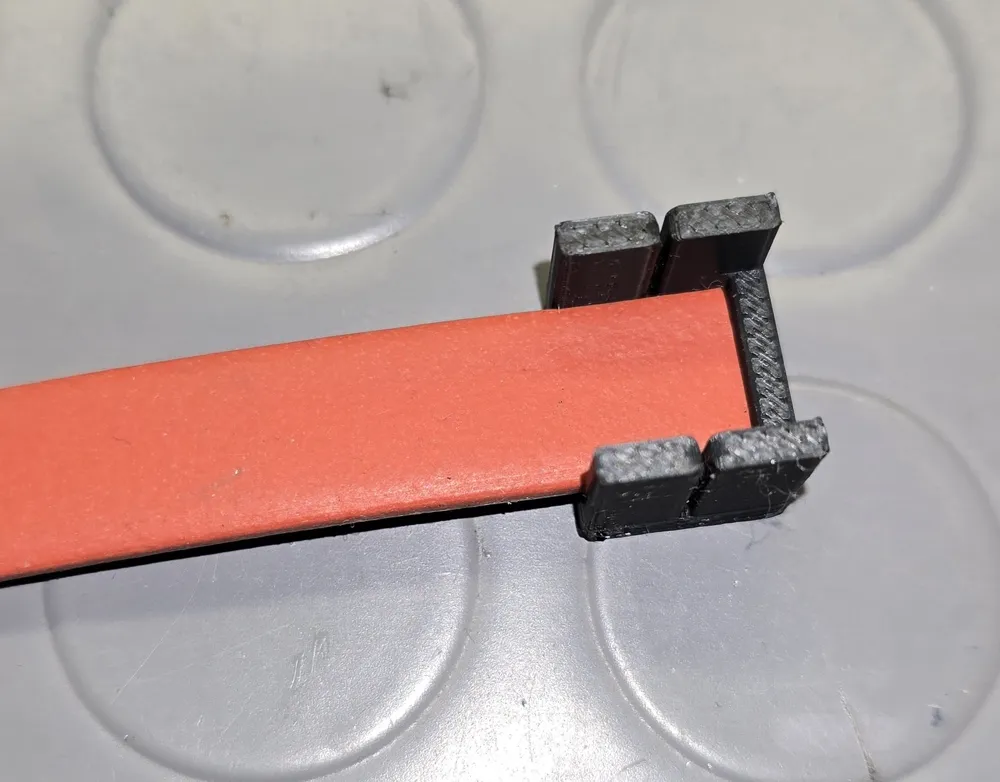

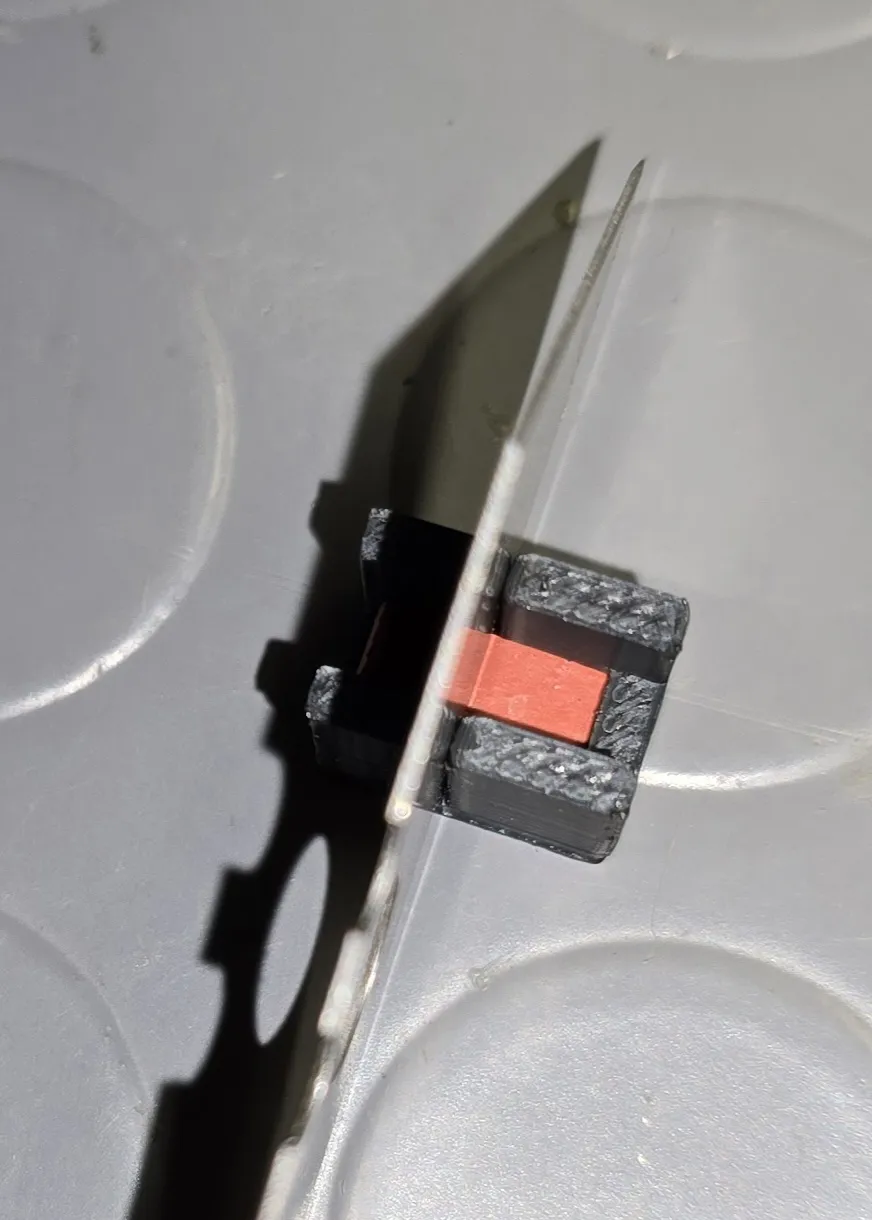

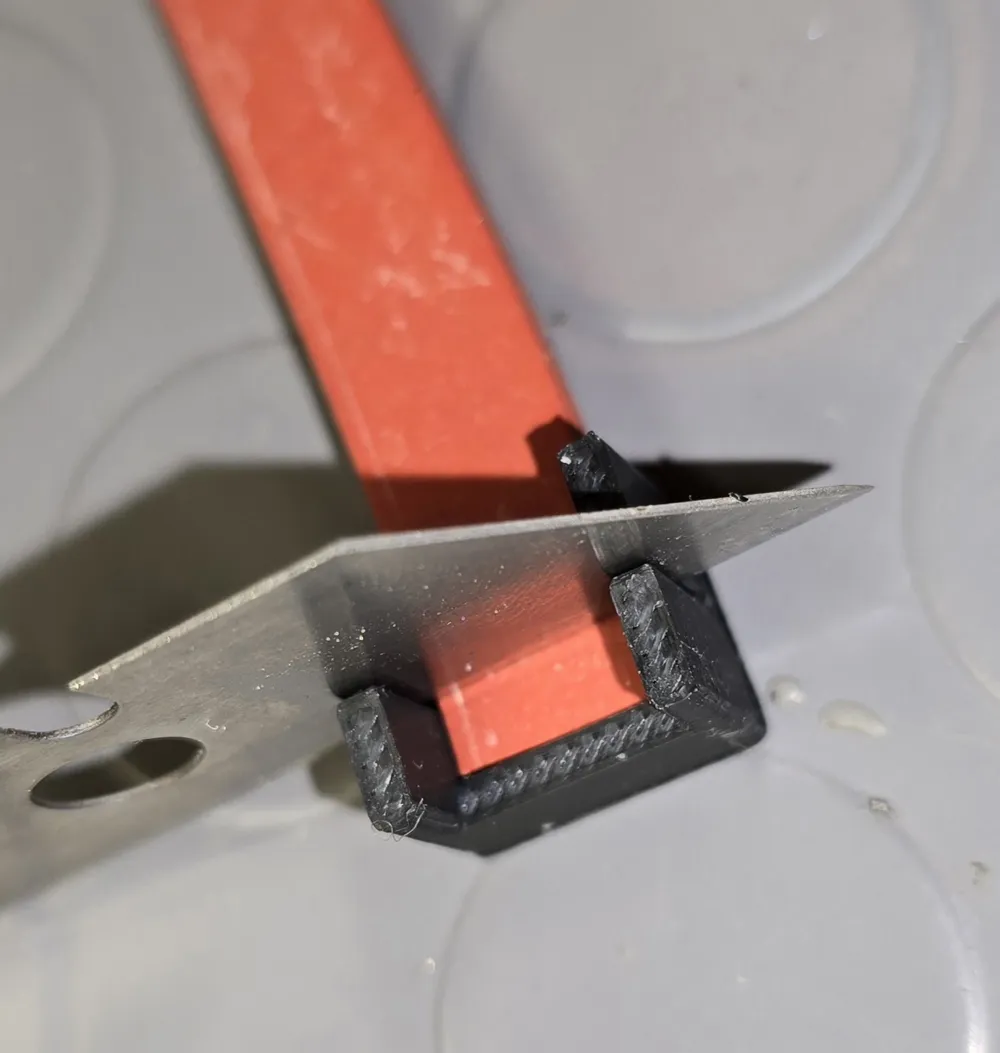

The print includes a template for cutting the m-nub, and I highly recommend using it.
The additional materials you'll need to purchase are:
- Spare blade for cutters
- Silicone foam strip (usually red) 10x3mm
