DISCLAIMER: print and mount at your risk !!!

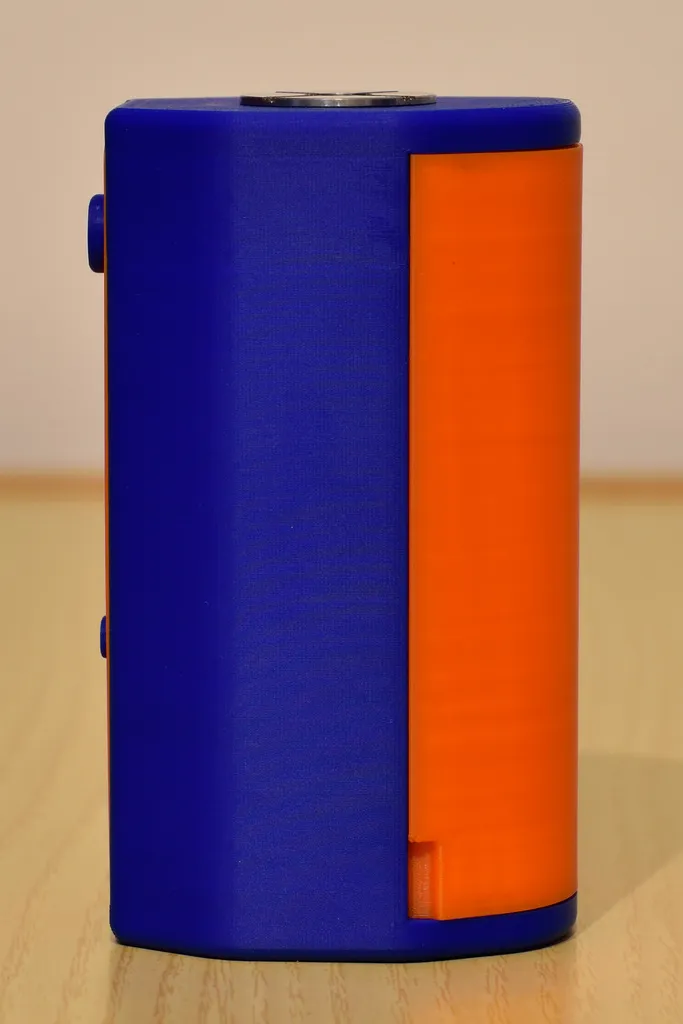

Size are: 52x43x94

Weight with 3 18650 without atomizer is 240 gr.

You need:

• 6x Keystone 5209 (or something similar): on Amazon http://fave.co/2bsgxvX;
• 8x magnets 5x1
• 4x magnets 3x2
• 4x magnets 3x1
• 1x drip cap (hole is 10 mm)
• some wire

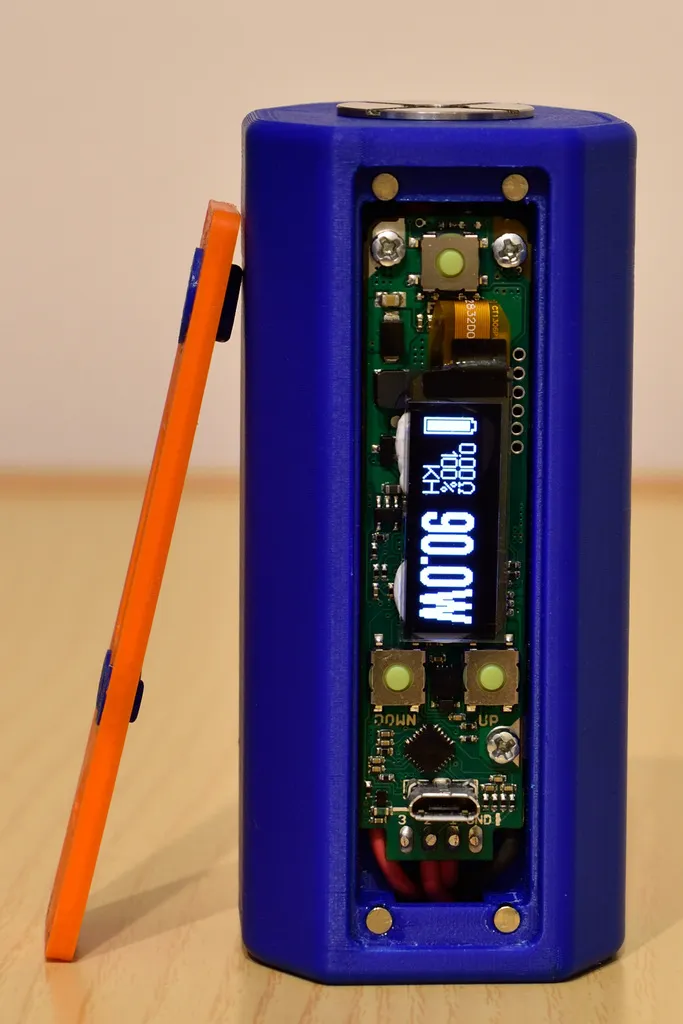

• Evolv DNA200

Wiring diagram is this one: https://evolvapor.forumchitchat.com/post/show_single_post?pid=1290620887&postcount=6&forum=454153

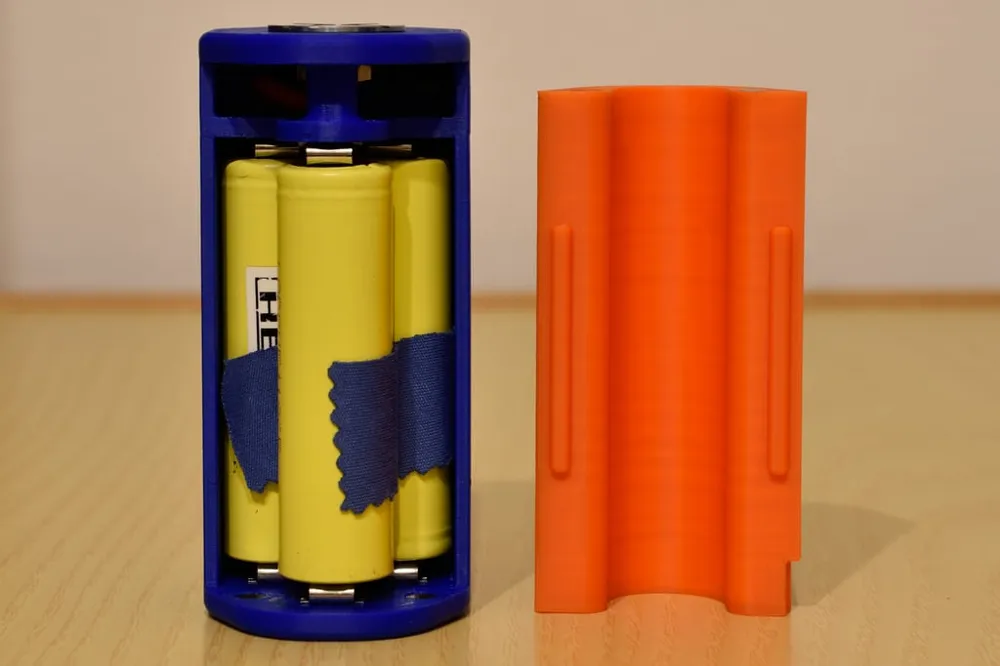

Space to remove battery is very very precise so to avoid short cut when u remove the battery remove the battery in reverse series order.

For example (insert the battery):

• for first cell 1, for second cell 2, for third cell 3.

For example (remove the battery):

• for first cell 3, for second cell 2, for third cell 1.

Good Luck.

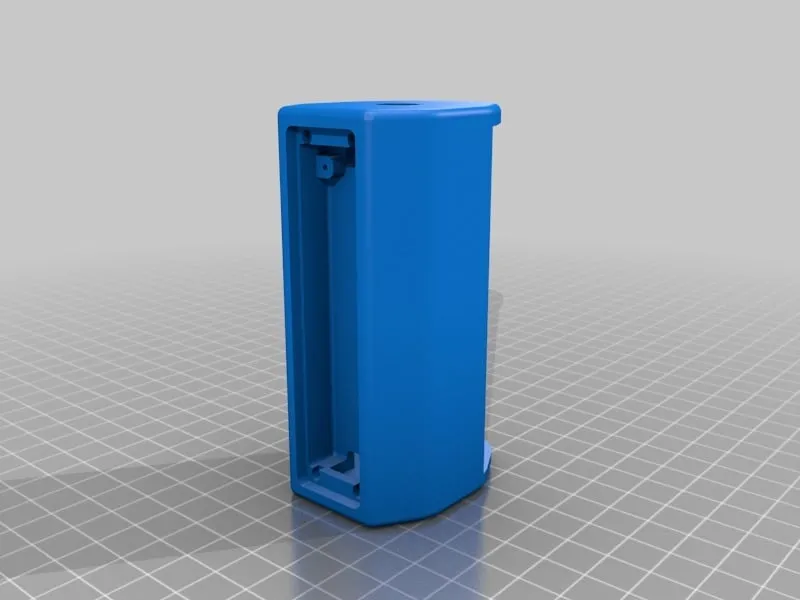

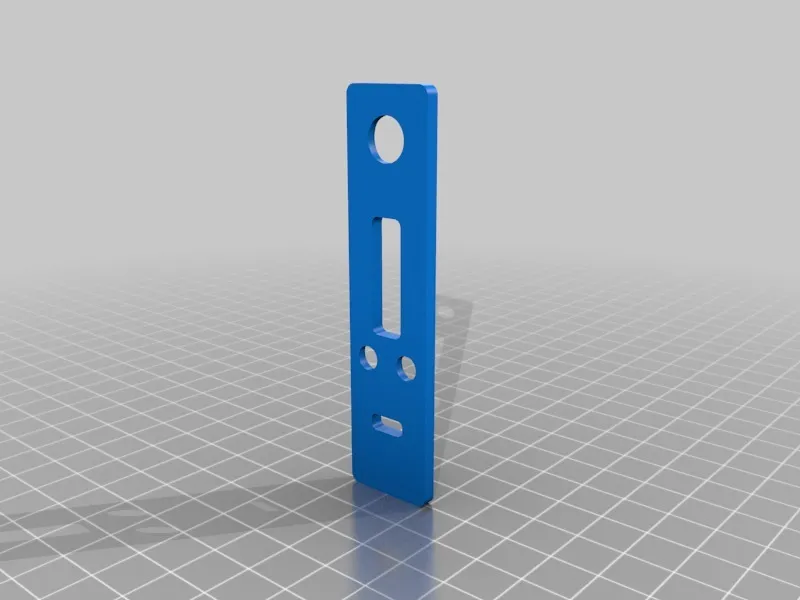

P.S. Print body and front panel in vertical.

Update 13/05/2015: added fire_short.stl (short fire push button)
