Stackable Box with Lid (4x4 customizable)

📦 Stackable Modular Organizer Box (4×4 Freely Dividable and Combinable)

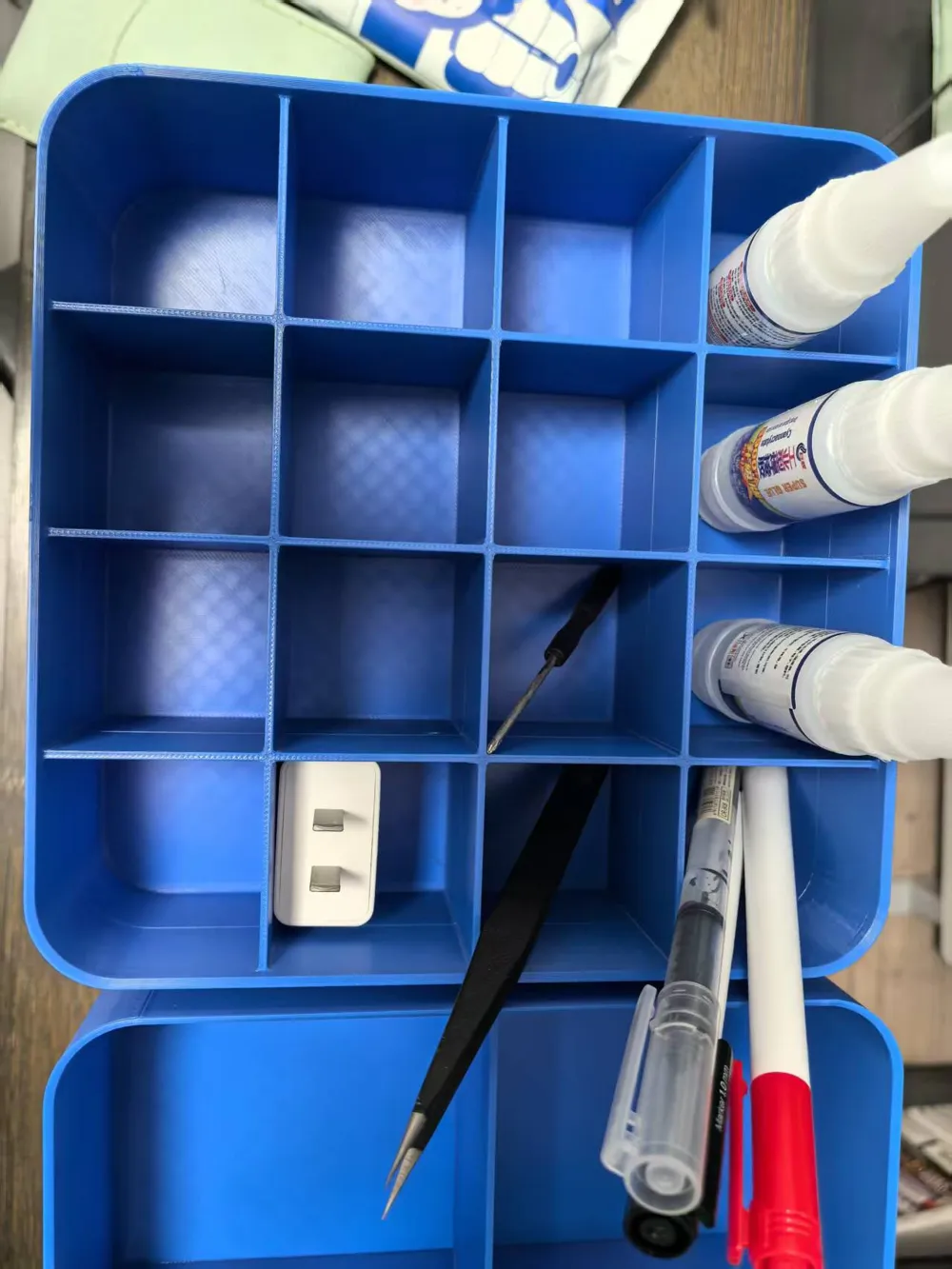

The Organizer Box is a standardized modular storage system with external dimensions of 180mm × 180mm × 64mm It is internally based on a 4×4 grid (each cell approximately 45mm × 45mm) supporting flexible partitioning and suitable for sorting small items such as electronic components, tools, model accessories, and stationery

🔧 Key Advantages

• Angled Edge Design Both the box body and lid have precision angled edges, automatically aligning when stacked for stability and non-slip performance
• Uniform Base for Entire System All configurations have consistent dimensions, and any combination can be vertically stacked for neat and efficient storage

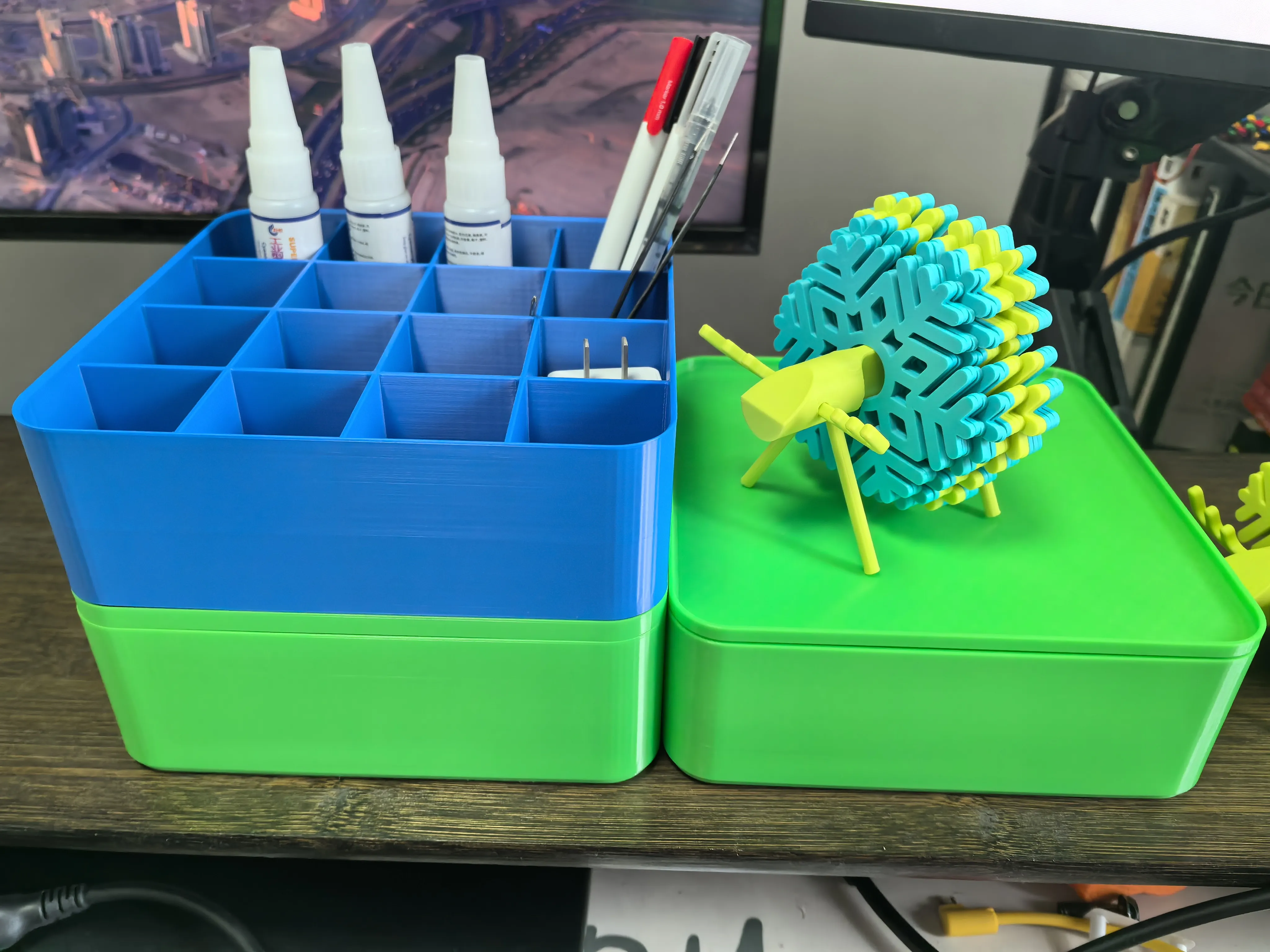

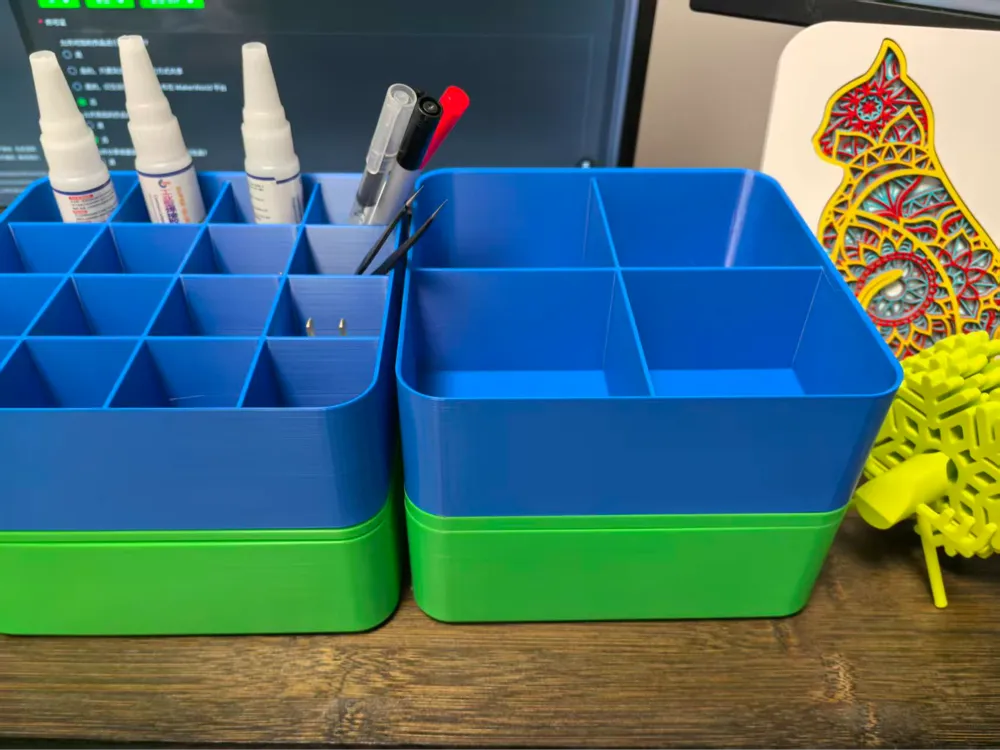

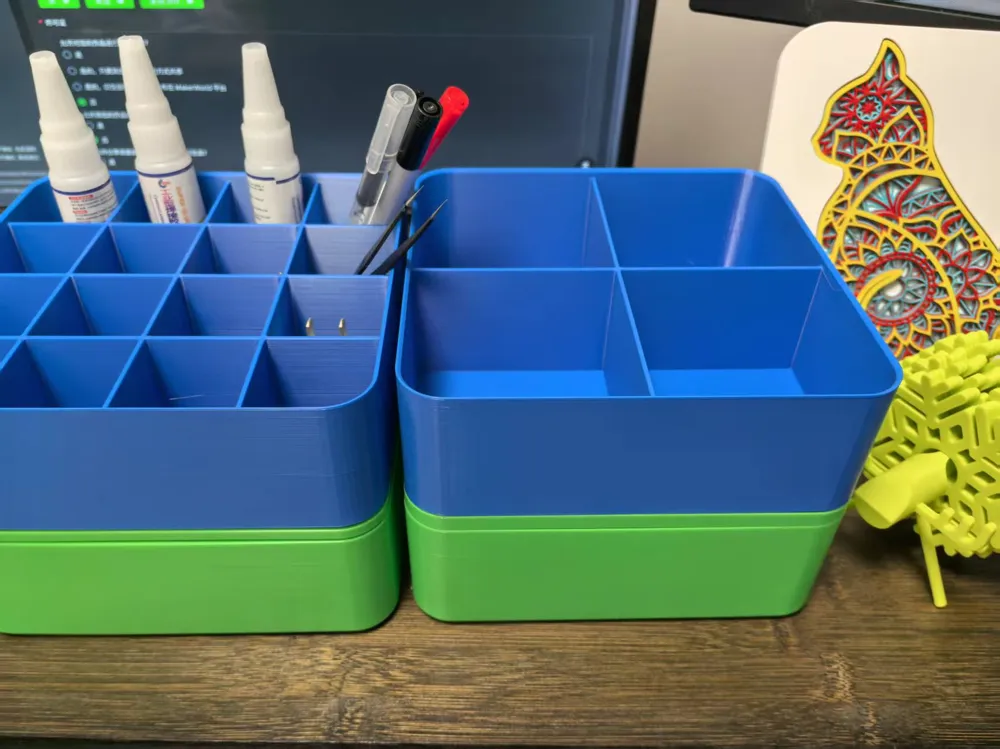

A display of multiple organizer boxes with different partition configurations vertically stacked, demonstrating uniform dimensions and a stable nesting effect

🏷️ Print Profile Naming Rules

On the platform, you will see the following types of print profile names

• Organizer Box - Lid Universal lid, compatible with all box bodies
• Organizer Box - No Partitions Basic model with no internal dividers
• Organizer Box - A1 / Organizer Box - B8 / Organizer Box - C3 …… Box bodies with different partition layouts (using letter + number coding)

✅ How to choose
Please refer to the partition configuration diagram below, find the partition style that meets your needs, note down the corresponding print profile name (e.g. “Organizer Box - B8”), and select that print profile directly on the platform for one-click printing

Partition Configuration Diagram (4×4 Grid Layout)

This diagram shows all available internal partitioning schemes, numbered by columns A-D and rows 1-9 Each layout corresponds to a print profile name (e.g., A1, B8, C3) Users can choose the corresponding print profile based on their storage needs For example: A1 offers a large single compartment, suitable for storing larger items; B8 has dense multiple compartments, suitable for sorting small parts Please refer to this diagram to choose the most suitable partitioning scheme

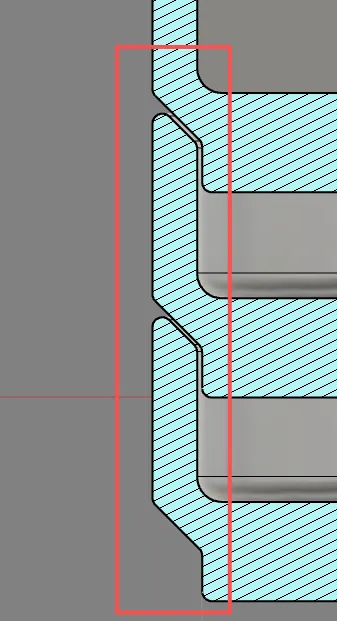

Cross-section Stacking Effect (Angled Interlocking Structure Close-up)

The red box highlights the key interlocking area



Both the upper edge of the box body and the lower edge of the lid are designed with symmetrical angles, forming a “guided nesting” structure When stacked, the angled surfaces automatically correct the position, achieving precise interlocking, effectively preventing lateral sliding or displacement, and ensuring stability and neatness even after long-term use

🖨️ Printing Instructions

💡 Tip To achieve the best stacking effect, please ensure accurate print bed leveling, good first layer adhesion, and avoid warping at the bottom affecting nesting precision
