PINCHED FORD BRONCO SCX24 BODY RC CRAWLER 1/24 RC

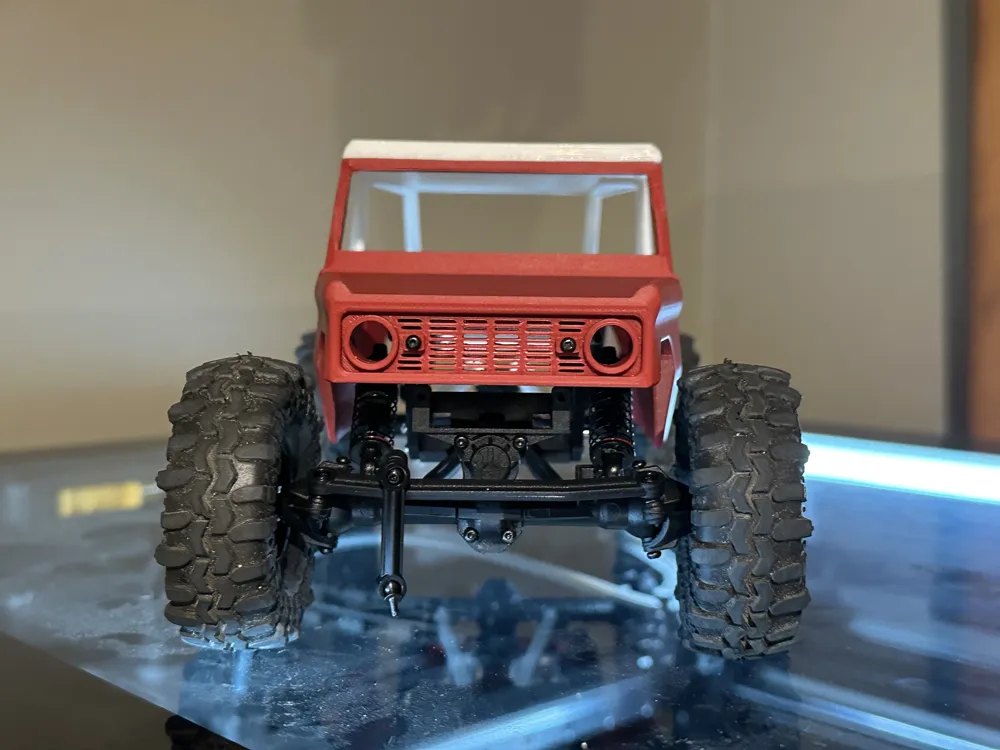

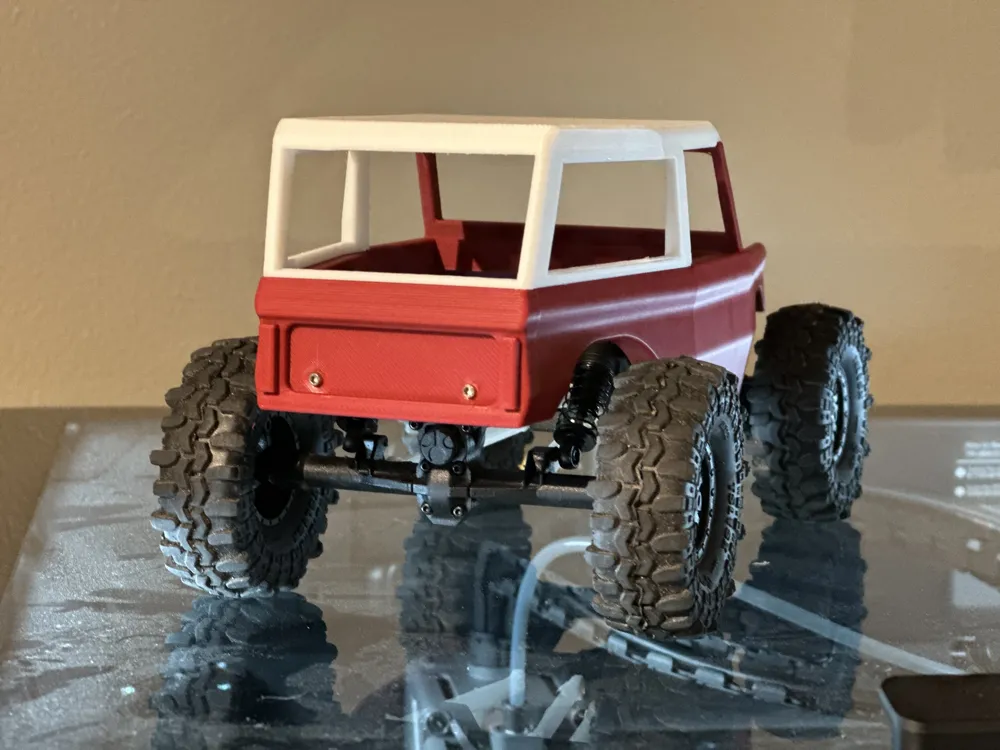

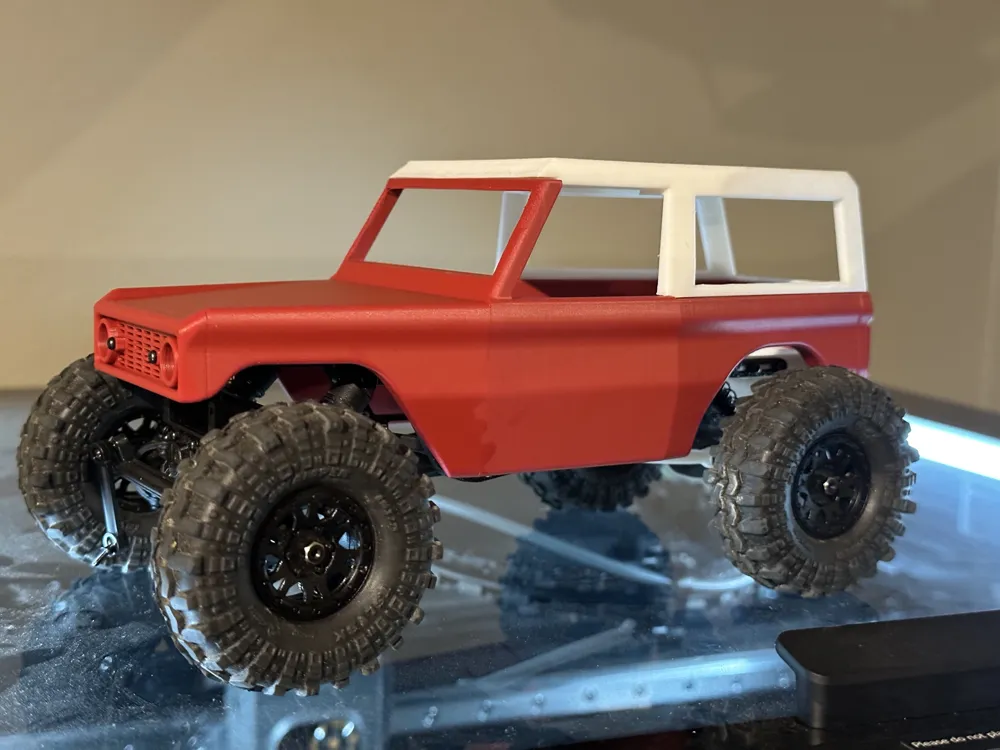

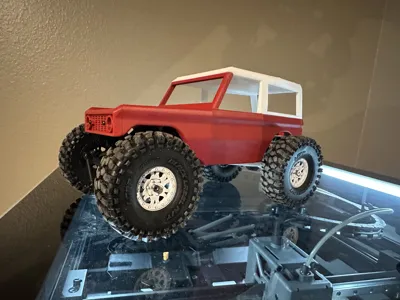

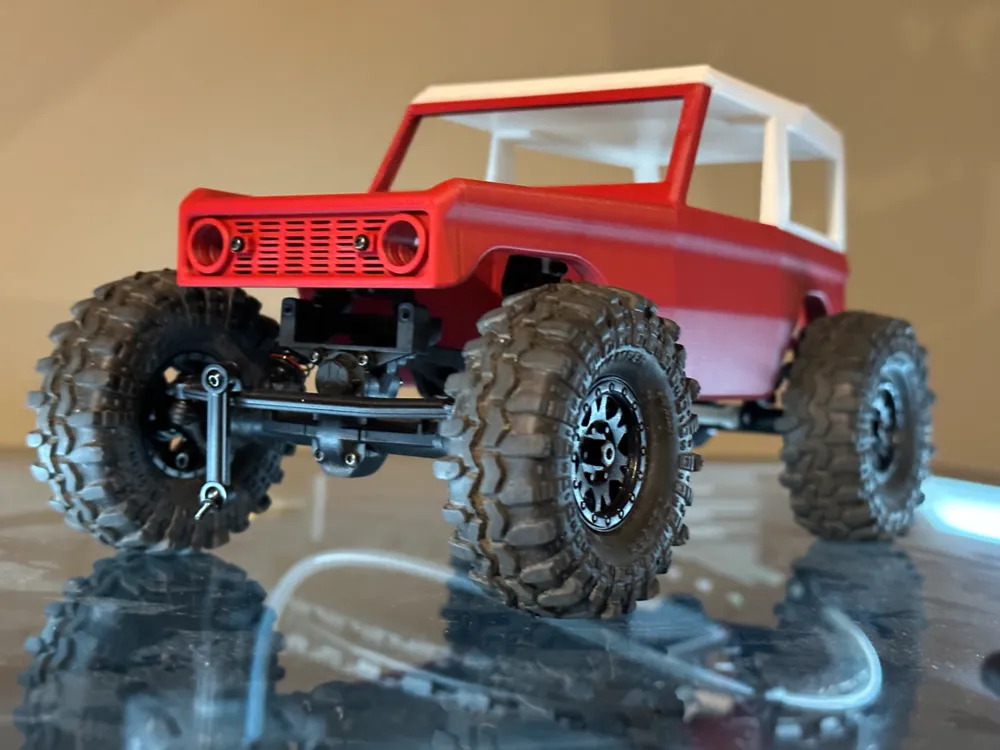

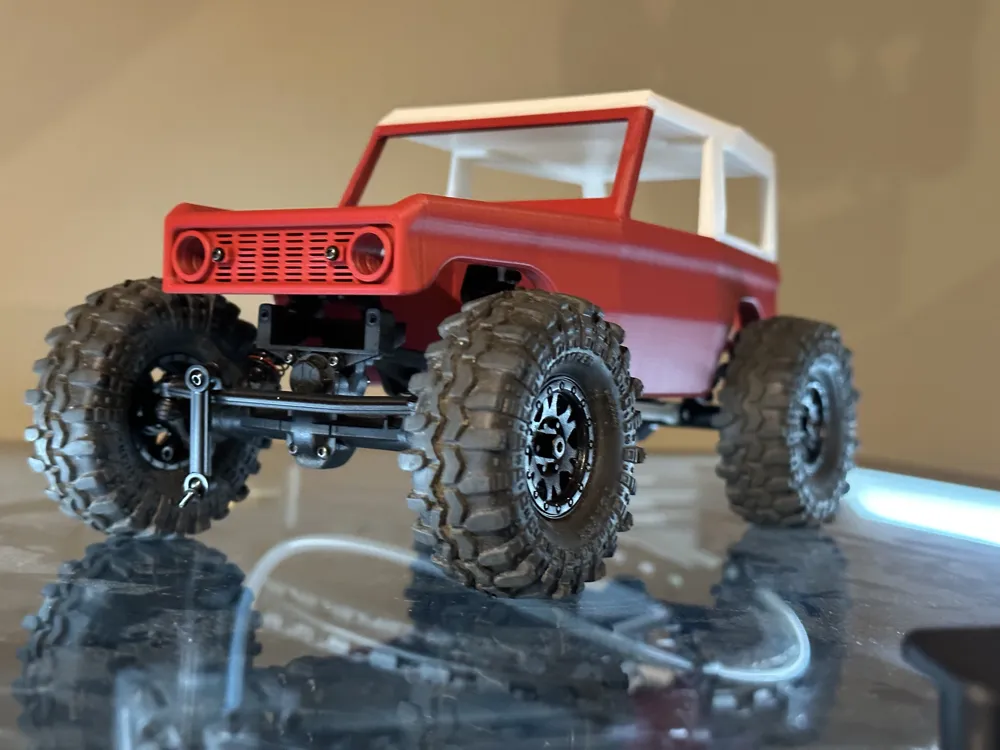

PINCHED BRONCO I DESIGNED TO BE 1/24 SCALE-ISH.  IN THE PICTURES IT IS MOUNTED TO THE 24 YEP CHASSIS AND I HAVE INCLUDED THE MOUNTS I USED TO MOUNT TO THAT CHASSIS. IT WILL PROBABLY FIT A WIDE VARIETY OF CHASSIS.  THE REAR MOUNT IS ADJUSTABLE ON THE CHASSIS SIDE OF THE 24YEP AND THE FRONT MOUNT REQUIRES DRILLING INTO THE BOTOM SIDE OF THE HOOD FOR SCREWS ONCE THE REAR MOUNT IS SET WHERE YOU WANT IT.  THERES PLENTY OF DEPTH THERE FOR SOME SHORT SCREWS,  I MADE CUSTOM REAR LINKS TO GET THE WHEELBASE AT 5.35".  THE FRONT LINKS ARE STOCK GLADIATOR/POWER WAGON LENGTH.   TO GET THE LOWER RIDE HEIGHT YOU WILL NEED AN ADJUSTABLE SERVO MOUNT TO MOVE THE SERVO BACK A LITTLE SO IT TUCKS BEHIND THE GRILLE. IT IS TIGHT BUT THERE IS ROOM.  I HAVE INCLUDED TWO DIFFERENT TOPS TO GO WITH IT.  A FULL TOP AND A HALF CAB.  THEY ARE EASY TO LINE UP AND JUST GLUE INTO PLACE.  THE GRILL WILL SCREW ON TO THE BODY USING M1.4 SCREWS.  I SIZED THE HOLES SLIGHTLY SMALL SO RUN A LITTLE DRILL BIT THROUGH THEM
