H0 Track Support System

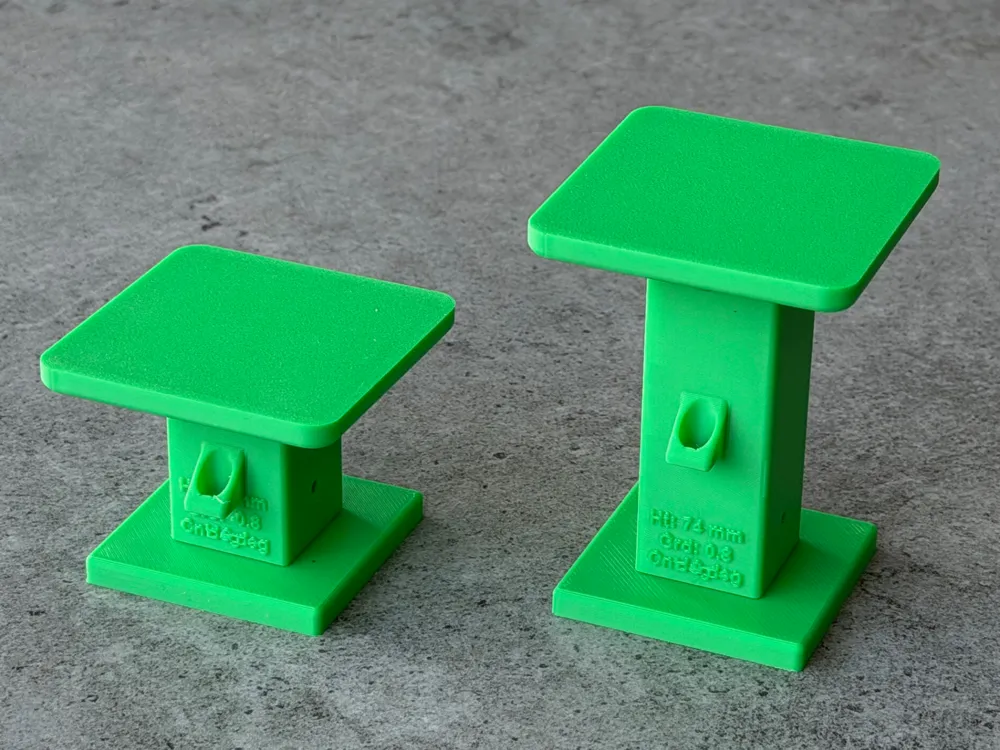

This is a 3D-printable track support system inspired by commercial pillar-based solutions such as Noch Easy-Track.

This system is meant for users who planned their track geometry in advance and want a clean, removable support solution that can be reproduced consistently with a 3D printer.

The system consists of two main parts:

• Base – can be screwed or glued to your tabletop
• Pillar – slides over the base and forms the vertical support

This is a parametric model where the pillar height is customizable and the top plate of the pillar can be angled to accommodate for gradient and cant.

Once the pillar is in position, it is secured to the base by inserting a small metal pin (like a bent paperclip) through an aligned hole. This keeps the pillar in place while still allowing it to be removed later.

A cable Pass-Trough on the side of the pillar allows you to keep track wiring close to the pillar.


Important notes

• The pillar height and top plate angles (cant and gradient) must be chosen before printing
• Angles are fixed once printed and are not adjustable afterward

• Minimum height of 36mm. Lower will break the parametric model.
