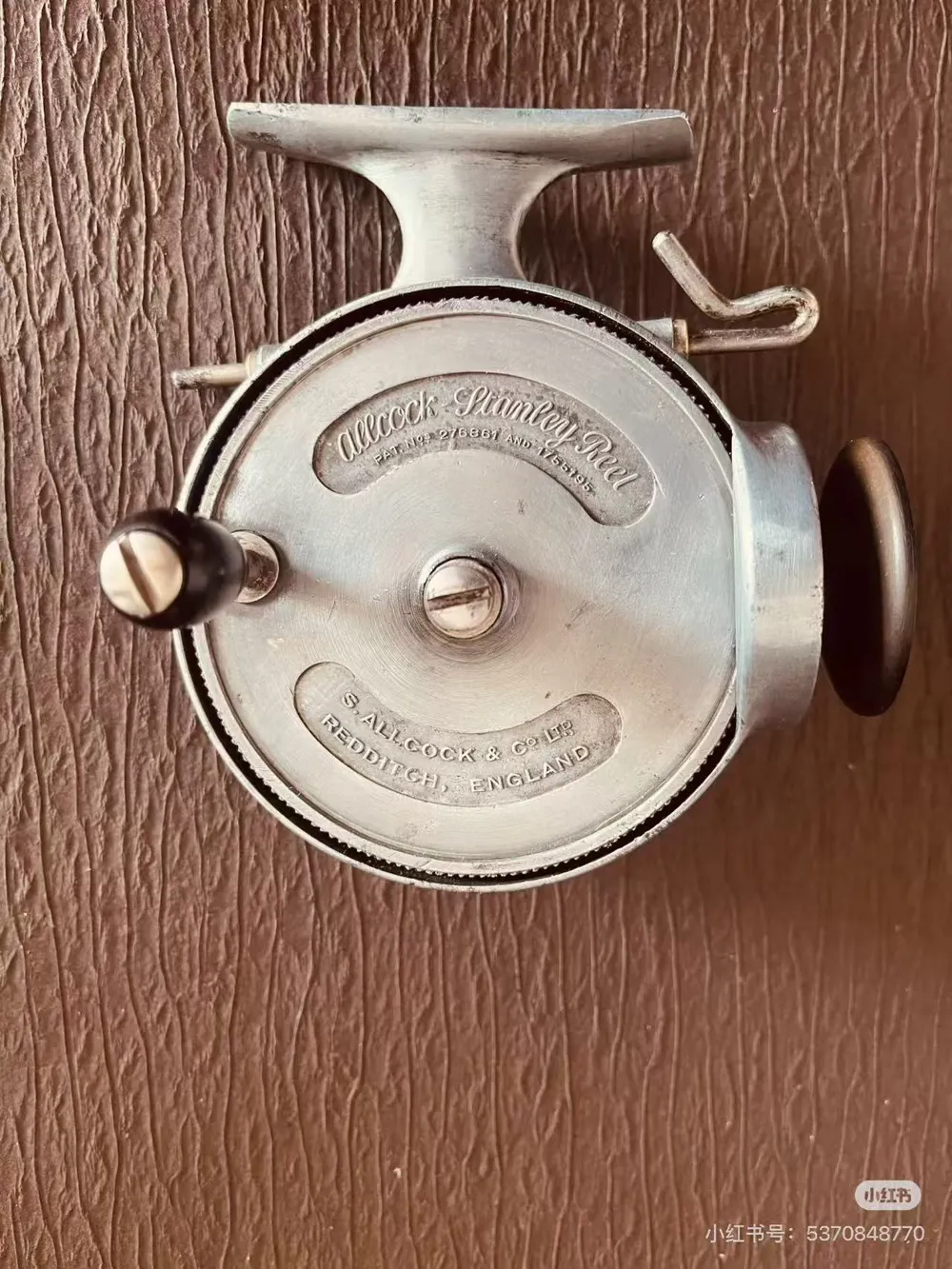

Allcock Stanley Vintage reel
Print Profile(1)
Description

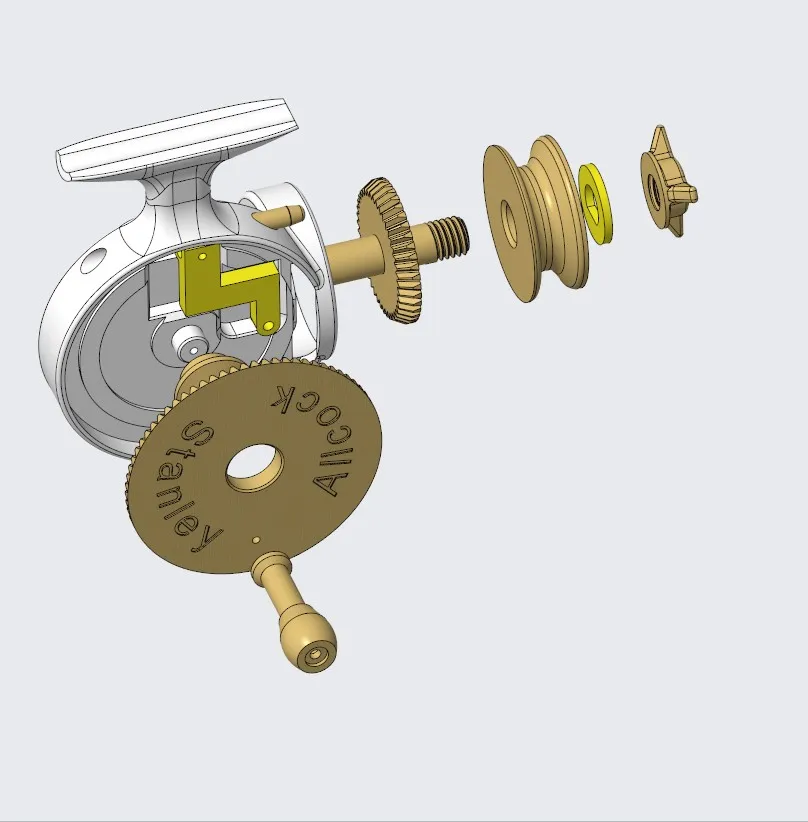

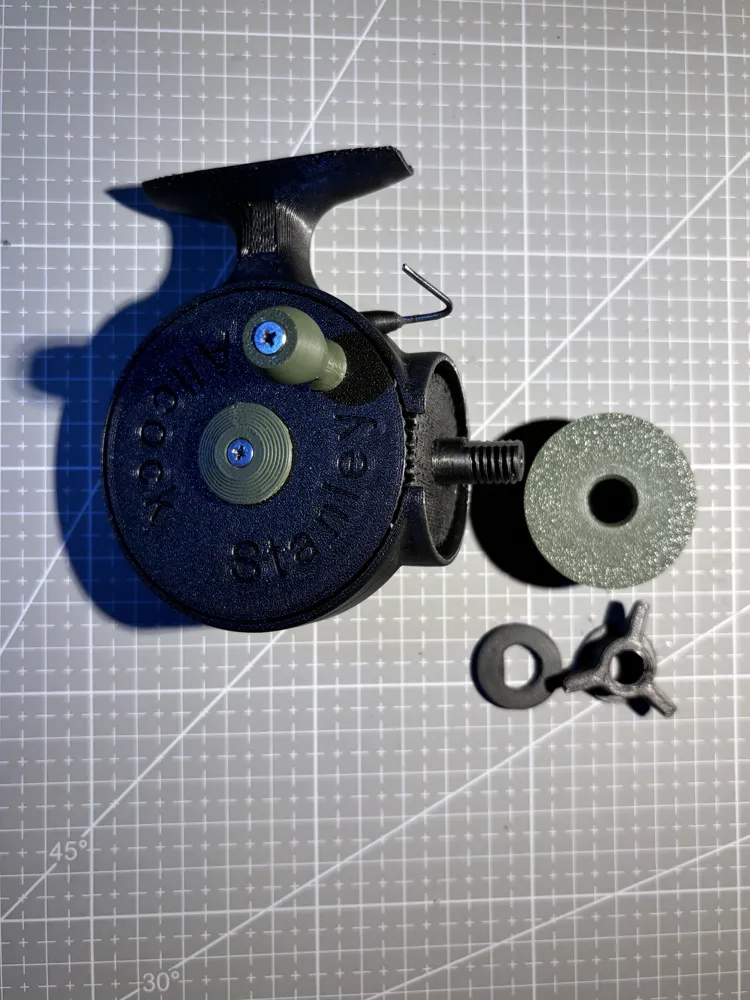

Allcock Stanley vintage spinning reel, the original friction drive has been changed to bevel gears, and the rear drag has been changed to front drag. A small bearing (outer diameter 7mm, inner diameter 3mm) needs to be added to the slider rod, and the slider rod is fixed to the slider base with glue. All other screws are M3 self-tapping threads, see pictures for detailed assembly. Finally, 1.3mm steel wire is needed to make the line guide hook according to the picture, fixed with glue. Note that installation is difficult, the spool ring must be firmly glued, otherwise it is easy to skip teeth under strong force. Welcome everyone to boost me or upload pictures.
