SnowVi HUD PoC for Goggle (Patent Pending)
Print Profile(1)
Description
This is a proof of concept design, follow us to get latest update on the final design, which will be smaller, more sturdy, and easier to use!

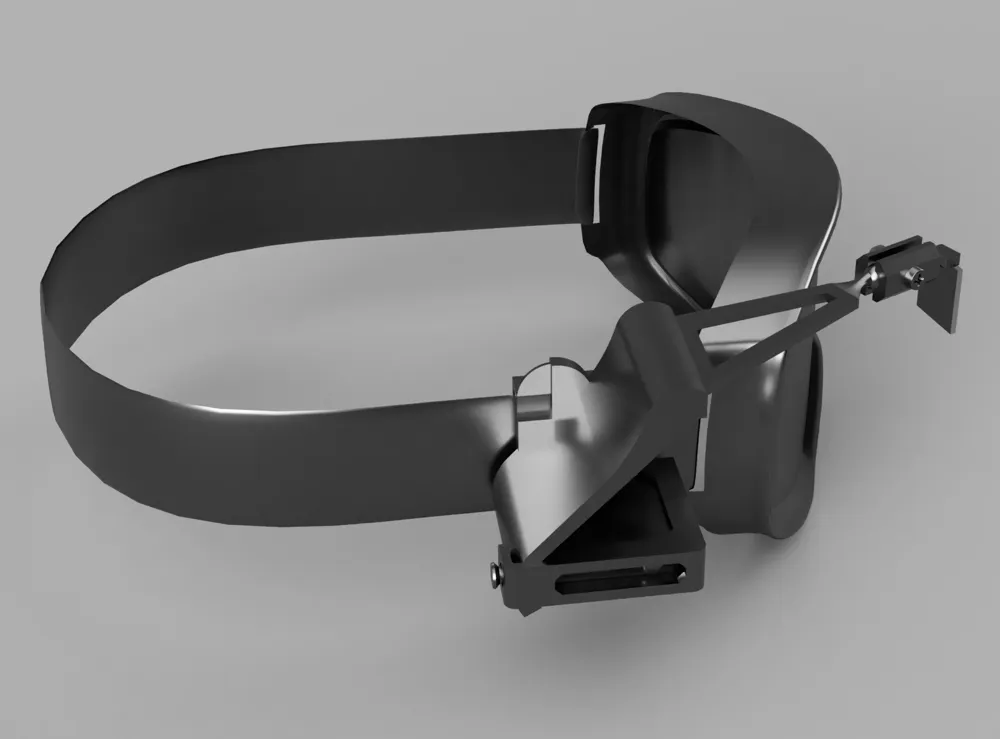

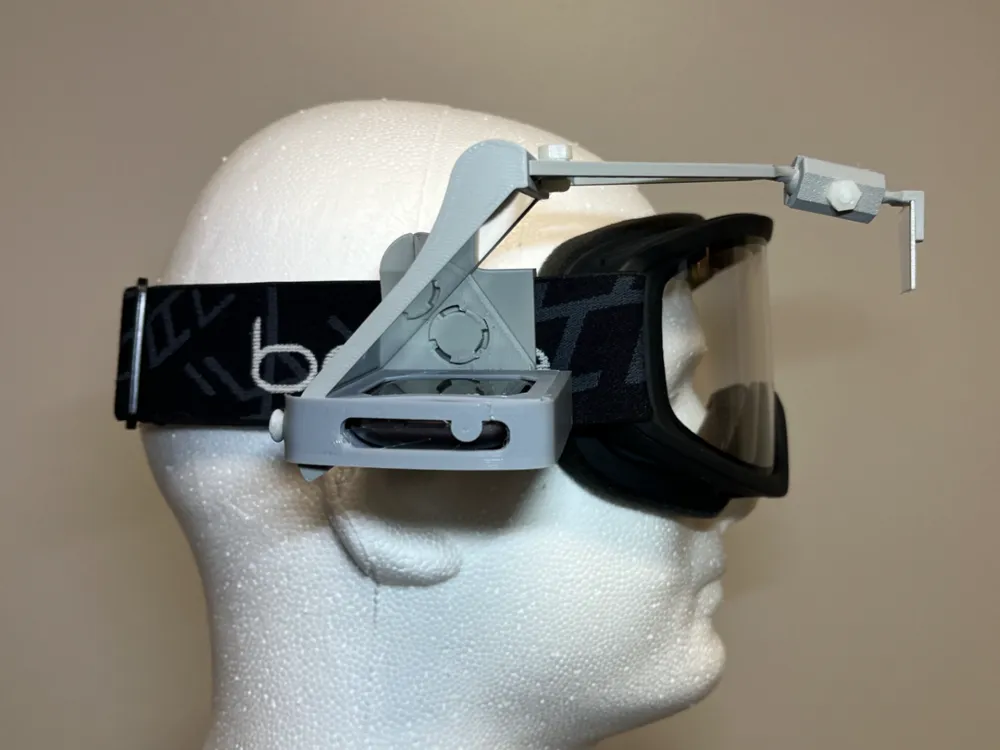

An adapter that converts your existing smart watch into a heads up display and mounts to a snow goggle. Patent pending. Open model from snowvi.com for personal use only.

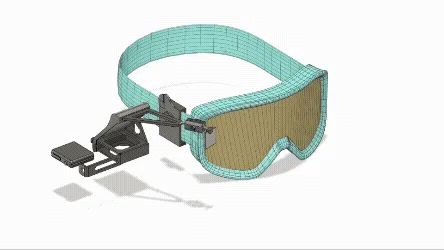

- It has a mount plate that clips to your goggle’s strap, which the main adapter body mounts onto.
- It has a dovetail groove to take in a smart watch case; The smart watch case is not included in this model.
- Please refer to the separate models for the case for Apple watch 42mm or the Fitbit sense or versa series.
- Or use the dimension (in mm) from the attached picture to model a case for your specific watch size.
- When fully assembled, it provides a heads up display on the side of your view point, good for tracking and receiving notifications while skiing or snowboarding.
Additional hardware needed (not 3D printable):
- 2 mirrors (best with acrylic mirror instead of glass mirror to save weight)
- one 60x44mm main mirror
- another 23x20mm viewer mirror
- Fasteners (best with Nylon fastener to save weight)
- 1 M4x8 bolts
- 1 M4x15 bolt
2 M4 nuts
