Vertical Square Filament Box
IP Report
This model is created by Make My Sign
Make Your Model
Print Profile(3)
profile 1: with temperature and humidity meter version v5.0
Designer
5.6 h
1 plate
profile 2: without temperature and humidity meter V5.0
Designer
5.6 h
1 plate
Profile 3: Common filament labels
Designer
56 min
1 plate
Open in Bambu Studio
Boost
1
7
0
0
2
1
Released
Description
Content has been automatically translated.
Always wanted a container to store opened filament spools while also being stackable I searched around on platforms but most were round and their size didn't match the original so they couldn't be placed on existing filament racks

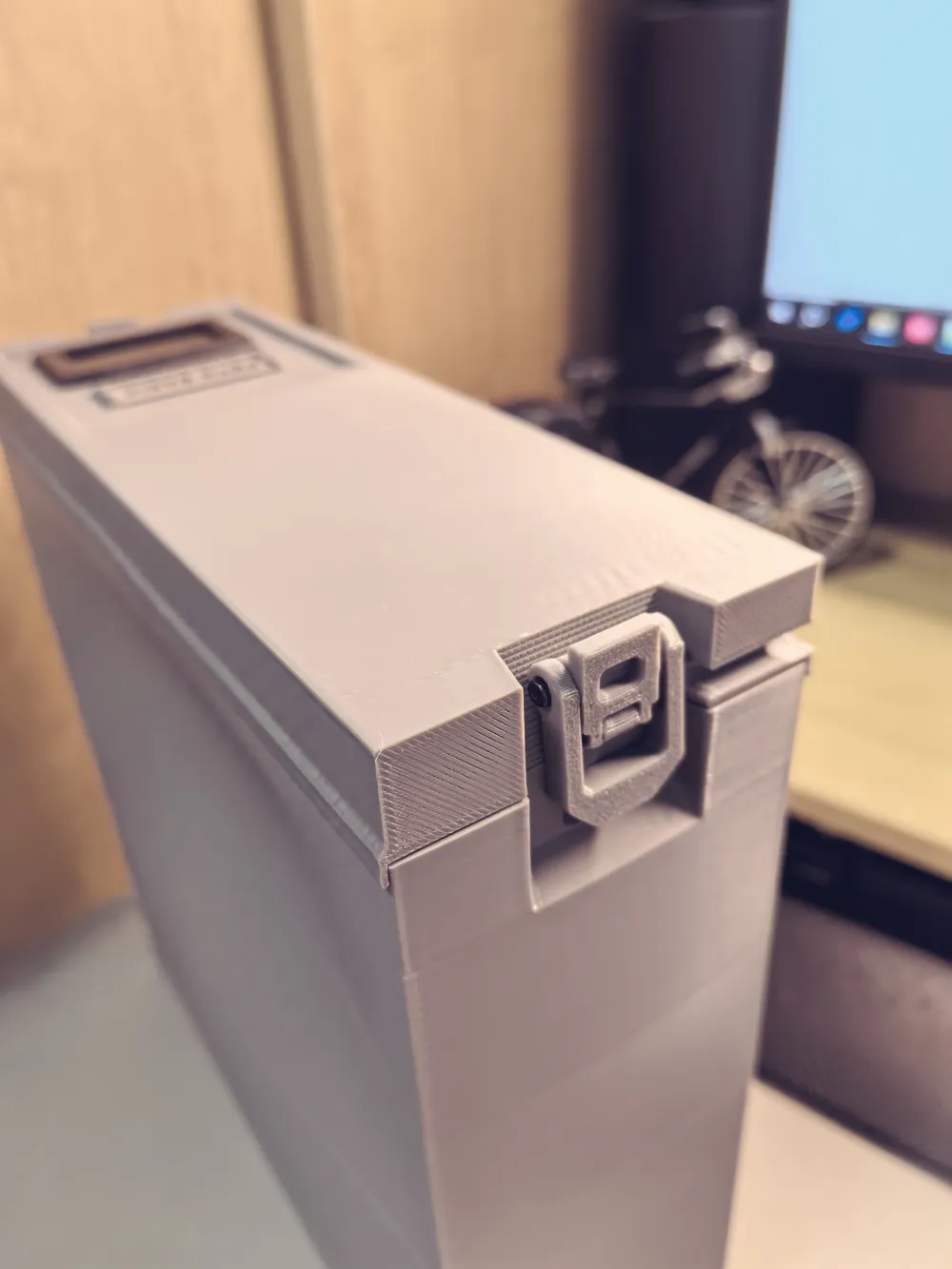

So I designed a square filament organizer whose outer dimensions are almost identical to Bambu Lab filament packaging boxes (with filament spool), making it easy to stack
Design Features:
- Outer dimensions are almost identical to Bambu Lab filament packaging boxes (with filament spool), compatible with common filament organizer racks. Outer dimensions are approximately: 215x205x70mm

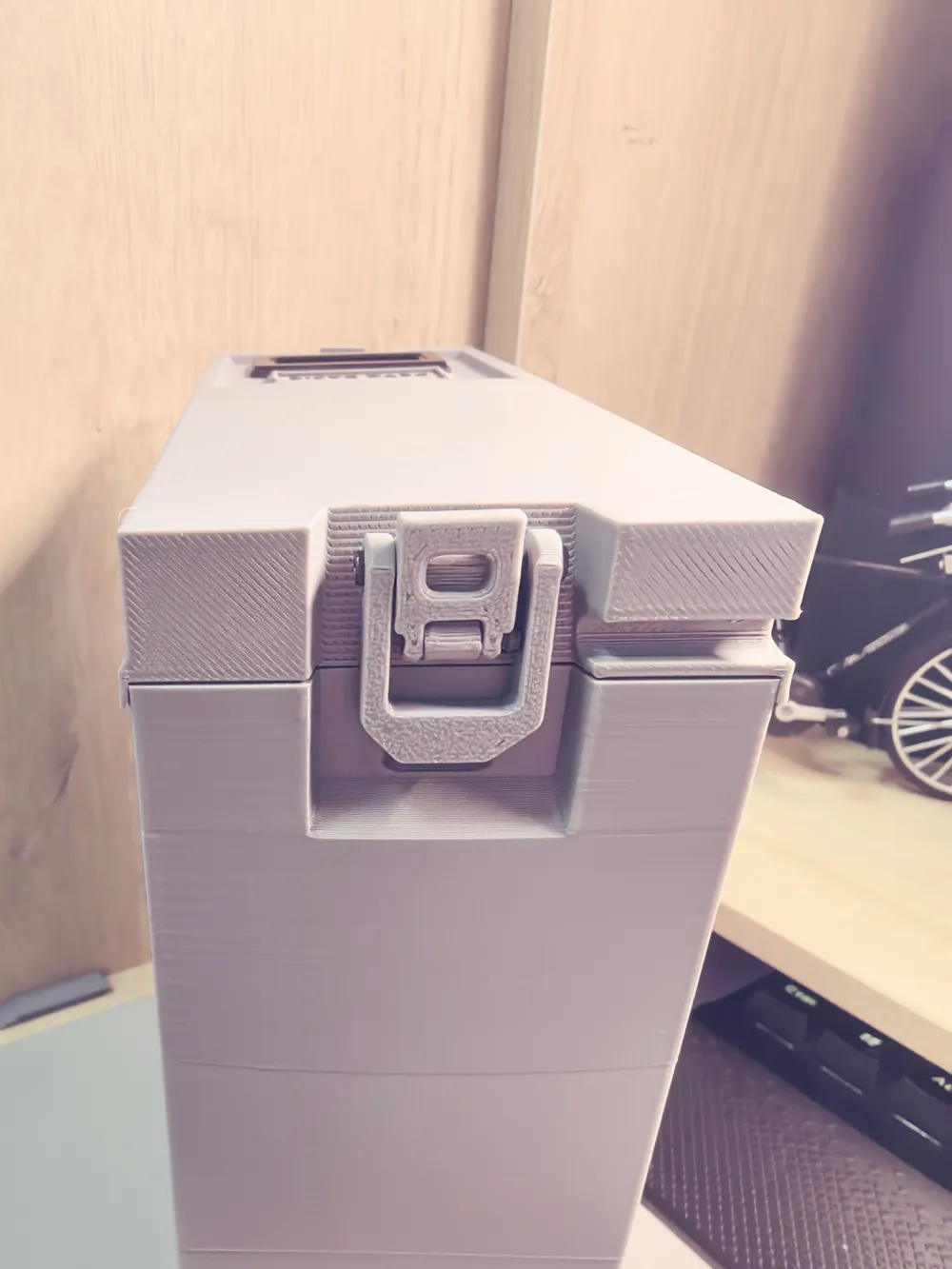

- Features a narrow end opening with a sealing slot to seal the filament as much as possible

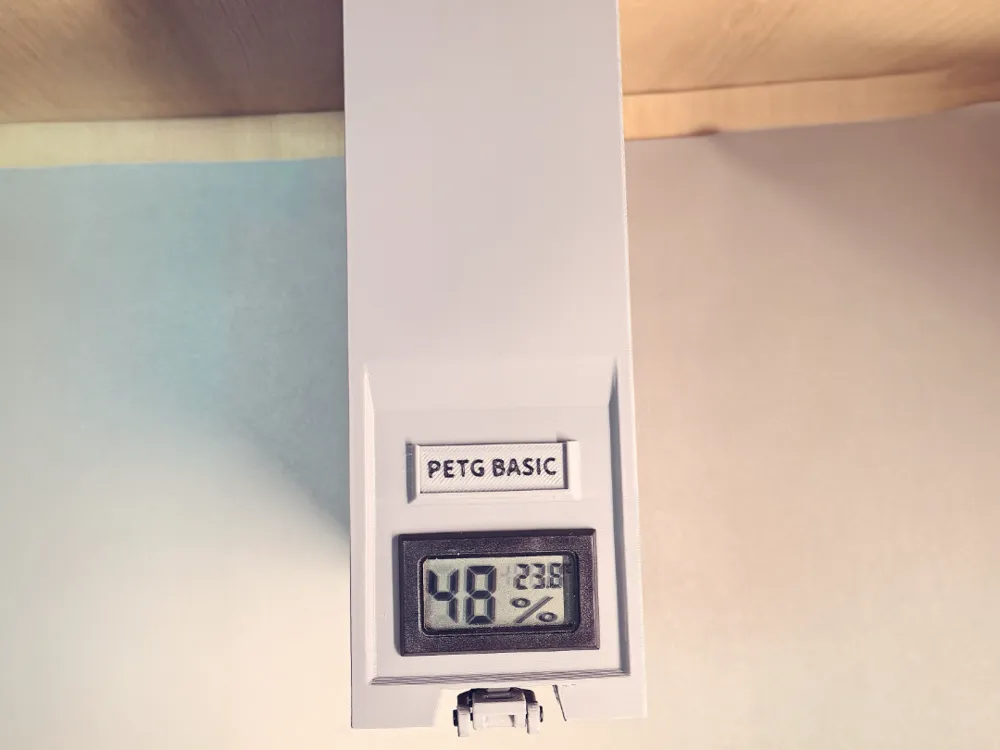

- Optional hygrometer design, freely choose whether to install a hygrometer
- Square dry box can be stacked
- Labels are freely customizable. If customizable labels are needed, you can go to "Common Labels + Screw Box Labels + Common filament Labels (Customizable)". Labels are made using the MakerWorld-Signage Customizer (https://makerworld.com.cn/makerlab/makeMySign)
- Extremely thin box design to save as much filament as possible. Box thickness is 1mm
Non-Printed Parts:
- m2x10mm screws x2
- m2x6mm screws x4
- Small square hygrometer x1 (optional), dimensions approximately 47mmx14mmx28mm
Precautions:

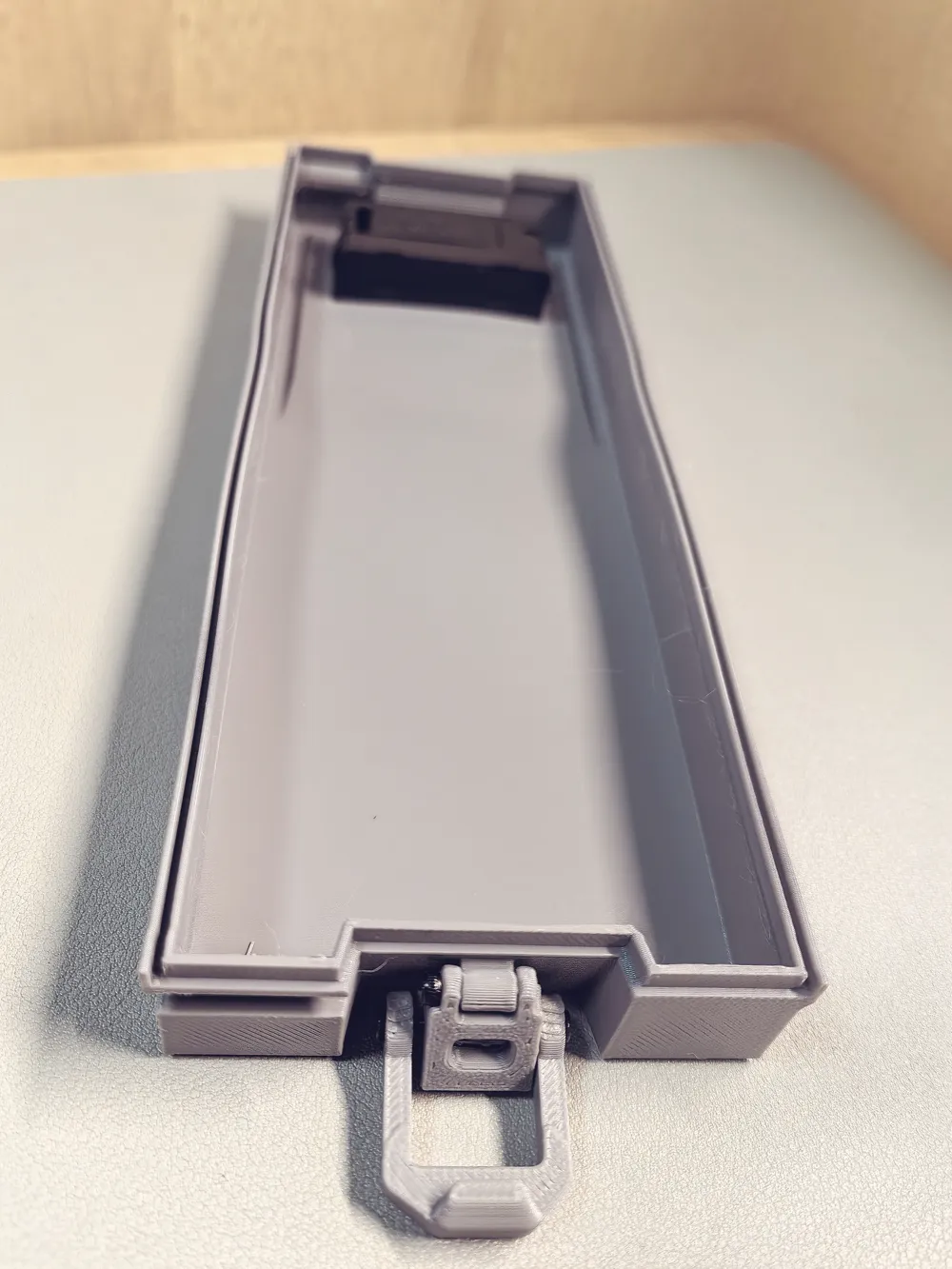

When installing the buckle, please pay attention to the installation direction of the base buckle, refer to the image, do not install it backward!Boost Me (for free)
If the model is helpful to you, your boost will be a great encouragement to me
Update Log:
