Parametric Print in Place Magnet Pin
Print Profile(1)
Bill of Materials
Description
I was looking for simple magnet pins to use all the magnet laying on my desk, but couldn't find print in place design, so I made my own !

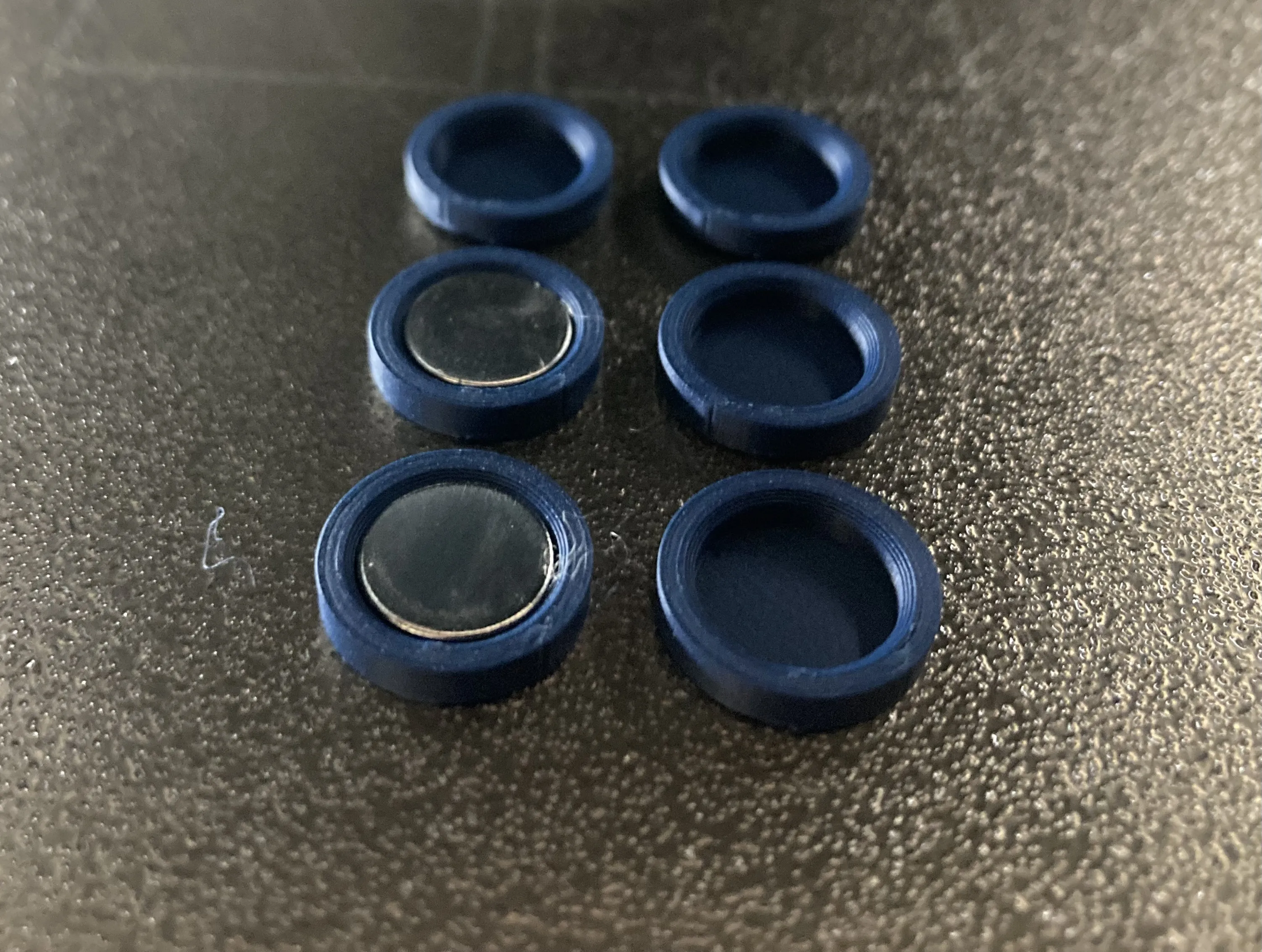

The print profile includes 2 versions for 8x2, 8x3, 10x2, 10x3 and 12x2 magnets. A pause is programmed so it's easy to insert the magnet into the design. Just hit “resume print" once the magnets are inserted.

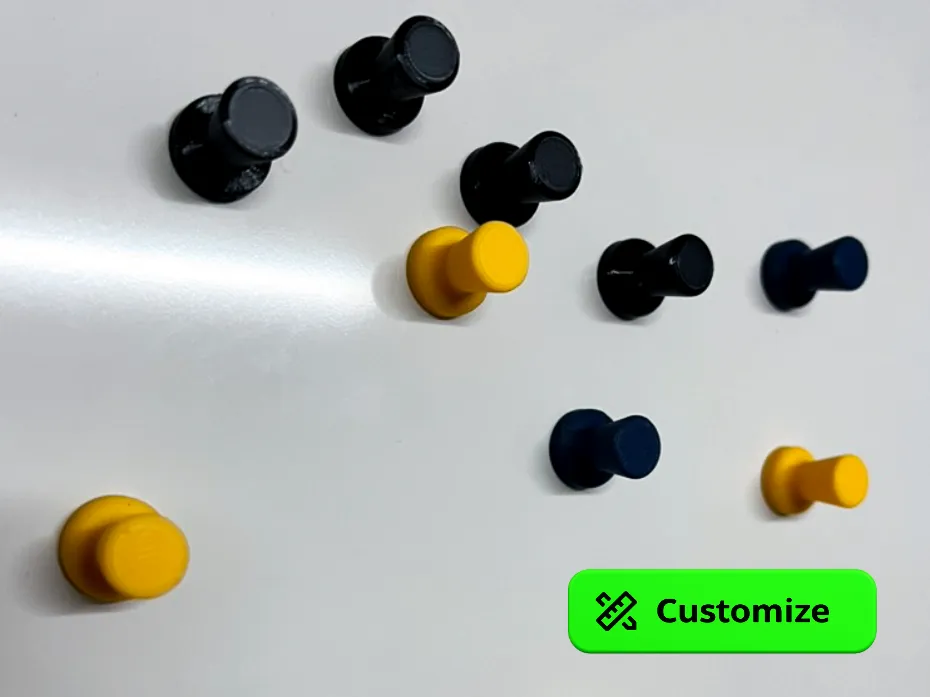

Use the parametric model maker to make your own magnet to the size and shape you need !

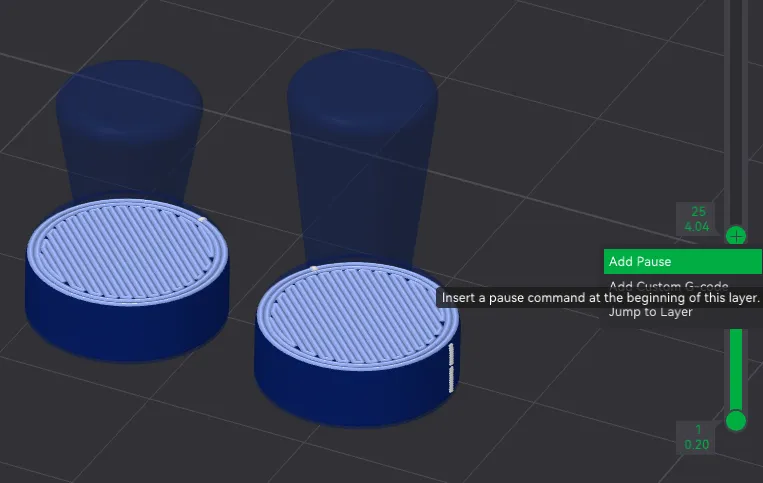

Don't forget to use the "add pause” command at the correct layer.
You can set the bottom shell layer to 0 to add magnet with glue instead of printing it in place.
Boost Me (for free)
If you liked this design, boosting this design will help me to design other parametric projects !
