Bad Scraper Swap&Go
Print Profile(1)
Description

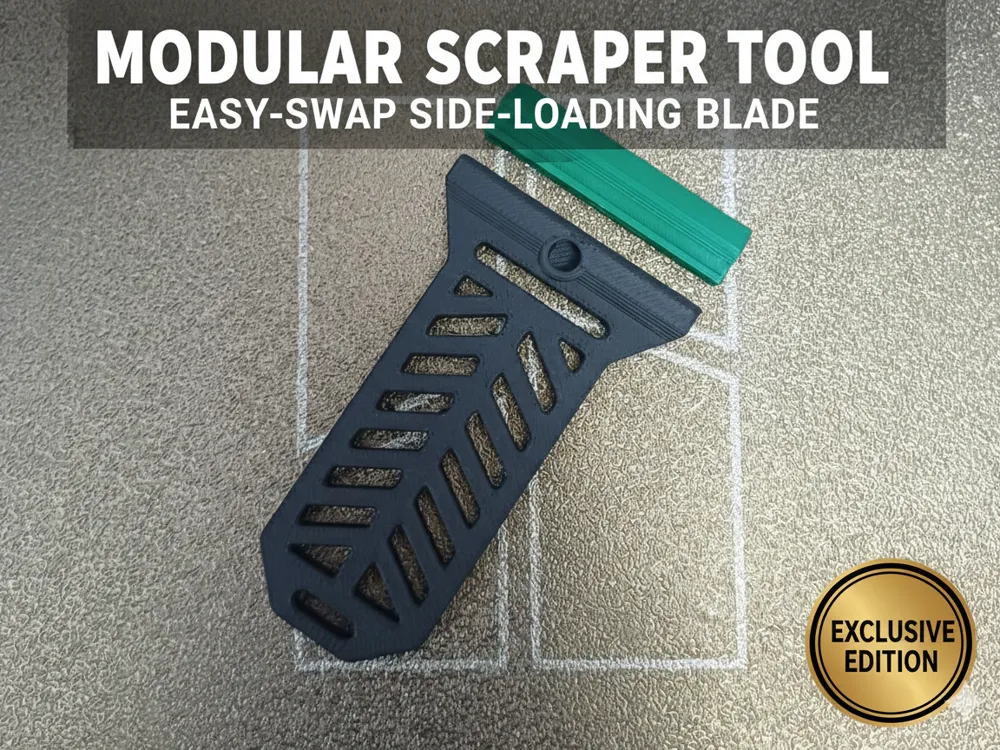

Side-Loading Interchangeable Scraper – Secure Swap System
This modular scraper features a side-loading head design, ensuring that the blade stays rock-solid during use. Unlike front-loading models, the force applied while scraping only locks the head tighter into the handle, making it one of the safest and most reliable 3D-printed tools in your workshop!
✨ Key Features:
* Side-Slide Mechanism: The head slides in from the side, preventing it from popping out even under heavy pressure.
* Zero-Waste Design: Don't toss the handle! Just swap out the head when the blade is worn (uses <2g of filament).
* Superior Ergonomics: Contoured handle for a natural grip that reduces hand fatigue.
* Versatile Options: Includes different head profiles for various tasks, from removing prints to scraping stickers.
🖨️ Recommended Print Settings:
* Material: PLA for the handle. PETG is recommended for the heads for better flexibility and wear resistance.
* Layer Height: 0.2mm
* Infill: 40%
* Walls: 3-4 walls to ensure the side-loading rails are sturdy
*Support: enabled

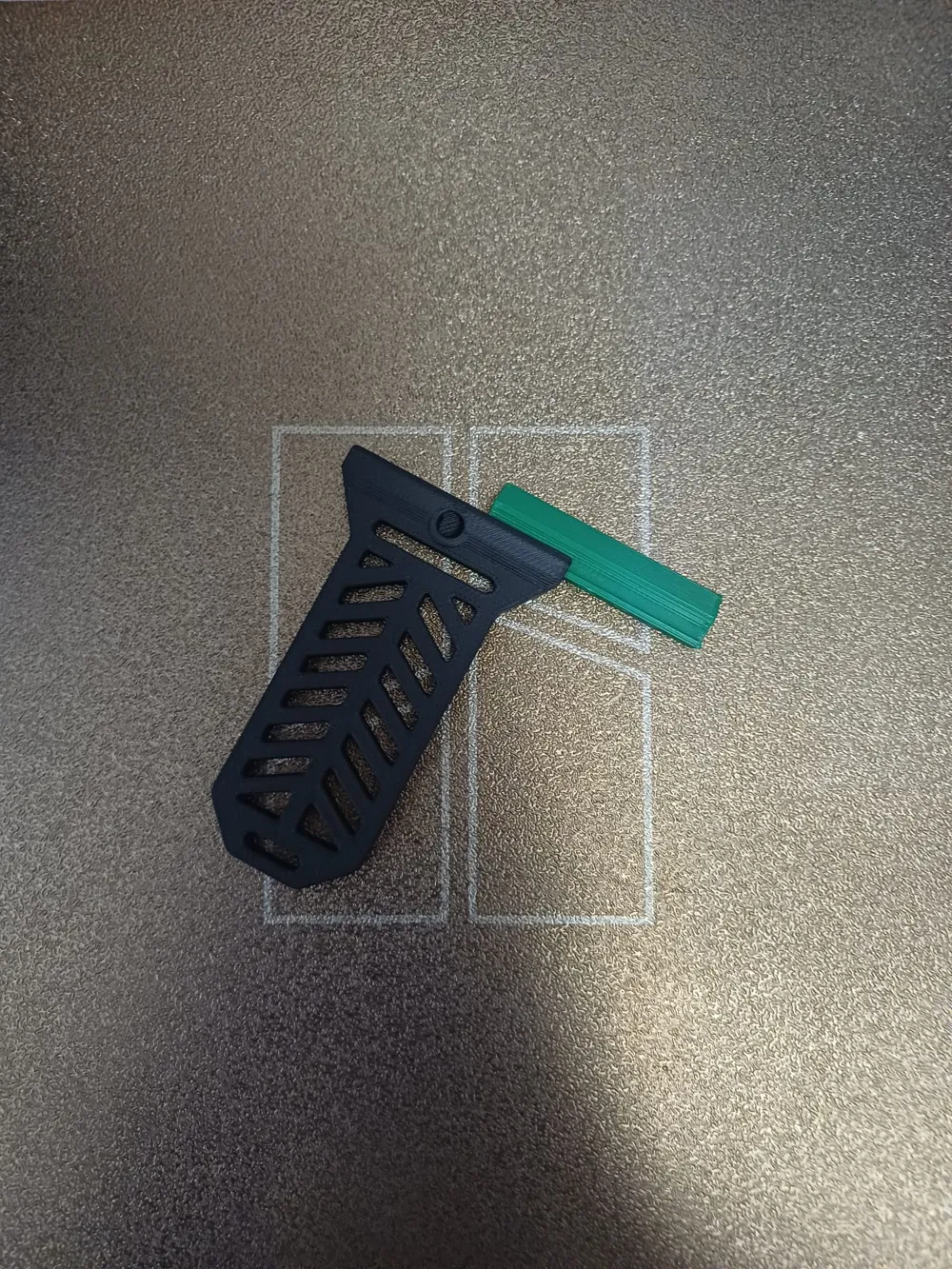

🔧 Assembly:
* Hold the handle firmly.
* Align the head's rail with the slot on the side of the handle, slide it in.
* To remove: Simply push the head out sideways.
