Givi Monokey Wall Mount Adapters for Cases
Print Profile(1)
Bill of Materials
Description
Wall mount adapter for all GIVI top cases with Monokey system.
For GIVI Monolock System you can find separate model: https://makerworld.com/en/models/2332108-wall-mount-adapters-for-all-givi-monolock-cases#profileId-2548101

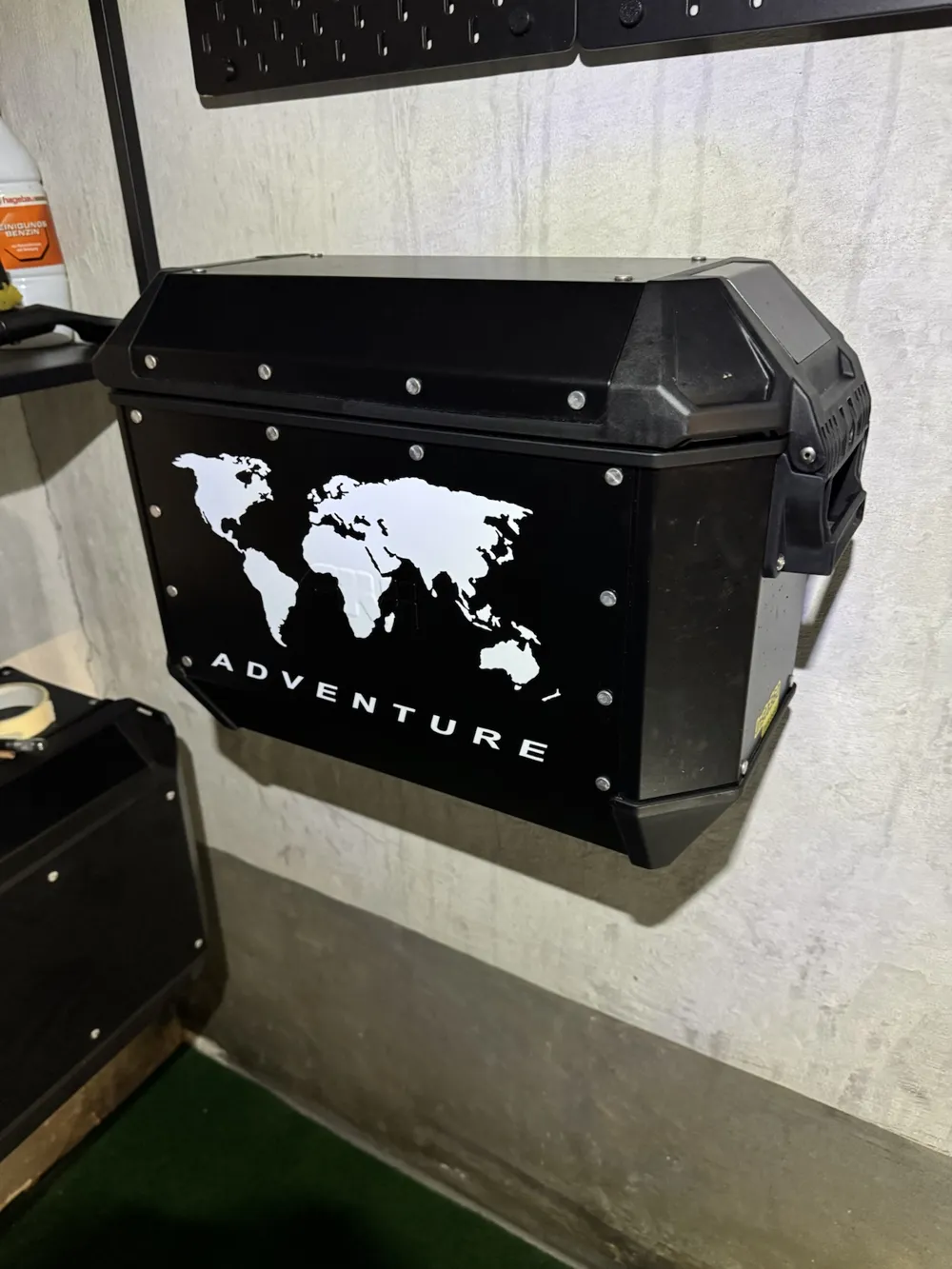

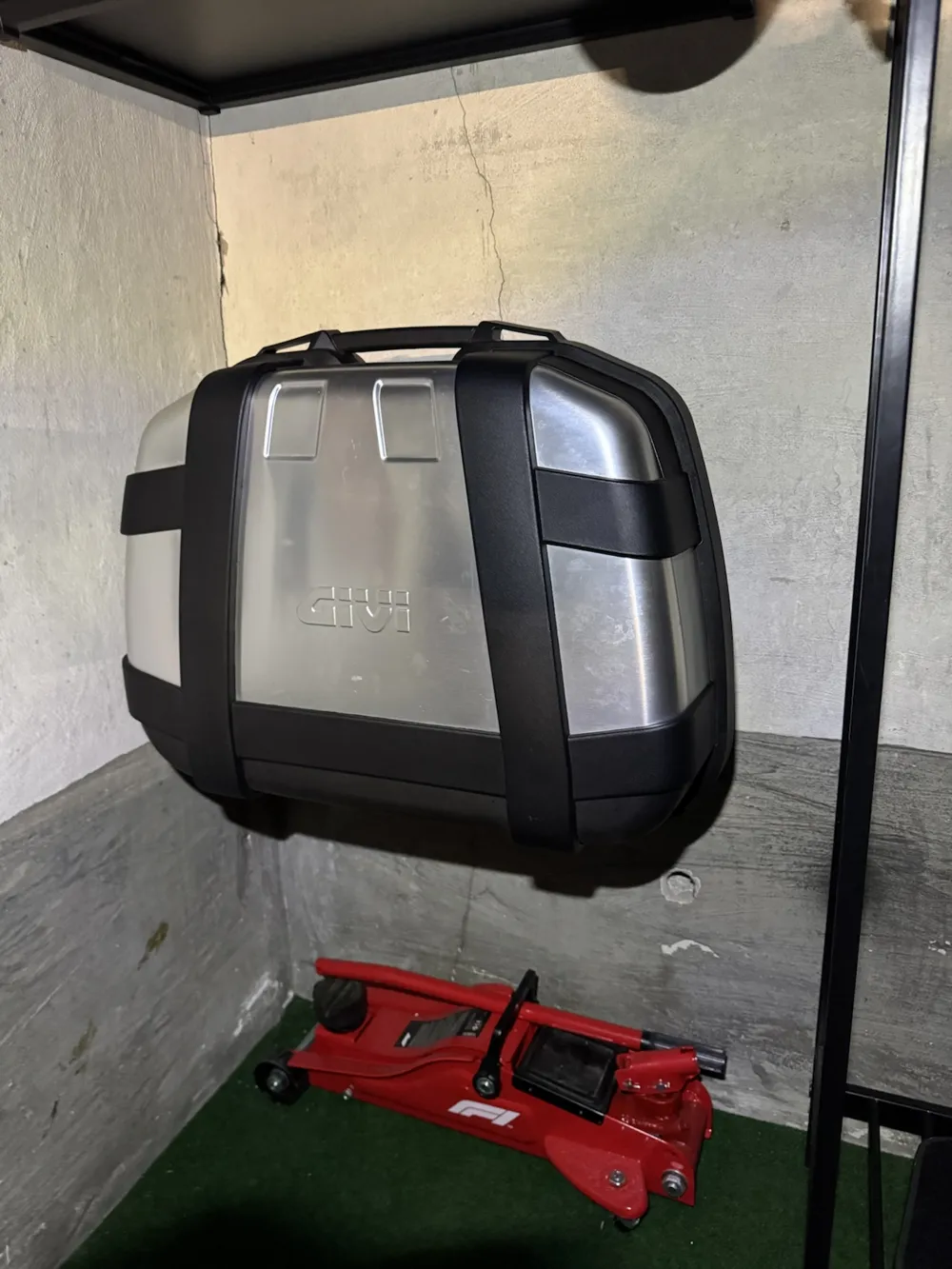

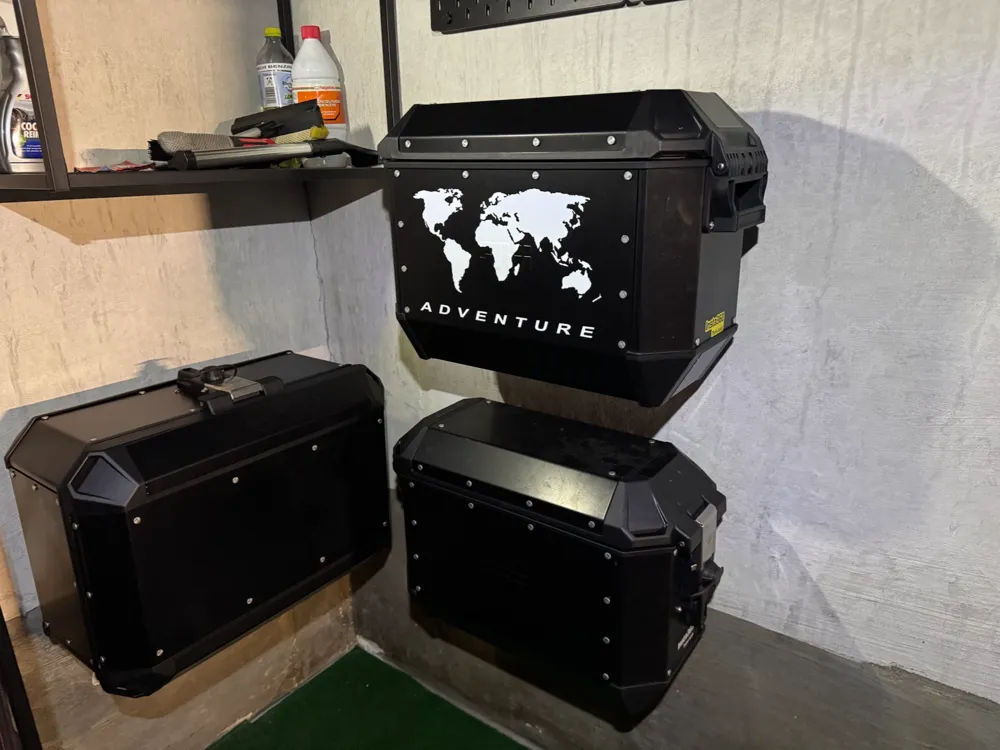

I designed it because I have several motorcycle cases lying around in my garage. When not in use, I now attach them neatly to the garage wall using these adapters. This creates more space in the garage :).

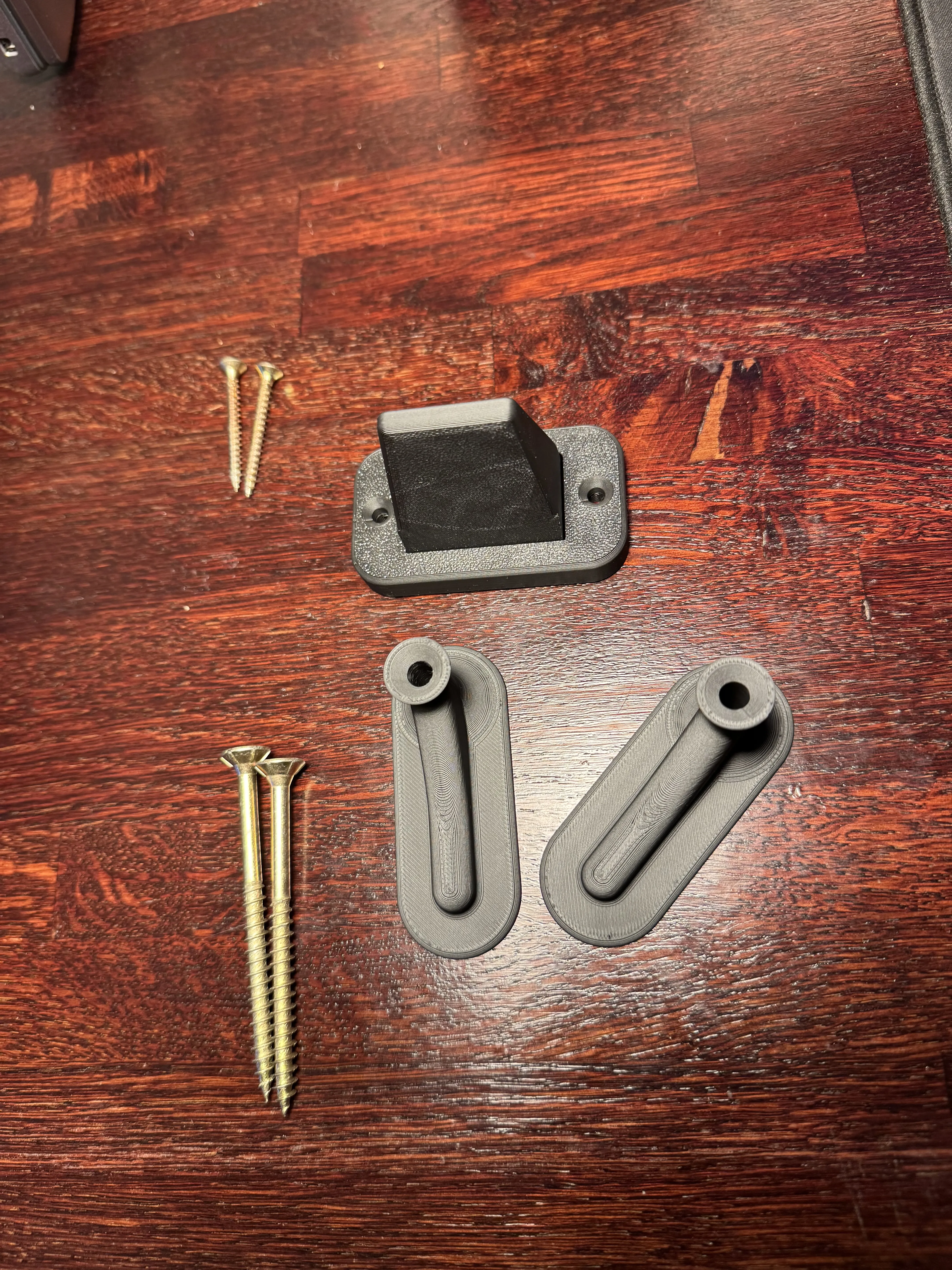

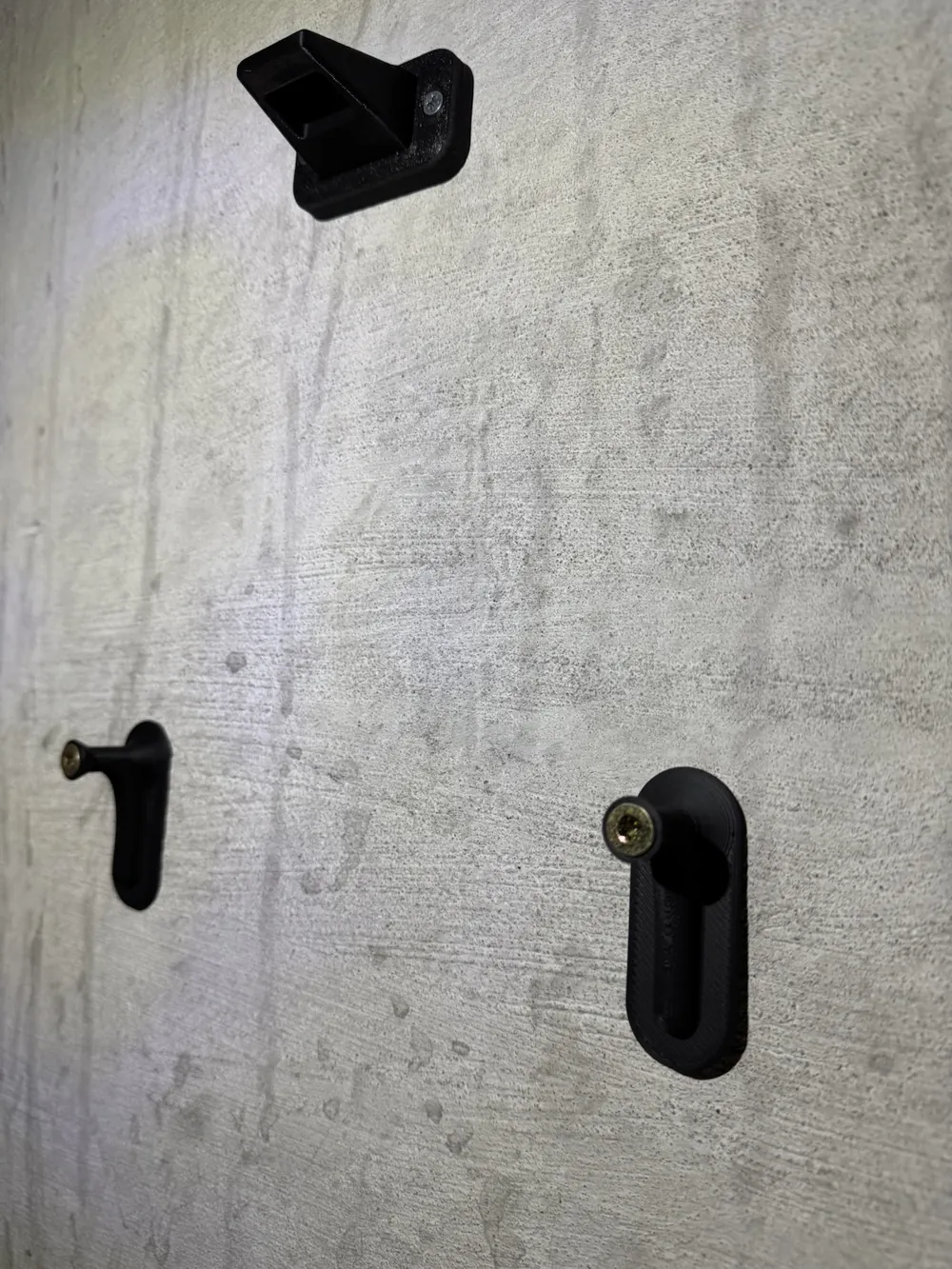

Screw the triangle with two 4x40mm CSK Spax screws and the “Mushrooms” with two 6x80mm CSK Spax screws and suitable dowels.

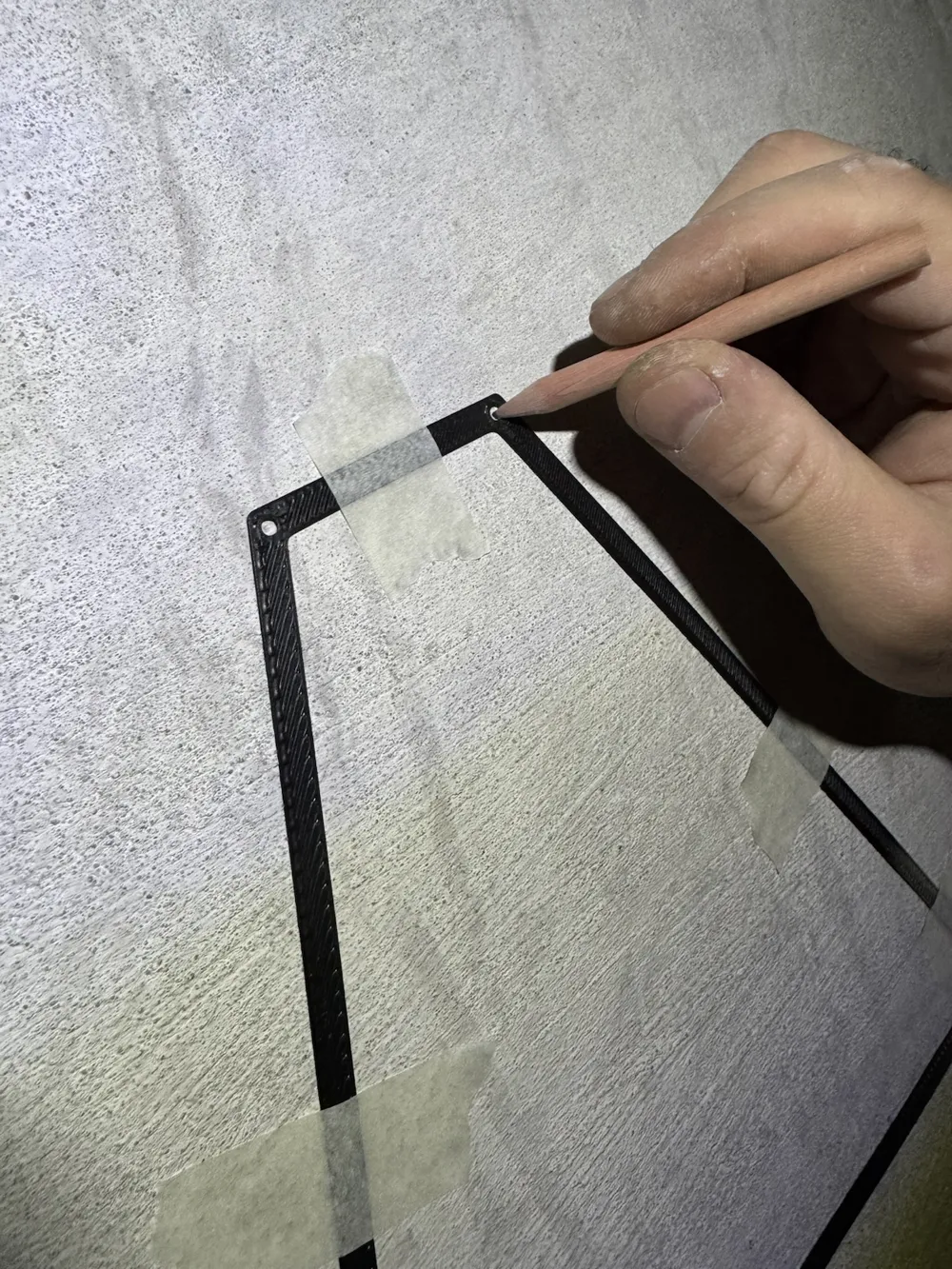

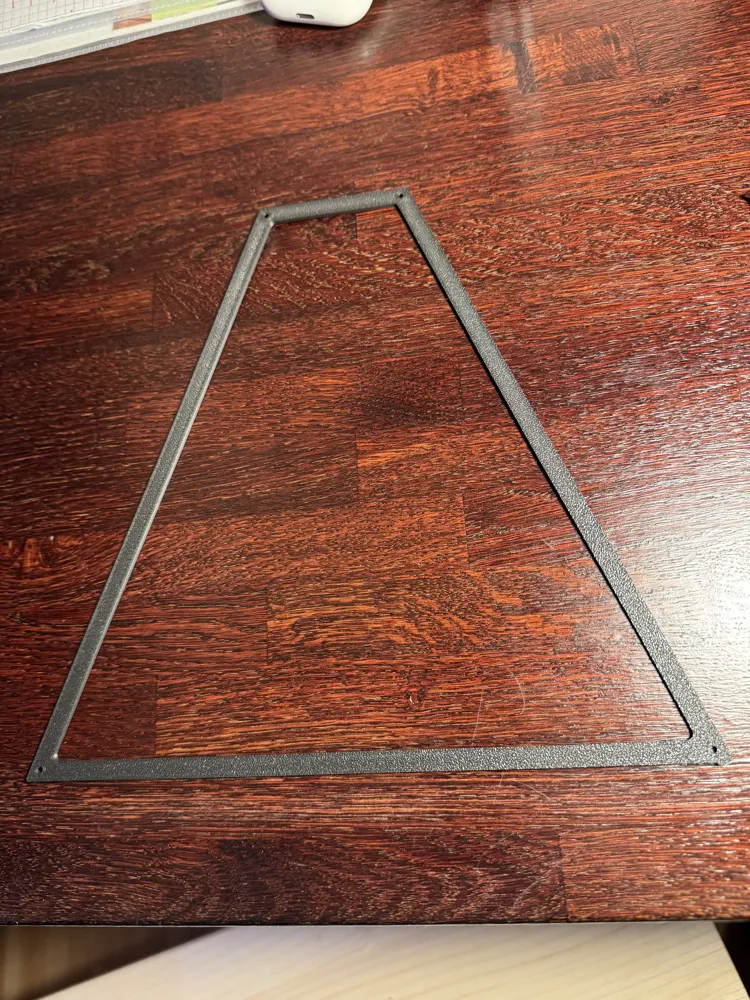

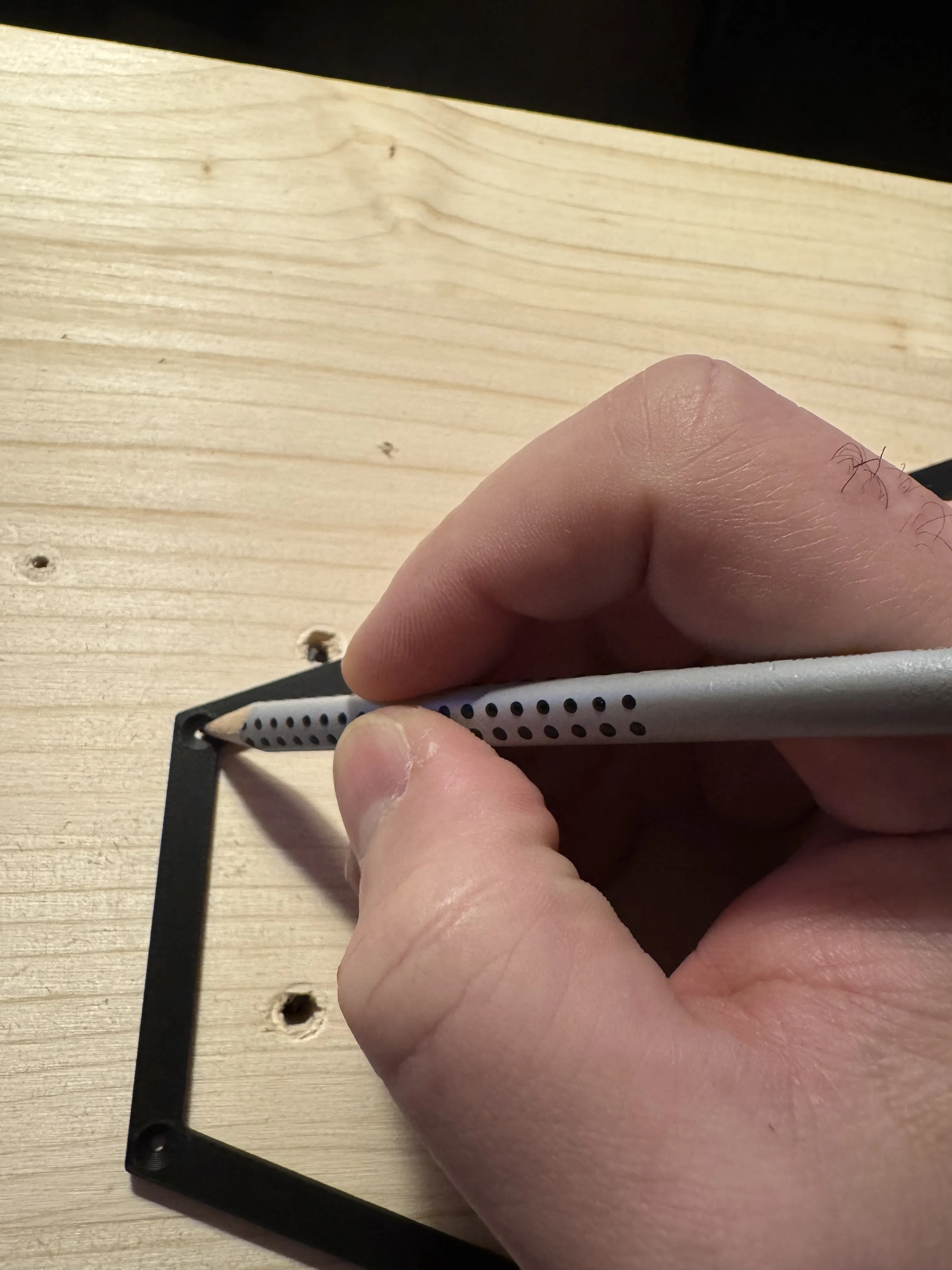

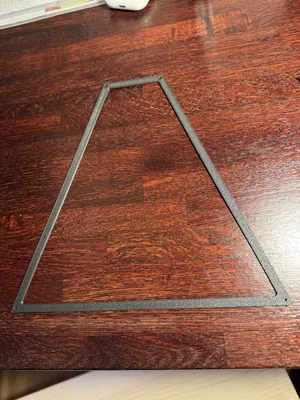

The “Pattern” file can be used for the exact positioning of the individual holders, see photos.
I printed these with PLA and so far they are holding up well.
Since the design is modular, parts can be easily replaced if damaged.
PETG may be more suitable for long-term use.
