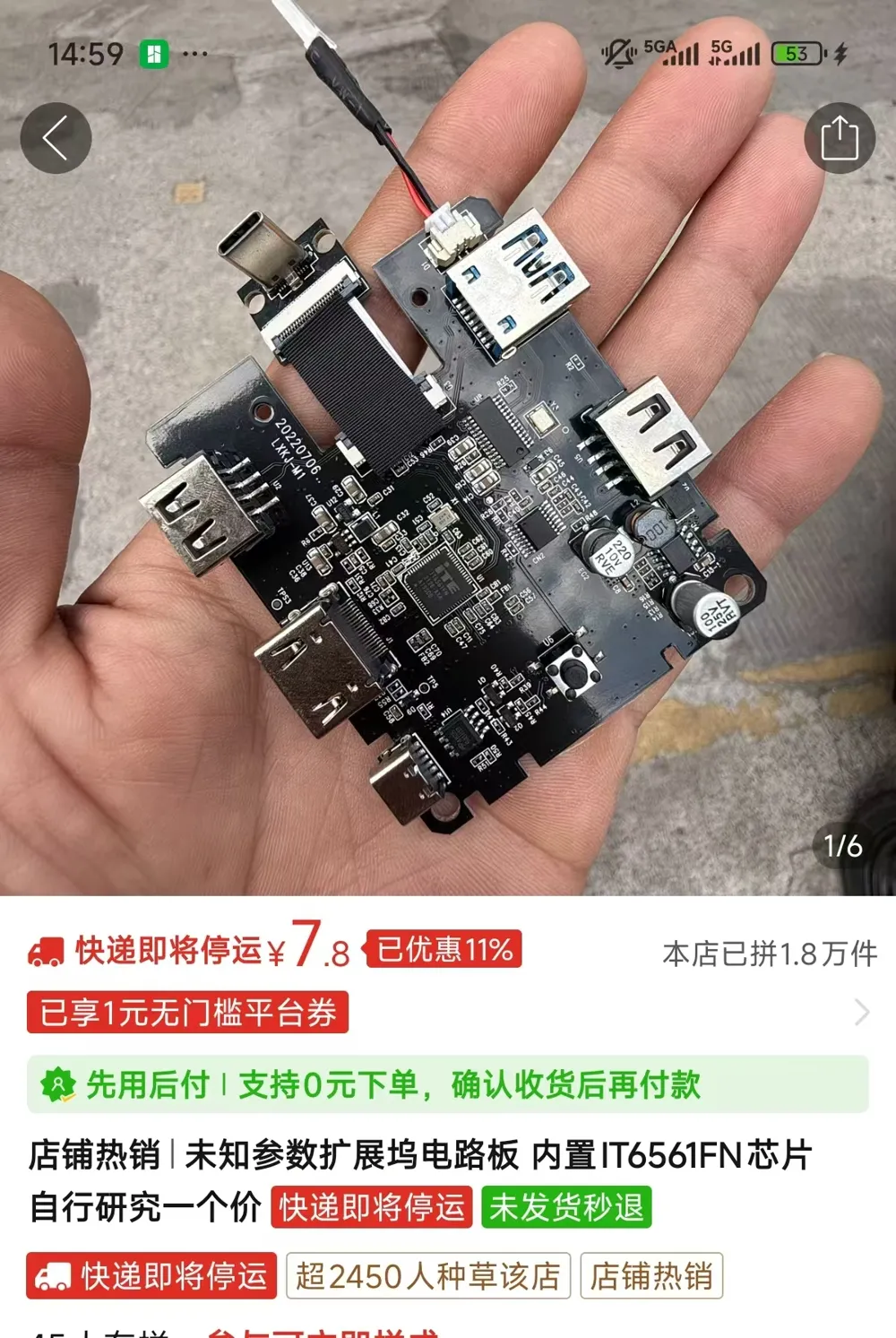

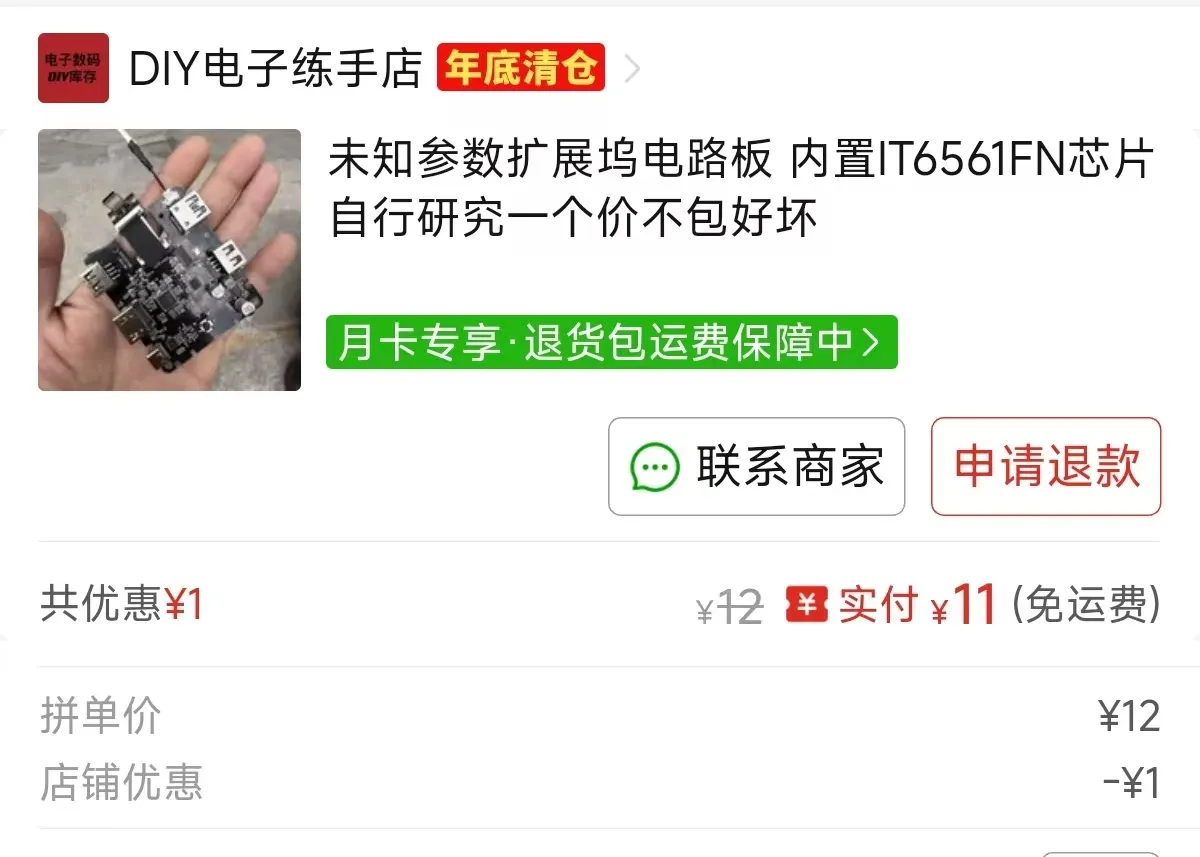

Pinduoduo 6 yuan docking station motherboard case (fixed/rotating version)
Print Profile(2)
Description

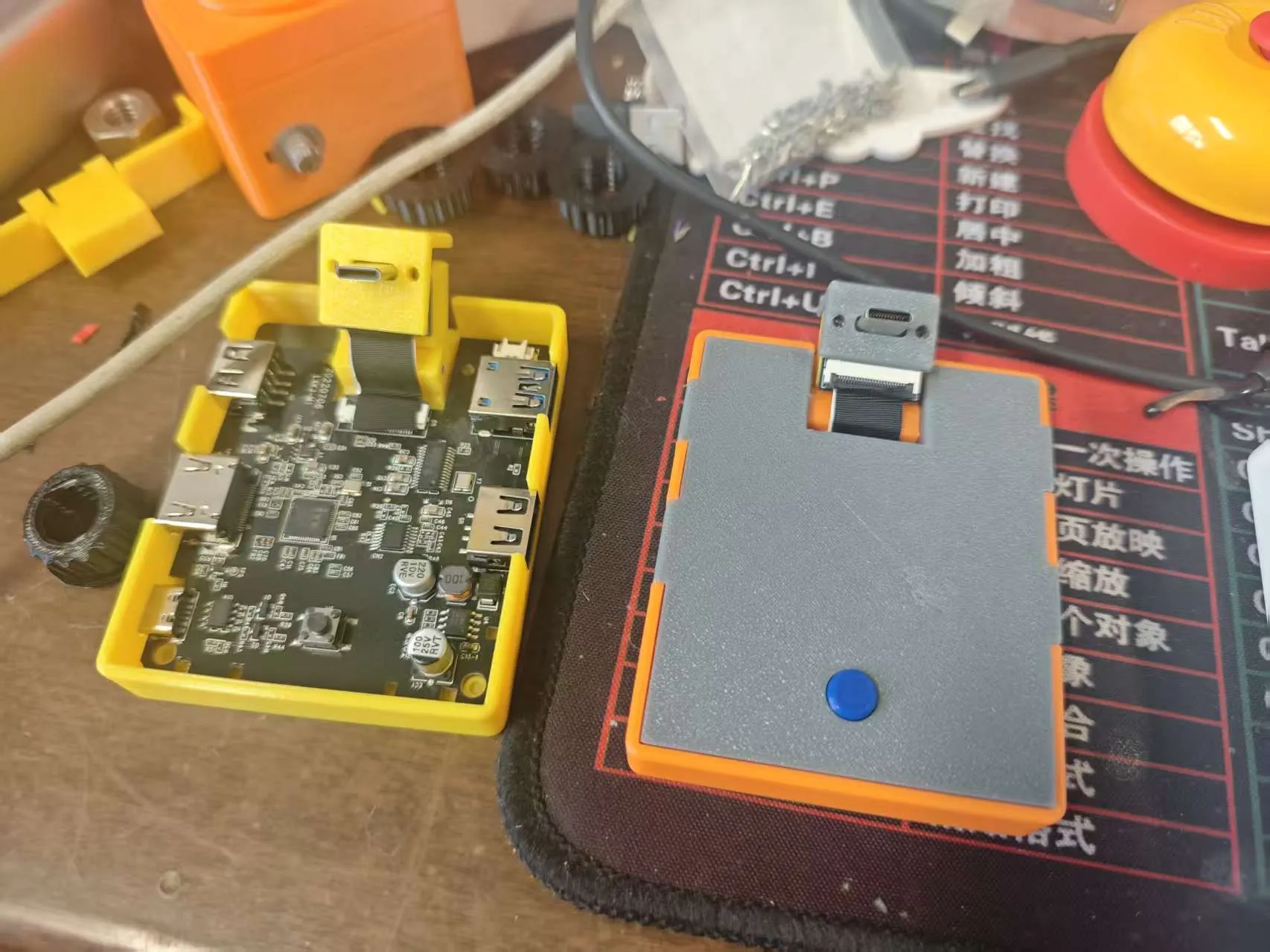

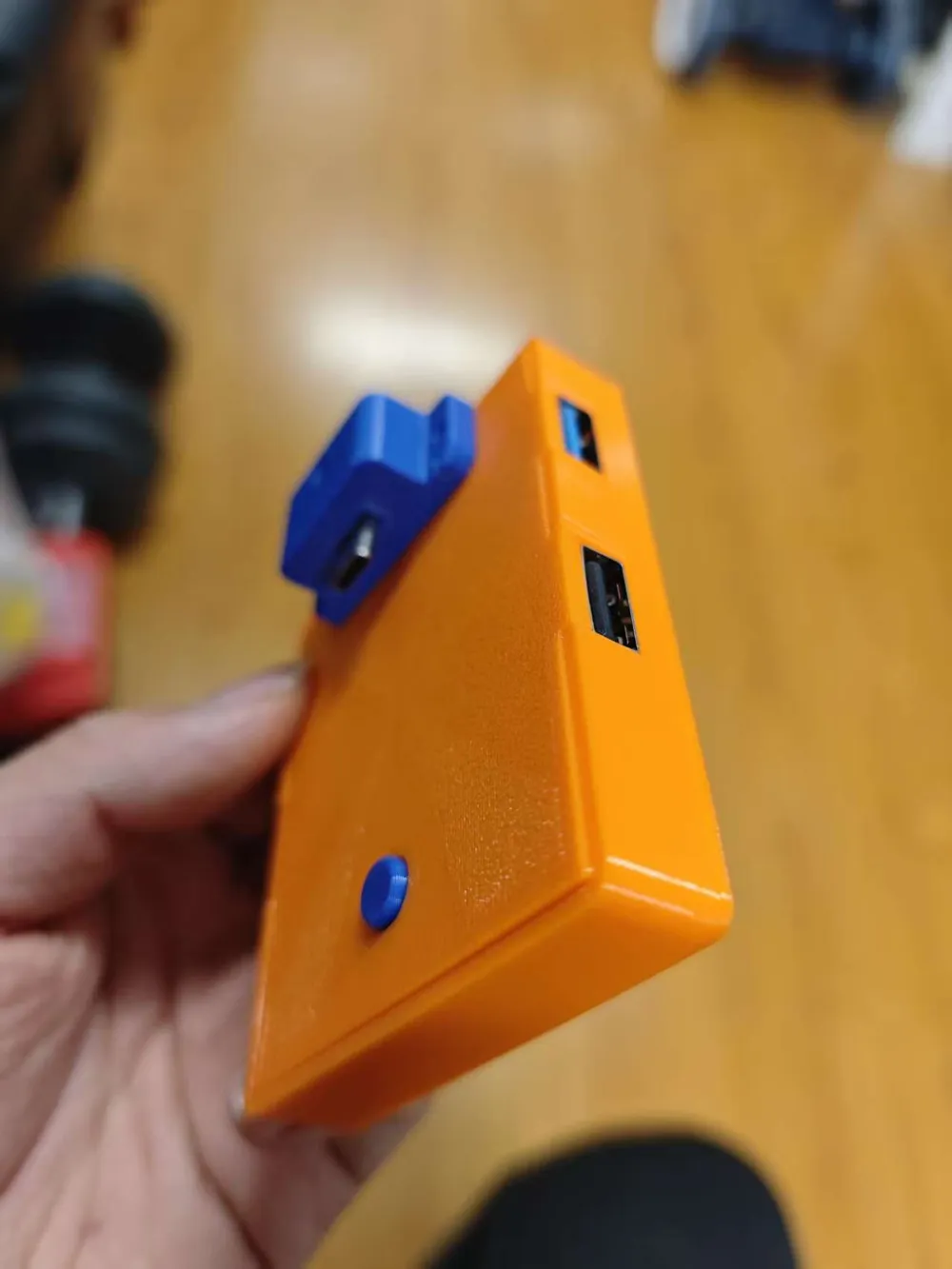

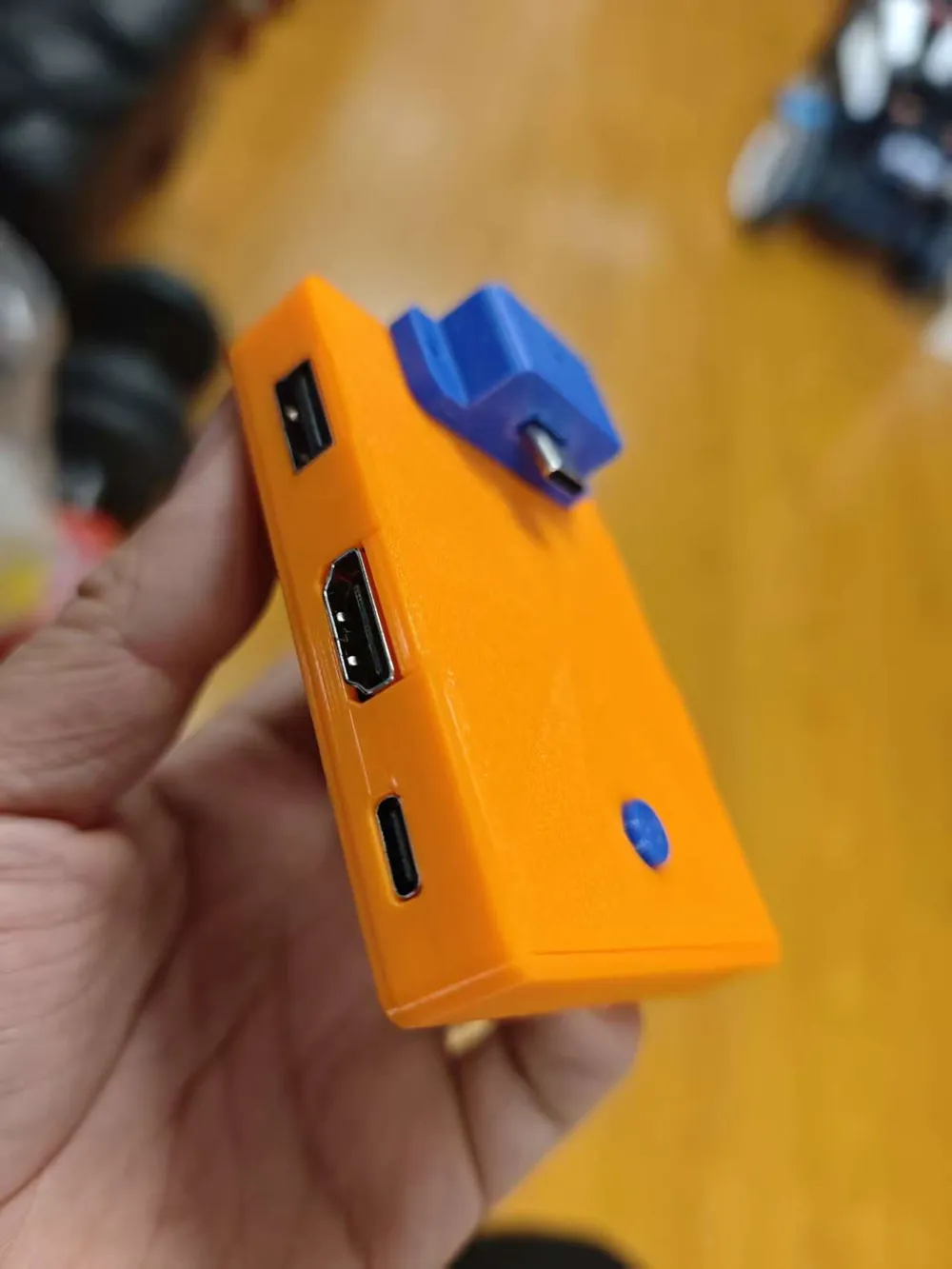

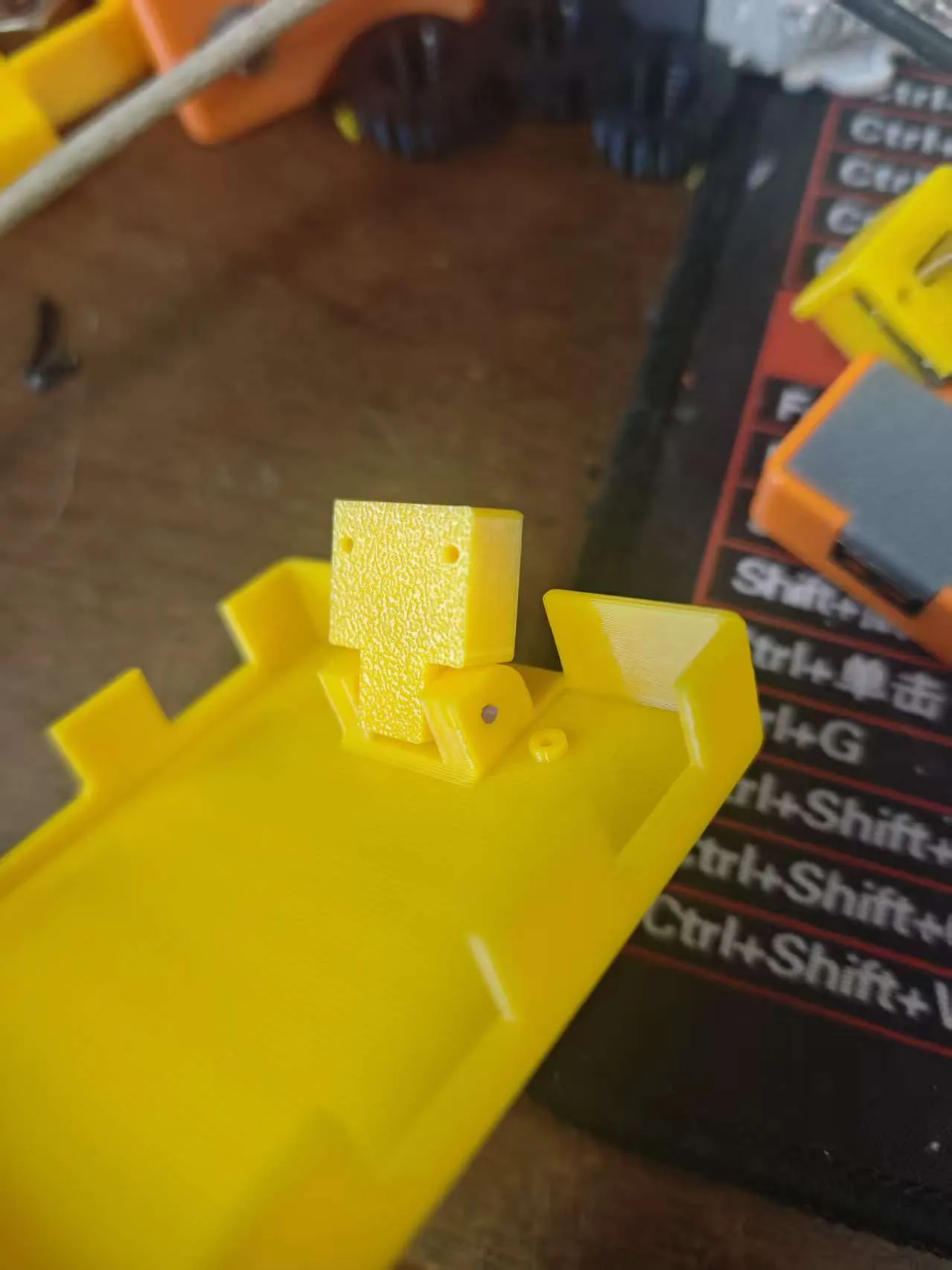

2026.2.6 Update (I originally wanted to make it rotate 180 degrees, but because the cables were too short and I lacked the ability, I gave up, so today I'm updating it with a 90-degree rotation)
BOM: a piece of filament, m2 screws*3 (I found that the m2 size is just right)
Simple installation process:
1. Thread the connector with a piece of filament

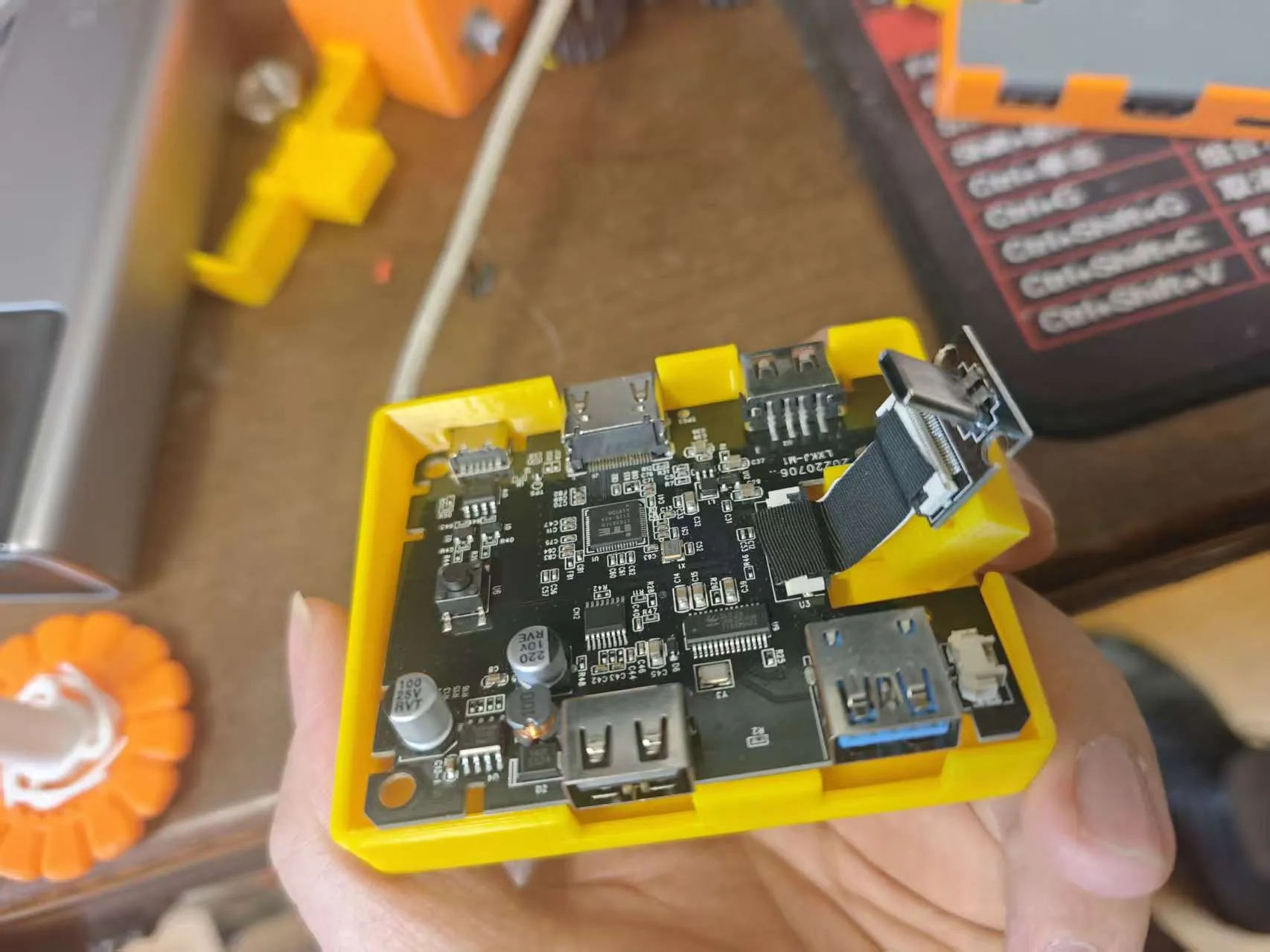

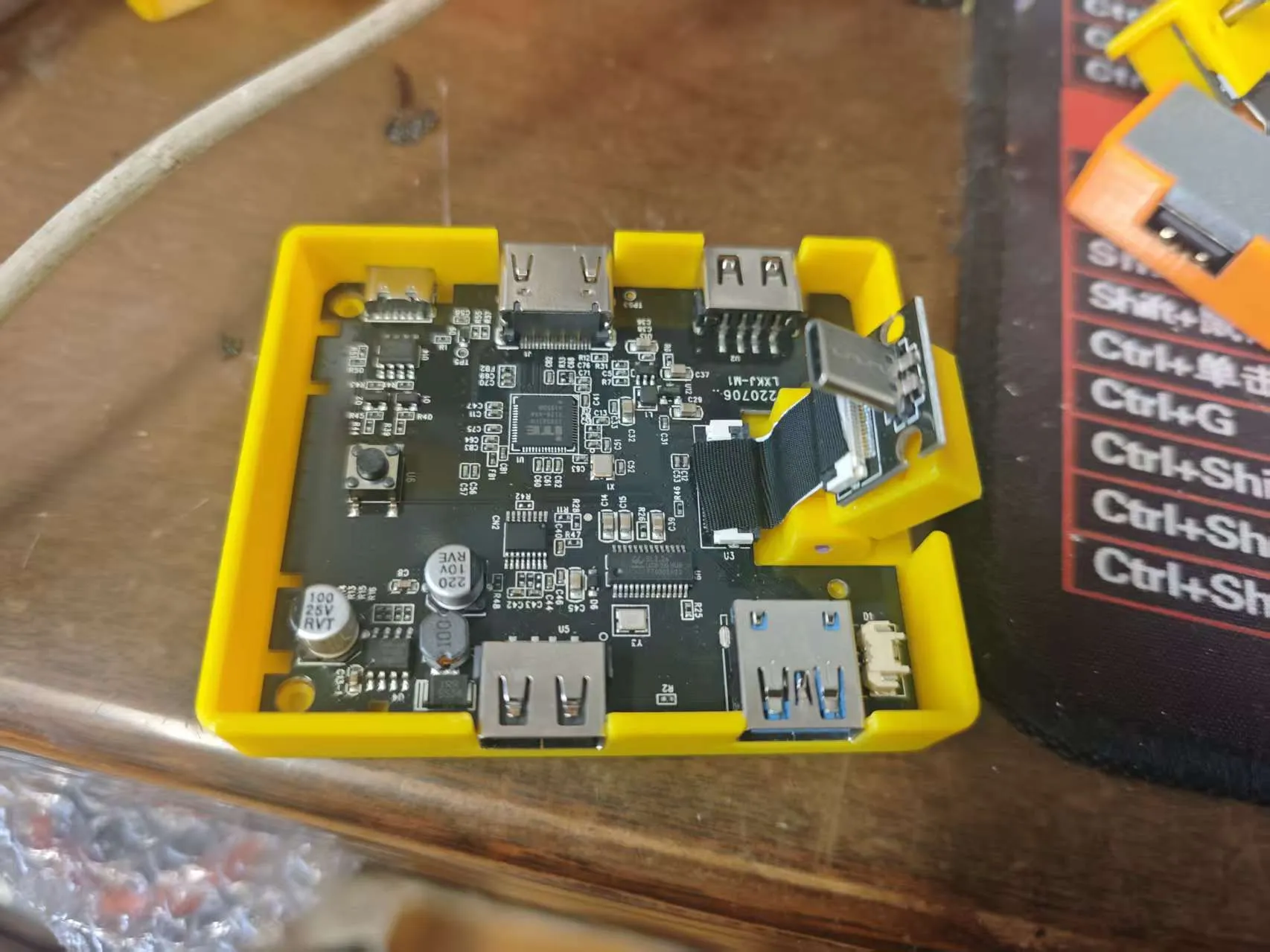

2. Align with the holes and insert the motherboard diagonally
3. Press it down, then install the protective plate, and close the cover plate

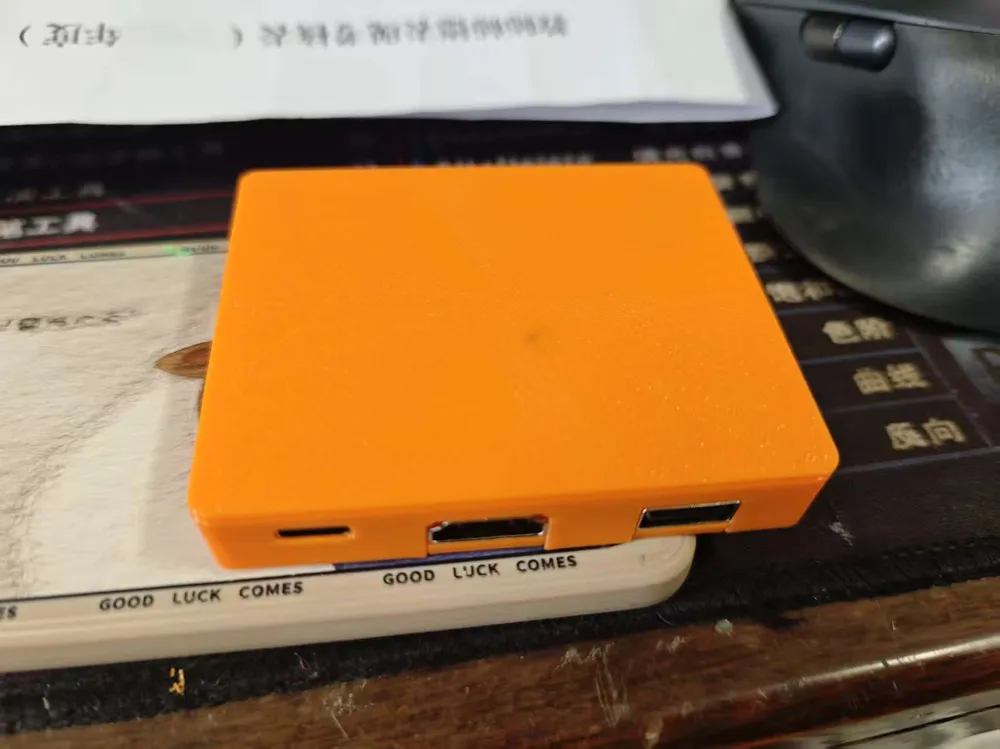

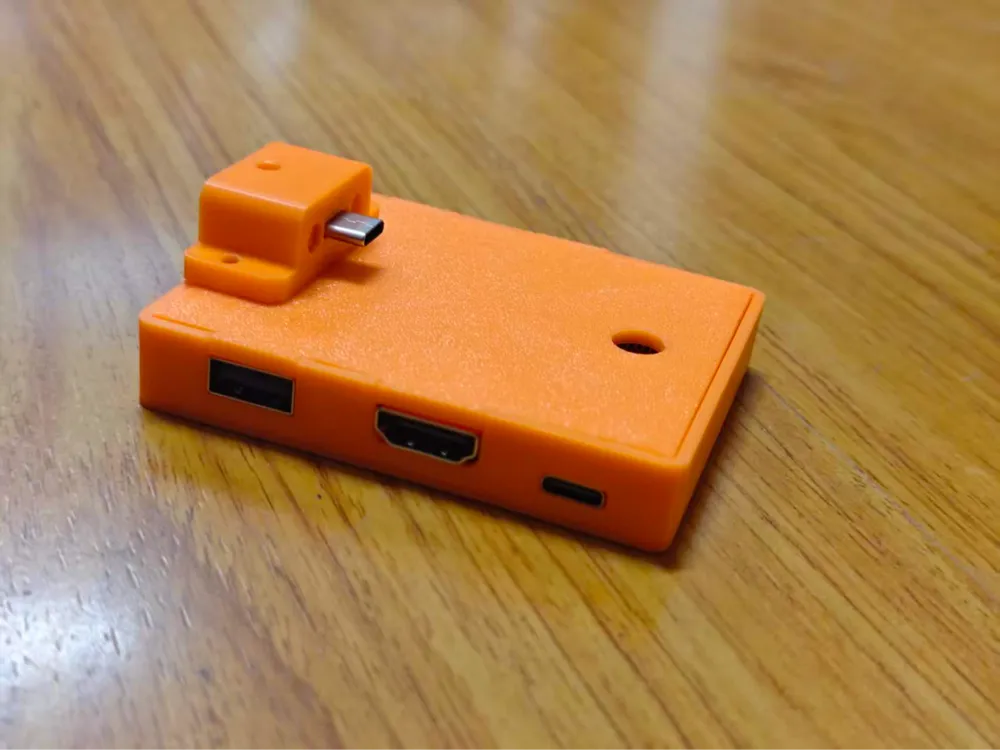

First version:
BOM: one motherboard, m3 self-tapping screw*1 (can be replaced with glue)
