Daily Pill Management System
Print Profile(3)
Description
Daily Pill Management System
Standard pill organizers can be a minefield for those with cognitive impairment. When a single tray contains dozens of compartments, it’s all too easy to double-dose or skip a day. This bi-daily, dementia-friendly pill management system is designed to isolate the moment. By providing a single, standalone box for "Morning" and "Evening," the user only interacts with the medication they need right now.
Key Features

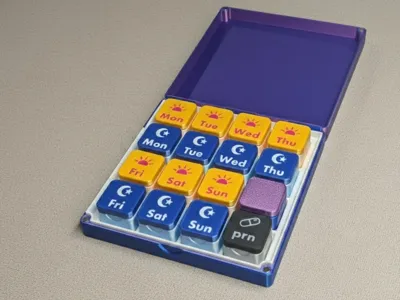

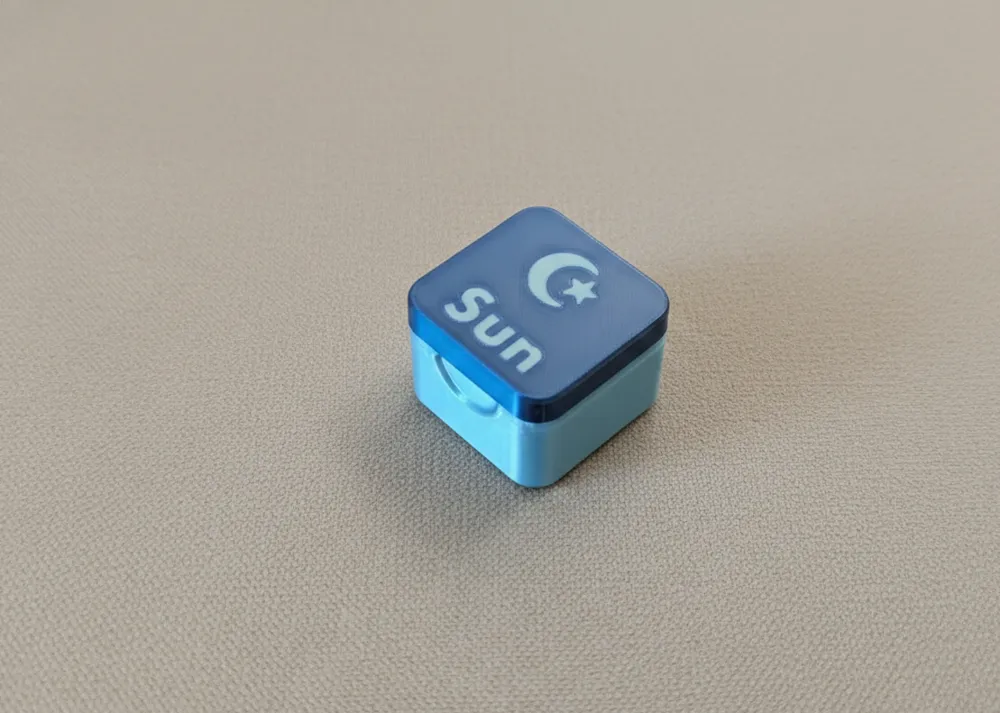

- Cognitive Clarity: 14 labeled boxes (7 Morning, 7 Evening) plus 2 extra slots for "As Needed" (PRN) or spare medications.

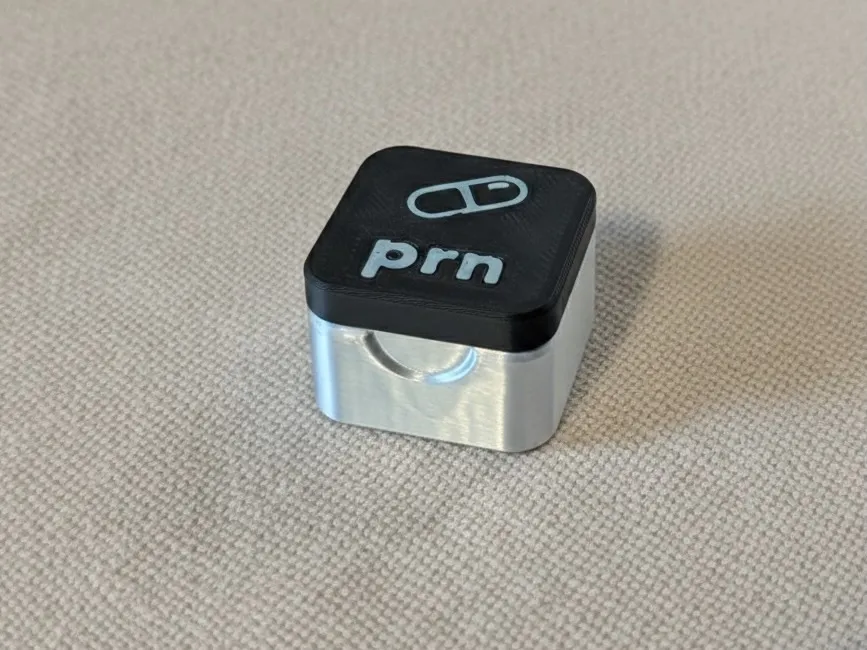

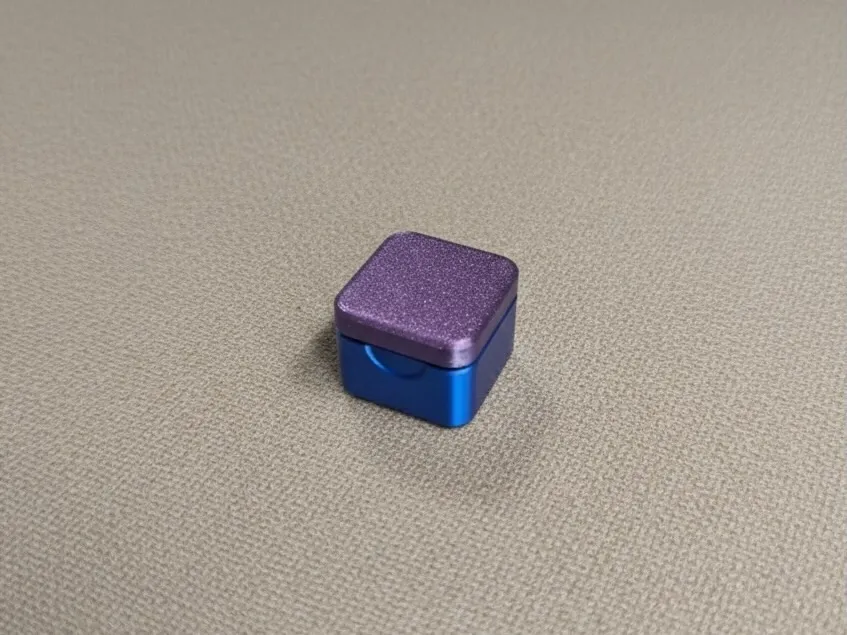

- PRN & Blank Options: Includes a PRN (pro re nata / "as needed") lid and a blank lid for custom labeling.
- Optimized for Dexterity: The lid geometry and magnetic closure provide the necessary leverage for those with arthritis or limited fine motor skills.
- High Capacity: Though compact, the internal volume is carefully designed to accommodate larger supplements and multiple pills without jamming.
- Dual-Color & Clean Design: The organizer includes a separate internal insert. This allows for easy dual-color printing (even without an AMS) and perfectly hides the internal filament hinge for a professional, "non-printed" look.
- Space Optimized: The 4x4 grid is sized to fit most standard print beds (e.g., 256 x 256 mm or 220 x 220 mm).
- Legibility: Files provided for 0.4mm and 0.2mm nozzles ensure text is crisp and easy to read.
Hardware Required (Full 16-Box Set)
To make sourcing easier, you can find a compatible magnet set here: Amazon Magnet Set
| Component | Magnet Size | Quantity |
|---|---|---|
| Pill Boxes | 3 x 2 mm | 64 (4 per box: 2 in lid, 2 in base) |
| Organizer Case | 6 x 4 mm (or 6 x 2 mm) | 4 (2 in lid, 2 in base) |
| Hinge Pin | 1.75 mm Filament | ~200 mm |
Print Settings
- Supports: None.
- Material: PETG or PLA.
- Nozzle Choice: Use the files labeled for your specific nozzle size (0.2mm or 0.4mm) for the best text clarity on the lids.
Assembly Instructions

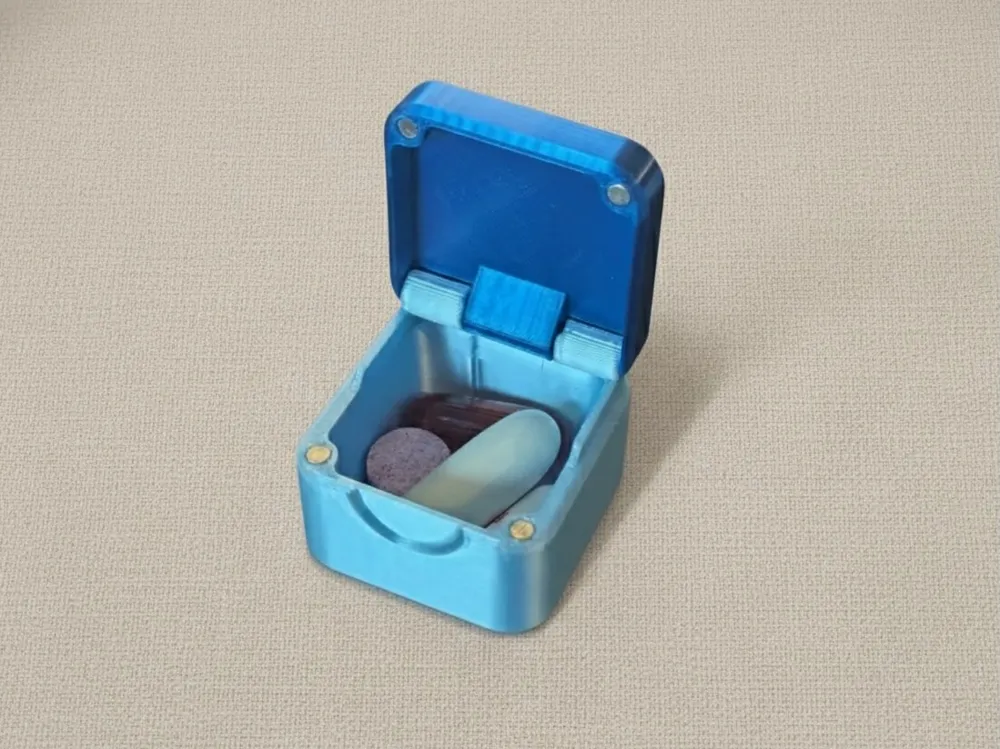

- Magnets: Press-fit or glue the 3 x 2 mm magnets into the boxes and lids. Install the 6 x 4 mm (or stacked 6 x 2 mm) magnets into the front of the organizer case and lid. Check polarity on all sets before gluing!

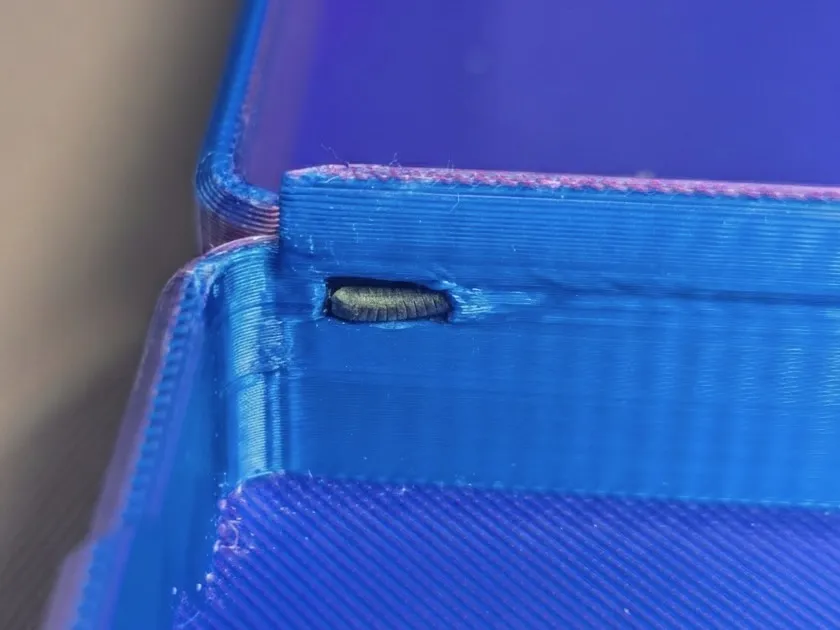

- Organizer Hinge:
- Align the organizer base and lid hinges
- Slide a length of 1.75mm filament through the holes and trim flush.
- Internal Insert: Slide the separate insert into the base of the organizer. This will cover the hinge mechanism and provide a clean, contrasting color floor for the pill boxes.
Boost Me (for free)
This design was born out of a necessity to provide safer care for elderly family members by removing "choice paralysis." If you find this helpful, please consider boosting me or providing feedback to help others in the caregiving community find this solution.
