Air Conditioning Duct Exhaust Device
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 20% infill
Designer
7.5 h
1 plate
Open in Bambu Studio
Boost
0
2
0
0
0
0
Released
Description
Content has been automatically translated.

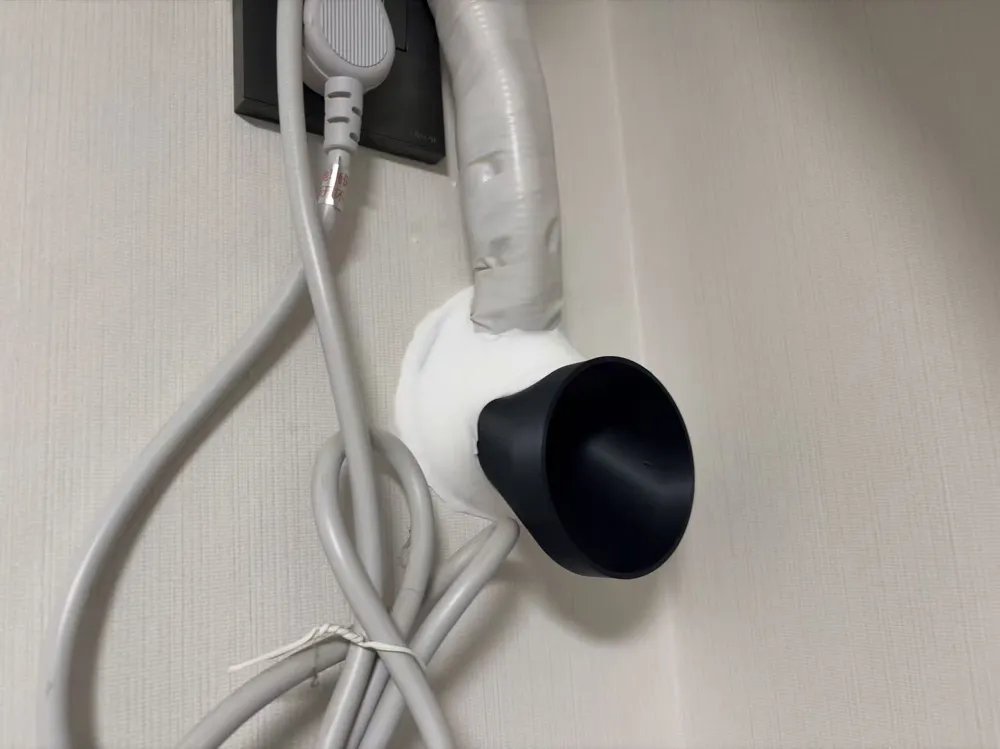

The model is used in environments where windows cannot be opened, and the machine is close to the air conditioning outlet.

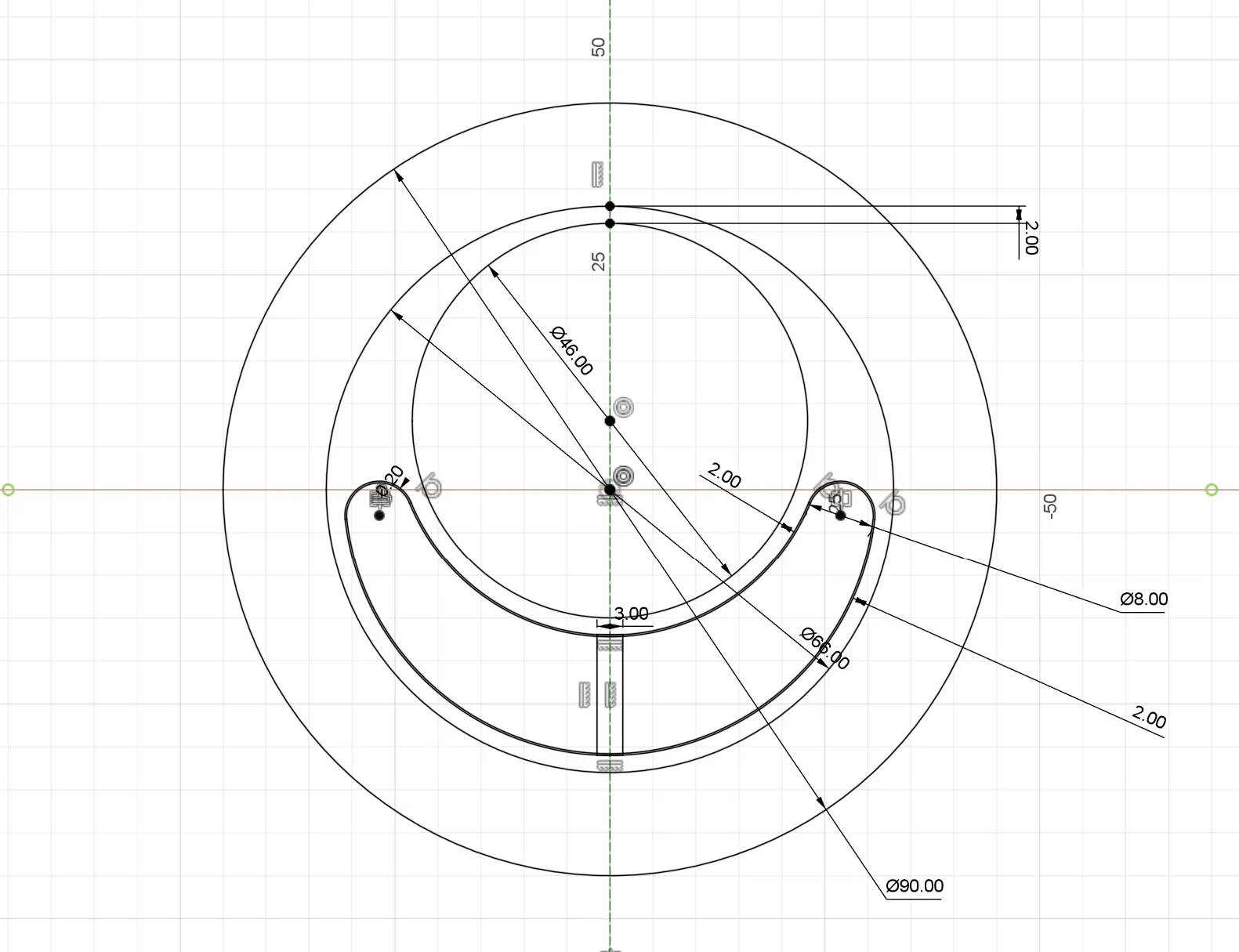

- It reuses the air conditioner's exhaust duct. The inner diameter of the duct is66mm, the air conditioner outlet is46mm, and the adapter size is80mm. If the machine size is sufficient, it can be printed taller.
- The air conditioning duct is split into two. Install one half first, then the other. Sufficient space is reserved,
The adapter is installed using buckles. If there are material issues, you can directly apply super glue.
- Finally, remember to buy somesealing putty, and seal it up so there won't be any air leaks.
