LCG body mounts
Print Profile(1)
Description

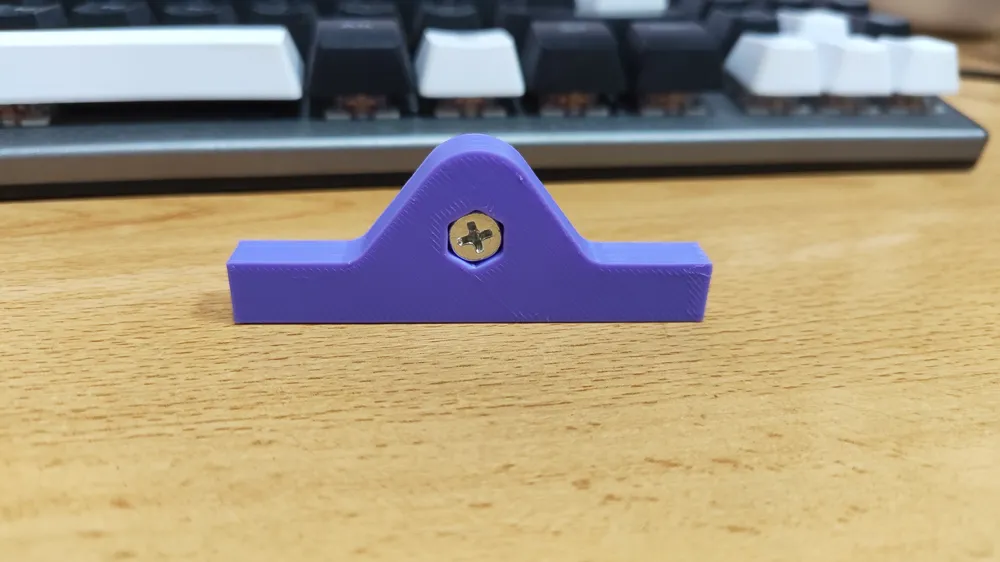

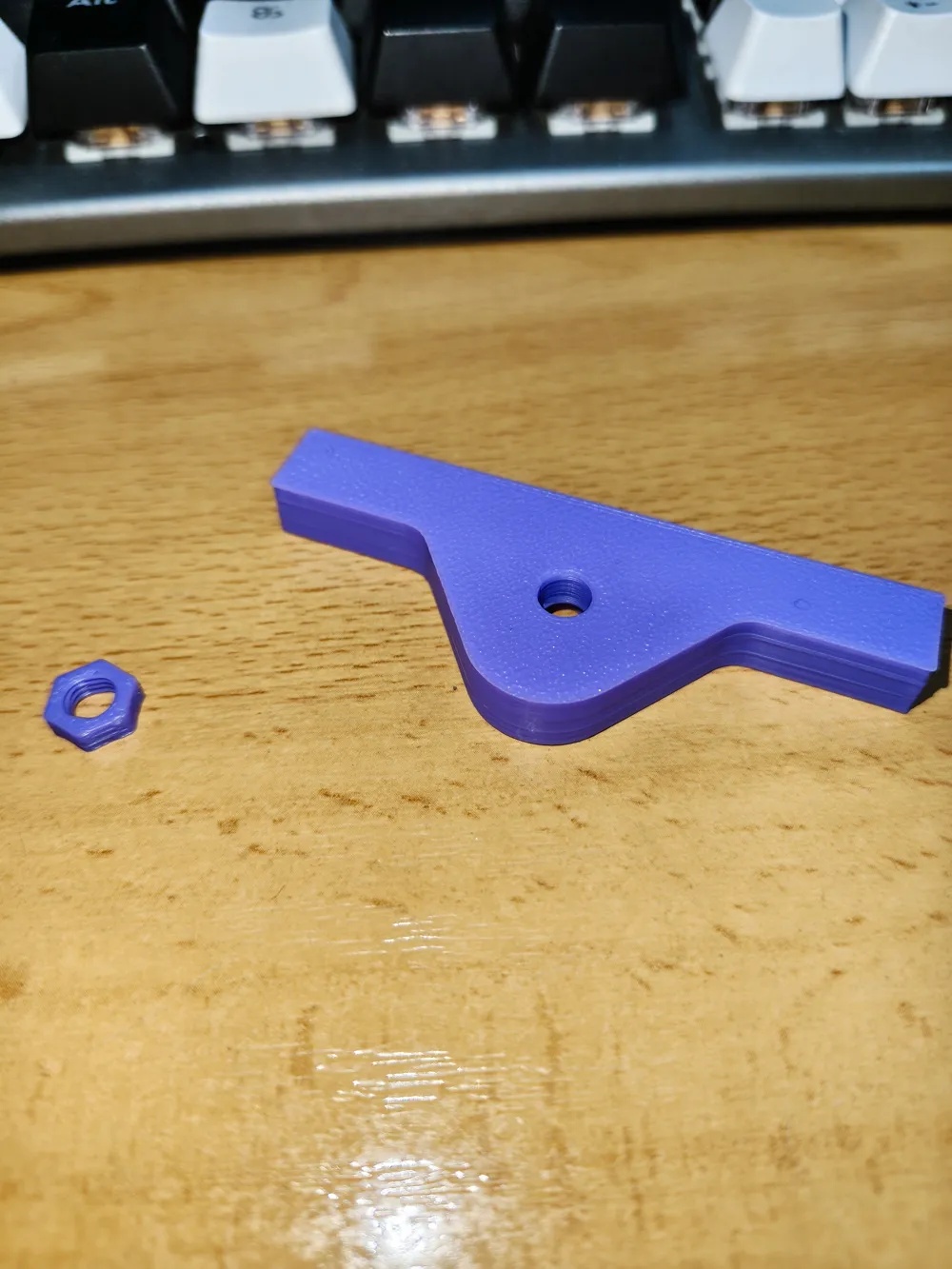

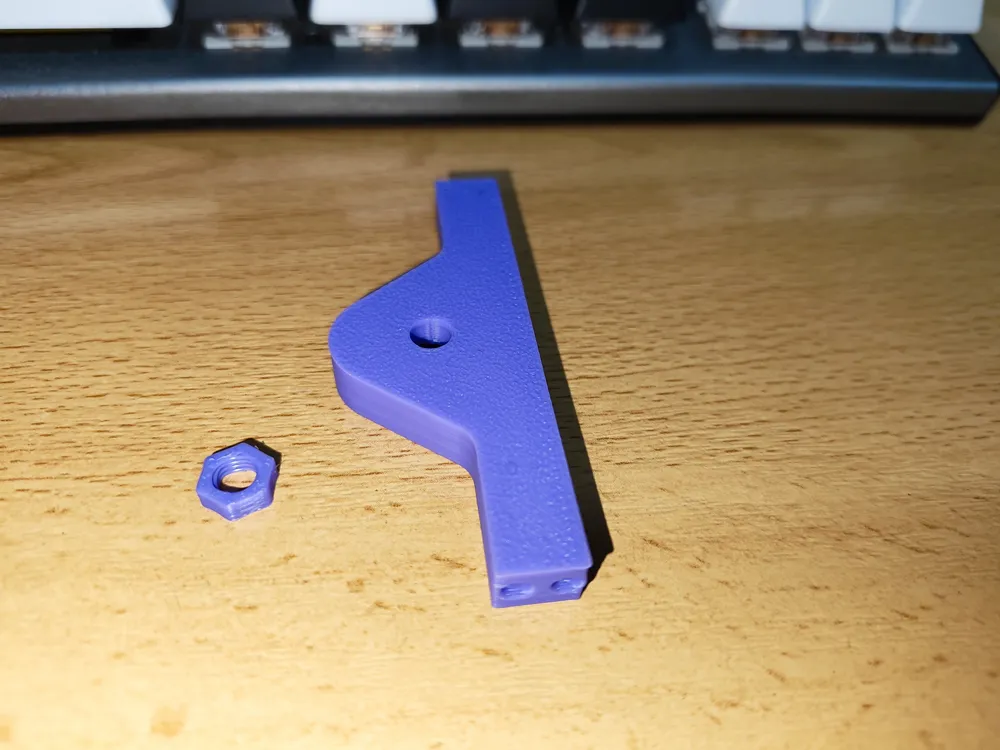

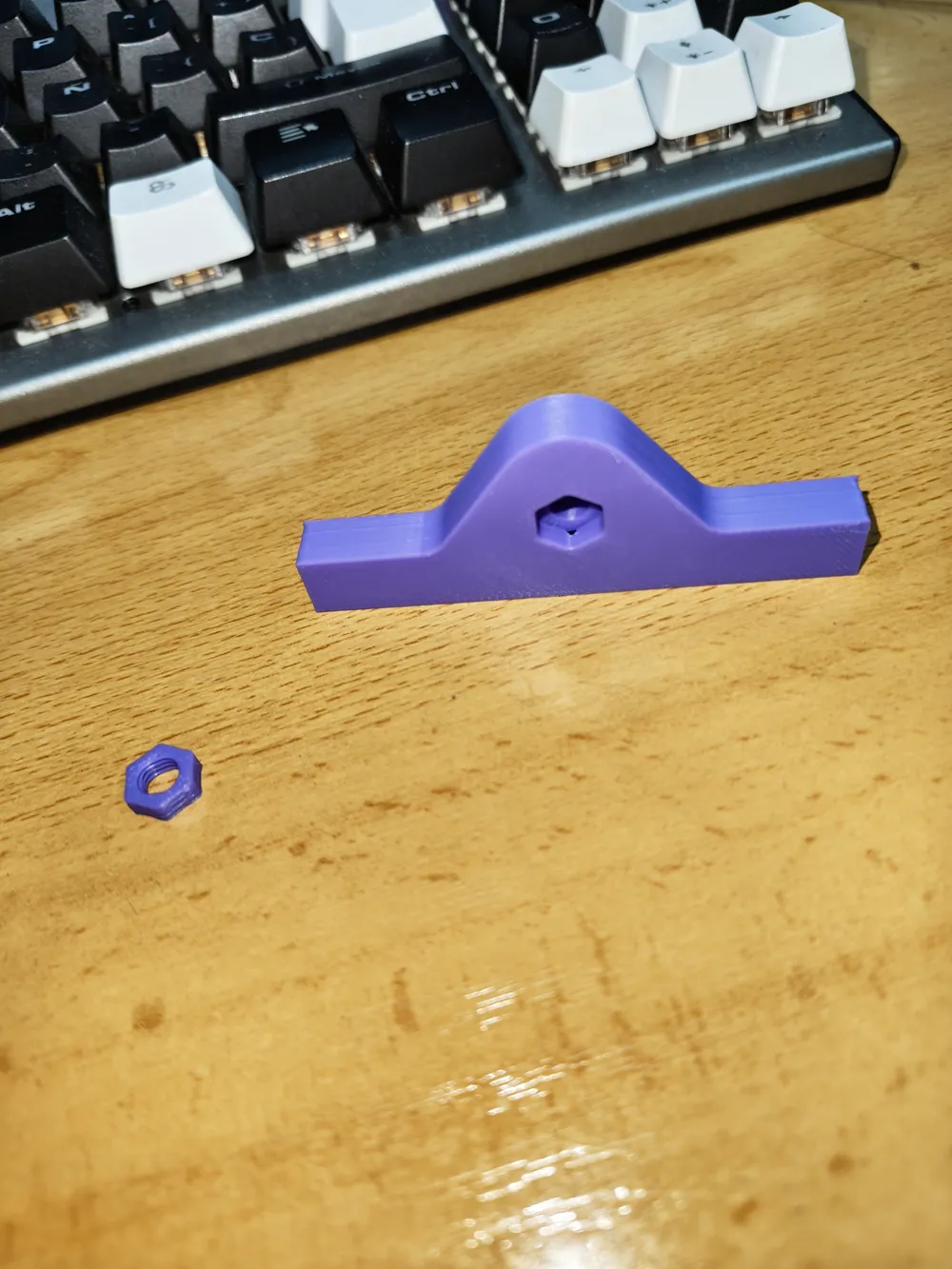

This design offers a robust and low-profile system for attaching bodies in LCG (Low Center of Gravity) configurations. It is designed to improve the rigidity of the assembly and ensure reliable fastening even under intensive use.
Features
- Compatible with LCG chassis and similar platforms.
- Optimized geometry for FDM printing without supports.
- Reinforced design in load areas to prevent loosening over time.
- Low profile to keep the center of gravity as low as possible.
Fastening

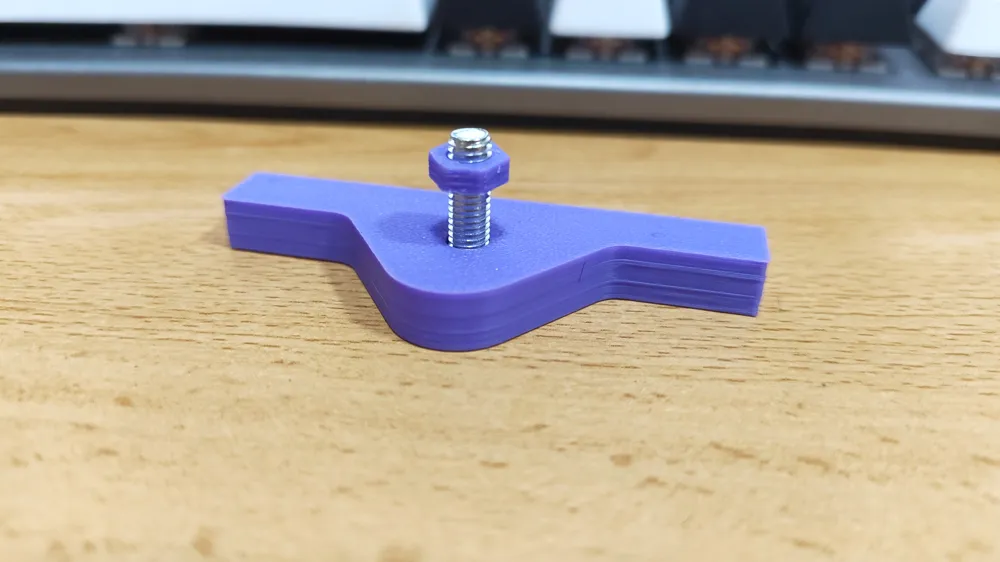

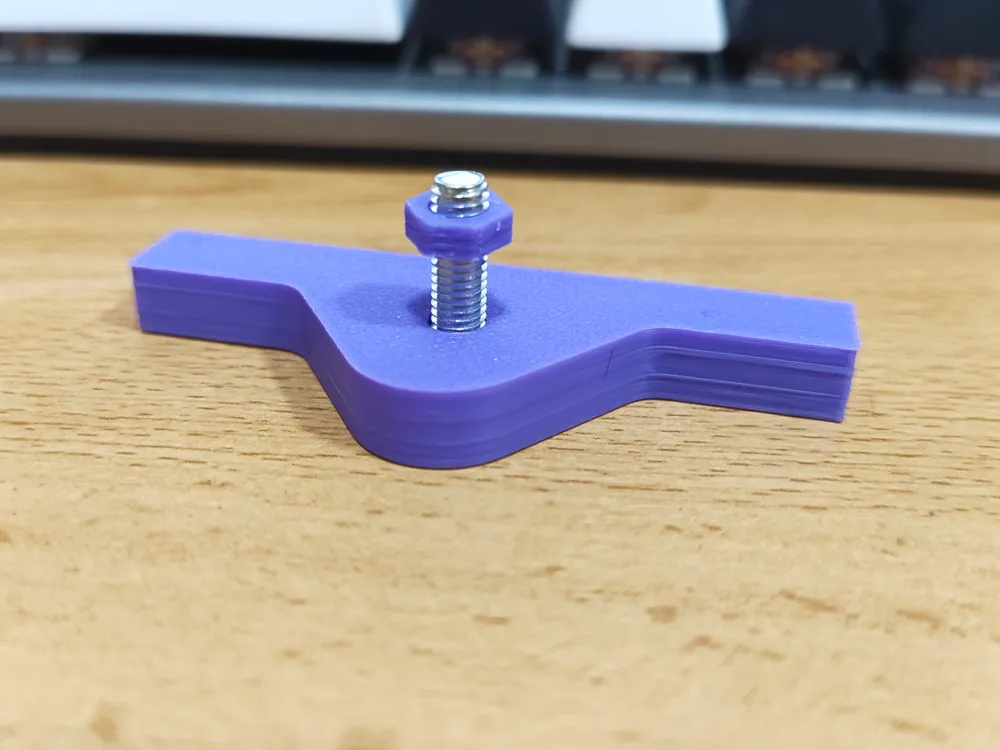

- Body → part: M5 screws (cylindrical or countersunk head recommended depending on preference).

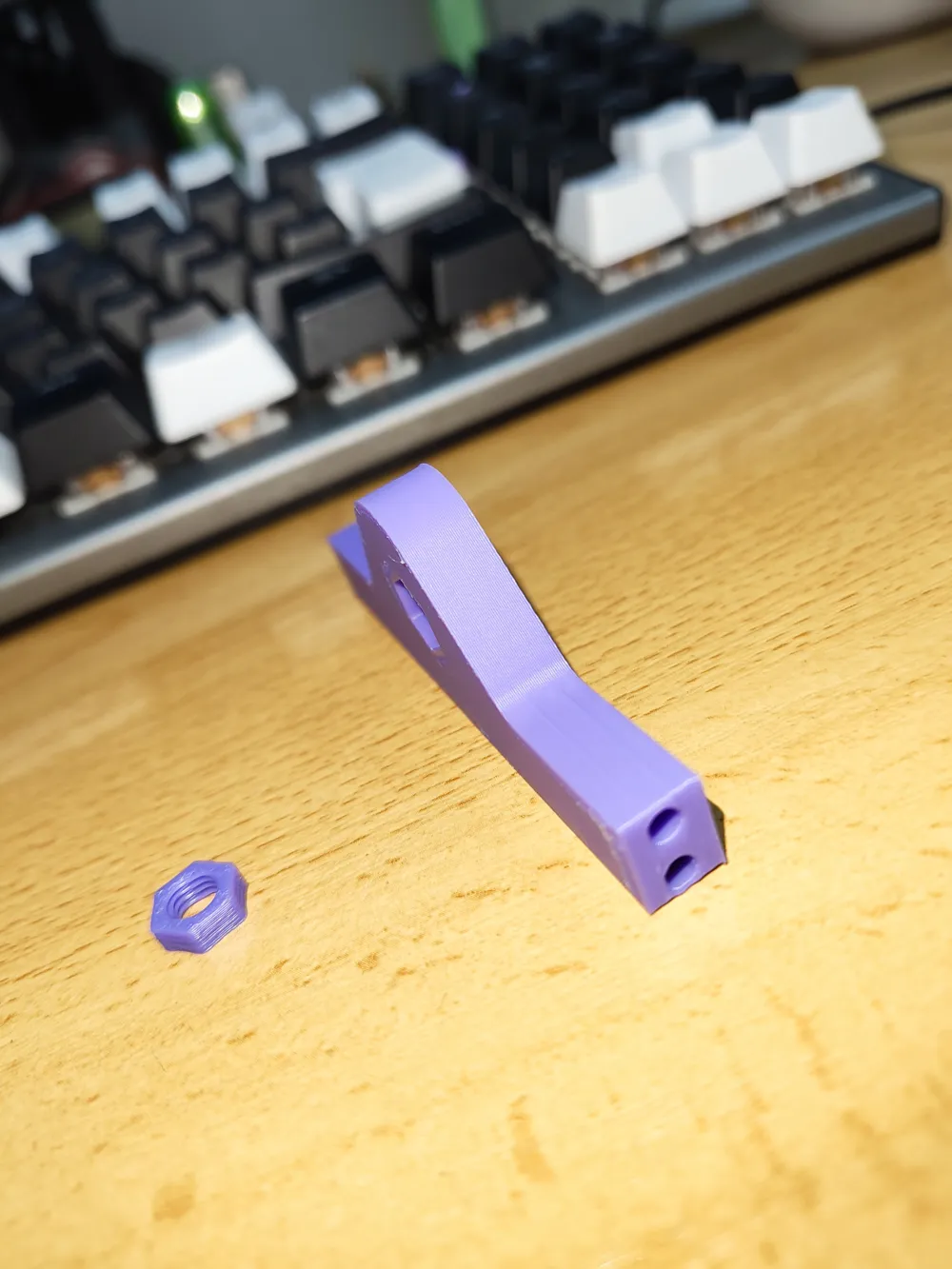

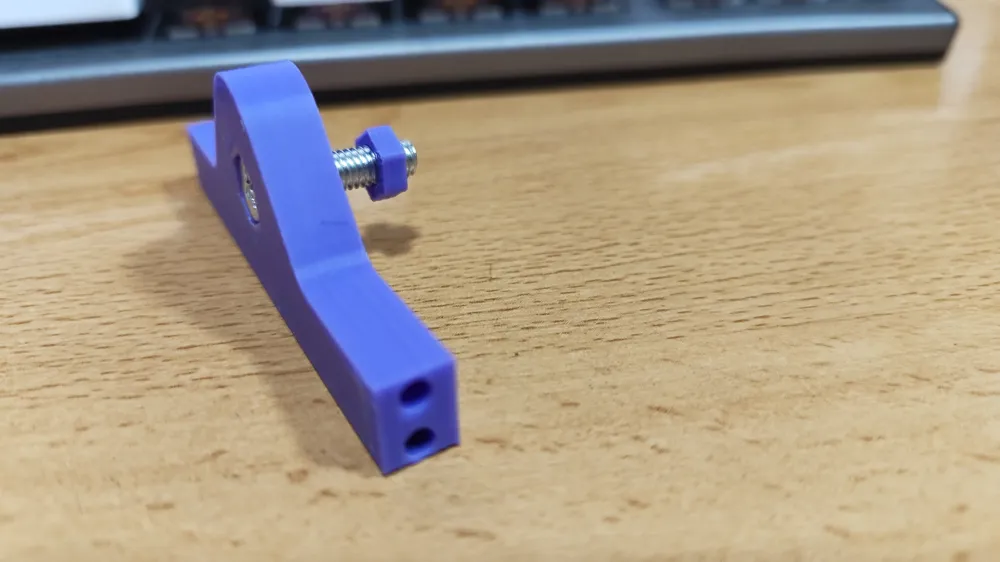

- Part → chassis: M3 screws, compatible with most standard chassis.
Recommended material
- PETG for a balance between flexibility and strength.
- ABS/ASA if you are looking for maximum durability and thermal resistance.
- PLA+ suitable for occasional use or testing.
Printing
- Layer height: 0.2 mm
- Perimeters: 3
- Infill: 30–40 %
- No supports
- Orientation: part flat on the bed for maximum Z-axis strength
Notes
If you have doubts about compatibility with your chassis or need a customized variant, I will be happy to help you.
