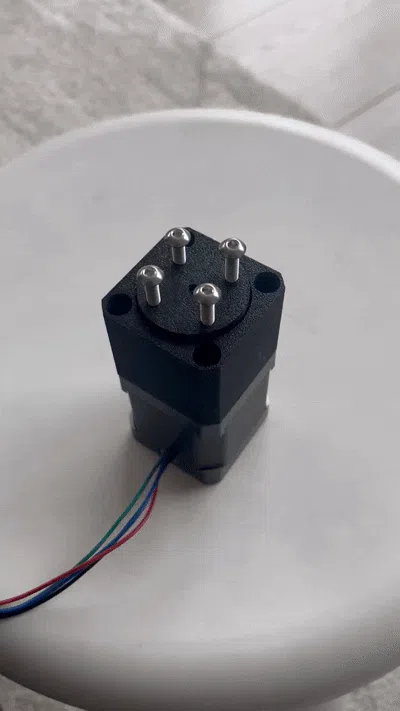

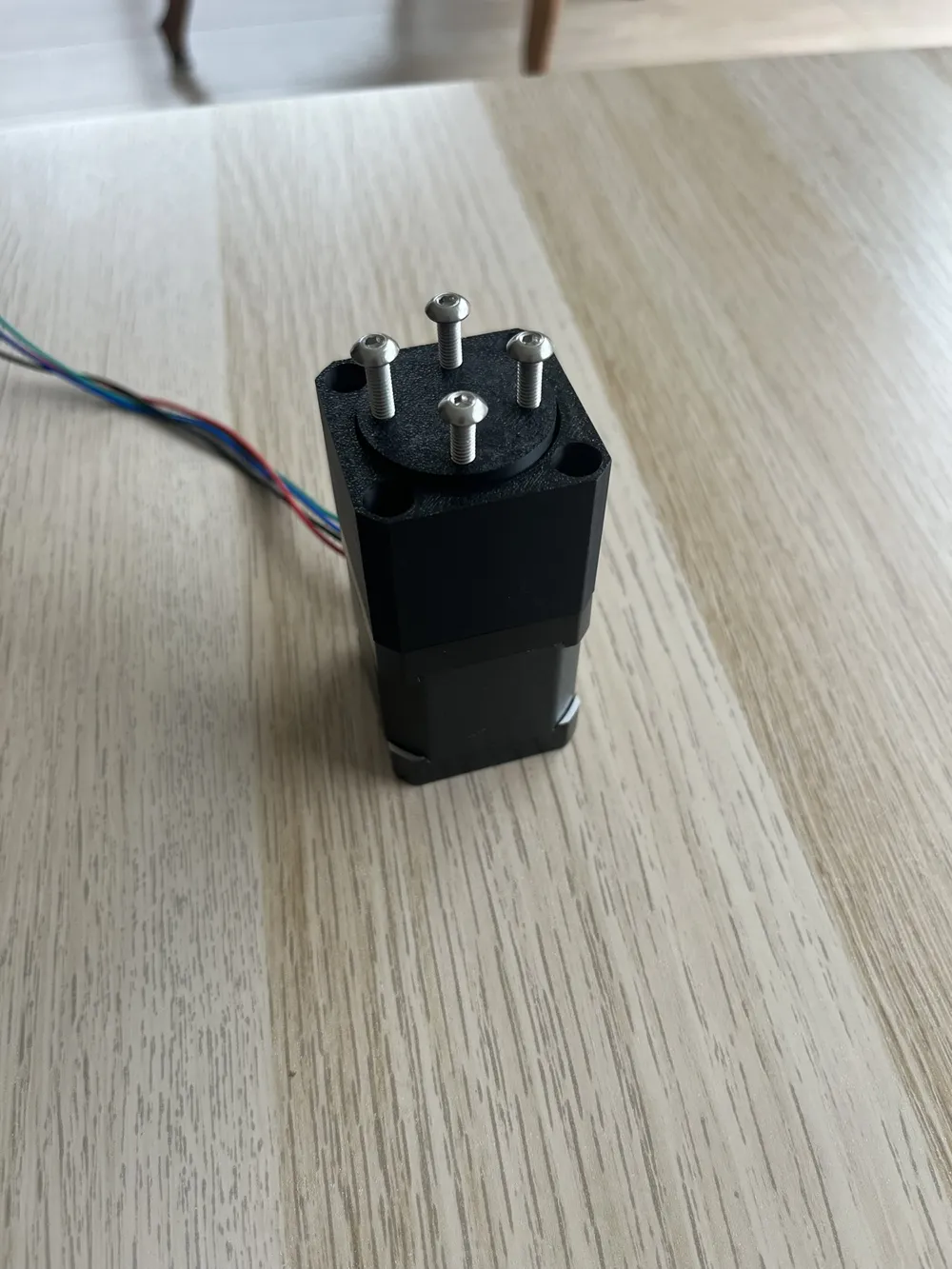

This 3D printed planetary gearbox features a 1:4 ratio, designed to boost the torque of your NEMA 17 stepper motor. It's a robust and compact solution for robotics, custom extruders, or any project requiring high mechanical advantage.

Technical Specs

Ratio: 1:4
Motor Compatibility: NEMA 17 (5mm shaft)

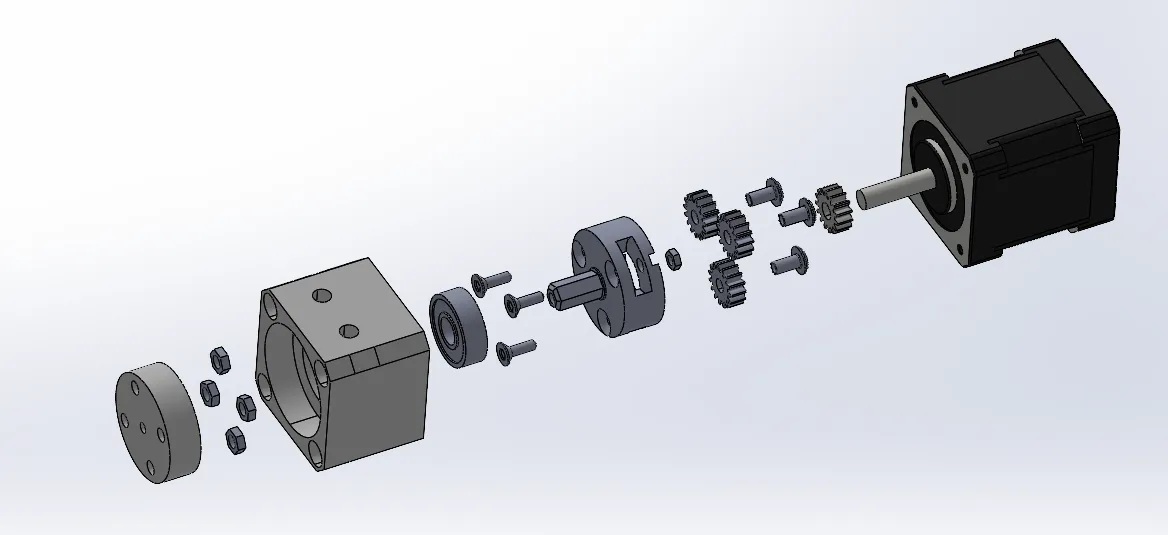

Design: 3-planet gear system for smooth power transmission.

BOM (Bill of Materials)

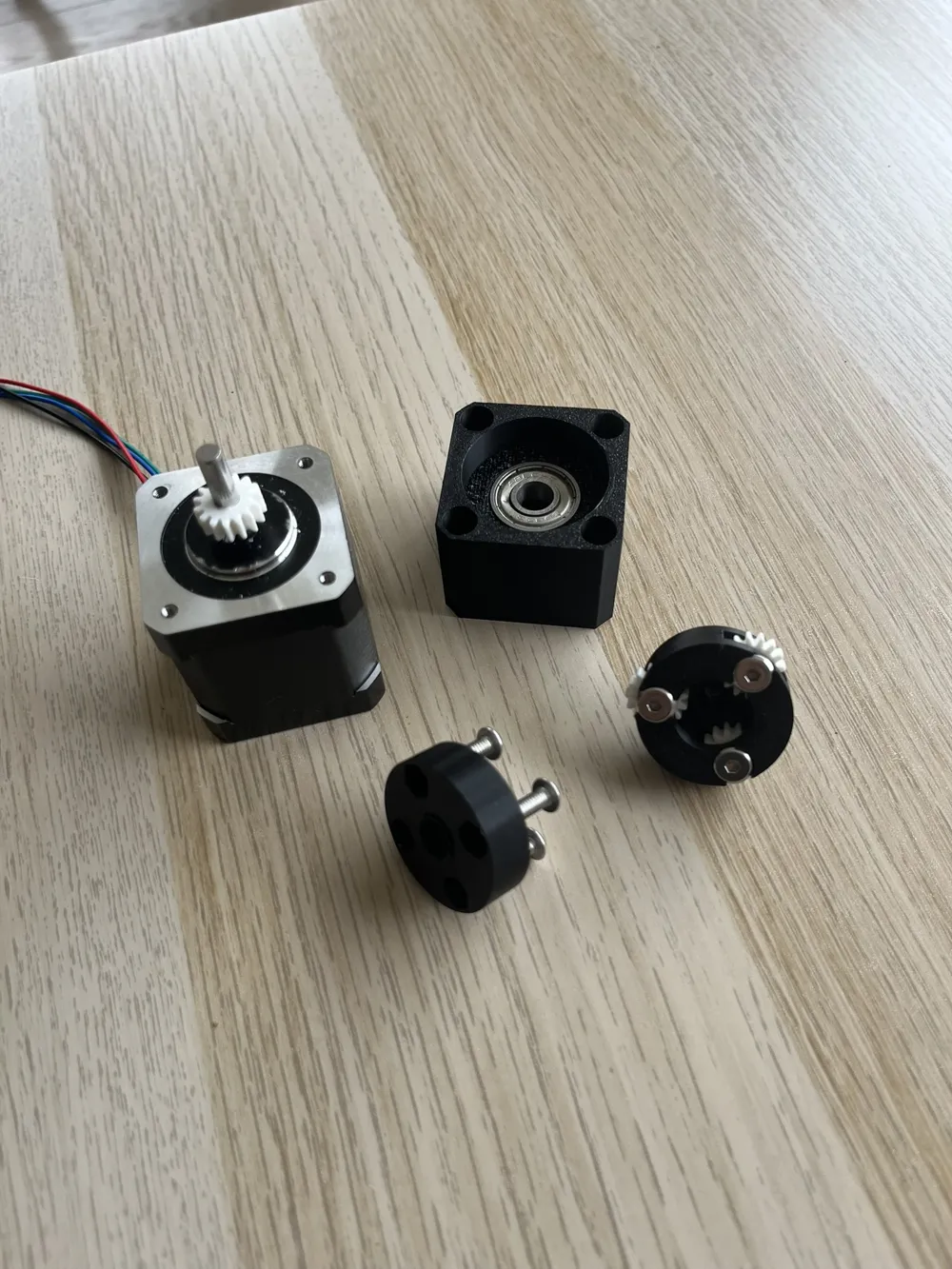

To assemble this kit, you will need:

1x M3 Nut
4x M4 Screws
3x M3 Bushings/Sleeves (for the planet gears)
3x M3 Countersunk Screws (8mm length)
