ModulAir L - 100mm Screw-On Hose Adapter CCW (4")

Designer

2.3 h

1 plate

5.0(65)

ModulAir L - 100mm Screw-On Hose Adapter CW (4")

Designer

2.3 h

1 plate

5.0(16)

Open in Bambu Studio

Boost

178

699

107

795

641

Released

Description

Boost Me (for free)

Love my models? Help them grow - your support matters! 🚀 📸 Share your prints - seeing real results drives better designs 💙 Hit Boost - helps new models reach more makers 🔧 Post a make - your builds inspire the community Every bit of support matters!

Part Number: MA-L100-SCR-CW & MA-L100-SCR-CCW

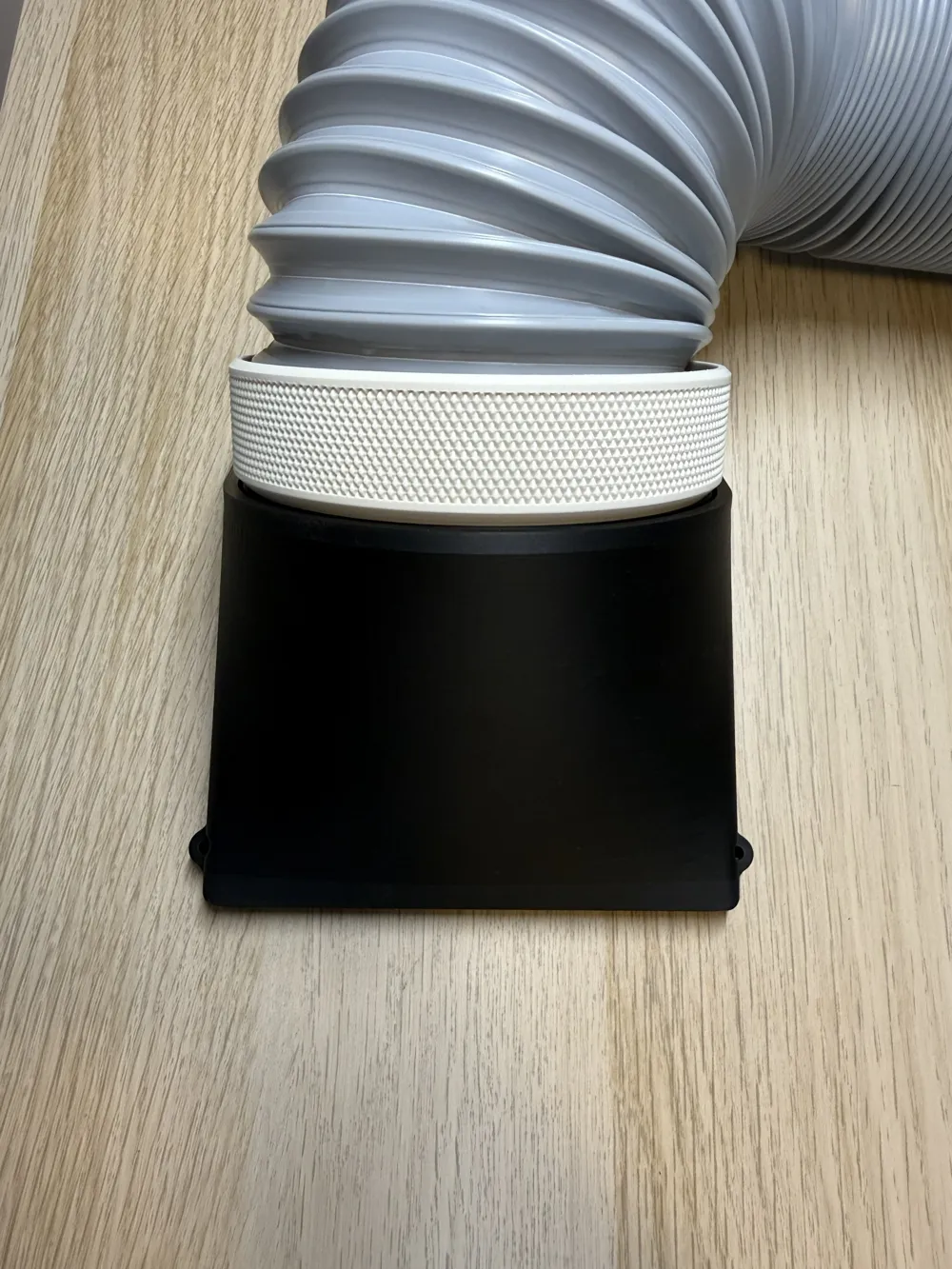

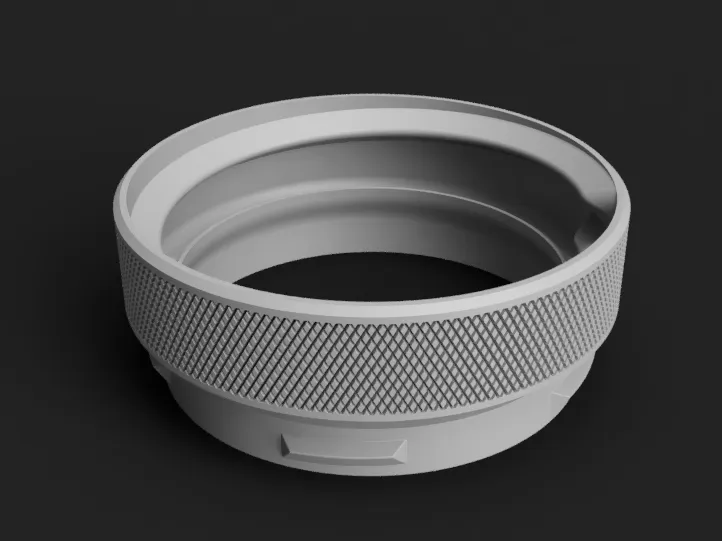

100mm (4") screw-on hose adapter available in both clockwise (CW) and counter-clockwise (CCW) spiral thread versions. Designed for quick-connect ModulAir bayonet system with secure 1/10 turn locking.

🚀 ModulAir Collection

This model is part of the ModulAir modular air system, a comprehensive ecosystem of quick-connect adapters for workshop air handling.

Browse the full collection: https://makerworld.com/en/collections/7342813-modulair-modular-air-system

Find all L100 compatible parts: https://makerworld.com/en/collections/7342813-modulair-modular-air-system?query=MA-L100

🔧 Model Overview

Interface Size: Large (connects to ModulAir Large female parts)
Hose Diameter: 100mm (4")
Maximum External Hose Diameter: 109mm
ModulAir Connection: QuickLock bayonet (~1/10 turn)
Hose Connection: Screw-on threaded (CW ↻ or CCW ↺)
Available Print Profiles: Both Clockwise and Counter-Clockwise

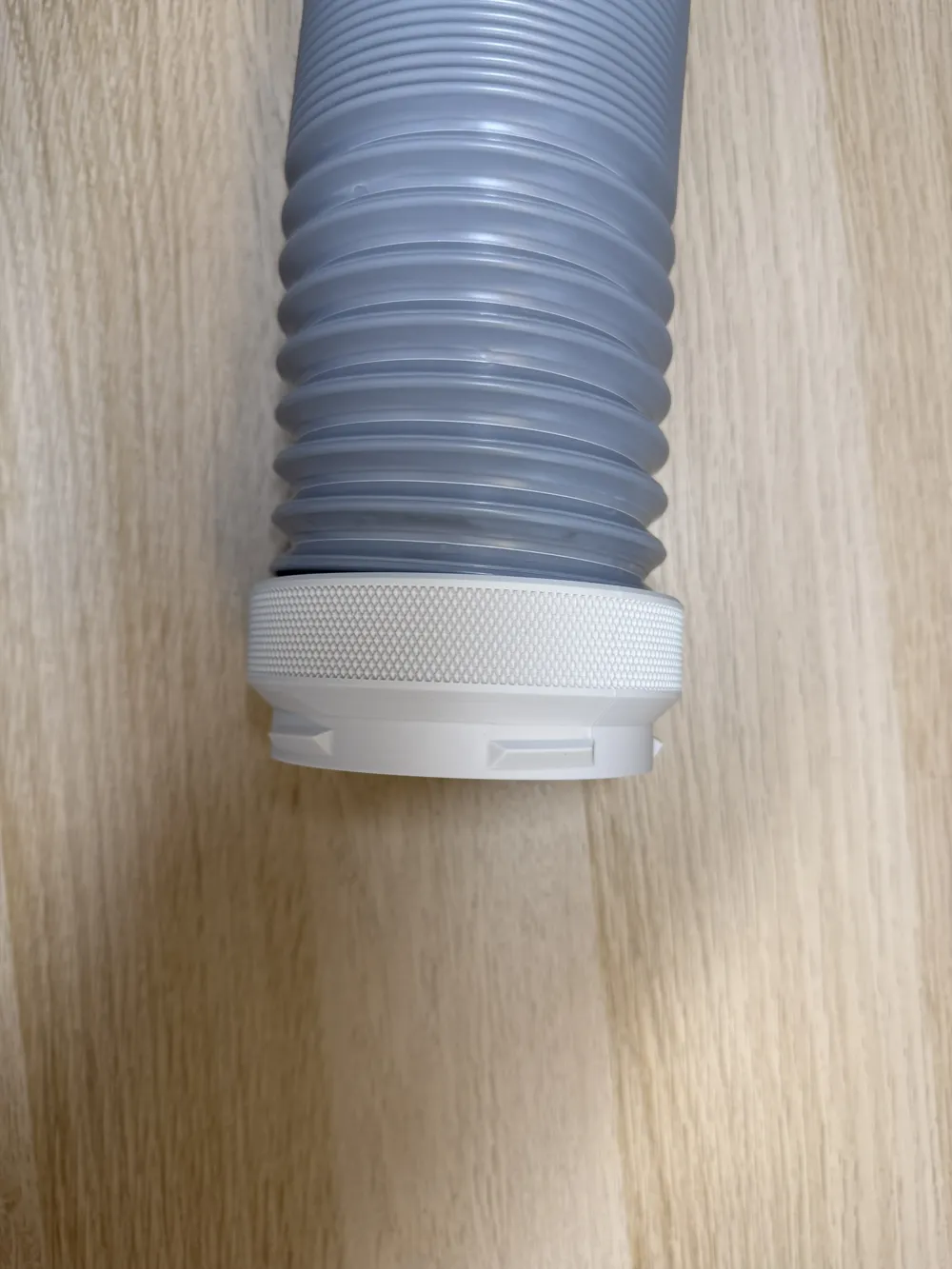

Compatible with 100mm (4") PVC spiral hoses or flexible aluminum

💡 Recommendations

PVC spiral hoses recommended for best performance
Choose CW or CCW version based on your hose thread direction

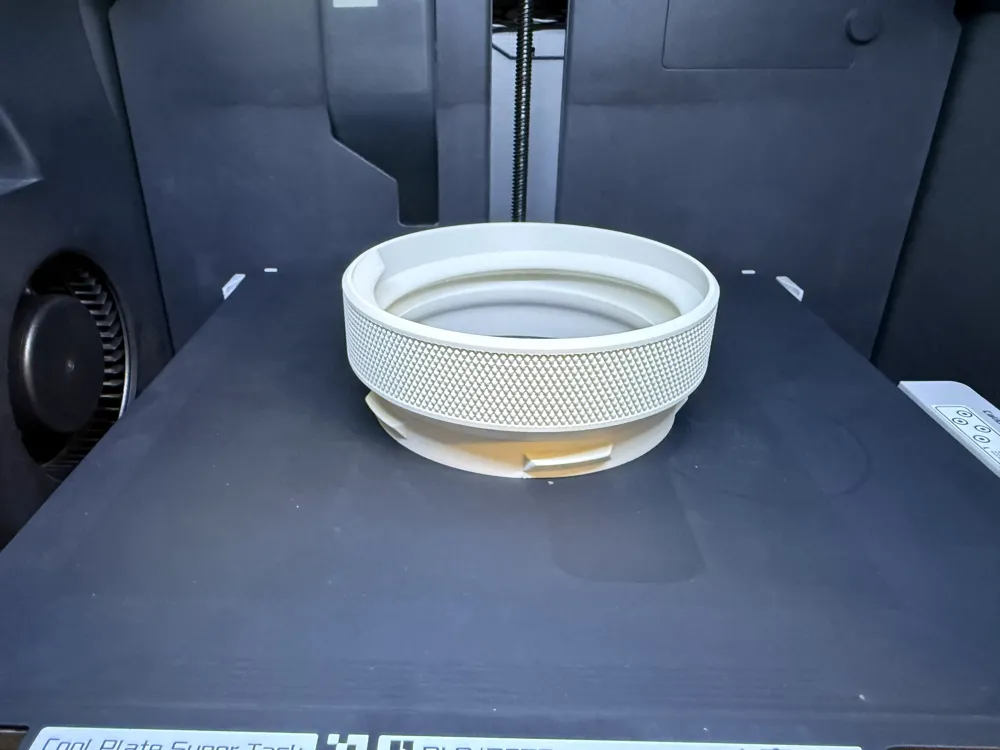

✨ CAD-designed and test-printed for reliable real-world use

🛠️ Every model is refined before release

💬 Have a custom request or question? Feel free to reach out!

📦 Browse my full collection: @DASTERLIER
