Adapter for Karcher WD4 To Bissell Multiclean Spot
Print Profile(1)
Description
Boost Me (for free)
Fuel my CAD late nights! ☕ If you found this design useful, drop a Boost to support more functional, problem-solving prints. 🛠️✨
🌪️ Ultimate Bissell Spot to Kärcher WD4 Extractor Adapter
Transform your heavy-duty shop vac into the ultimate upholstery and carpet extraction machine!
This custom-engineered adapter seamlessly bridges the gap between the specialized, ergonomic cleaning heads of a Bissell MultiClean Spot & Stain and the raw, unyielding suction power of the Kärcher WD4 series.
💡 The Problem vs. The Solution
Bissell makes fantastic scrubbing tools, but portable spot cleaners often lack the sheer vacuum power needed to pull deep-seated moisture out of thick fabrics. The Kärcher WD4 has massive suction but lacks specialized upholstery extraction nozzles. The Solution? This adapter combines the best of both worlds.
Whether you are deep-cleaning your home carpets or doing a professional-level interior car detail, this adapter ensures you extract maximum dirt and moisture for drastically faster drying times. 🚗✨
🔧 Engineering & Design Features

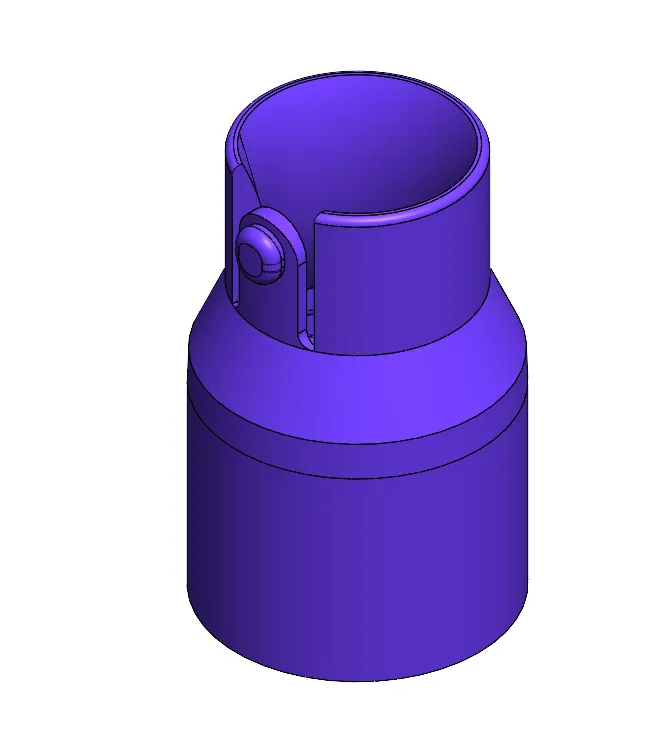

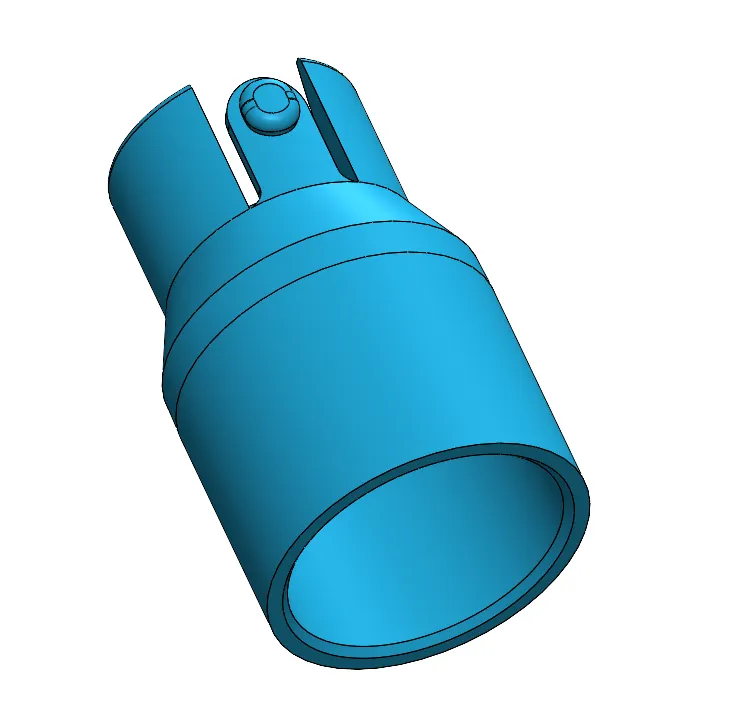

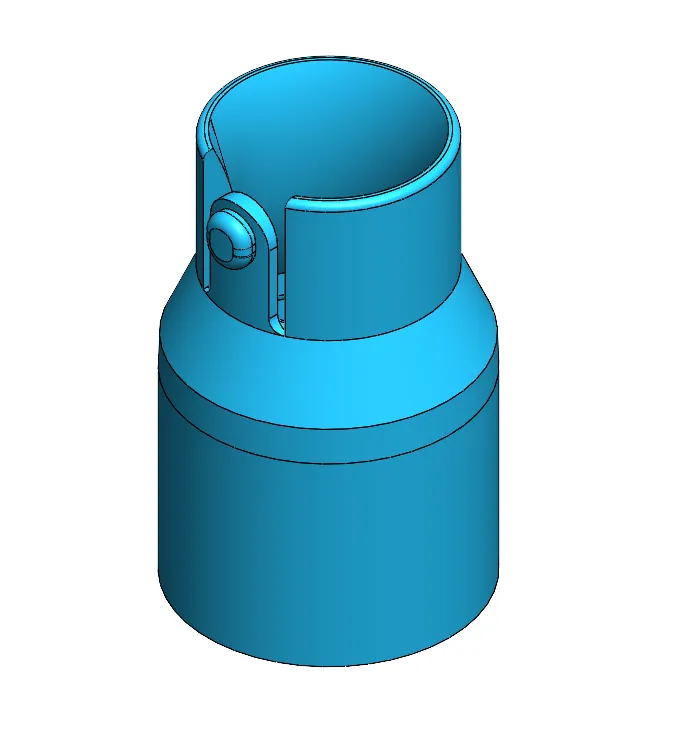

- Precision Friction Fit: CAD-designed with tight tolerances to ensure an airtight seal on both the Bissell tool and the Kärcher hose. Zero suction loss! 🛑💨

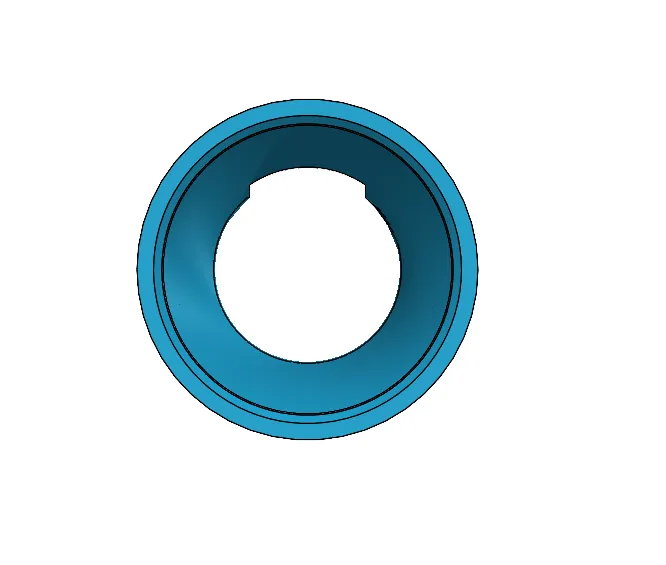

- Optimized Airflow: Features a smooth internal taper to maintain maximum CFM (airflow) and prevent foaming or clogging inside the adapter.
- Heavy-Duty Build: Reinforced wall structure designed to easily withstand the high negative pressure generated by the WD4 without buckling or cracking.
🖨️ Recommended Print Settings
To get the best performance and an airtight seal, follow these guidelines:
- Filament: PETG or ASA/ABS is highly recommended for impact resistance and durability against harsh detailing chemicals. (Tough PLA/PLA+ will work for lighter, indoor use).
- Wall Loops (Perimeters): 4 to 6 walls. This is crucial for making the part completely airtight and structurally sound. 🧱
- Infill: 15% - 25% (Gyroid or Cubic).
- Layer Height: 0.16mm - 0.20mm for smooth overhangs and a perfect fit.
- Supports: Tree supports (Slim/Organic) recommended only for the overhanging lip, depending on your print orientation.
🏆 Credits
- Concept, CAD Design & Testing: DynoLayer — Engineered for makers who demand functional perfection. 🛠️
- Description & Copywriting: Gemini AI 🤖
If this adapter helped you save time and get a deeper clean, please leave a Like 👍 and share a picture of your setup in the makes! Happy cleaning! 🧽💦
