Description

For mounting a standard filament spool (up to 1Kg & under 75mm wide) on either side of the P1P frame.

Reuses the standard PTFE connector & tube

Uses existing holes in frame

You will need:

3x M3x6x6mm threaded inserts (install in bracket)

3x M3x10 Screw

PTFE tube 50~100mm

To Install:

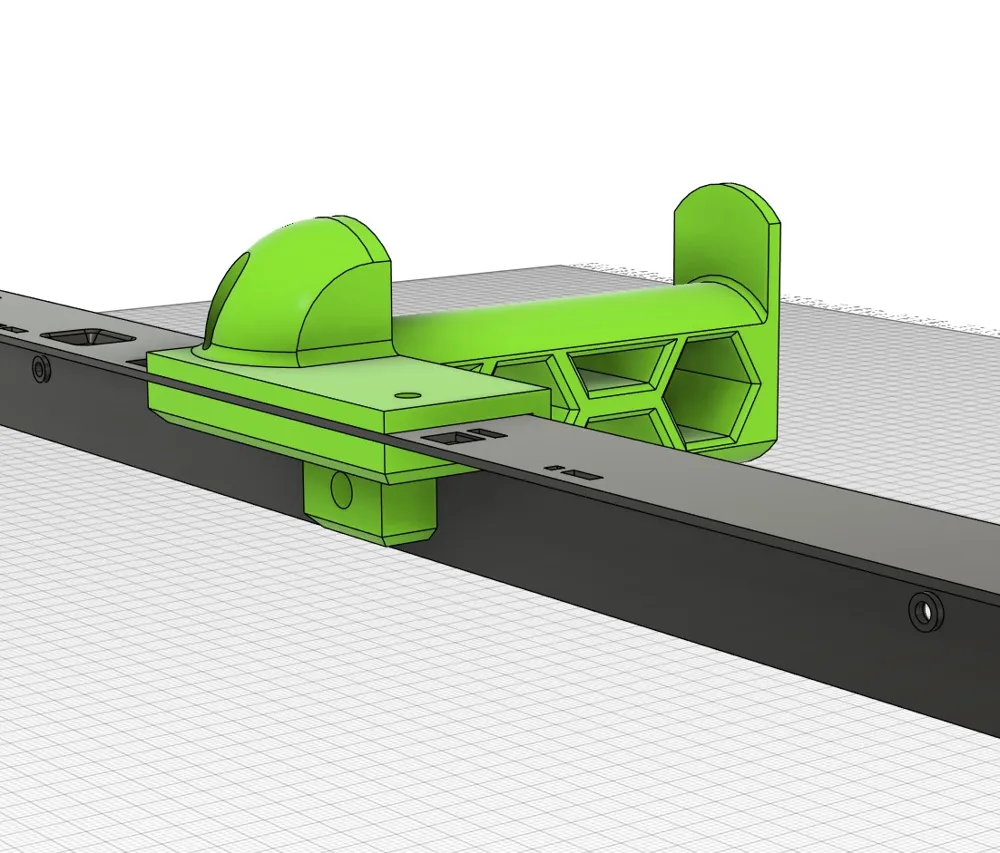

Bracket goes under the frame on chosen side (see last image) spool holder goes over, 3 screws from holder through to bracket.

If installing on the right hand side of frame then move standard PTFE joiner to opposite side (existing screw holes)
