Miyoo Mini Plus Joystick Attachment

Description

Introduction

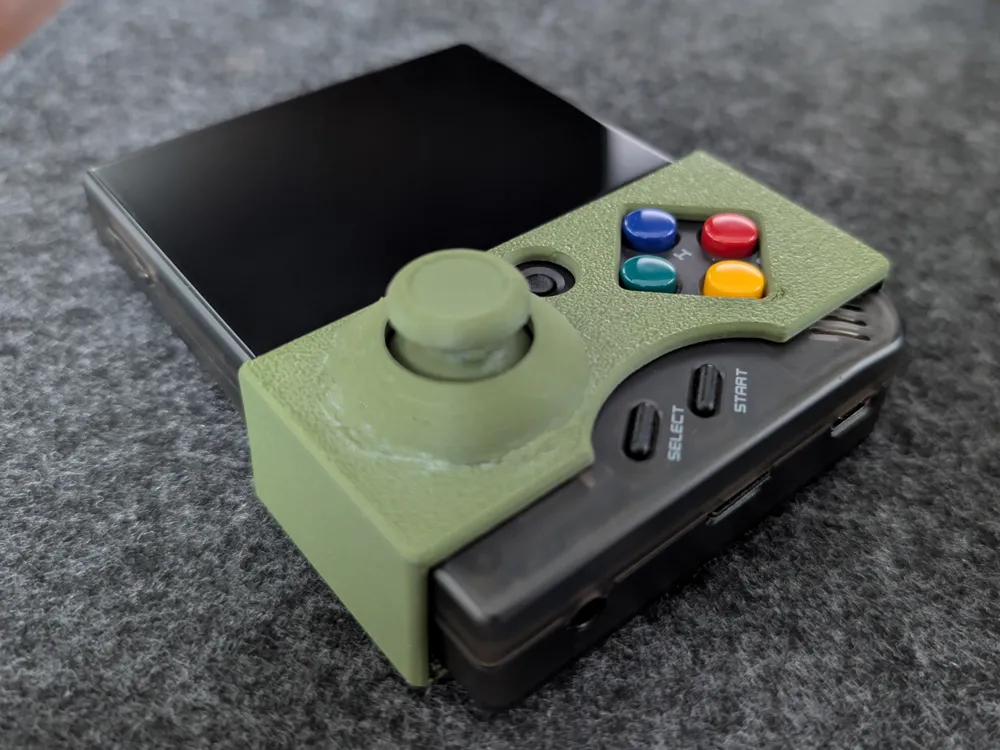

The Miyoo Mini Plus Analog Joystick Attachment adds analog control to your handheld gaming device, significantly improving gameplay for N64 and PS1 titles that require precise directional input. This practical upgrade bridges the gap between the device's native D-pad and the analog control many classic games were designed for, enhancing your retro gaming experience without permanent modifications.

Key Features

• Enhanced Control: Provides analog stick functionality for N64 and PS1 games that rely on precise directional input, improving gameplay accuracy and comfort.
• Non-Destructive Design: Sits over the existing device without requiring any permanent modifications or disassembly of your Miyoo Mini Plus.
• Accessible Buttons: Maintains full access to all face buttons (ABXY) and device controls while the attachment is in place.
• Removable: Easy to install and remove, allowing you to switch between D-pad and analog control based on the game you're playing.
• Ergonomic Profile: Low-profile design that doesn't significantly increase the device's footprint while providing comfortable thumb placement.

Specifications

• Compatible Device: Miyoo Mini Plus

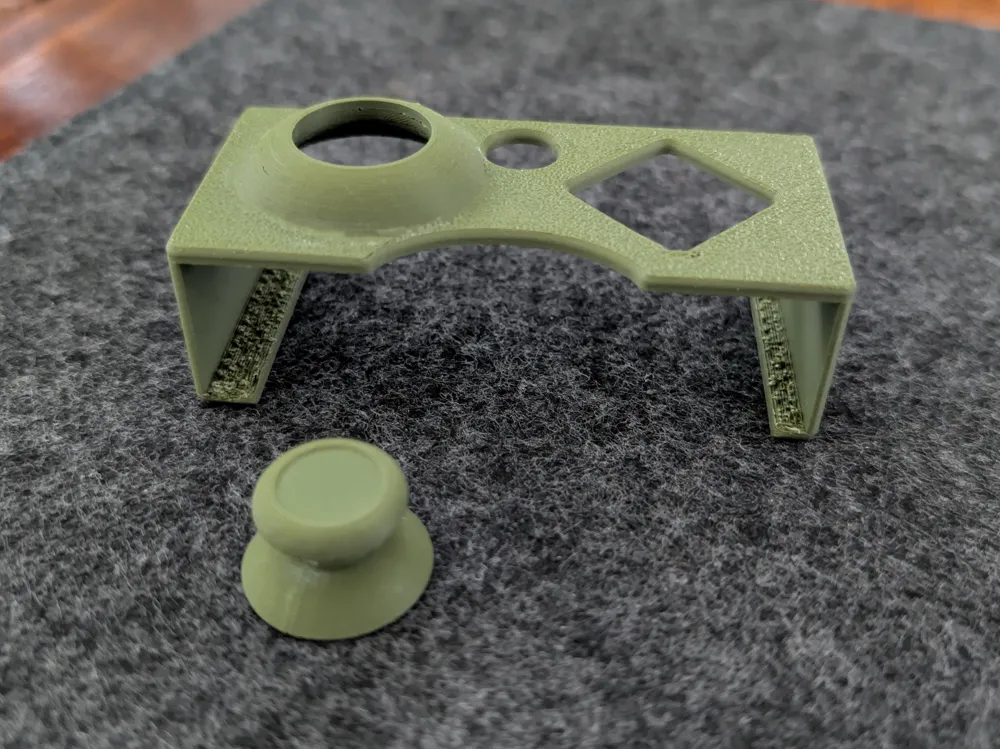

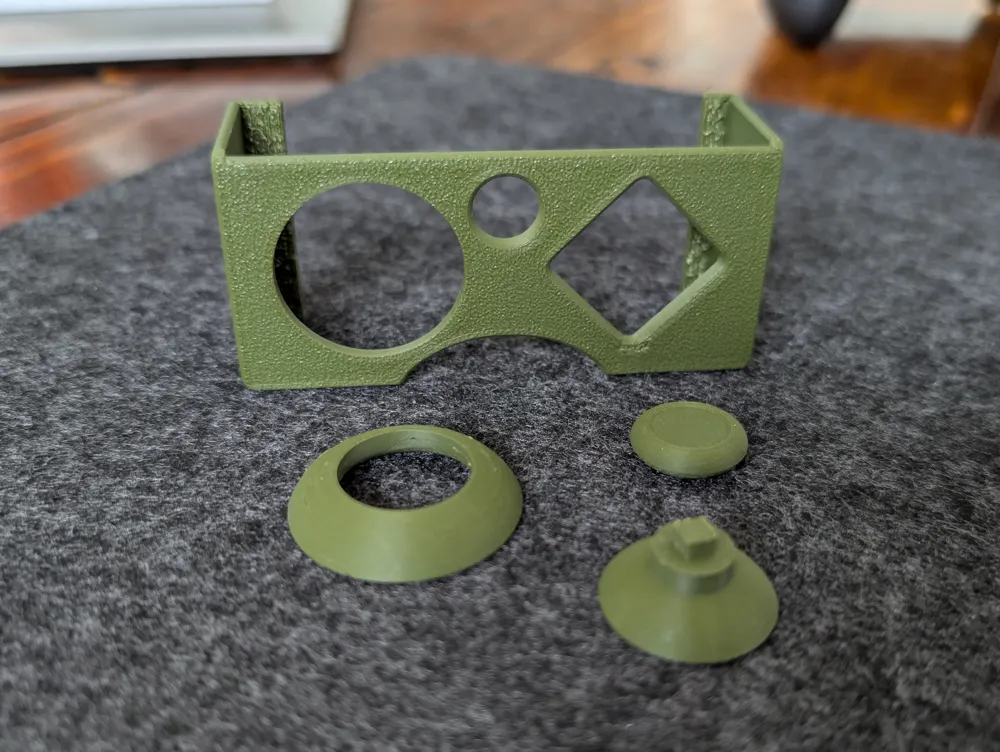

• Components: Four-piece design (main frame, joystick cavity, joystick bottom, and joystick top)
• Material Recommendations: PLA (ideal), PETG, or ABS for durability and a quality finish

Print Settings

• Material: PLA (ideal), PETG, ABS
• Supports: Required for frame overhangs and proper geometry
• Infill Density: 15% - 30% for structural integrity without excess weight
• Layer Height: 0.08mm - 0.12mm for smooth surfaces and proper fit tolerances
• Adhesion: Ensure proper bed adhesion, especially for the smaller pieces. A glue stick helps, but not required.

Requirements

• Miyoo Mini Plus
• Super Glue
• Basic assembly and super glue skills
• Optional: Light sanding if you want a smoother finish.

Assembly

• Super glue the Thumbstick Top and Bottom together.
• Super glue the Thunbstick Holder (cavity) to the Base Plate. Ensure it is centered when gluing.

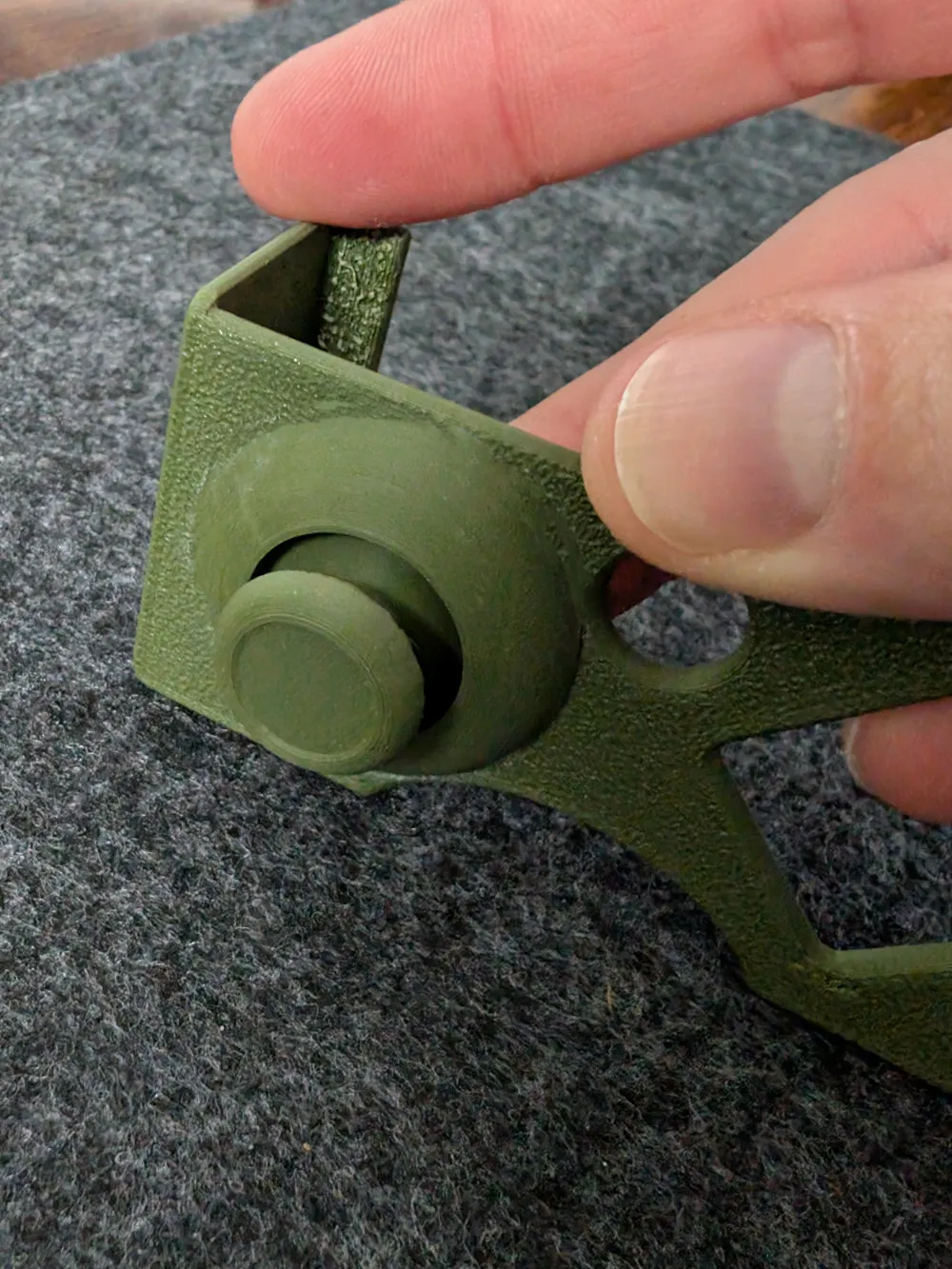

• Once the glue is dry, place the Thumbstick through the Base Plate.

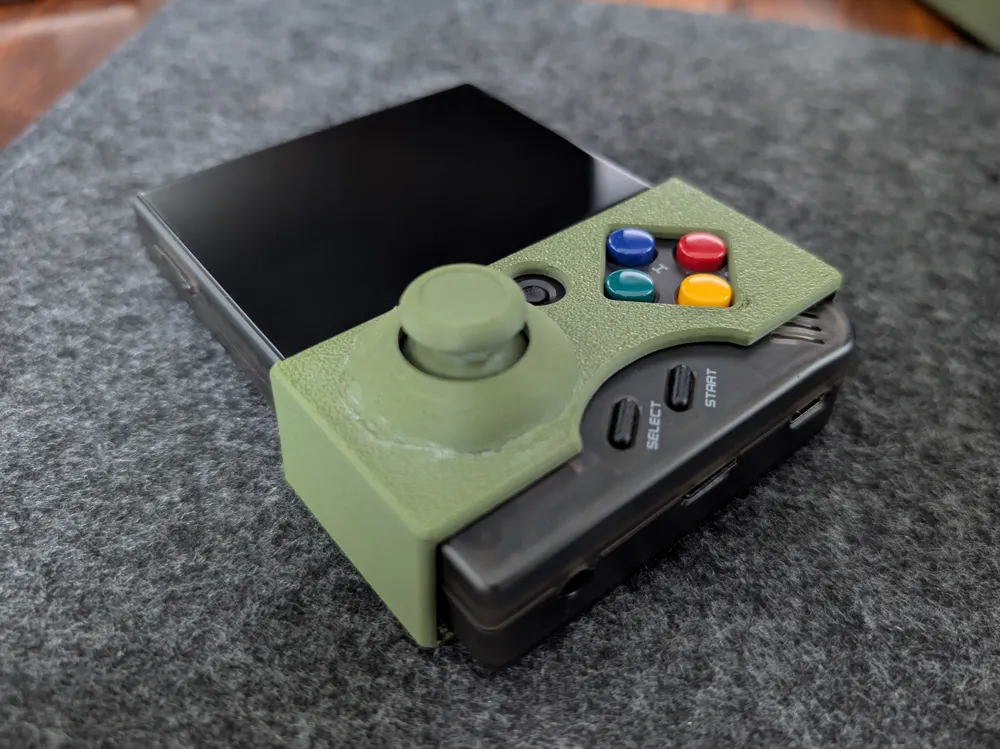

• Slide the Joystick Attachment onto you Miyoo Mini Plus from the button. You will need to push the buttons in to ensure proper clearance.

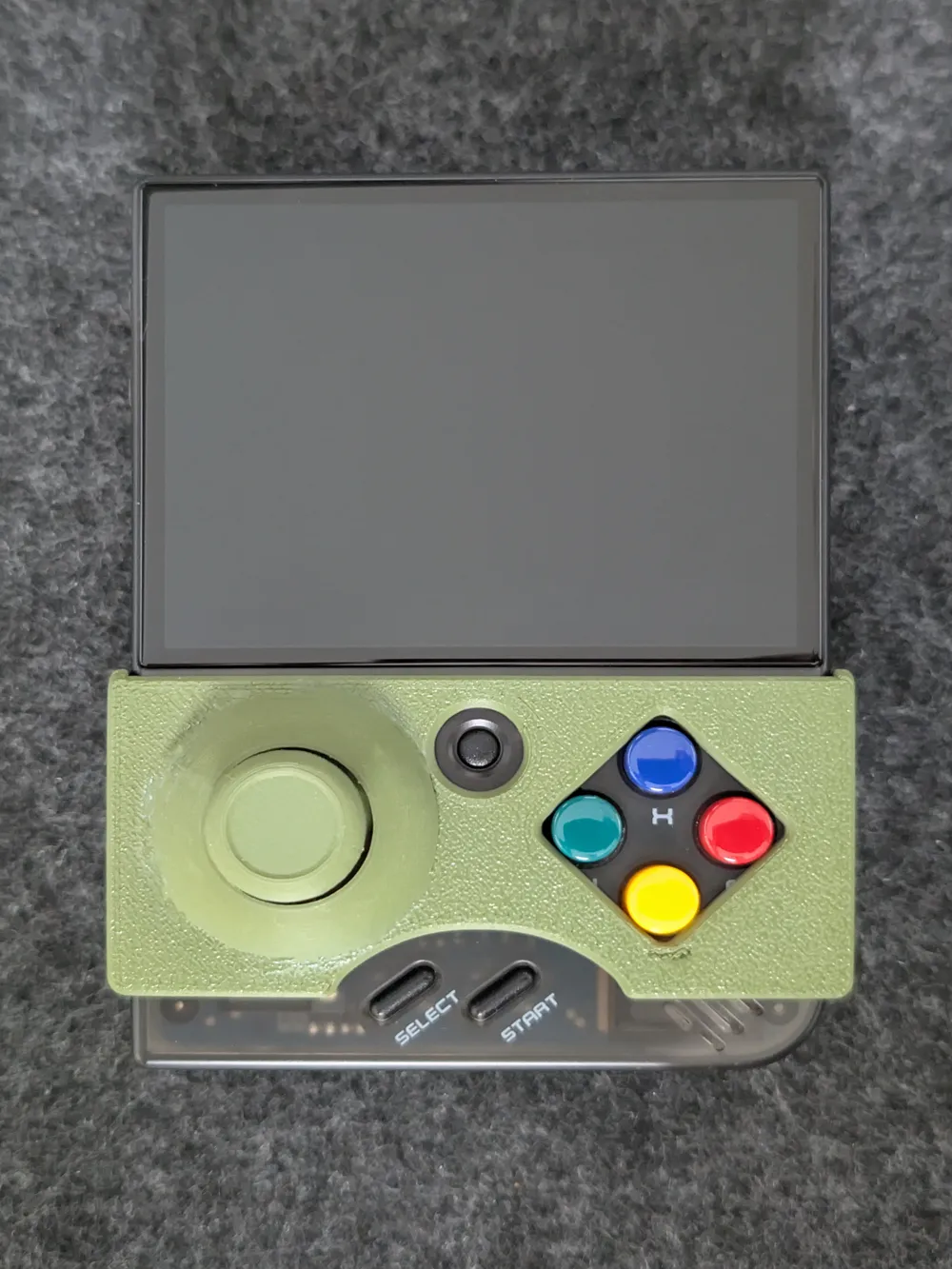

• Ensure the Joystick Attachment is properly aligned.
• Happy Gaming!

Commercial Use This design is free for personal, non-commercial use. If you wish to sell or monetize this model, please contact me via DM to discuss terms, conditions, and your individual pricing plan.

Thank You! I hope this analog attachment enhances your N64 and PS1 gaming sessions on the Miyoo Mini Plus. Feel free to share feedback or photos of your builds!
