"No-Mark Base" fastener/no-drill mounting adhesive (for pegboards, wall art, and other wall-mounted accessories) seamless wall mounting

"No-Mark Base" fastener/no-drill mounting adhesive (pegboards, wall art, and other wall-mounted accessories)

No nails, no glue;
No drilling, yet strong support.
When 3D printing meets home ingenuity, lightness and sturdiness are no longer at odds.

This is a no-drill wall mounting base designed for modern living,
suitable for various wall-mounted accessories such as pegboards, wall art, shelves, and hooks.
No drilling, no tools, no complex assembly required—
just stick it on the wall, insert the screw, and the installation is complete.

The entire process is quiet, clean, and efficient,
like a small but clever life upgrade.

✨ Why choose it?

✅ Perfectly compatible with mainstream 3M adhesive tapes

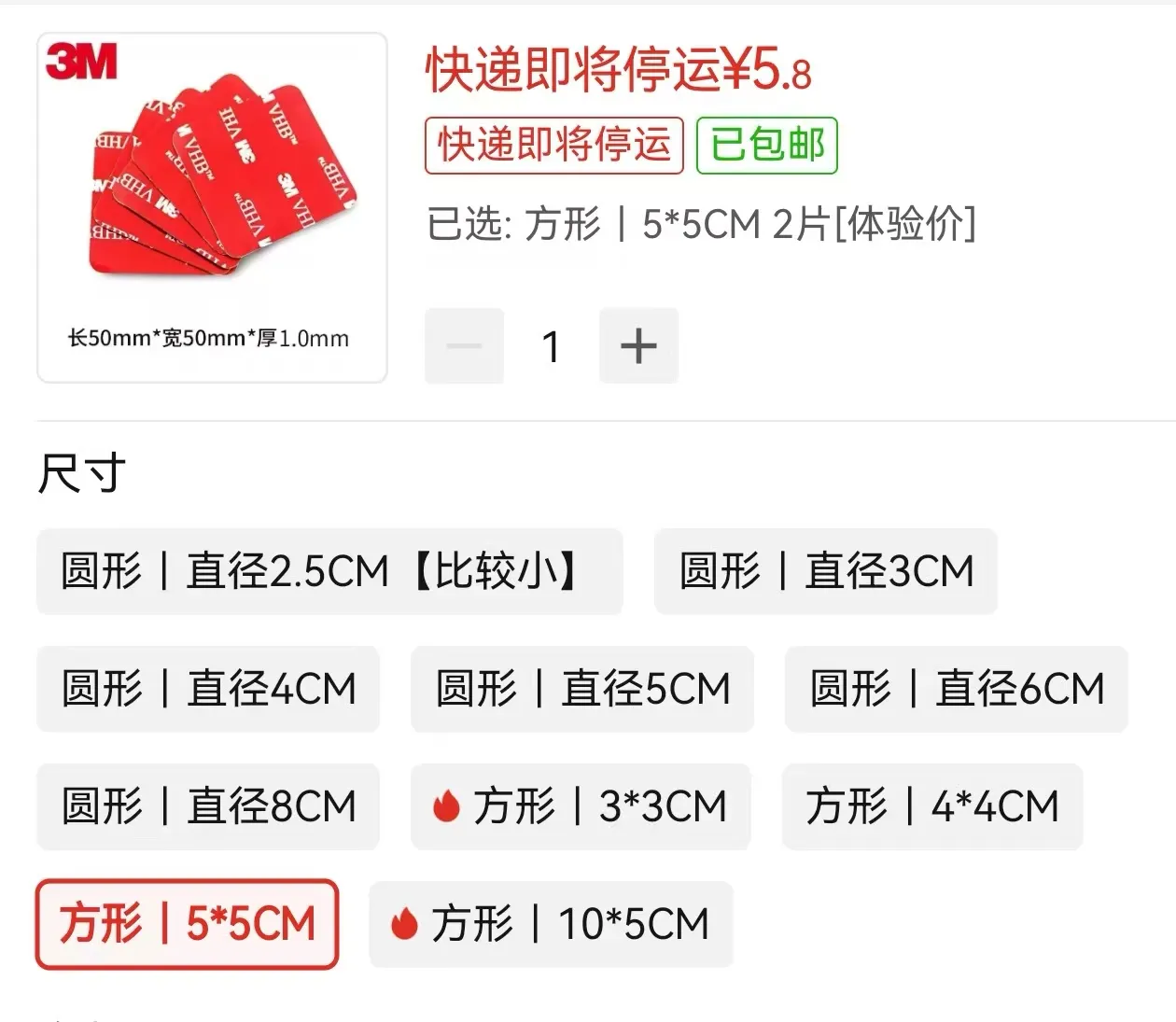

• Precisely sized to match common square + round 3M VHB adhesive tapes (as shown in figure)
• Can be directly adhered to smooth surfaces like tiles, glass, metal, and wood boards
• Adhesive tape is replaceable, allowing reuse without damaging walls

✅ Universal screw hole design

• Supports M3 / M4 / M5 three common thread specifications
• Center hole reserved with safety margin to prevent stress concentration
• More sizes (e.g., 6mm, 8mm) can be expanded later, welcome to collect and follow

✅ Multiple sizes available to flexibly adapt to different scenarios

✅ Optimized structure, print-friendly

• Rounded corner design (R6) enhances strength and feel
• Surface texture increases friction, preventing slips and detachment
• no supports, overhang angle < 45°, smooth printing
• Wall thickness 2.0mm, balancing lightness and load-bearing capacity

🖨️ Born for the ultimate printing experience

🧩 User Guide (super easy!)

1. Print → Select desired size (round or square)
2. Cool → Wait for the model to cool naturally to room temperature

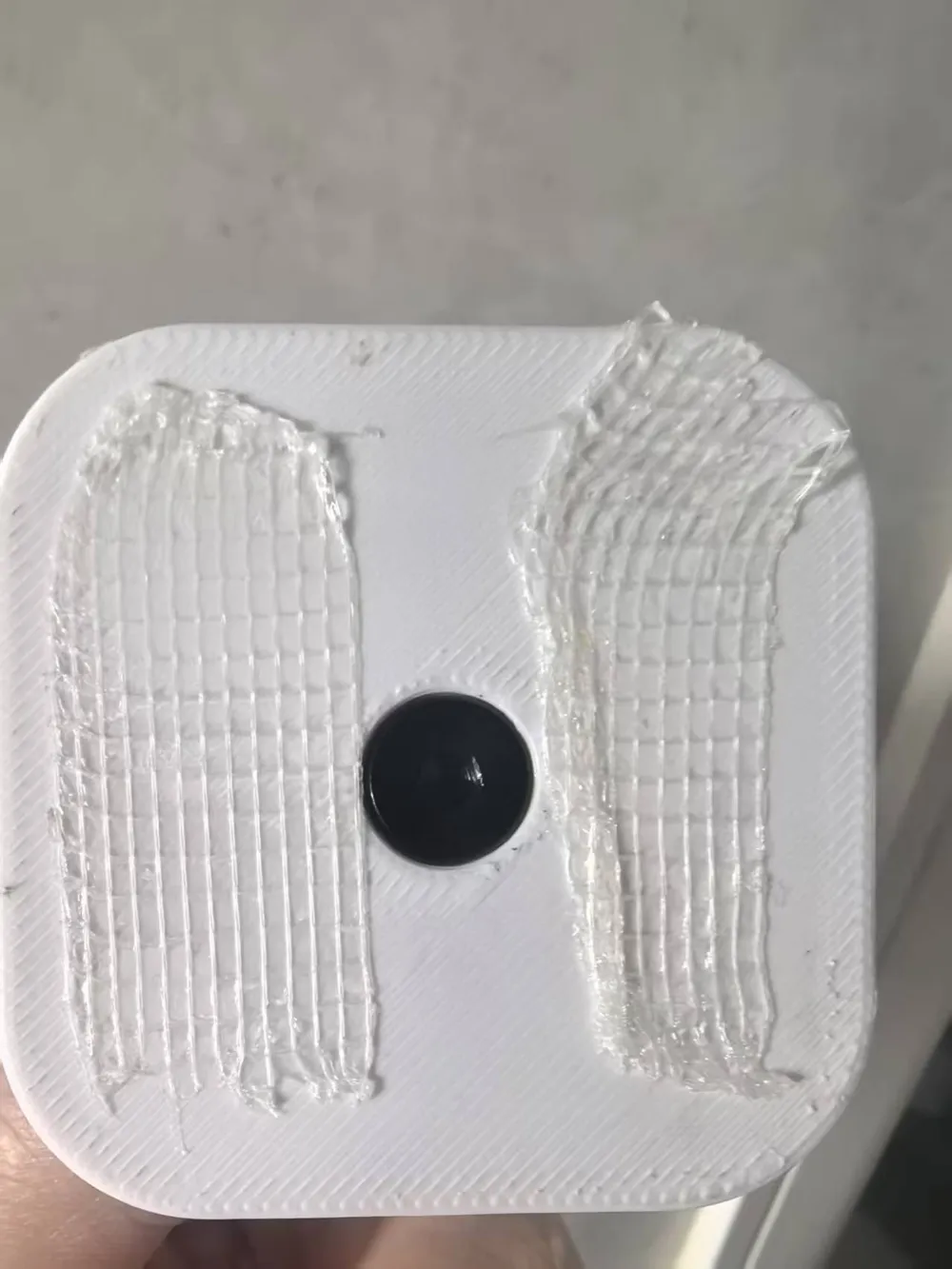

3. Adhere → Attach 3M VHB adhesive tape to the back (5×5cm recommended)

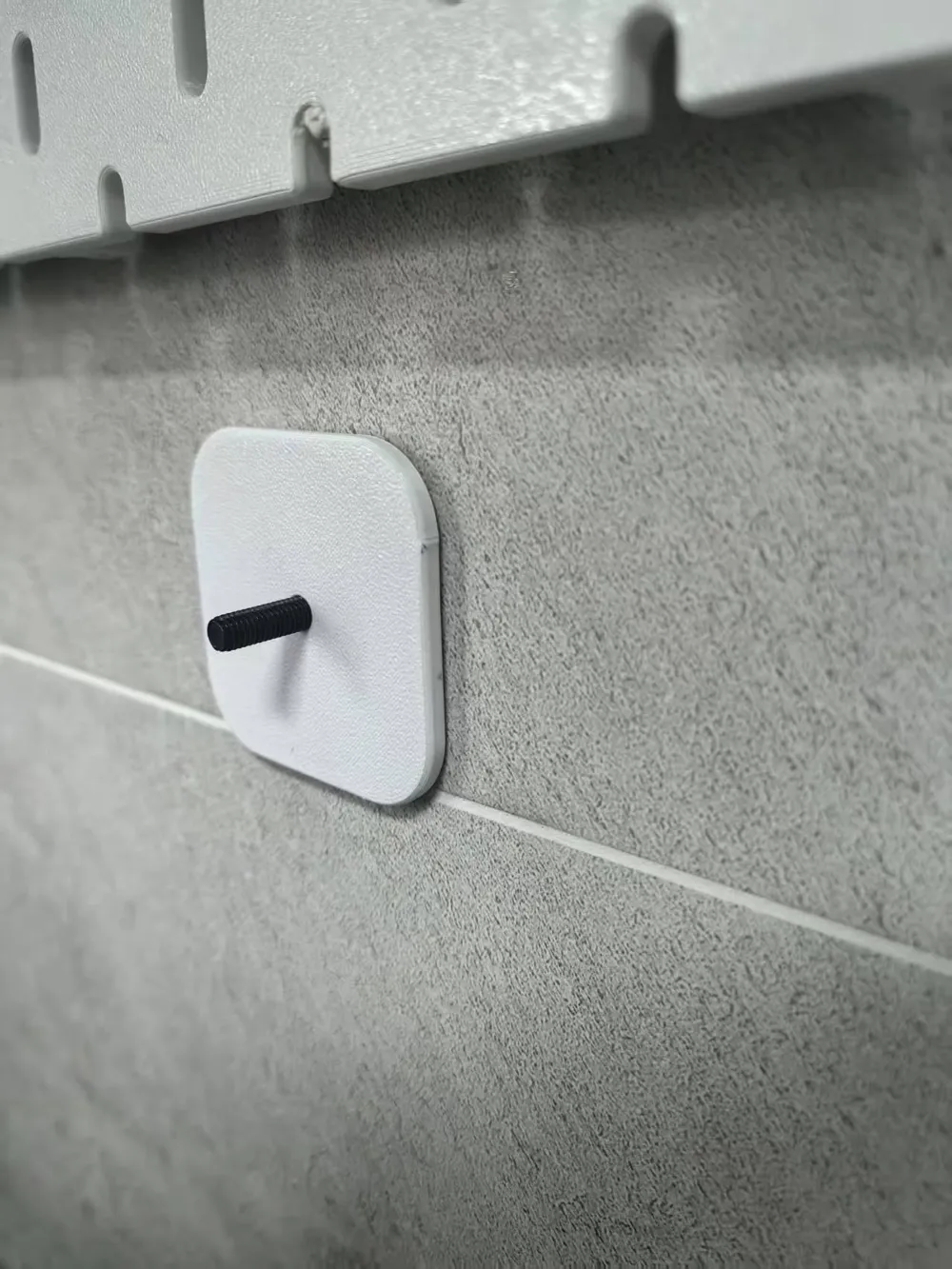

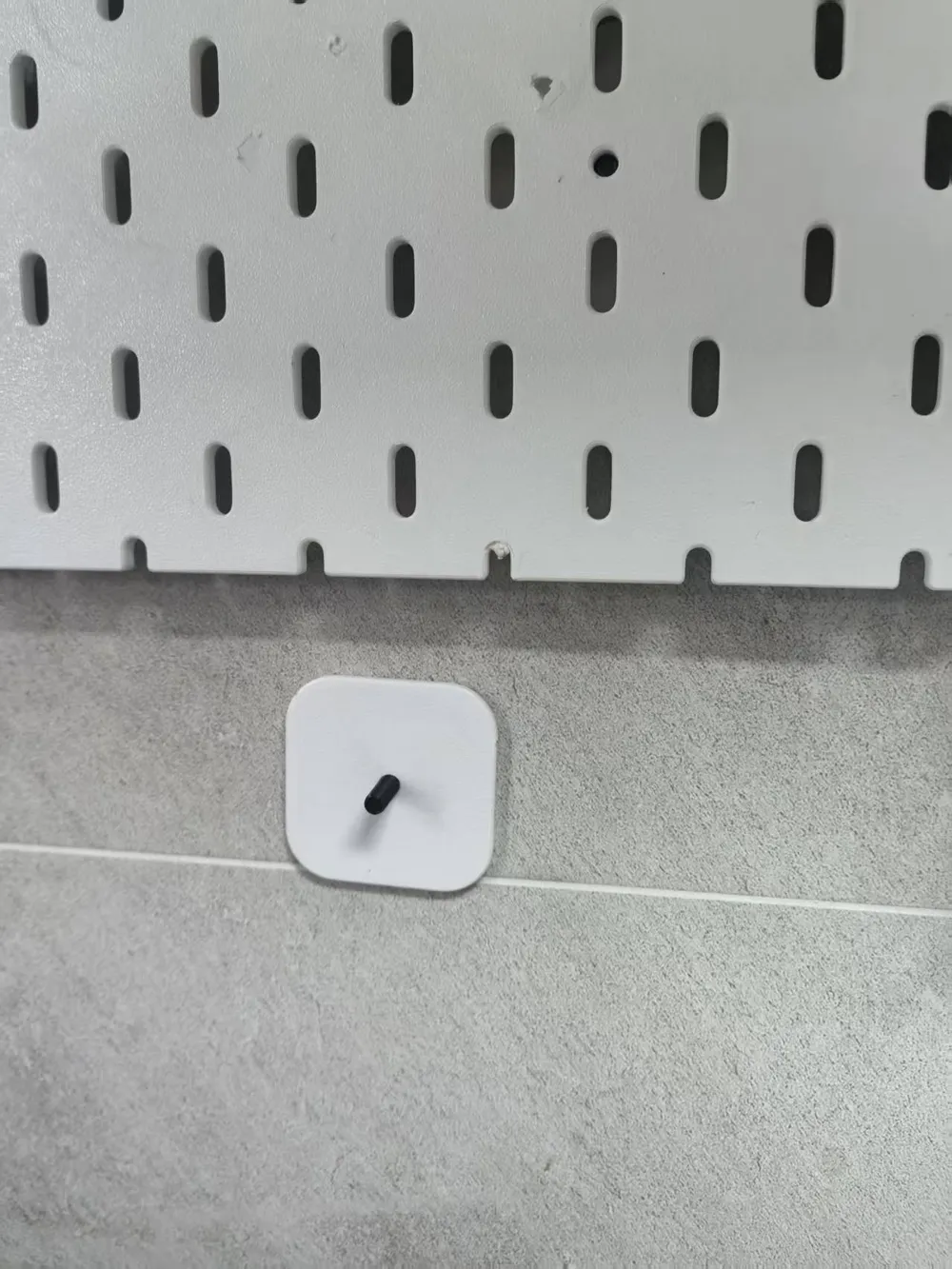

4. Fix → Stick it to the wall, insert the corresponding screw (M3/M4/M5)
5. Mount → Install accessories such as pegboards, picture frames, hooks

💡 Tip: It is recommended to test the load-bearing capacity before first use and ensure the wall surface is flat and clean.

🌿 Applicable Scenarios at a Glance

• 🖼️ Wall art / Photo frames / Decorative paintings

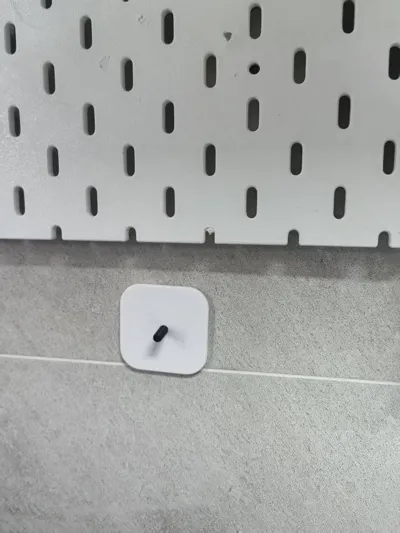

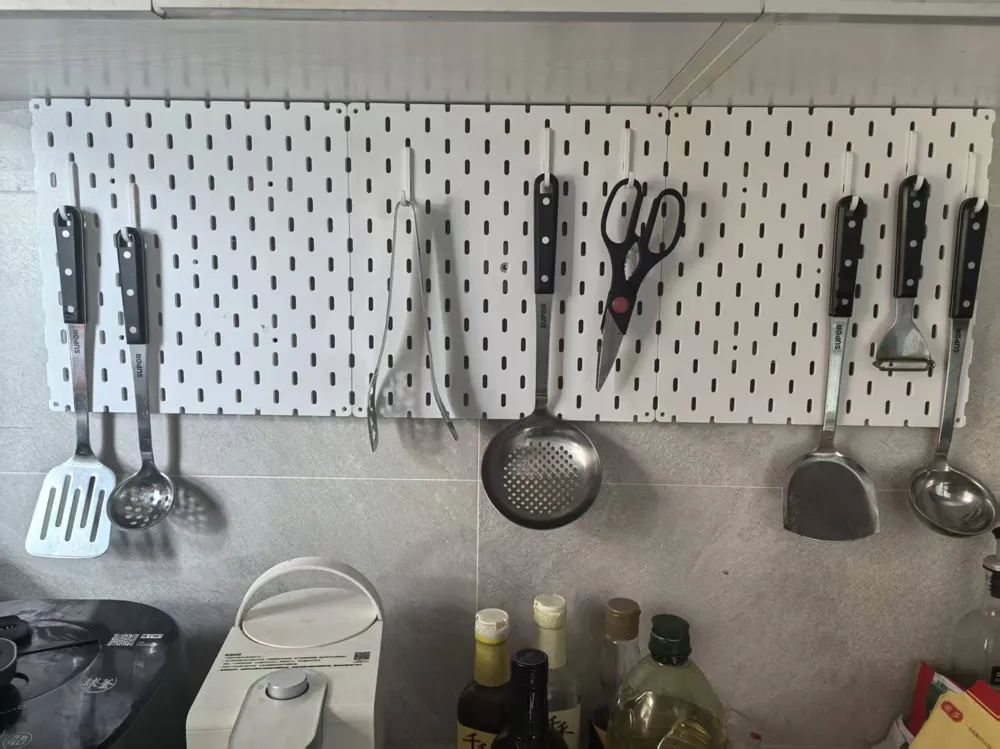

• 🧱 Pegboards / Storage systems
• 🪄 Mirrors / Lamps / Small appliances
• 🧰 Tool racks / Kitchen storage
• 🎯 Study area / Desk organization

💡 Why is it a "true no-drill solution"?

• ✅ Not a disposable adhesive: Replaceable 3M adhesive for long-term use
• ✅ Not temporary fixing: Stable structure, load capacity up to 5–10kg (depending on adhesive and wall surface)
• ✅ Non-destructive installation: Leaves no marks after removal, protecting the wall surface
• ✅ Not complex assembly: Used individually, no extra parts required

🔍 Design Details Explanation

All sizes are optimized based onmainstream e-commerce platform 3M adhesive tapes and common screw specifications (M3/M4/M5):

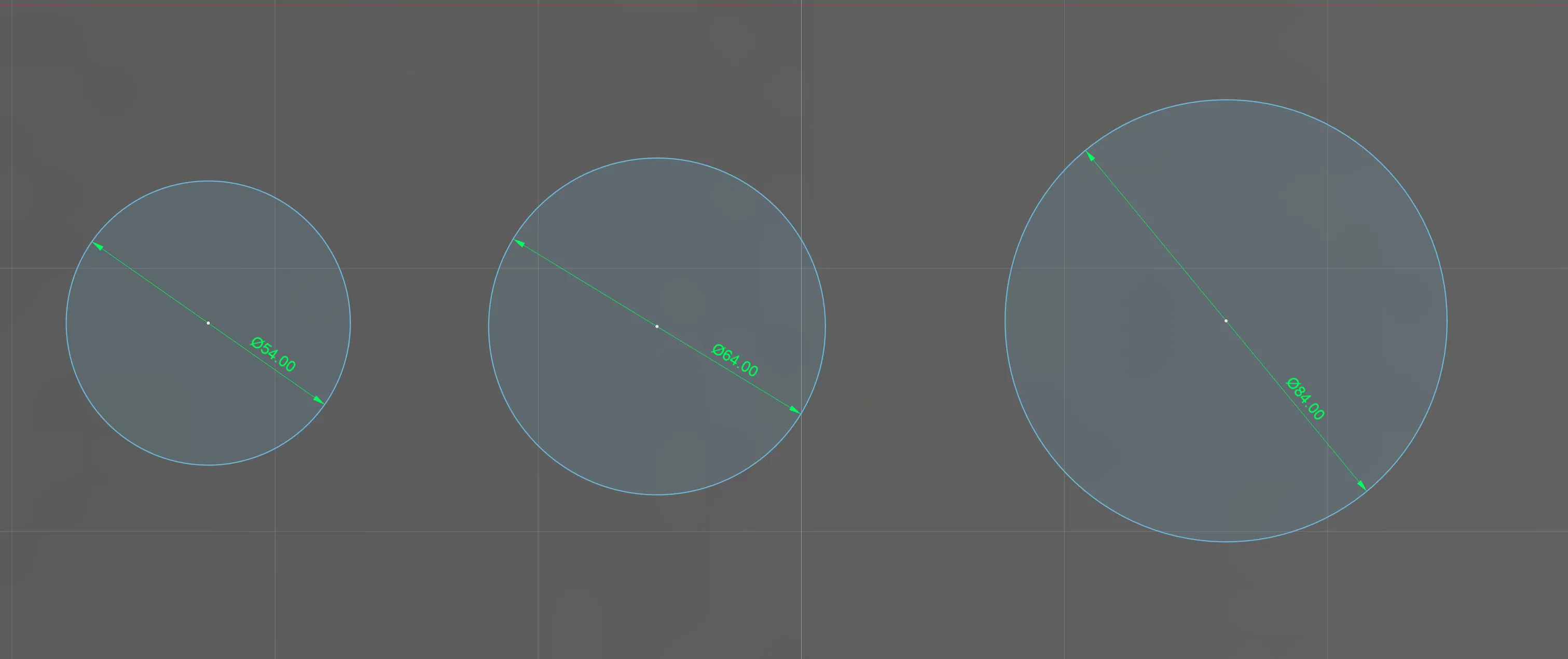

🔹 Round Series

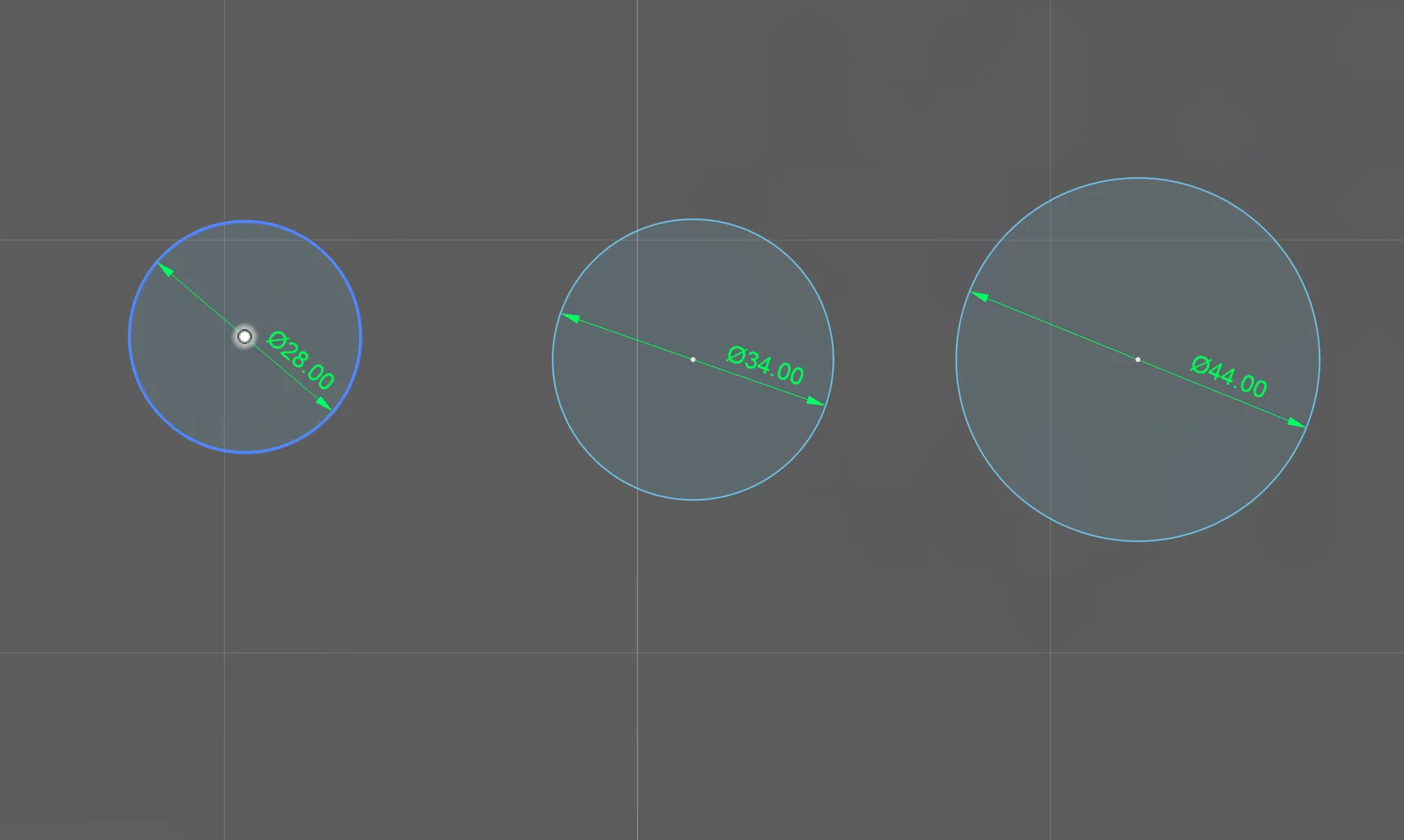

• Ø28mm/Ø34mm → Adapted for small accessories, lightweight design
• Ø44mm/Ø54mm → Universal model, suitable for most medium loads
• Ø84 → Enlarged size, enhanced stability

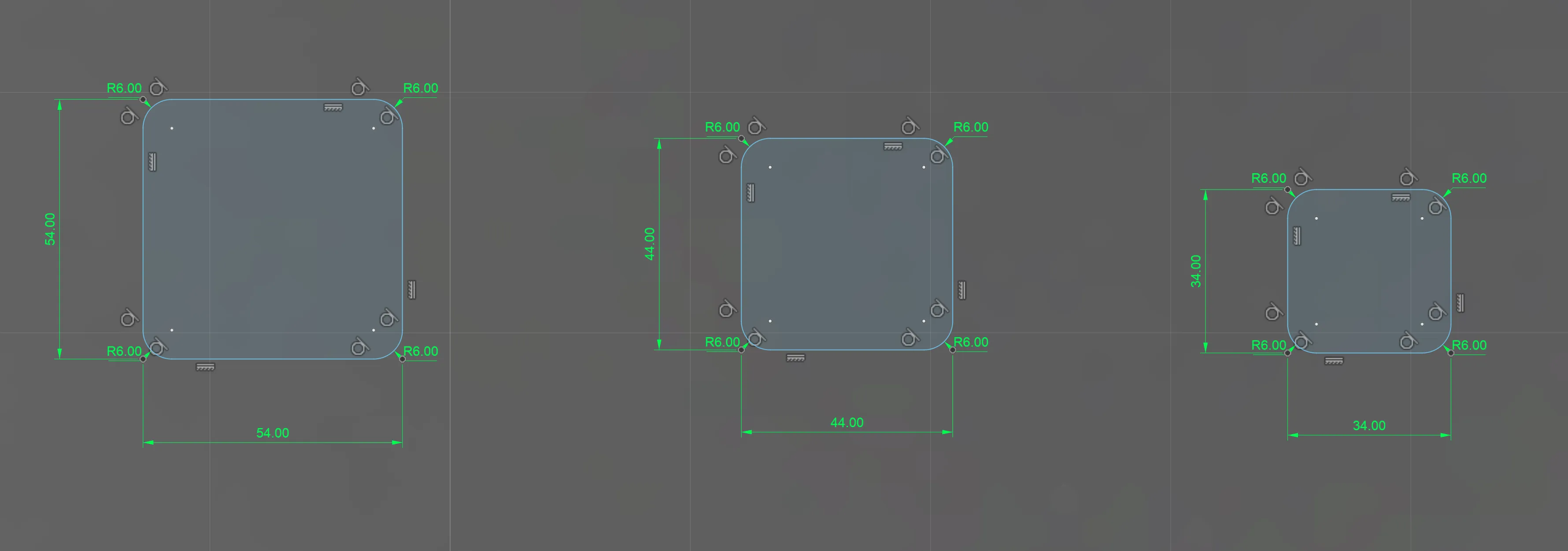

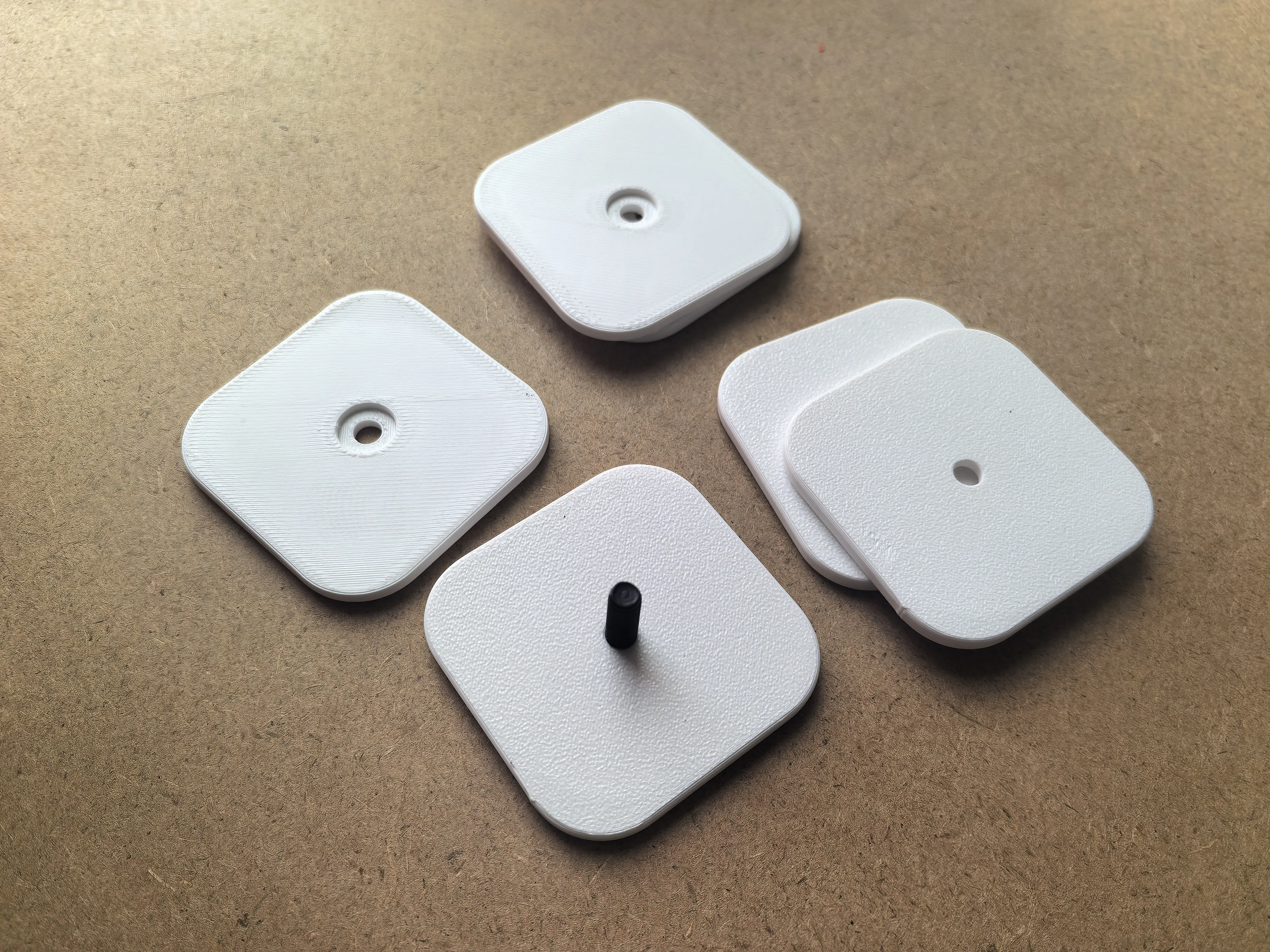

🔹 Square Series

• 34×34mm → Specifically for small hangers
• 44×44mm → Standard size, widely applicable
• 54×54mm → For high load requirements, such as main support for pegboards

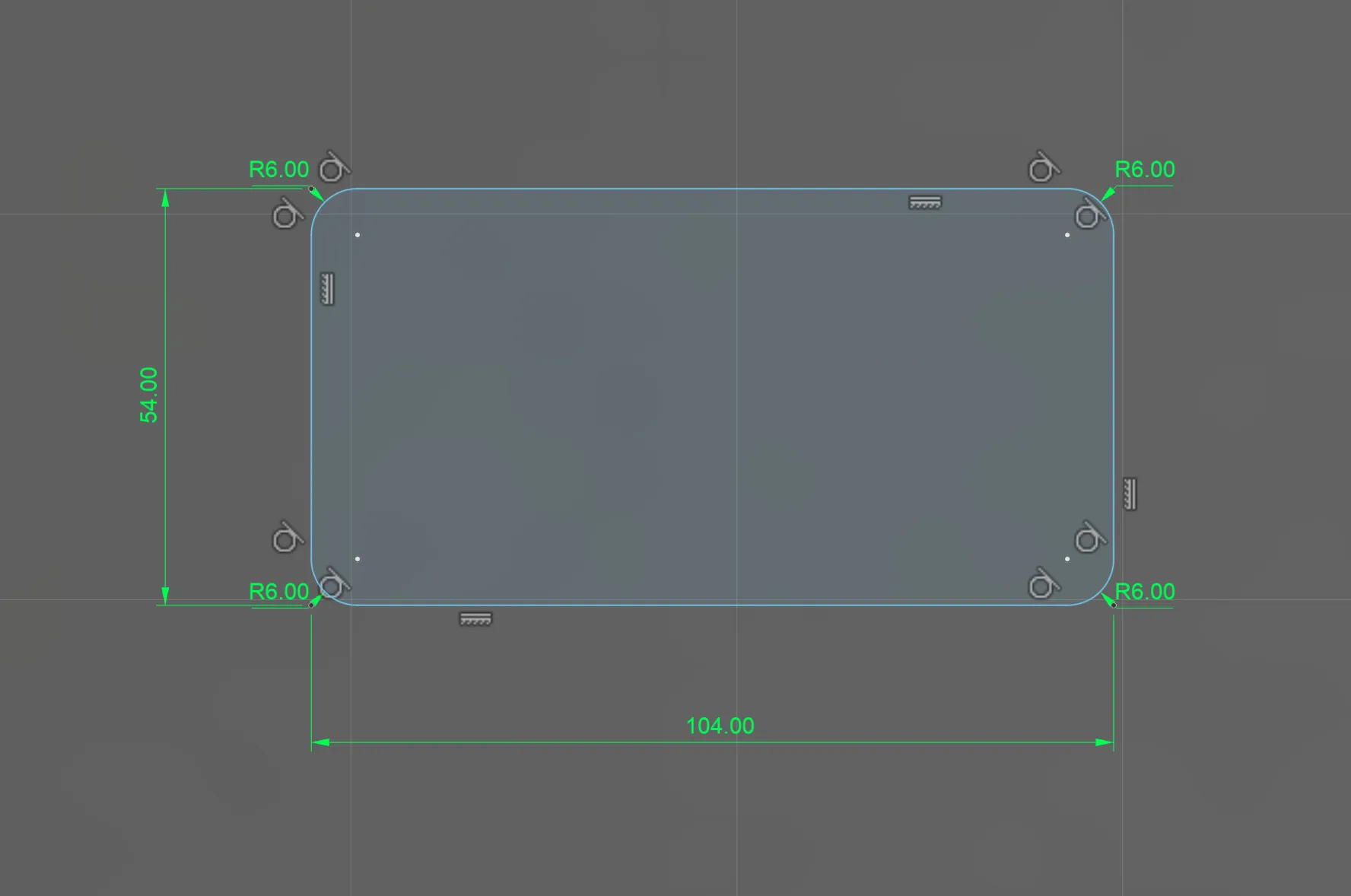

• 104×54mm → Long strip, for multi-point fixing or beam support

🔹 Screw Hole Positions

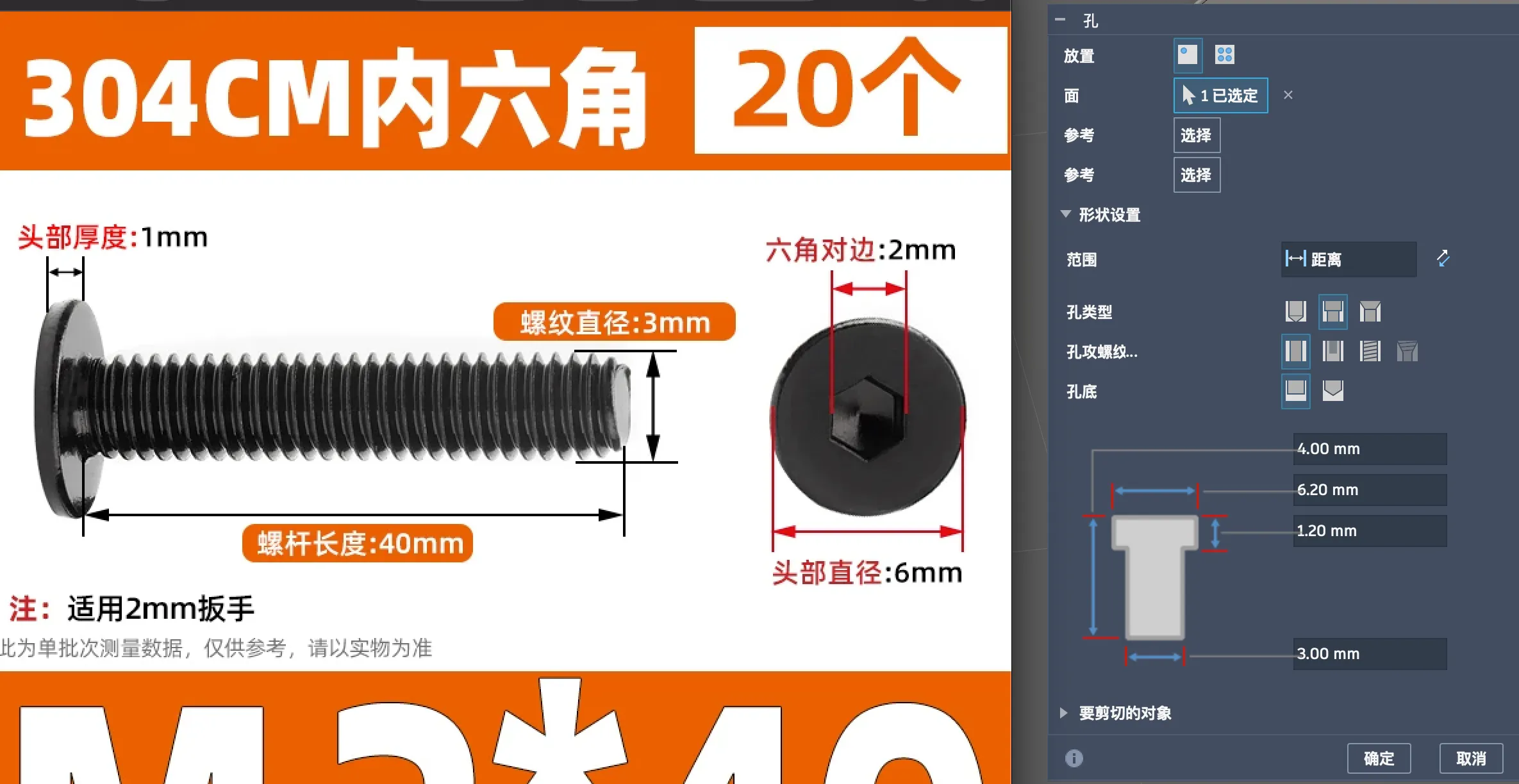

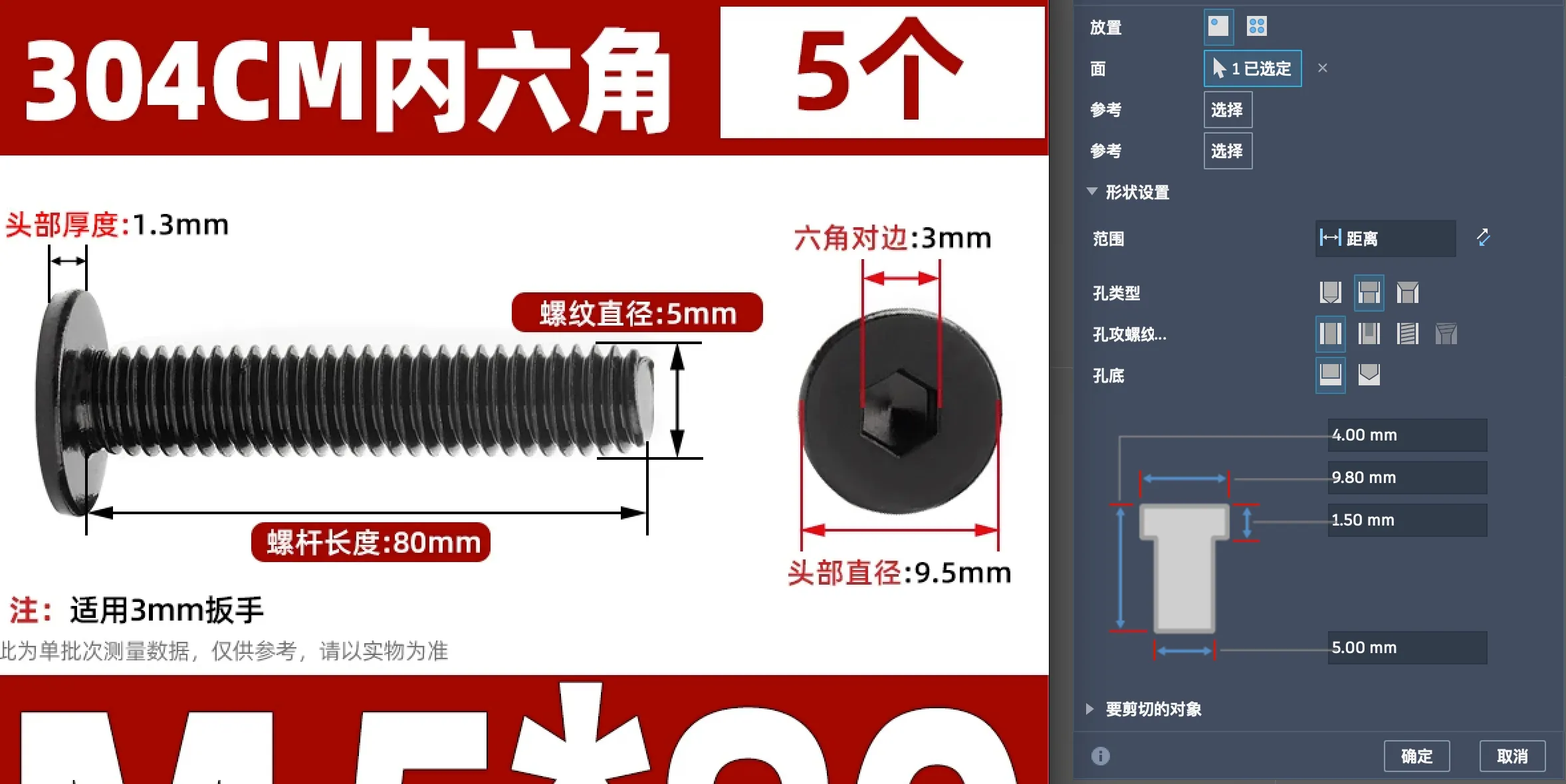

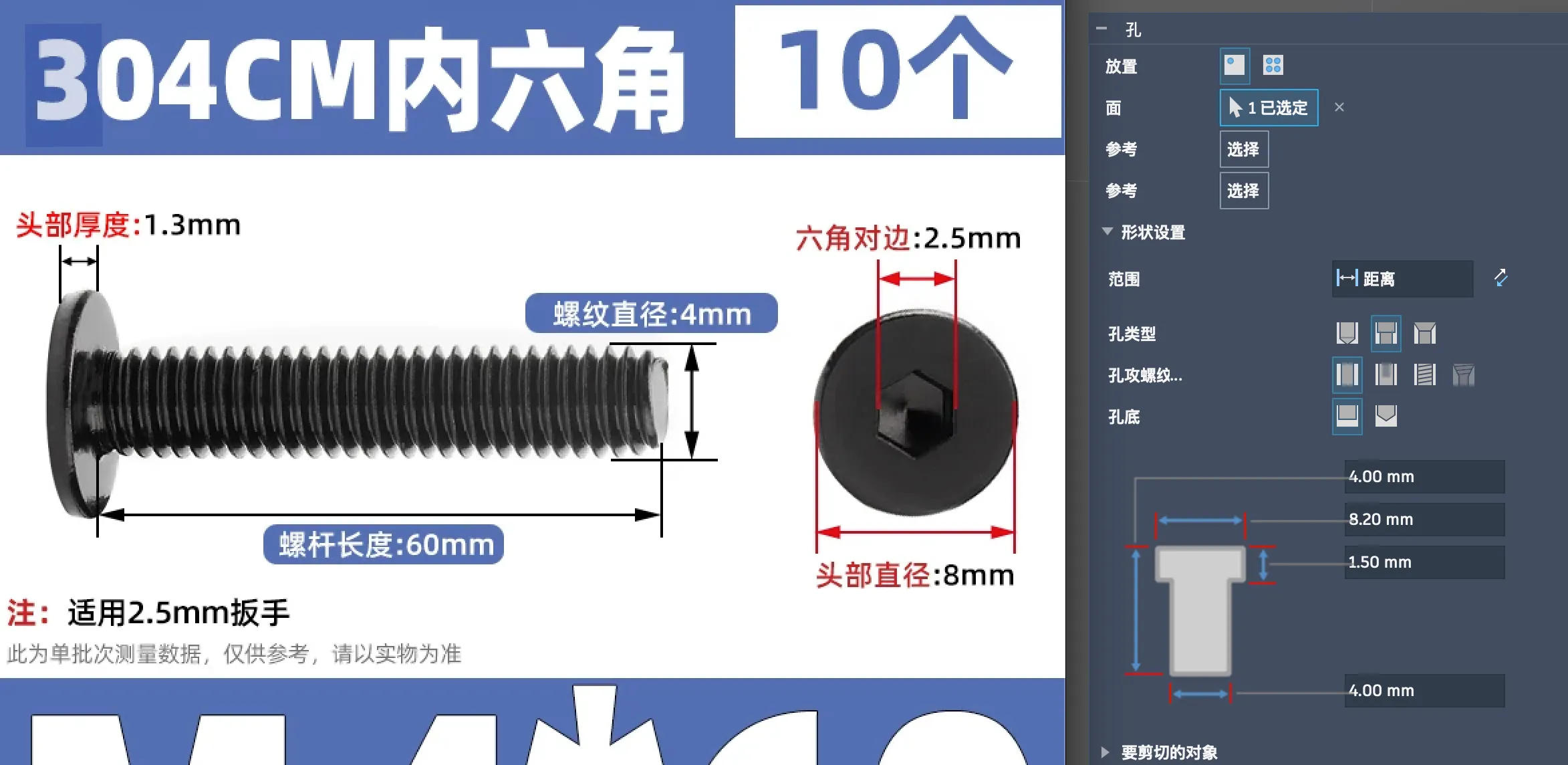

• Center hole diameter: φ3mm (for M3), φ4mm (for M4), φ5mm (for M5)
• Hole depth: 4mm, ensuring full thread engagement
• Rounded corners R6, reducing stress concentration and enhancing durability

🔚 Conclusion

Technology is not cold,
when it is used to solve life's challenges,
it becomes the most touching everyday wisdom.

"No-Mark Base" redefines "wall mounting" with digital manufacturing.
Allowing every item to easily find its place.

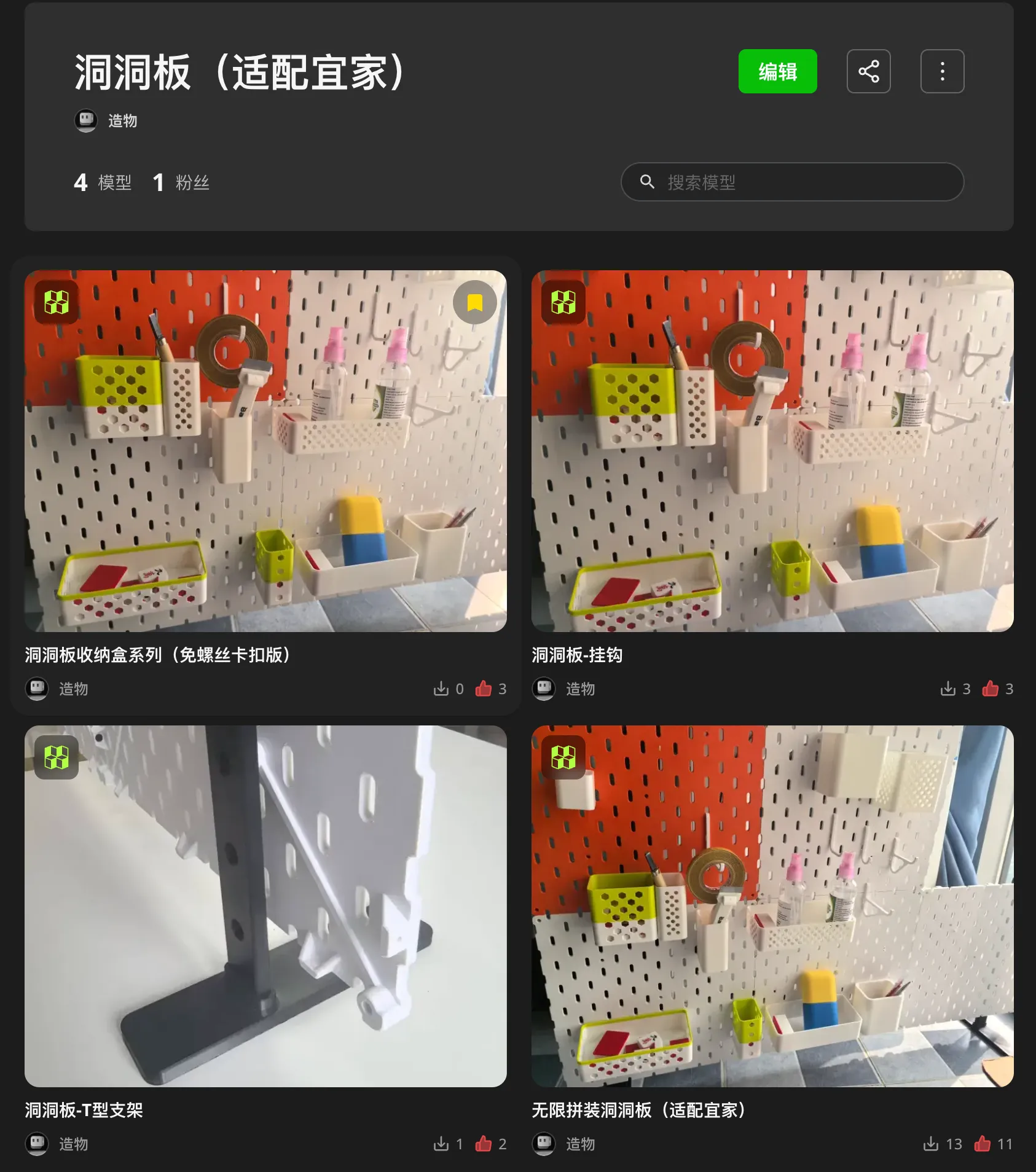

👉Click to view: More pegboard-related models (continuously updated)
