Universal Magnetic ESP32 Round Display
Print Profile(1)
Description

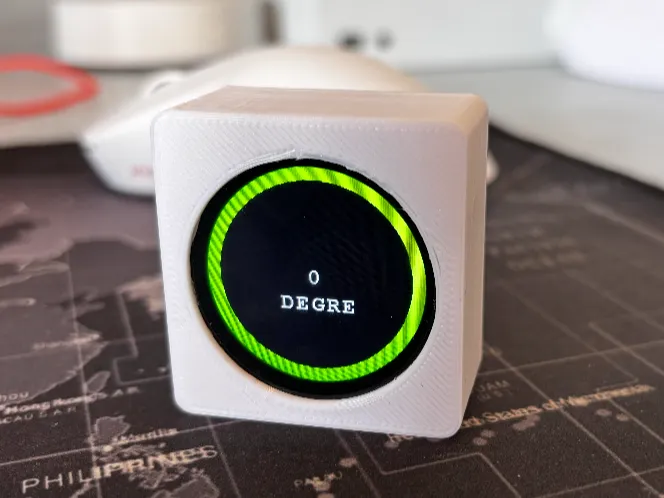

This is a compact, battery-powered housing designed for ESP32 modules with round displays. Originally engineered as a Digital Spirit Level, this modular case serves as a professional-grade enclosure for any handheld or mounted IoT project.
ESP32-S3-Touch_LCD-1.28
Features
- Snap-on Magnets: Integrated magnets in the base for easy attachment to any metallic surface.

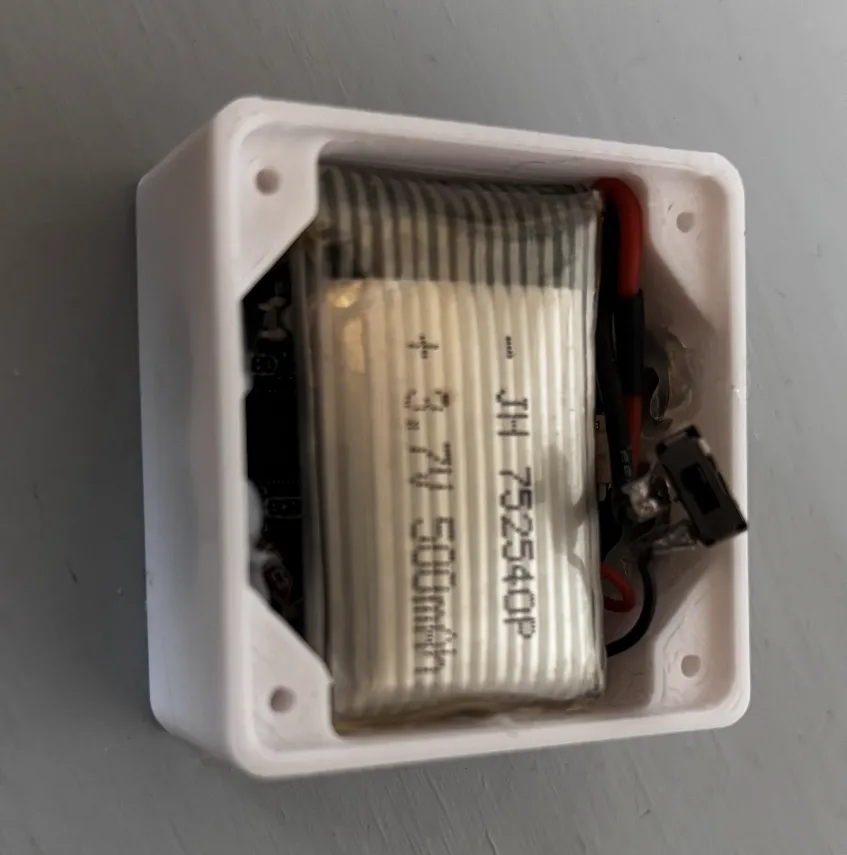

- Fully Portable: Dedicated space for a small LiPo battery and a physical power switch.

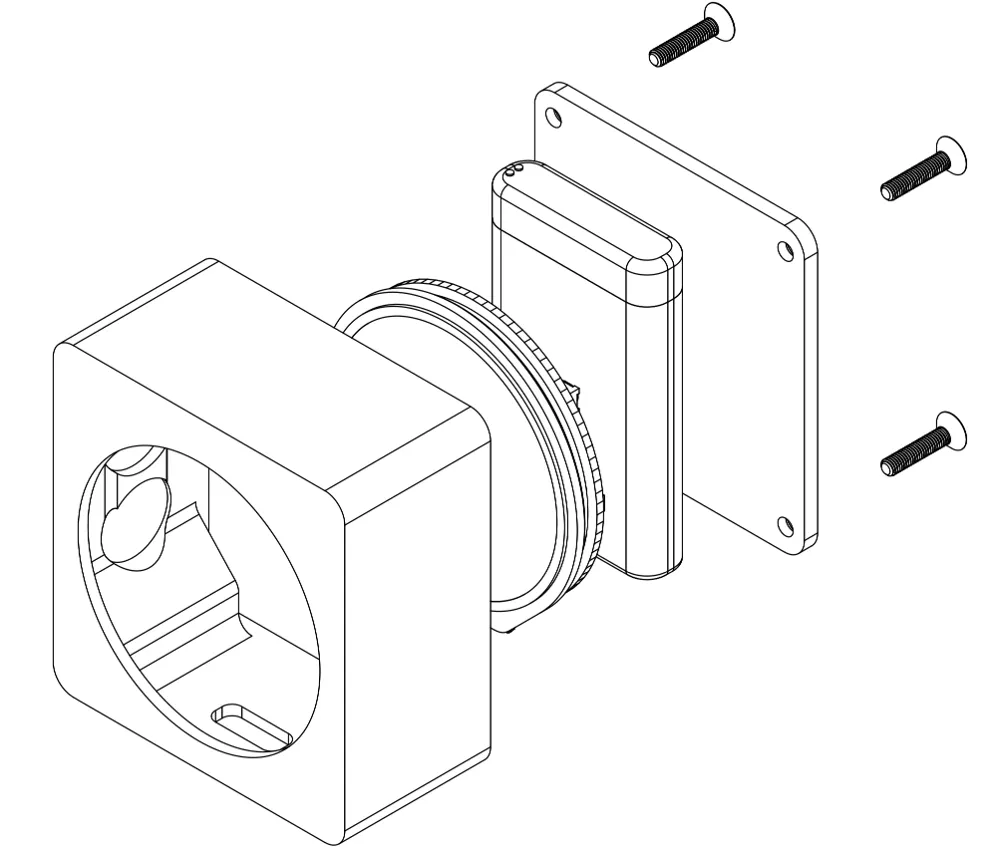

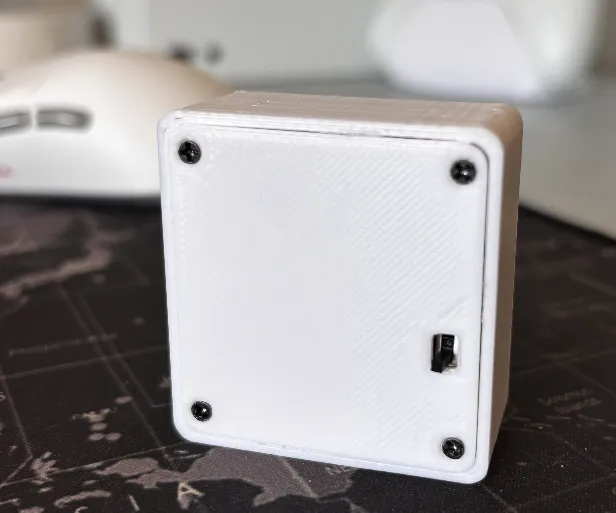

- Secure Assembly: Robust 2-part interlocking design fastened with M2 screws at the rear.

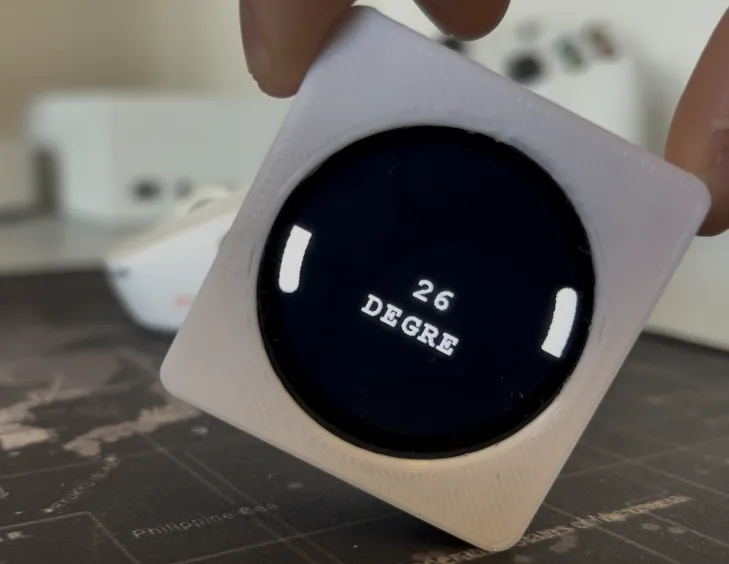

- Versatile Design: While perfect for an inclinometer/level, it’s a "blank canvas" for any UI—clocks, sensor monitors, or smart home controllers.
Hardware Needed
- MCU: ESP32 with Round Display (e.g., GC9A01).
- Battery: Small LiPo (check your interior dimensions).
- Switch: Small sliding or toggle switch.
- Hardware: M2 Screws & Small Neodymium Magnets.
Note: This is more than just a level; it is a hardware platform. Focus on your code and let this mount handle the protection and portability.
