Customizable Yard Light Stake

IP Report

Print Profile(1)

All
P1S
X1 Carbon
P2S
H2C
H2S
H2D Pro
A1
X1E
H2D
P1P
X1
X2D
A2L

21mm ID - 0.2mm layer, 2 walls, 15% infill
21mm ID - 0.2mm layer, 2 walls, 15% infill
Designer
43 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
13
37
3
2
85
45
Released

Description

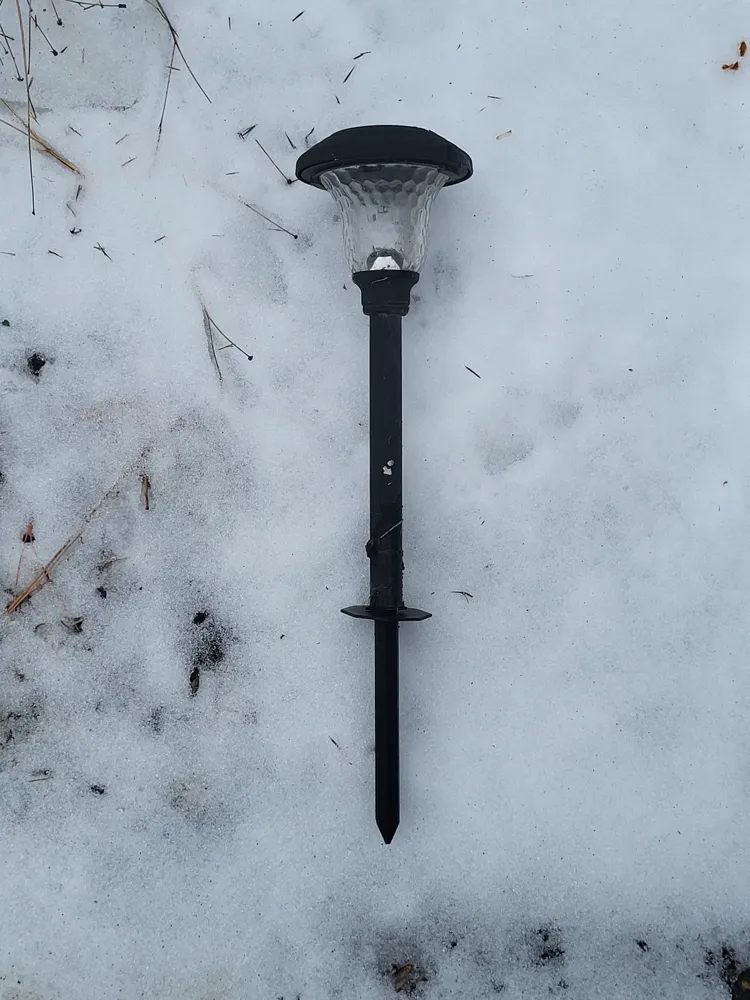

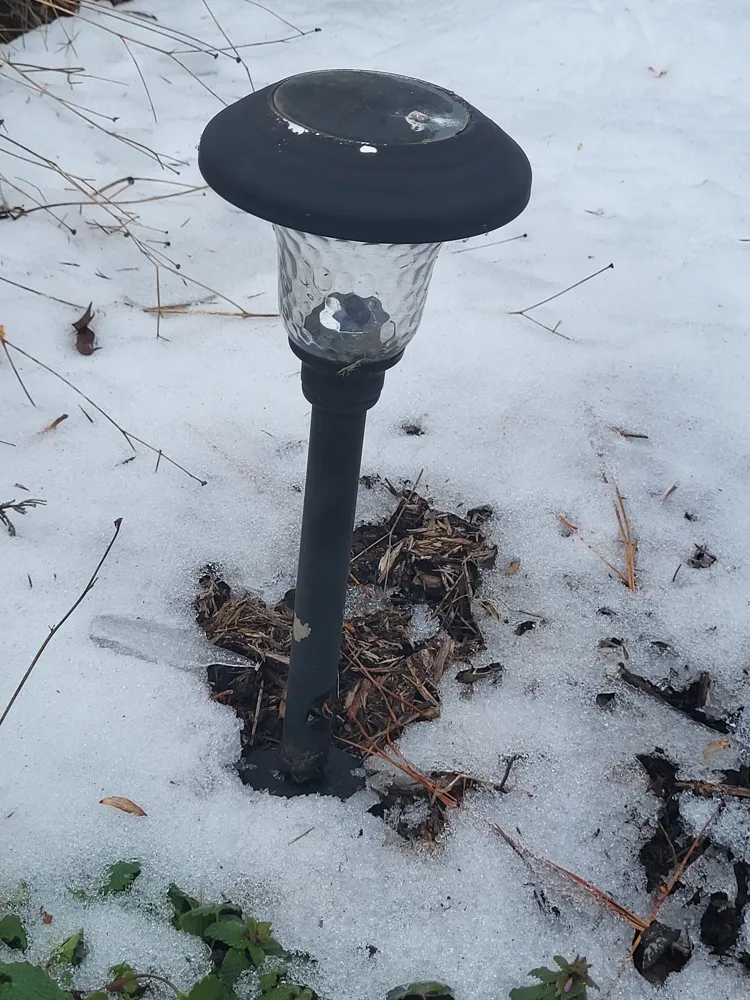

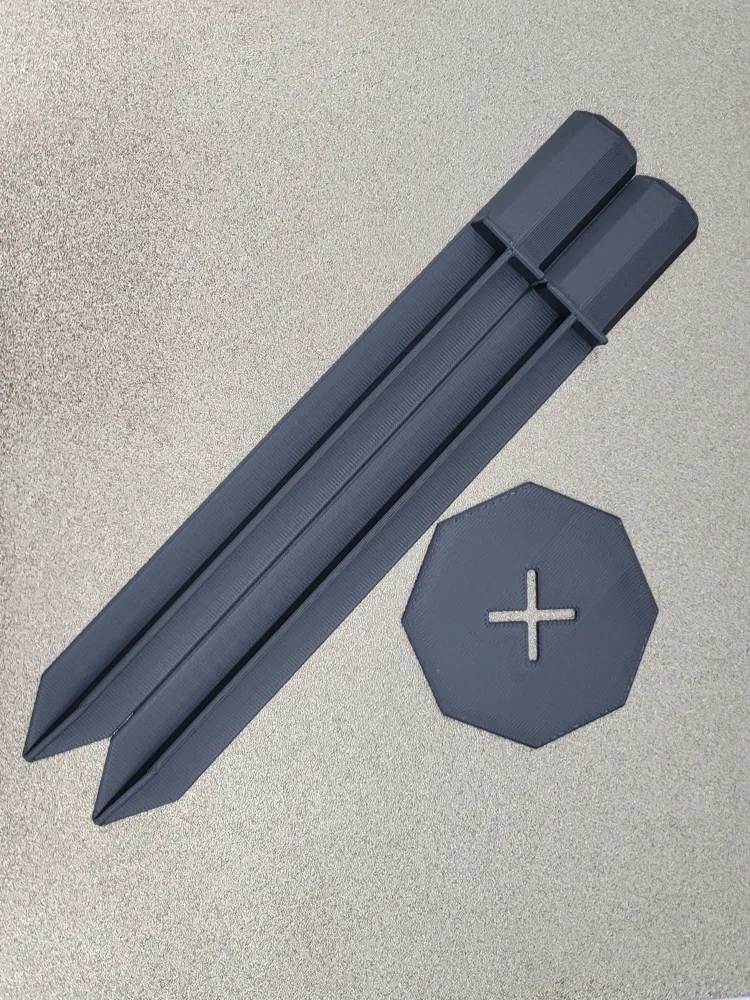

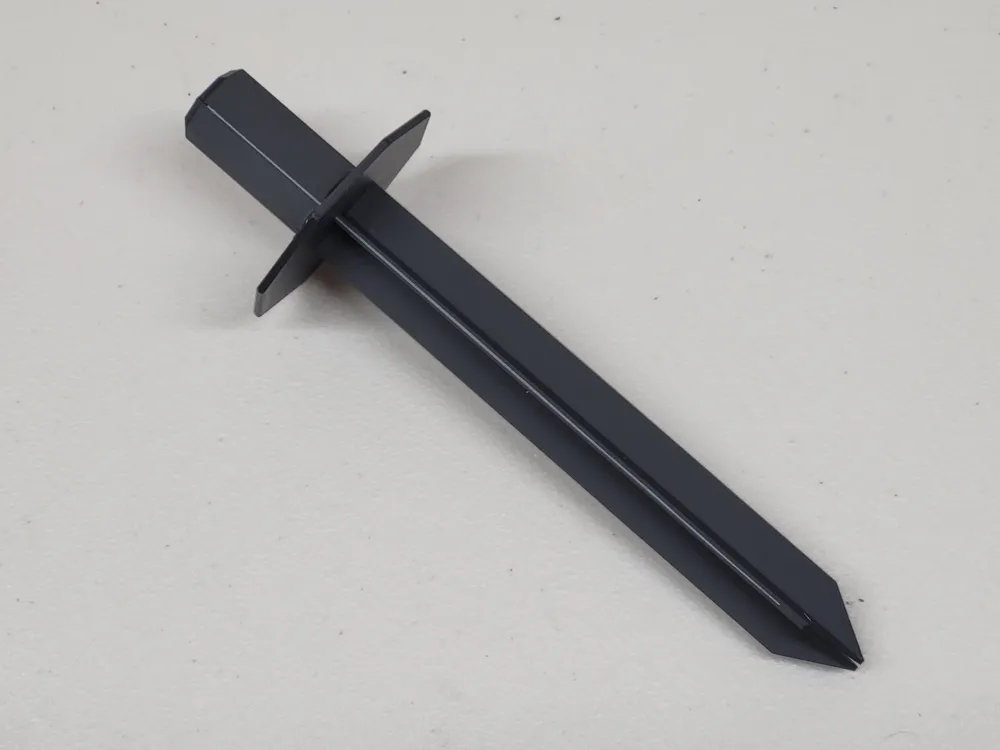

I needed to replace the stakes for my older solar walkway lights. This is a simple OpenSCAD design that prints flat with no supports for better strength.  The stake folds together and is held that way by the light tube, or the optional collar piece. My lights have a 21mm inner diameter, but I have included the scad file to allow you to create stakes of other sizes with the same design.



For print settings I recommend 0.2mm layer height and cubic or gyroid infill. The connection that allows it to fold together is 0.2mm thick, one layer. PLA is generally not recommended for outdoor use. Mine are in PLA anyway, because it's cold out right now and I can reprint them in something stronger later if I have to.
