Parametric bolt knob with adjustable shape
Print Profile(1)
Description
There are many, but with this one you can modify all values including the length and distance of the bolt slot, particularly useful when a specific thread length is needed (without having to cut it) or when the handle is in an inconvenient position for use and needs to be longer

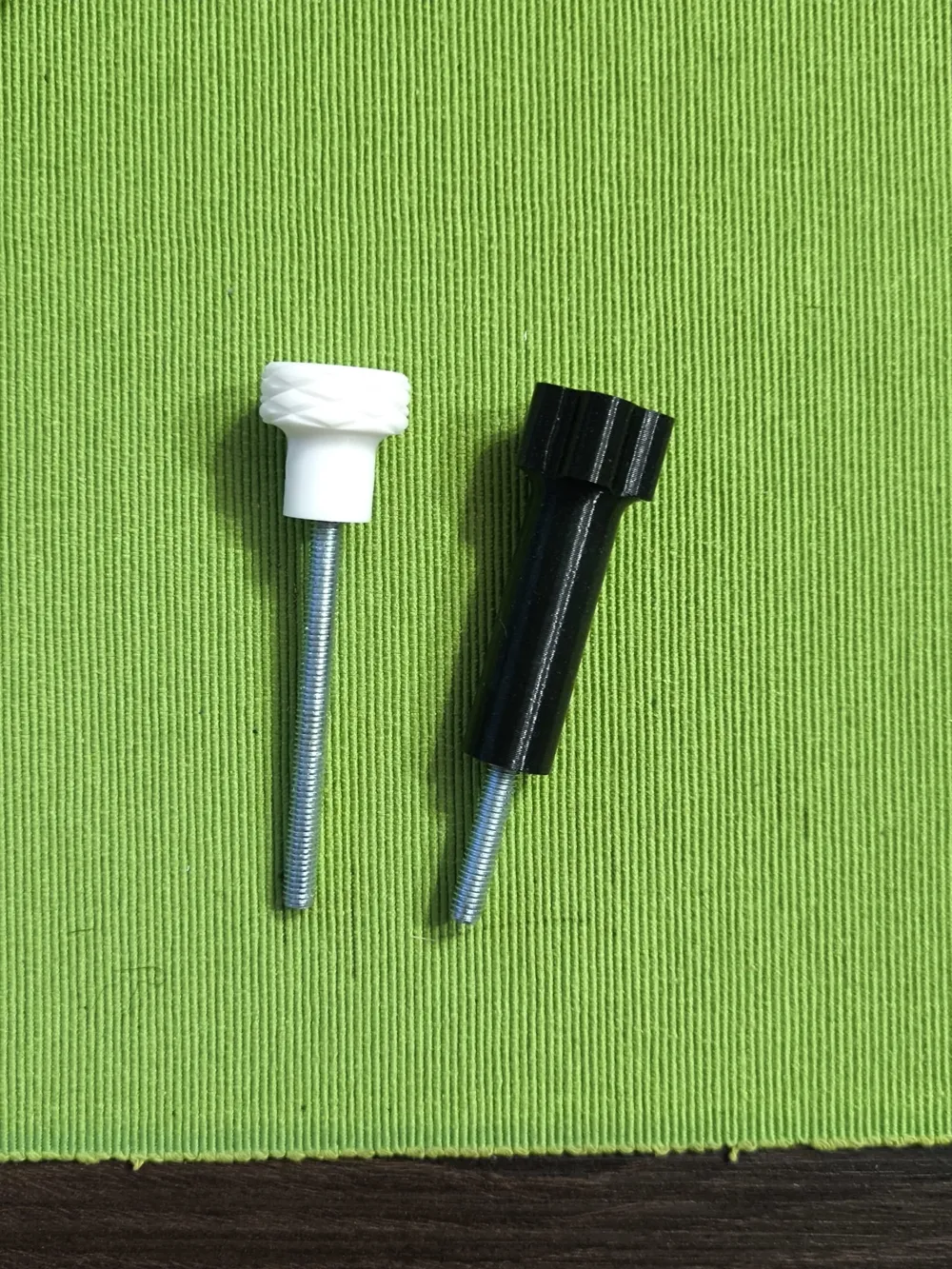

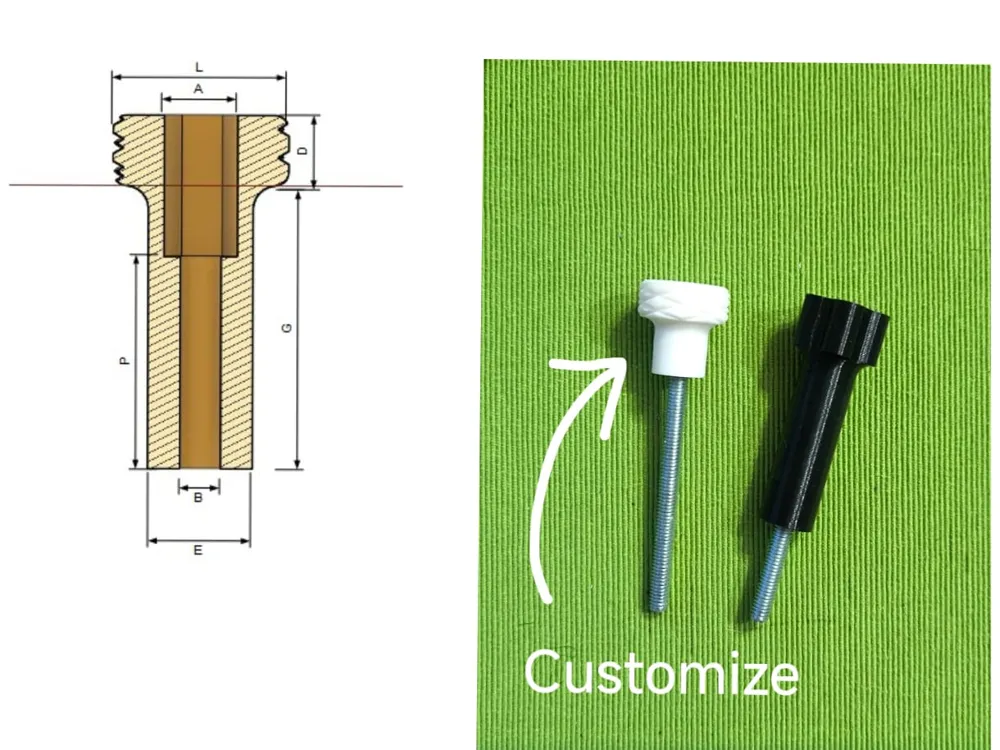

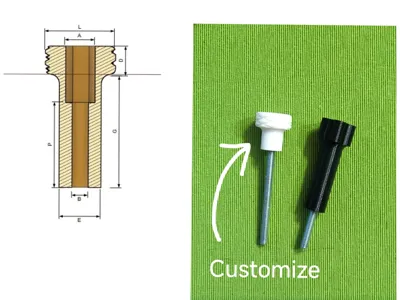

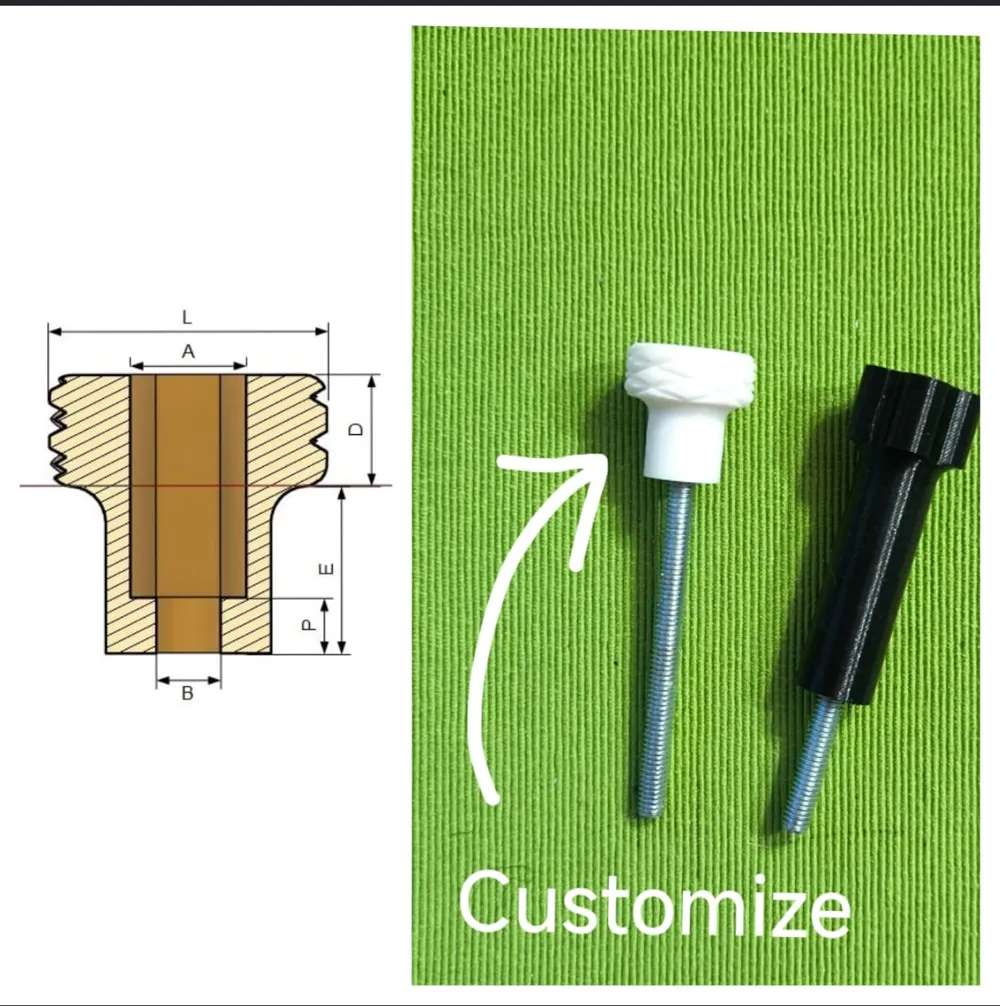

Look at the photo to better understand the letters of the modifiable values expressed in mm
Boost Me (for free)
If you find my project interesting and useful, a boost would be very helpful, or at least I would love to see photos of how you used this knob. Thank you
:
A = The size of the hexagon (additional tolerance is generated automatically)
B = The bolt hole (additional tolerance is generated automatically)
L = Knob width
E = Extension width (must always be greater than “A” the hexagon)
G = Extension length
D = Knob height
P = Hexagon distance from the exit
