Simple Cross-Stitch Box 31

Simple Cross-Stitch Box (Optimized for 0.4mm Nozzle)

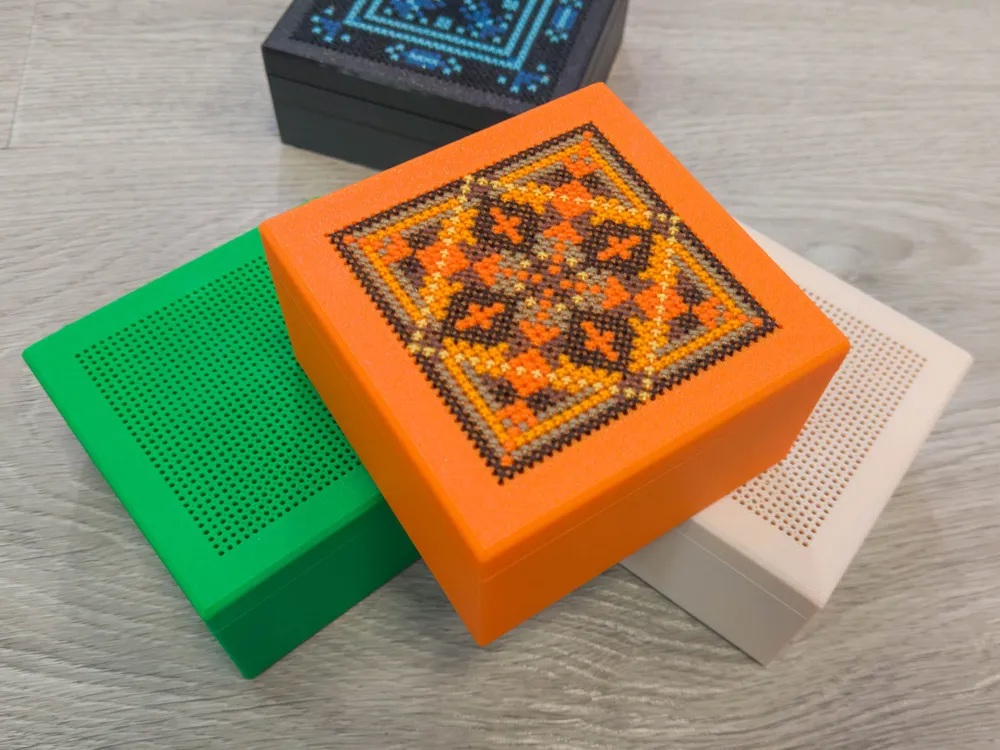

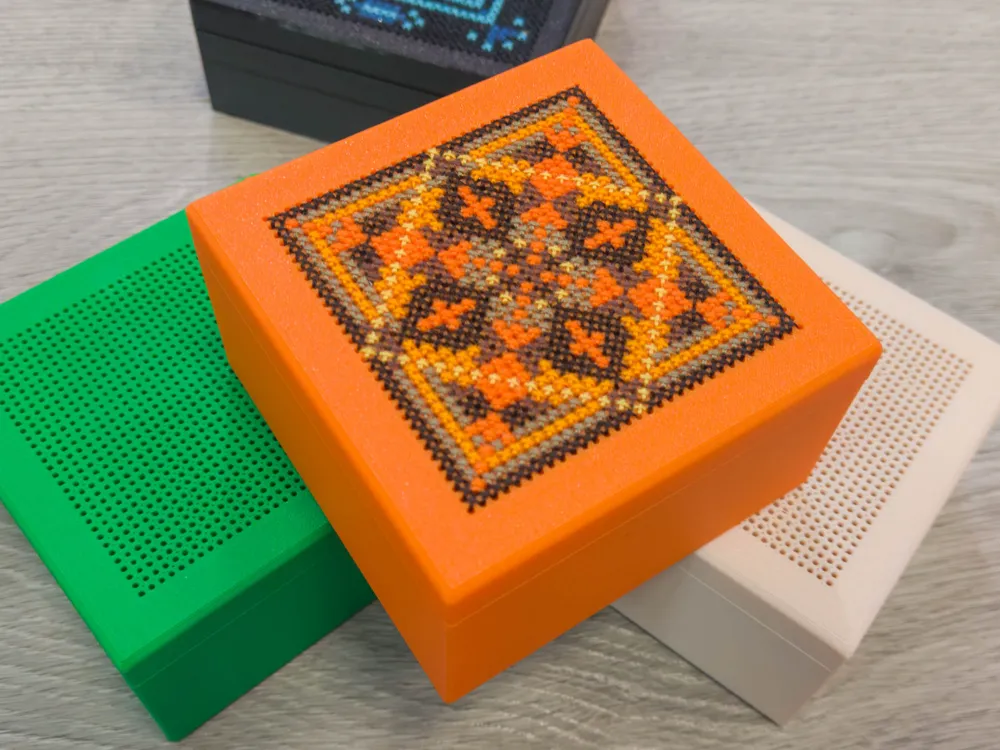

This is a functional cross-stitch storage box designed with technical precision in mind. Unlike many 3D-printed stitching plates, this model is engineered specifically for a 0.4mm nozzle to ensure the cleanest possible print with zero wasted movement.

Technical Optimization

The geometry of the grid is mathematically aligned with standard 3D printing line widths:

• Hole Size: 1.26 mm (exactly 3 wall lines)
• Gap/Bridge: 0.84 mm (exactly 2 wall lines)
• Stitch Pitch: 2.1 mm (approx. 12 Count equivalent)

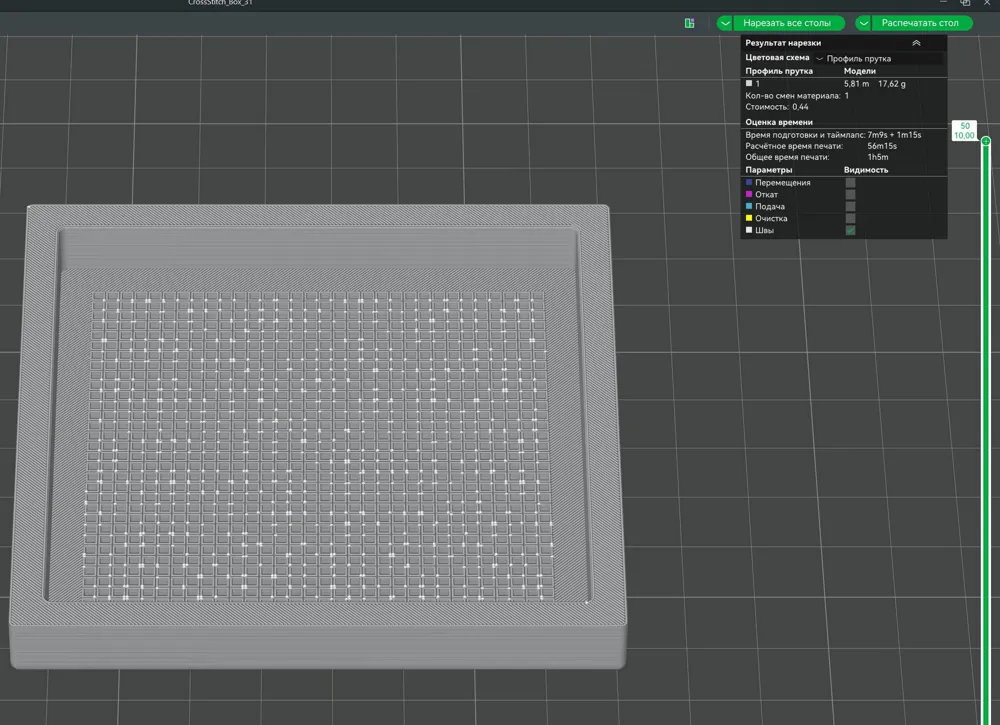

By matching these dimensions to a 0.42mm line width, the printer performs a continuous path with minimal retractions. This results in maximum print speed and superior surface quality without the typical "blobs" or "strings" found in small holes.

Features

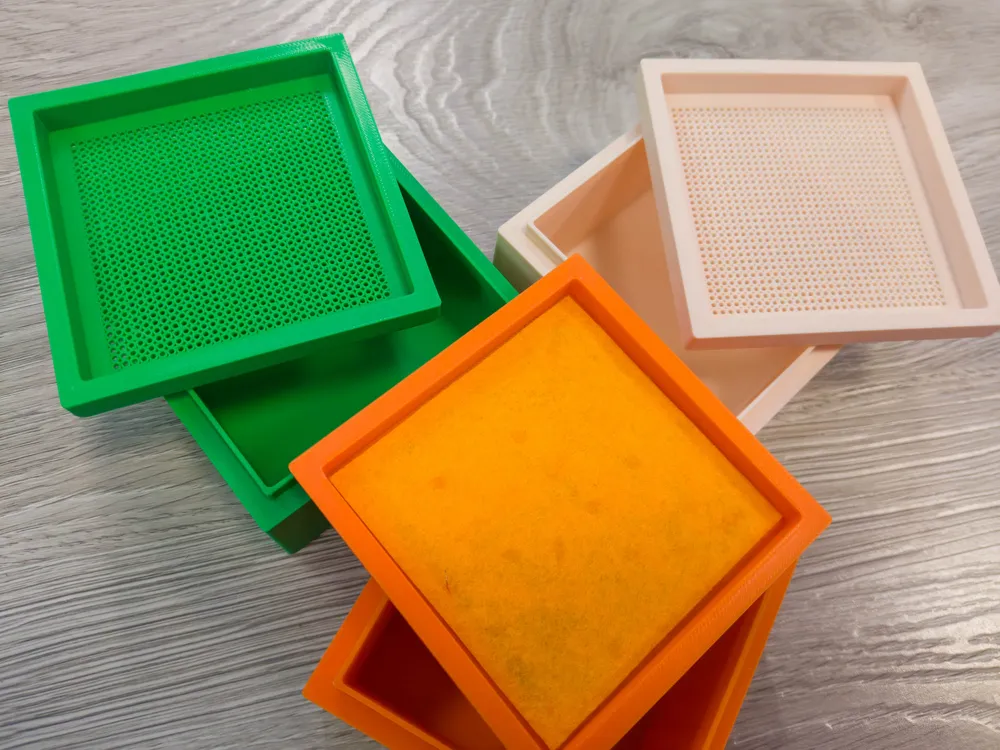

• Grid Size: 31 x 31 stitches (32 x 32 holes).
• Compatibility: Designed to work perfectly with standard cross-stitch needles and embroidery floss.
• Clean Geometry: No thin walls or weird gaps—just solid, structural lines.
• Canvas Feel: The 12-count scale provides a comfortable stitching experience, similar to traditional Aida 12 fabric.

Print Settings

• Nozzle: 0.4 mm (Required for the geometry to match)
• Line Width: 0.42 mm
• Layer Height: 0.2 mm recommended
• Material: PLA, PETG, or Matte PLA for a nice fabric-like texture.
