Description

Content has been automatically translated.
Show original

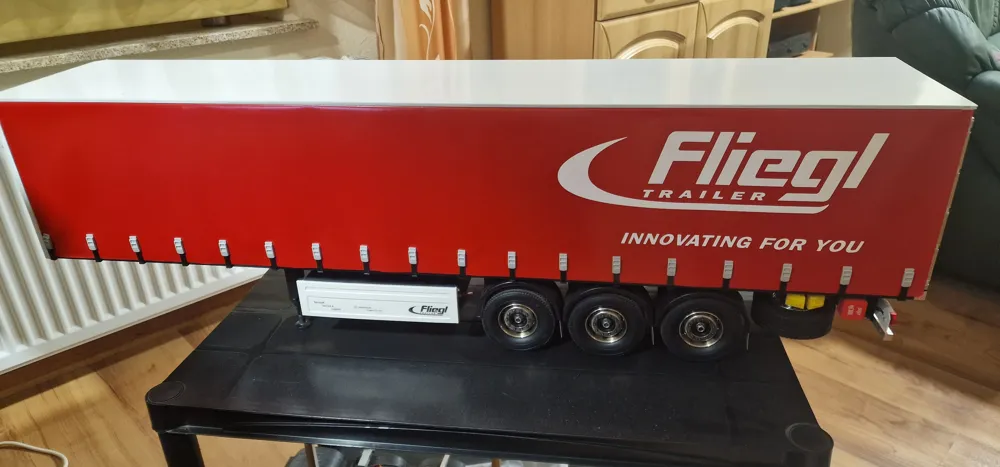

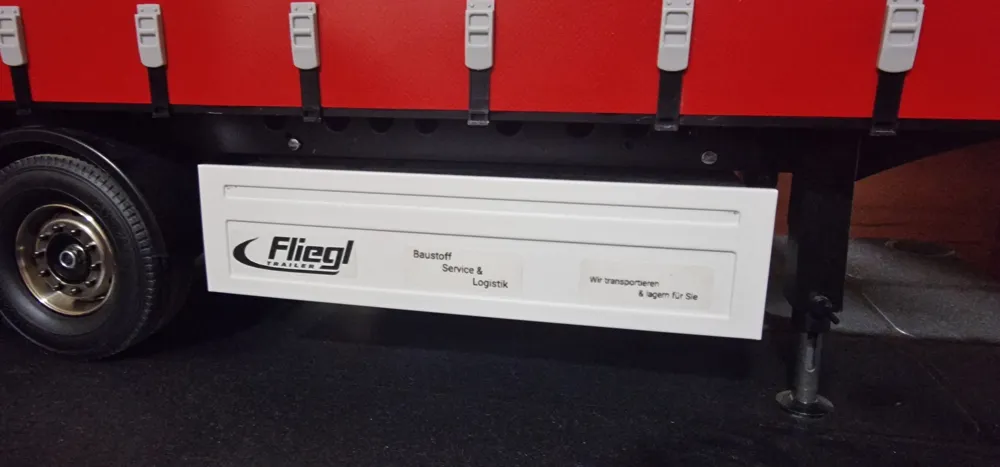

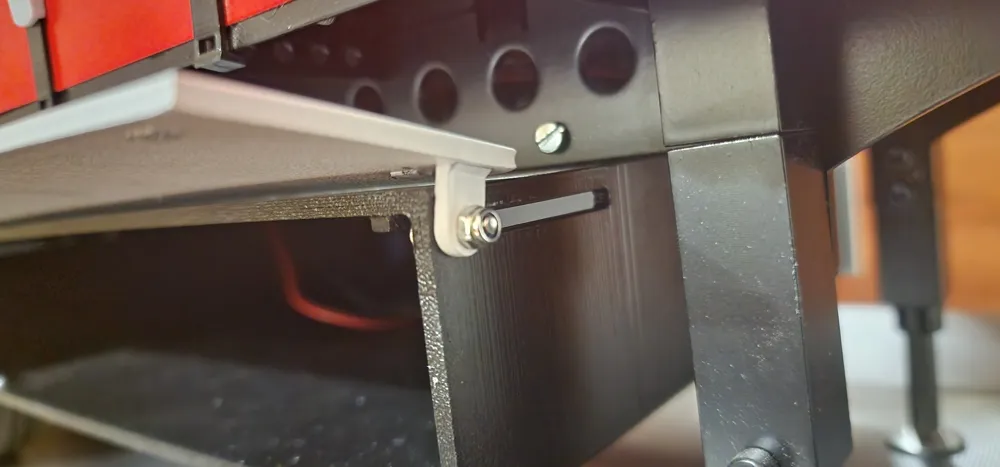

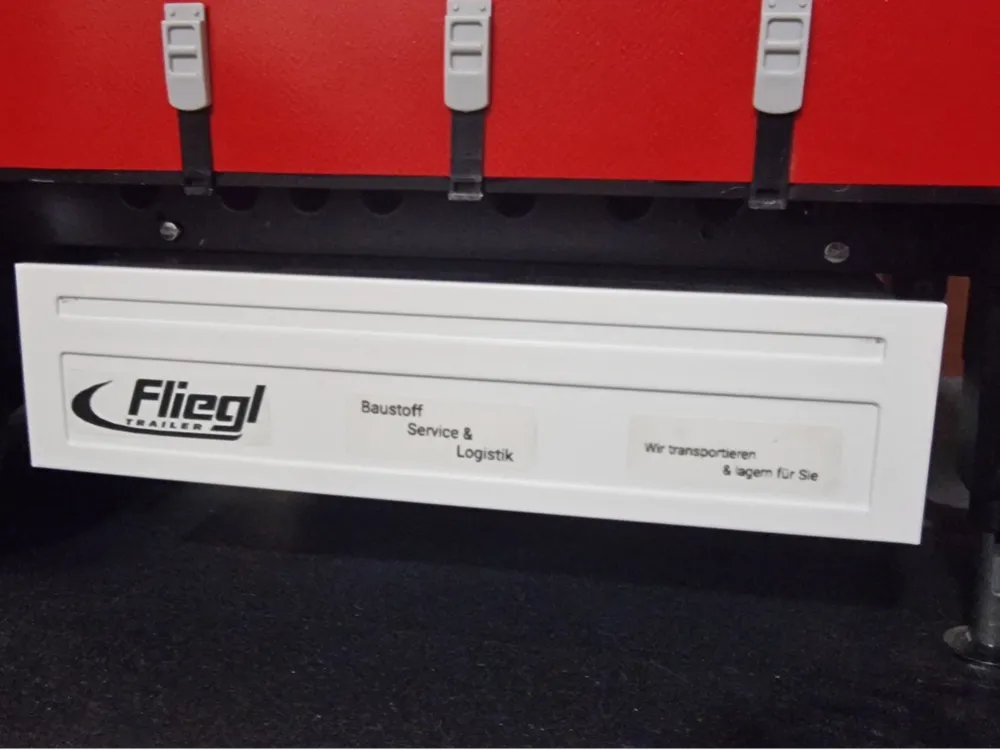

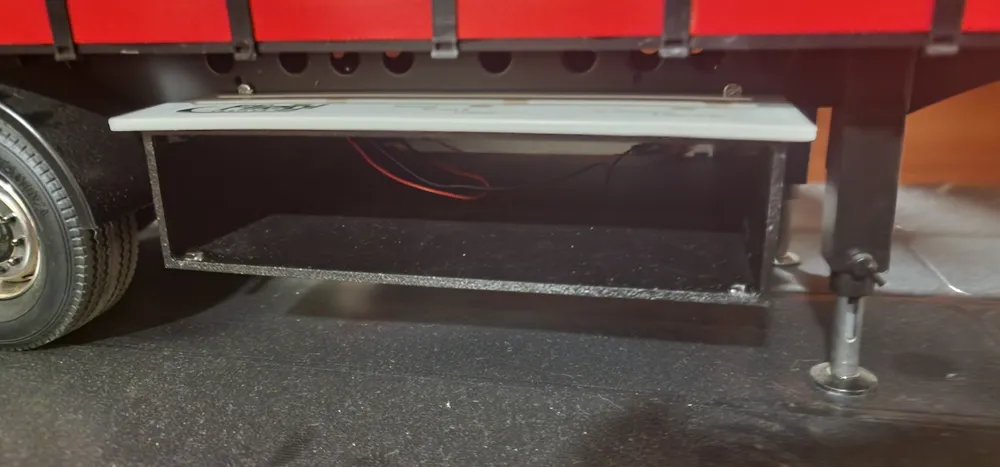

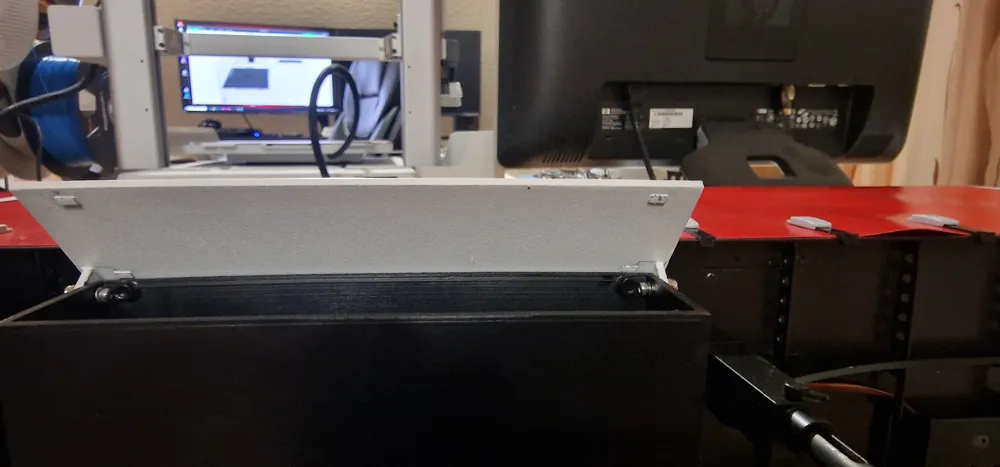

The pallet box is intended as an alternative to purchasable ones and is designed in Tamiya scale (1:13.2-1:14). It fits the new Carson Fliegel tarpaulin trailer. It is necessary to drill 3mm holes in the frame and screw the box with 4 M3 screws. Therefore, 4 M3 screws and 4 nuts are required. Additionally, the holders are glued to the lids. Caution: the support structure must be cleanly removed. The lids are screwed to the box (in the slots) with 4 M3x 12mm screws and self-locking nuts, but only lightly so that the lid can slide open. In each lid, 4 indentations are provided for neodymium magnets (width 3mm, length 5mm, height 2mm), where these are glued in. Inside the box, I glued 4 steel M3 nuts on each side, to which the magnets can adhere. Some craftsmanship is required, as is common in model building.
