Pivoting Drumstick Holder

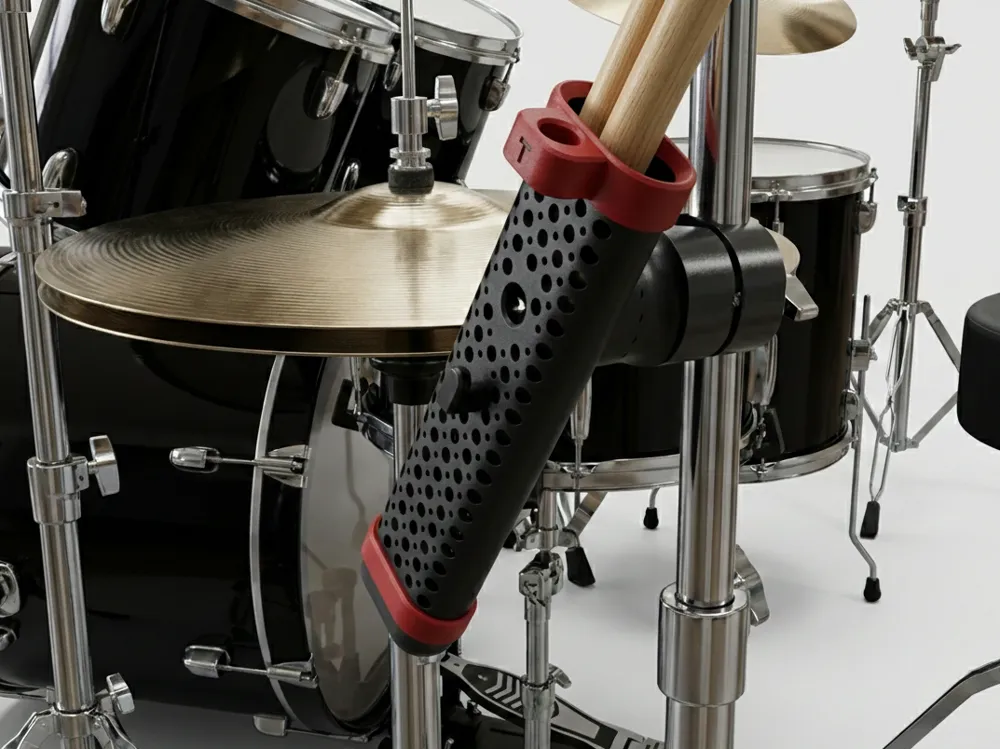

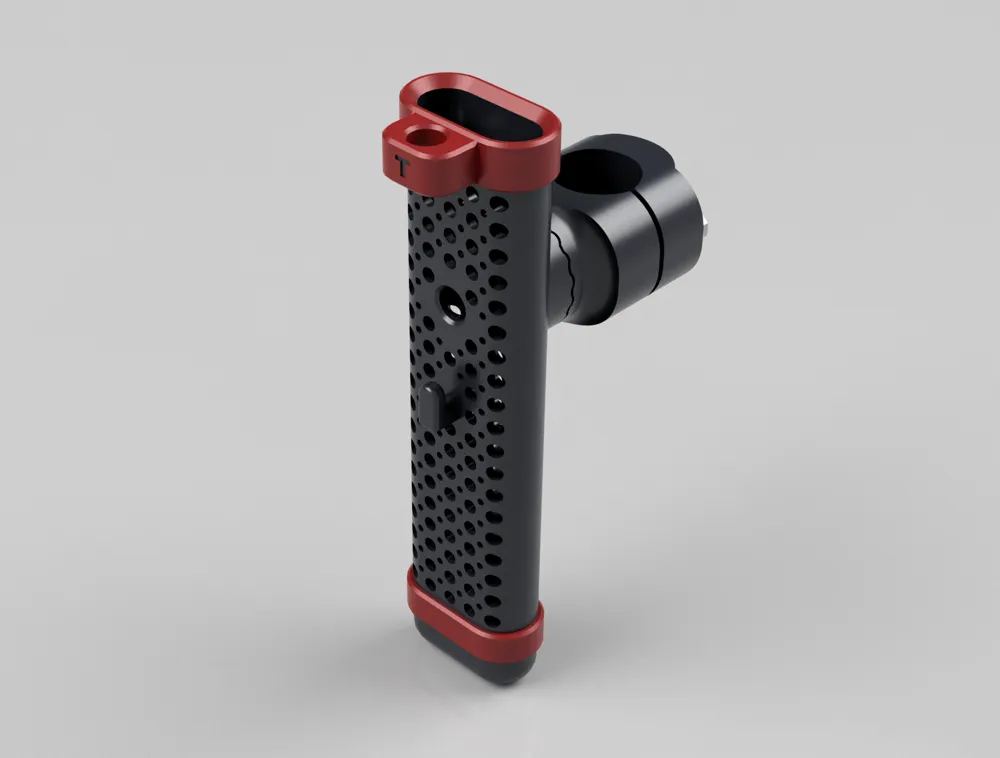

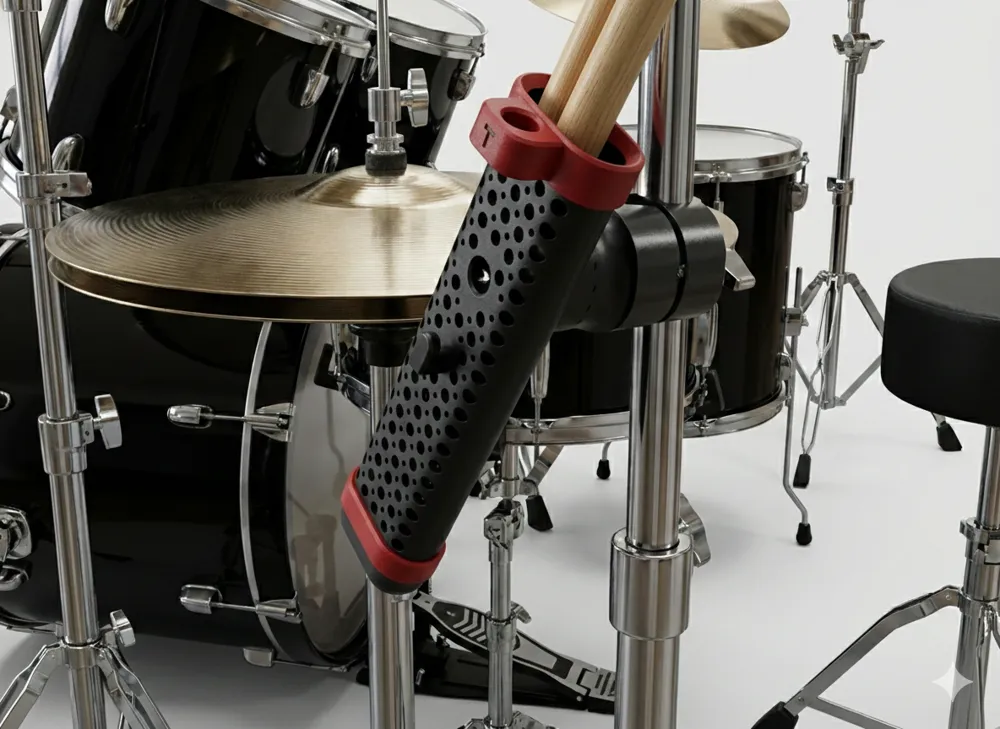

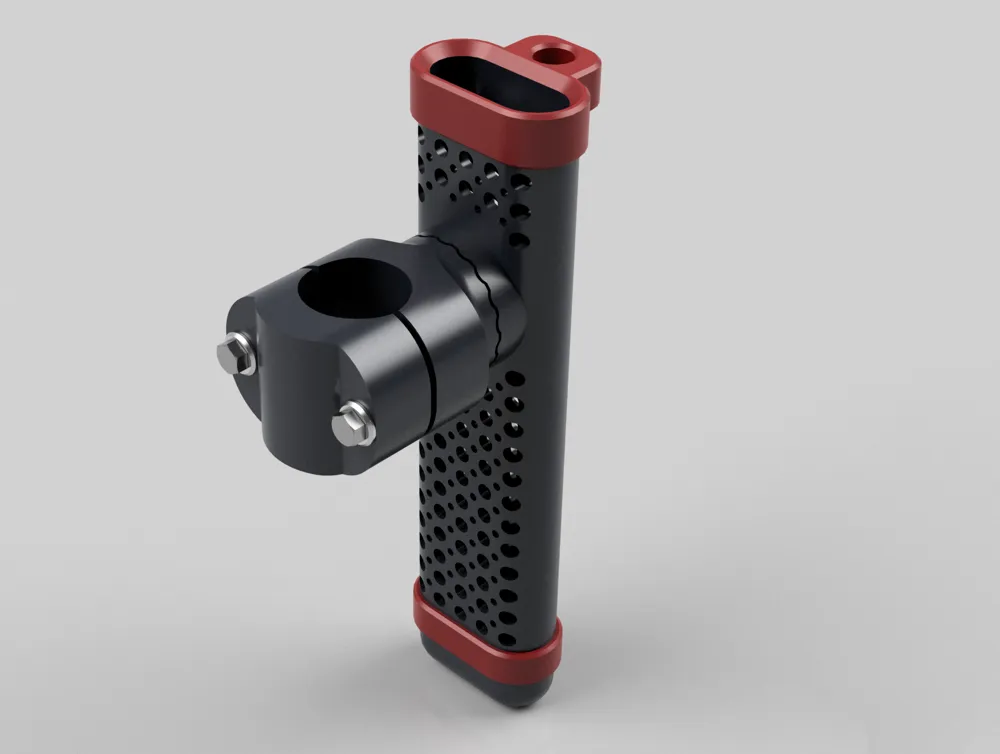

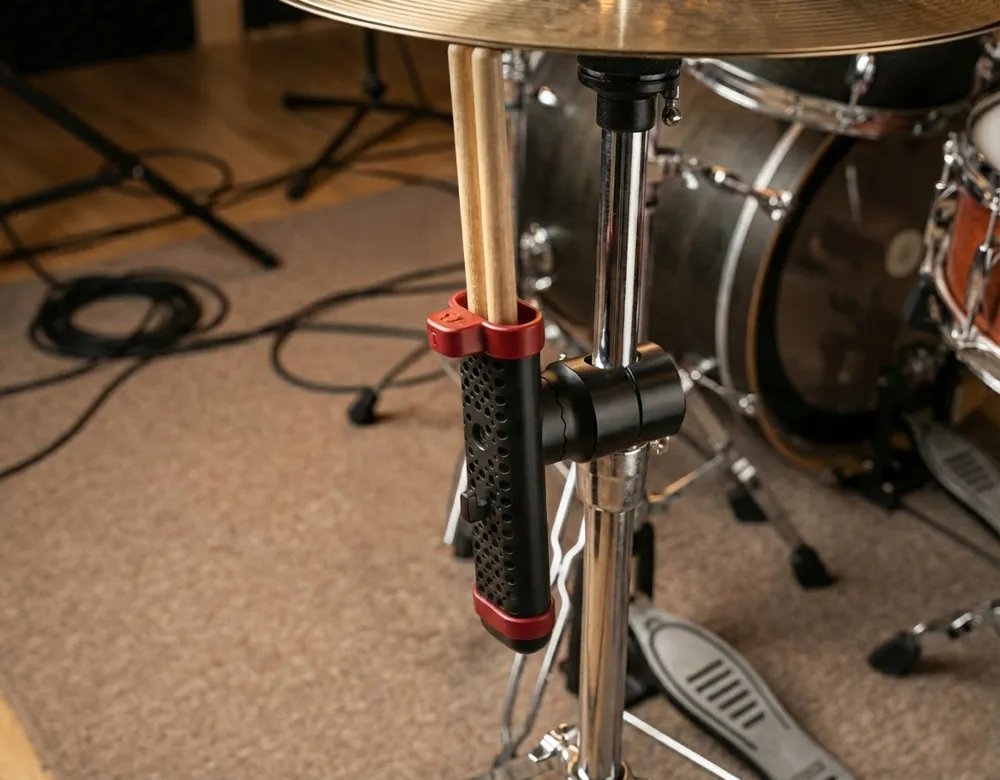

I wanted to design a 3d printed model of a drum stick holder that has a small form factor, while also having multiple uses. This holder clamps onto any standard cymbal stand and can pivot to any angle needed to reach your drumsticks perfectly while you're playing. To tighten the pivot point of the drumstick holder, use the included printed cap and any standard drum key to tighten and loosen the pivot bolt through the side opening on the main tube.

There is a built-in drum key holder at the top of the tube, as well as a hook for hanging your headphones case, in-ear headphones etc., near the middle. This entire design prints on one standard-sized 3d printer plate.

Fasteners List:

(2x) M5 35mm Hex Head Bolts

(2x) M5 Heat Set Inserts

(1x) M5 20mm Hex Head Bolt

(3x) Washers for the Bolts

(1x) Regular M5 Nut

------------------------------

If you download or print this model, I’d really appreciate it if you could leave a quick rating or share a photo of your result. Feedback helps me improve future designs, and seeing how others print and use it is always awesome. Thanks for the support, and happy printing!
