Bill of Materials
- Screw M3x8 x 6: Stainless steel screws
- Screw M3x10 x 3: Stainless steel screws. If you want to use the ground spike.
- Ceramic E27 socket x 1:
- Cable gland PG7 or PG9 x 1: Choose the gland size based on cable thickness. Use 1 or 2 glands depending on how many cables enter the lamp.
- 2 wire cable x 1:
- Led bulb x 1: Use an LED bulb with an E27 base and a maximum power of 4W.
Description

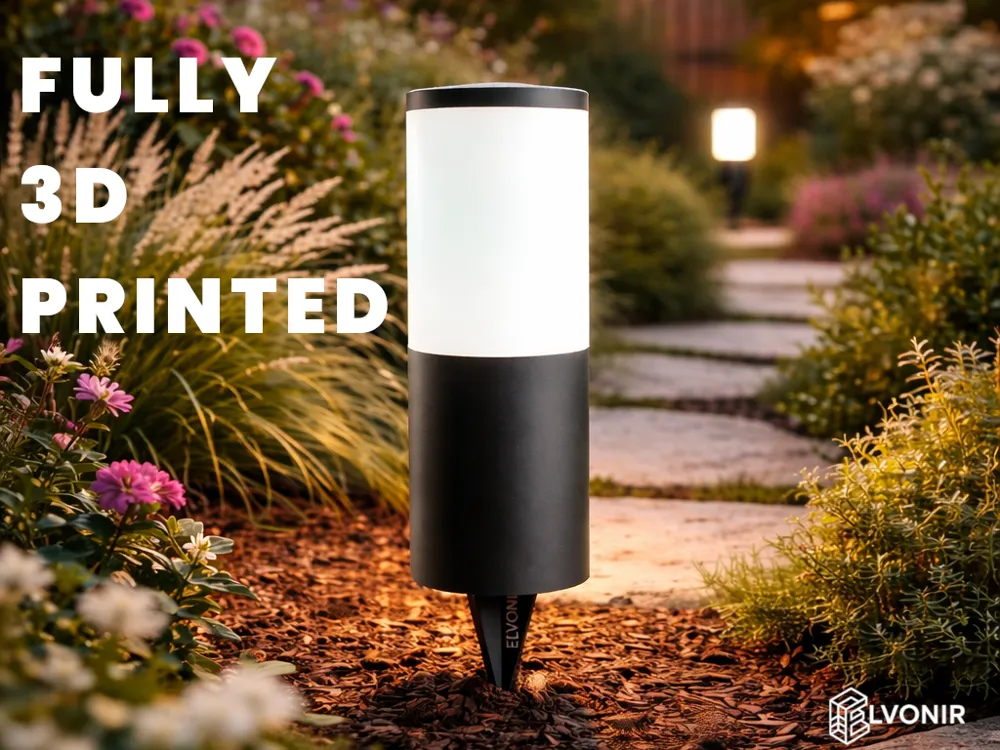

Looking for a fully 3D-printed garden lamp with a clean, modern look?
This minimalist cylindrical outdoor lamp is designed to be easy to print, simple to assemble, and great-looking in any garden or pathway setup.

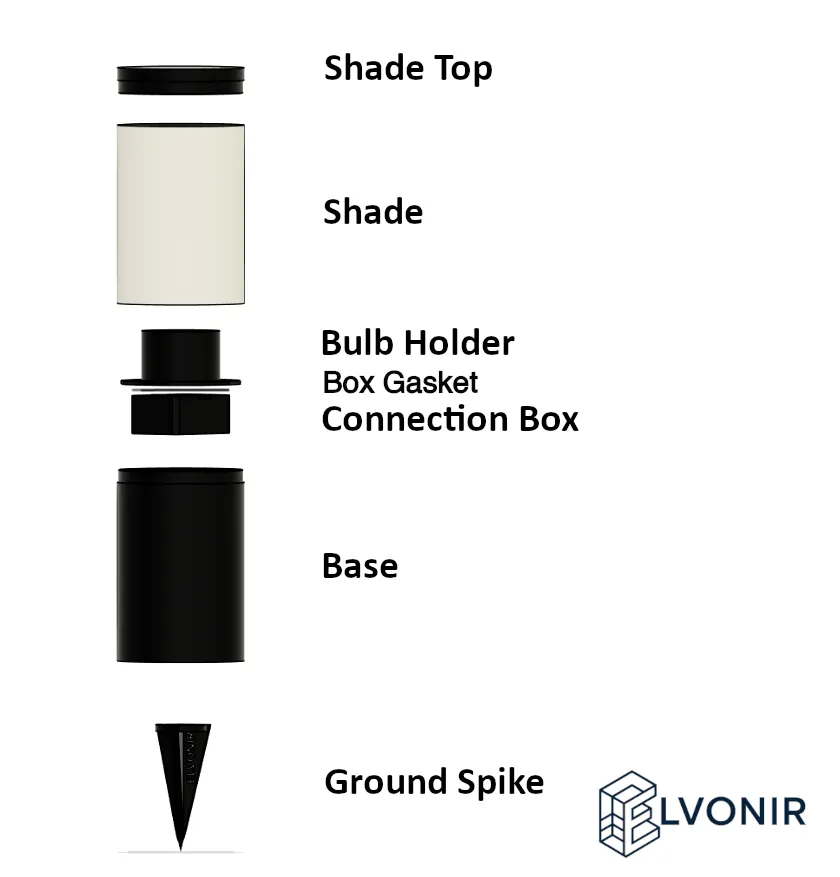

The model is modular and optimized for FDM 3D printing, making it compatible with most desktop printers. Thanks to smart geometry, support usage is kept to a minimum, ensuring clean surfaces and a hassle-free build.
All visible parts are 100% 3D printed. Only a few standard components are required:
- E27 ceramic bulb socket
- M3 screws (stainless steel recommended for outdoor use)
- Cable gland (PG7 or PG9, depending on wire diameter)
- Electrical wire for socket connection

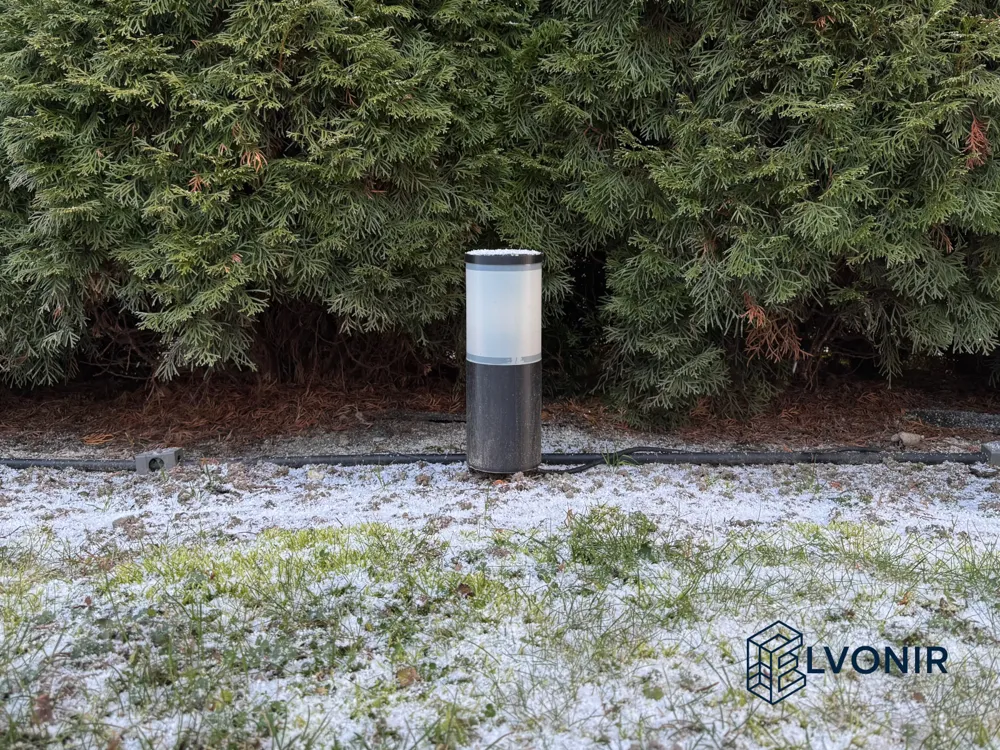

The lamp can be staked directly into the ground using the printable spike or mounted on a solid surface.
It stands 29 cm tall (without the ground spike) and has a 10 cm diameter.
Designed for standard E27 LED bulbs — maximum 4W recommended for safe operation and optimal thermal performance.

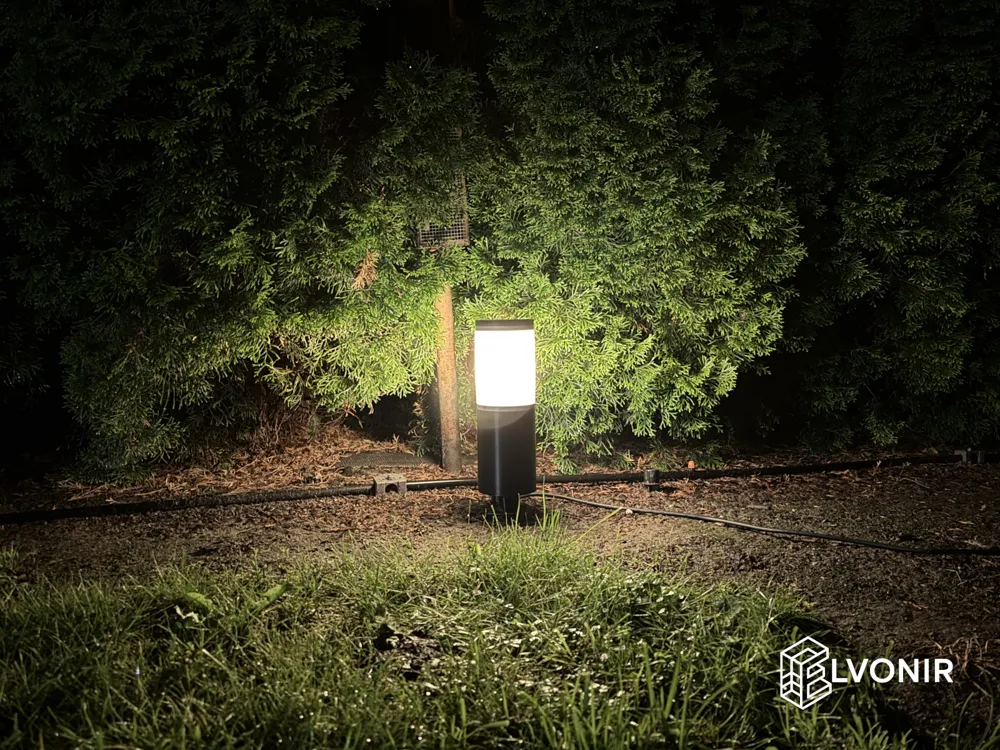

Works beautifully with both warm white and cool white light, allowing you to set the mood of your outdoor space.
🎥You can see the build process and final result here:
🔧Short video showing improvements to this lamp:
This project was designed, printed, and tested by ELVONIR.
Enjoy the build—and add a subtle, modern glow to your garden.
Safety notice:
The user is responsible for evaluating the safety of the assembled lamp.
For safety reasons, the author recommends using low-voltage DC power (12V or 24V).
